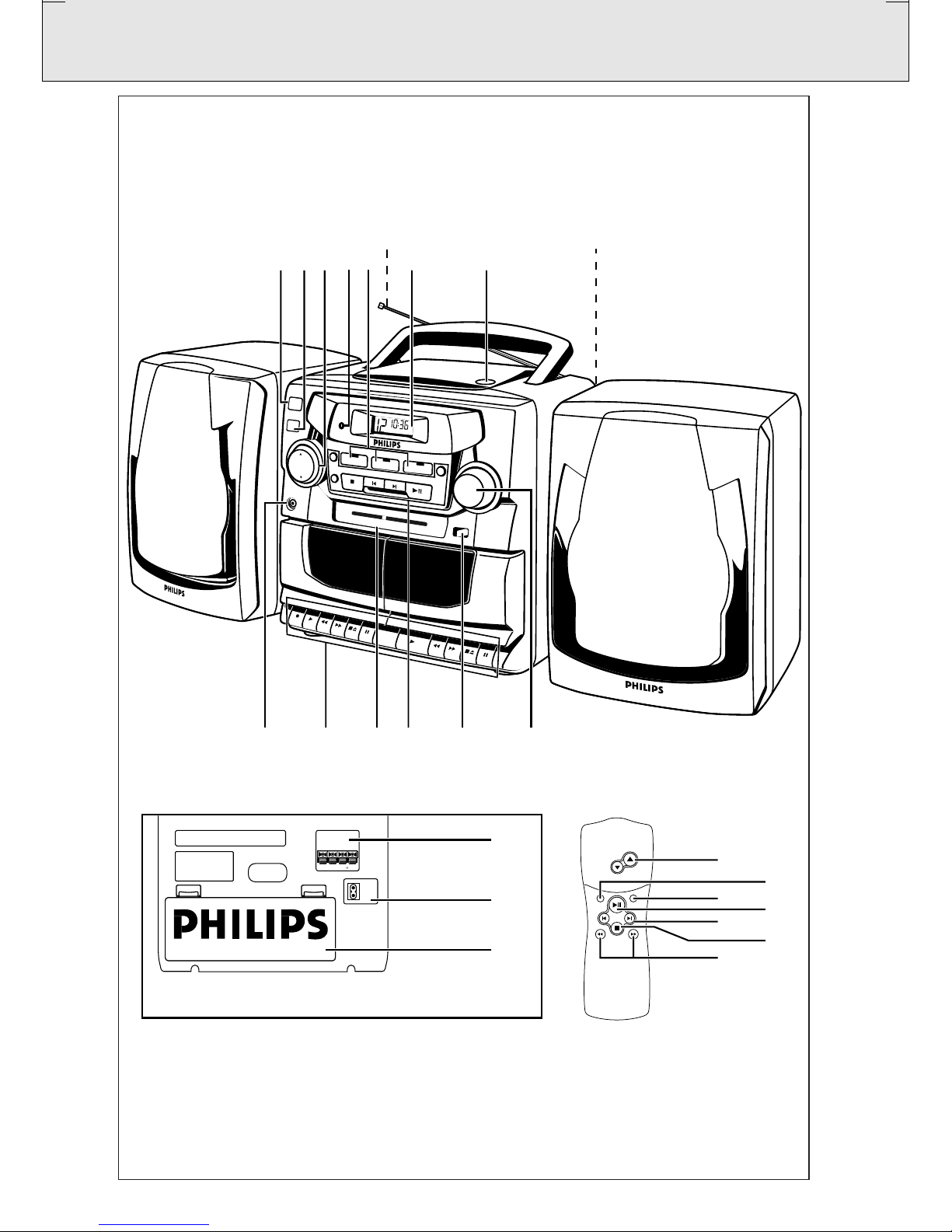

CONTROLS

TOP AND FRONT PANELS

1POWER - to switch the set ON/OFF

2DBB (Dynamic Bass Boost) - to enhance bass

response

3VOLUME 4, 3- to adjust volume level

4CD, TUNER, TAPE - to select source of

sound

5REMOTE SENSOR - for the remote control

6CD Display - to show the CD functions

7OPEN - to open/ close the CD door

8p3.5 mm socket for stereo headphone

connection

9CASSETTE RECORDER:

Deck 1:

RECORD 0- to start recording

PLAY 2- to start playback

SEARCH 5or 6- to fast rewind/wind the

tape.

STOP•EJECT 9/- to stop the tape and to

open the cassette

holder

PAUSE ;- to interrupt recording or playback

Deck 2:

PLAY 2- to start playback

SEARCH 5or 6- to fast rewind/ wind the

tape.

STOP•EJECT 9/- to stop the tape and to

open the cassette

holder

PAUSE ;- to interrupt recording or playback

0Tuning dial pointer

!CD PLAYER:

SHUFFLE - to play tracks CD/ programme in

random order

REPEAT - to repeat a track/ CD/ programme

STOP 9- to stop playback

- to erase a programme

SEARCH ¡/ ™- to skip or search a

passage/ track backwards

or forward

PLAY•PAUSE 2; - to start or interrupt

CD play

PROG - to programme and review

programmed track numbers

TUNER:

@BAND - to select FM/ MW waveband

#TUNING - to tune to radio stations

BACK PANEL

$Telescopic aerial - to improve FM

reception

%Speaker levers - to unlock the loudspeaker

boxes

^Speaker - loudspeaker terminals

&AC MAINS - socket for mains lead

*Battery door - to open the battery

compartment

REMOTE CONTROL

1VOLUME 4, 3- to adjust volume level

2SHUFFLE – to play tracks in shuffle order

3REPEAT - to repeat a track/ CD programme/

entire CD

42; – to start or interrupt CD play

5J, K– to skip tracks

6STOP 9– to stop playback or erase a

programme

7SEARCH 5or 6– to search back/

forwards within a track

AZ 2755 /14 page 5

English

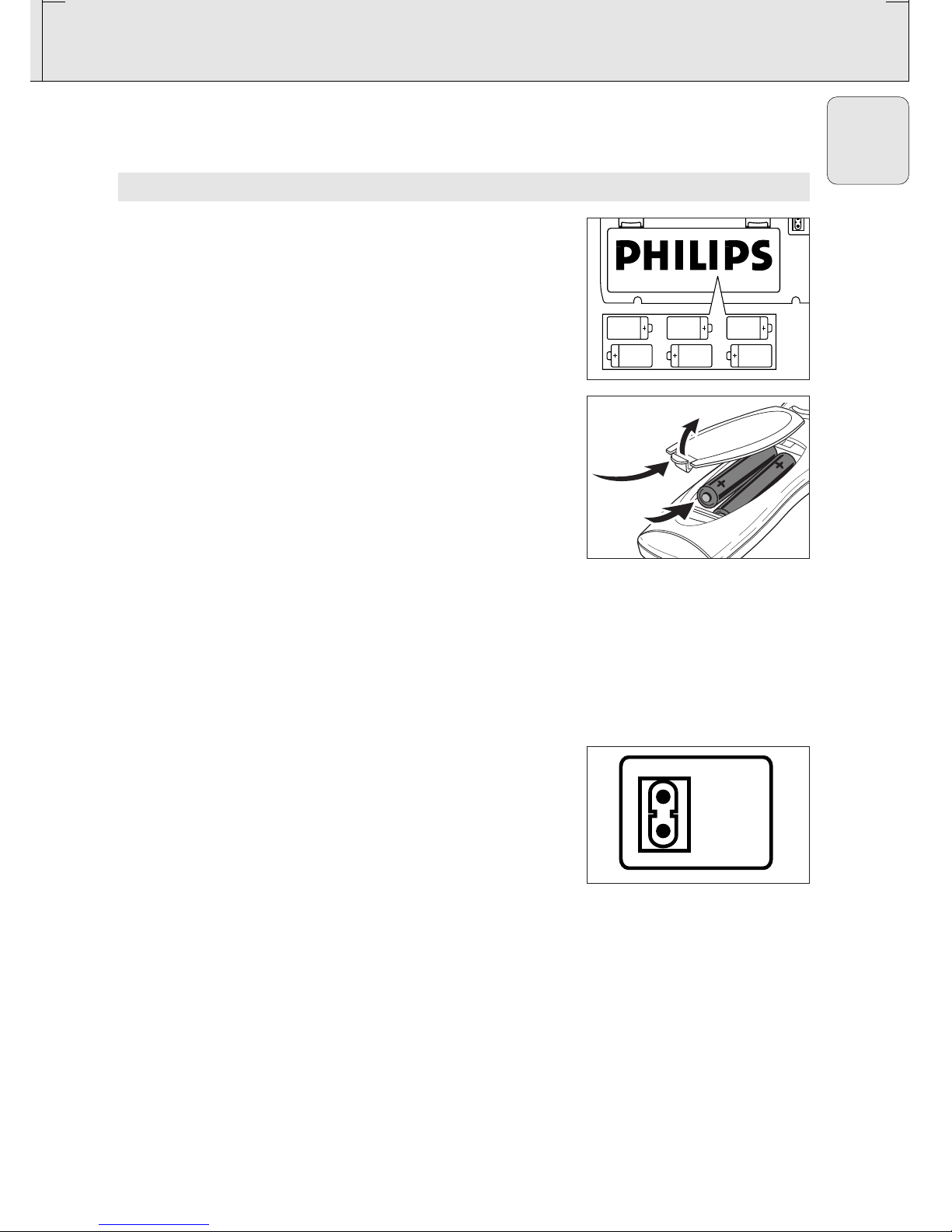

POWER SUPPLY

Whenever convenient, use the power supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

Open the battery compartment and insert six batteries, type

R-20, UM-1 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

Remote control (supplied)

Open the battery compartment and insert two batteries,

type AAA, R03 or UM4 (preferably alkaline).

Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

Remove the batteries if the set is not to be used for a long

time.

Incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst.

Therefore:

•

Do not mix battery types:

e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries

with the new ones.

• Remove the batteries if the set is not to be used for a long

time.

Using AC MAINS

Check if the MAINS voltage

as shown on the type plate

on the base of the set

, corresponds to your local power

supply. If it does not, consult your dealer or service centre.

Connect the mains lead to the MAINS socket and the wall

socket. The mains supply is now connected and ready for

use.

To switch off completely, withdraw the mains lead from the

wall socket.

–Disconnect the mains lead from the wall socket to protect

your set during heavy thunderstorms.

The type plate is located on the bottom of the set.

Switching POWER on/off: Save energy

Whether you are using mains or battery supply, to avoid

unnecessary energy consumption

always push the POWER

button to the off position after using the set.

MAIN

6 x R20•D-CELL•UM-1

MAINS

AZ 2755 /14 page 6

English

SPEAKERS RADIO

REMOVABLE LOUDSPEAKERS

Taking off the speakers

Keep the lever (found on the back corner of the speaker) pressed

and slide the speaker upwards.

Attaching the speakers

Slide the speakers from above into the sleeves on the sides of the

cabinet. The speakers will click into position.

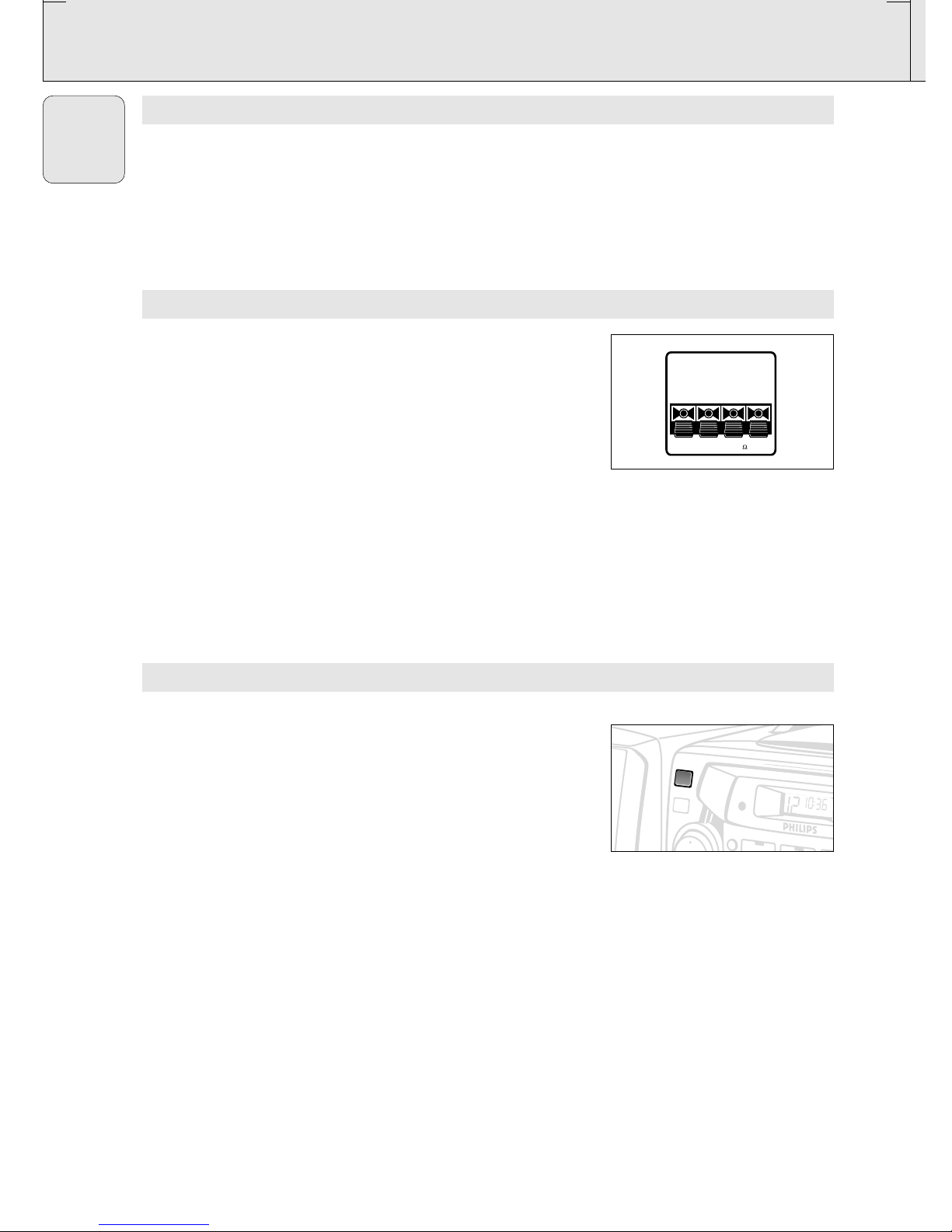

CONNECTING THE SPEAKERS

Connect the right speaker to the R terminal, with the red

marked wire to "+" and the black wire to "-".

Clip the exposed portion of wire into the corresponding colour

terminal.

Repeat the wiring procedure for the left speaker to terminal L,

making sure that you connect the red wire to "+" and black to

"-".

Note:

– Speakers with an impedance of 4 Ohms or higher other than as

supplied may be used instead. Speakers with a lower

impedance, however, are unsuitable and will damage your set.

– When headphones are inserted into the headphone socket

the speakers are disconnected.

GENERAL OPERATION

Press POWER to on position.

– A source indicator lights up.

Select and press your source button CD, TUNER or TAPE.

– The selected source indicator lights up.

Operate sound source according to the instructions of the

respective chapter about the function.

Adjust the sound using the VOLUME 4, 3and DBB controls.

– The volume level is briefly indicated in the display when you

adjust it.

Press POWER again to switch off the set.

– The selected source indicator goes out.

AZ2755 CD RADIO CASSETTE RECORDE

TUNER

SHUFFLE

POWER

DBB

SPEAKERS 4

+ R – + L –

AZ 2755 /14 page 7

English

RADIO CD PLAYER

RADIO RECEPTION

Press POWER to on position.

Press TUNER source button.

– The TUNER indicator lights up.

Adjust BAND to select the desired FM/ MW waveband.

Tune to a radio station using the tuning knob.

– For

, pull out the telescopic aerial. Incline and turn the

aerial. Reduce its length if the signal is too strong (very close

to a transmitter).

– For

, the set is provided with a built-in aerial so the

telescopic aerial is not needed. Direct the aerial by turning the

whole set.

Adjust the sound using VOLUME 4, 3and DBB.

Press POWER again to switch off the set.

– The TUNER indicator goes out.

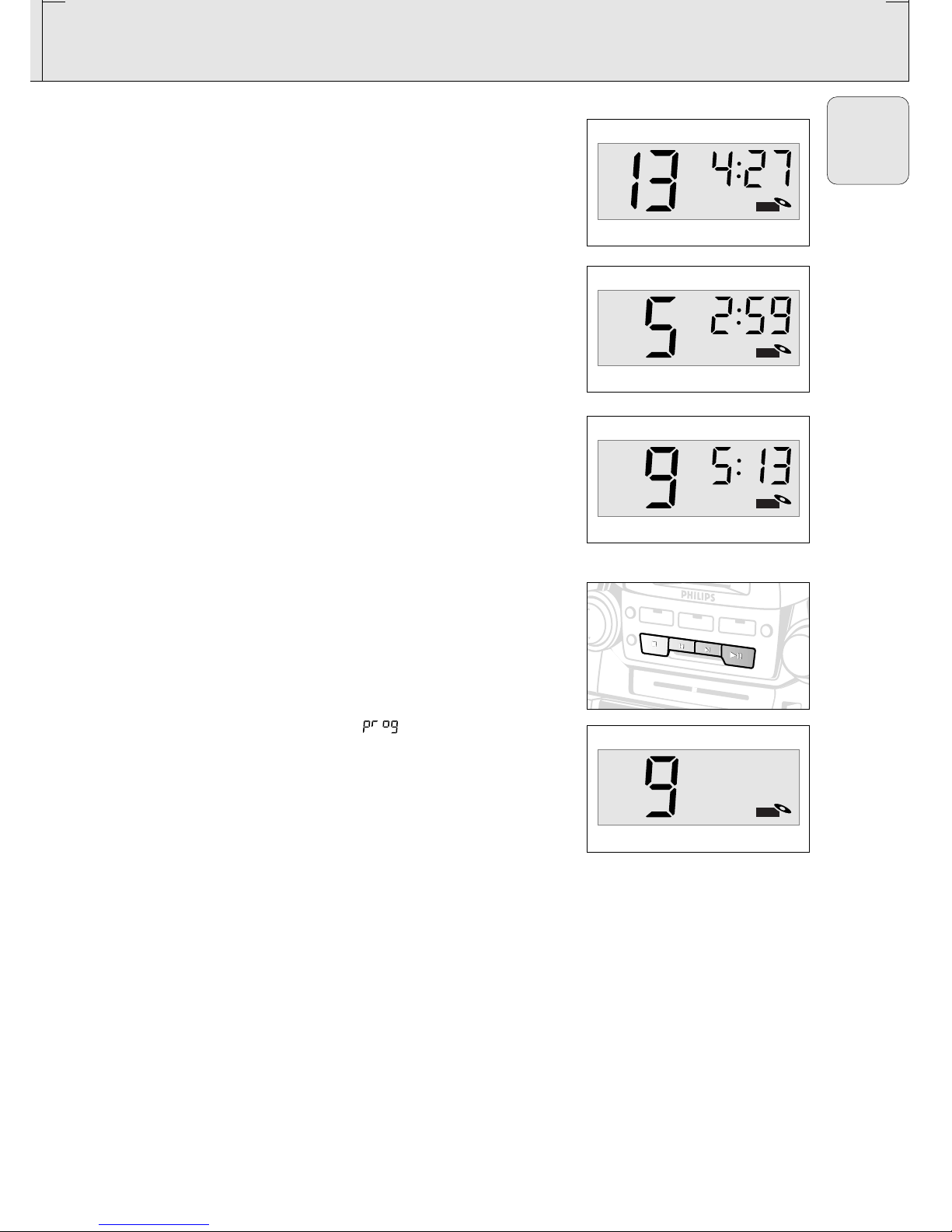

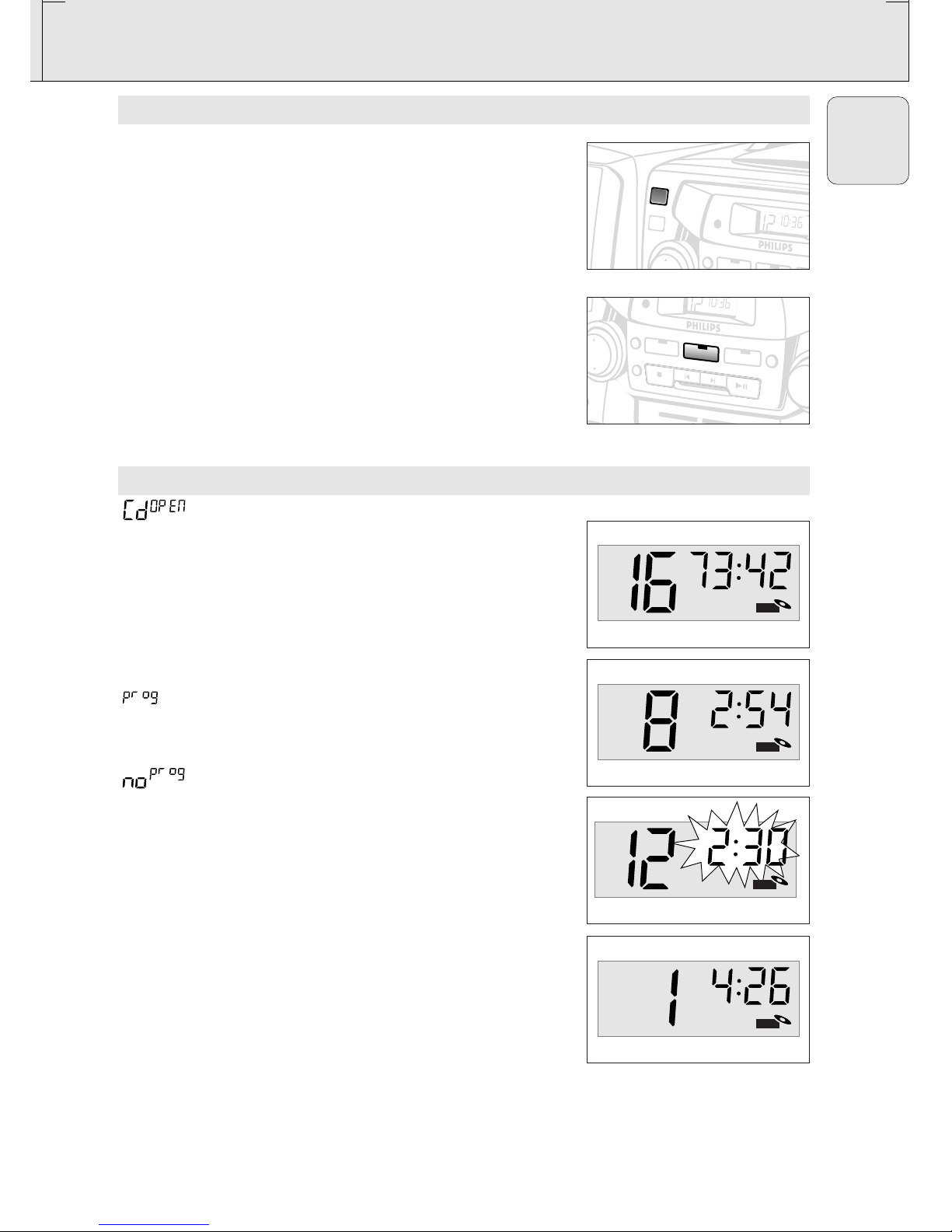

DISPLAY INDICATION FOR CD FUNCTIONS

CD door open

d1SC CD inserted

–In stop mode total track number and total playback time

–During CD

playback elapsed playback time of current track and

current track number

–PAUSE elapsed playback time freezes and flashes

when CD programme active;

also appears briefly when you store a track

no SEL programme activated but no tracks selected

programme cancelled/ PROG pressed for

more than 2 seconds

no d1SC no disc/error in CD operation or with the

CD (see Troubleshooting)

FULL programme memory full

–SHUFFLE/ REPEAT

modes when the respective mode is activated

SHUFFLE

REPEAT

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

BAN

TAPE PROG

MHz

•

100

•

104

•

108

MHz

KHz

530

600 700

AZ2755 CD RADIO CASSETTE RECORD

TUNER

SHUFFLE

POWER

DBB

AZ 2755 /14 page 8

English

CD PLAYER

Playing a CD

Press POWER to on position.

Press CD source button.

– The CD indicator lights up.

To open the CD door, press OPEN on the CD door.

Insert a CD with the printed side facing up and press the CD

door gently to close.

Press PLAY•PAUSE 2; on the set to start playback.

Adjust the sound using VOLUME 4, 3and DBB.

To interrupt playback press PLAY•PAUSE 2;. To resume,

press PLAY•PAUSE 2; again.

To stop CD play, press STOP 9.

Press POWER again to switch off the set.

– The CD indicator goes out.

Note: CD playback will also stop when:

– you press the CD door open;

–

TUNER

TAPE

source is pressed;

– the CD has reached the end.

Selecting a different track

During playback, you can use SEARCH J, Kto select a particular

track.

– If you have selected a track number in the stop or pause

position, press

PLAY•PAUSE 2;

to start playback.

• Press SEARCH Konce briefly for the next track, or press

repeatedly until the desired track number appears in the

display.

• Press SEARCH J once briefly to return to the beginning of a

current track.

• Press SEARCH J more than once briefly for a previous track.

Finding a passage within a track

Press and hold down SEARCH 5or 6on the remote control

(or J, Kon the set).

• The CD is played at high speed and low volume.

When you recognize the passage you want, release the

SEARCH controls.

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

MHz

•

100

•

104

•

108

MHz

KHz

530 600 700 900 11

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

MHz

•

100

•

104

•

108

MHz

KHz

530 600 700 900 1160 1340 1600

KHz

AZ2755 CD RADIO CASSETTE RECORD

TUNER

SHUFFLE

POWER

DBB

AZ 2755 /14 page 9

English

CD PLAYER

Different play modes : Shuffle and Repeat

The SHUFFLE and REPEAT buttons allow you to select various

play modes. The modes can be selected or changed during

playback.

SHUFFLE - all tracks are played in random order

REPEAT - plays the current track continuously

REPEAT ALL - repeats the entire CD

In the stop position or during playback, select your play mode

by pressing SHUFFLE or REPEAT once or more until the desired

play mode is shown.

– You can use SEARCH ¡or ™to skip tracks during the

SHUFFLE/ REPEAT modes.

The SHUFFLE/ REPEAT play options can be combined and used

with a programme: e.g. SHUFFLE REPEAT ALL - repeats the

entire CD in random order.

To return to normal playback press SHUFFLE/ REPEAT until

the various SHUFFLE/ REPEAT modes are no longer shown.

– You can also press STOP 9to quit the play mode.

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like,

store any track more than once.

In the stop position, press SEARCH ¡or ™ for your desired

track.

When your chosen track number appears, press PROG once to

store the track.

– The display shows 'PROG' and ' ' briefly followed by your

selected track number.

Repeat steps

and

to select and store all desired tracks in

this way.

SHUFFLE

REPEAT

SHUFFLE

REPEAT ALL

PROG CD

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

MHz

•

100

•

104

•

108

MHz

KHz

530 600 700 900 1160 1340 1600

KHz

English

CD PLAYER CASSETTE RECORDER

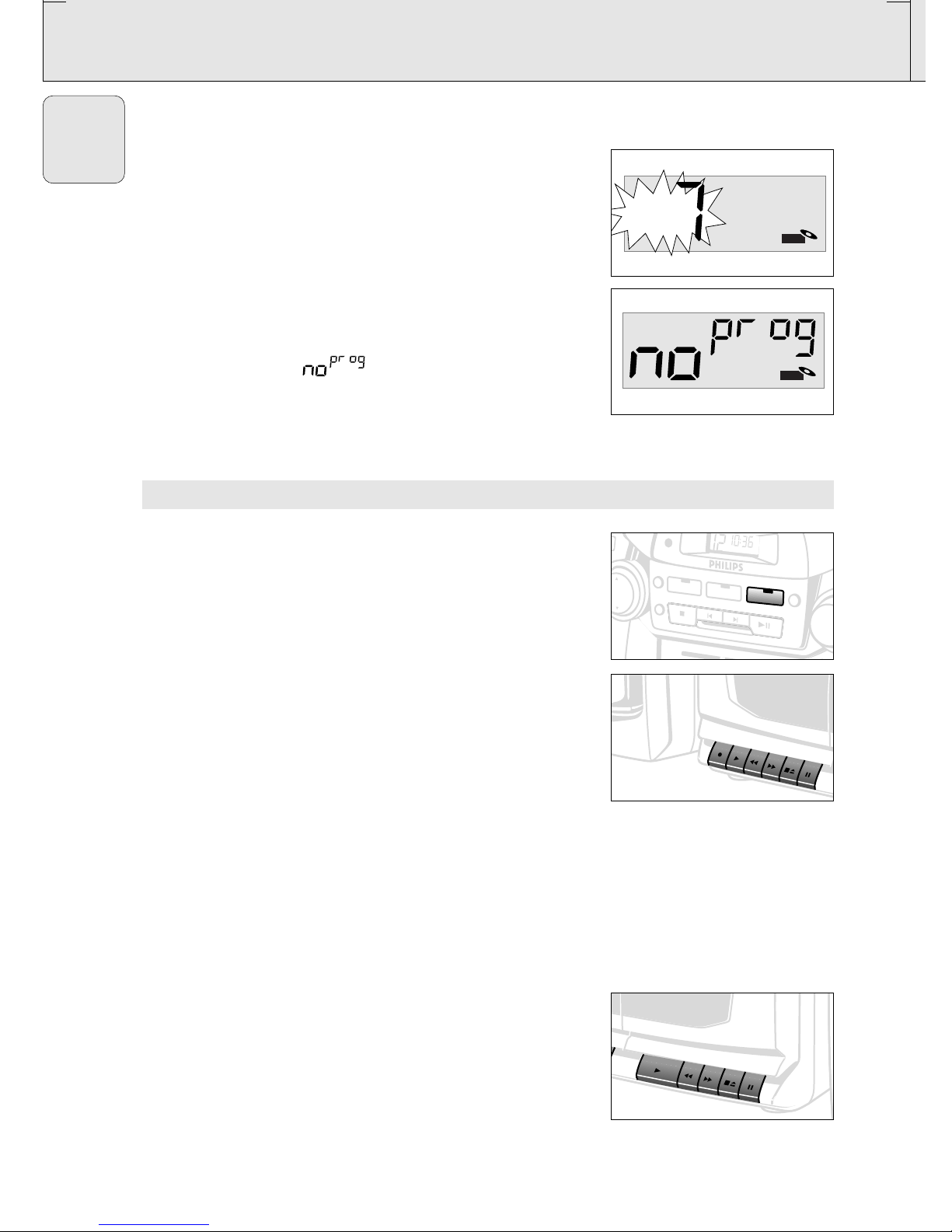

Reviewing your set programme

• In the stop position, press and hold down PROG for one

second or more.

The display shows all your stored track numbers in sequence.

– You can also review the programme during playback.

• To play your programme press PLAY/PAUSE 2;.

Erasing a programme

You can erase the contents of the memory by:

– pressing the CD door open;

– pressing TUNER or TAPE source button;

– pressing STOP 9twice during playback/ in stop position.

• The display shows ' ' briefly when the programme is

cancelled.

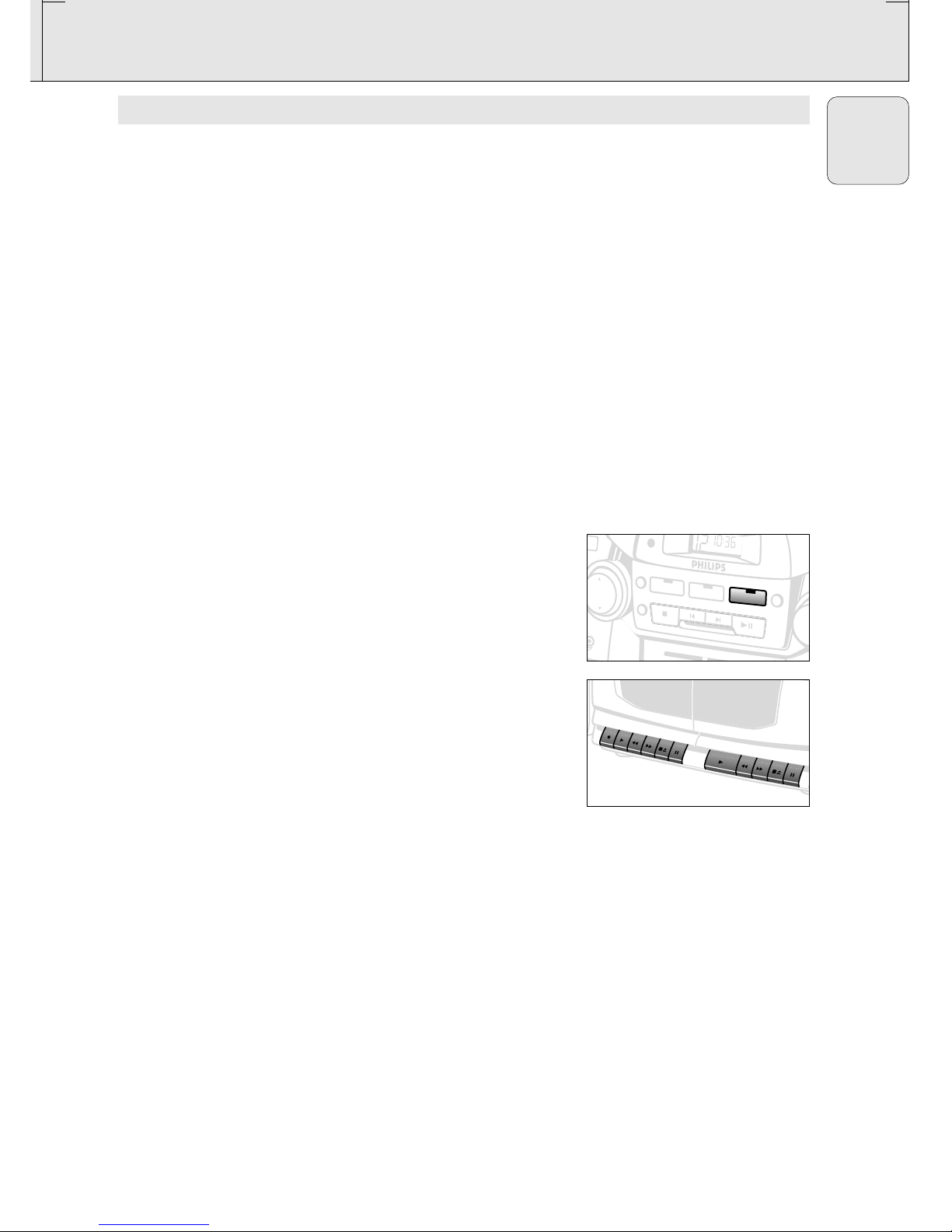

PLAYING A CASSETTE

Press POWER to on position.

Press TAPE source button.

–

The TAPE indicator lights up.

Press STOP•EJECT 9/to open the cassette holder and

insert a cassette.

Press the cassette holder shut.

Press PLAY 2to start playback.

Adjust the sound using the VOLUME 3, 4and DBB

controls.

To interrupt playback press PAUSE ;. To resume, press the

key again.

By pressing 5or 6, fast winding of the tape is possible in

both directions.To stop fast winding, press STOP•EJECT 9/.

To stop the tape, press STOP•EJECT 9/.

–

The keys are automatically released at the end of the tape,

except if PAUSE ;has been activated.

10.

Press POWER again to switch off the set.

– The TAPE indicator goes out.

Continuous Playback

Repeat steps

1 - 4

above, but load both decks. Press PLAY 2

on deck 2 and deck 2 will start.

Press PAUSE ;on deck 1 and then PLAY 2. As soon as

deck 2 stops (end of tape or STOP•EJECT 9/pressed),

PAUSE ;on deck 1 is released and deck 1 will start

playback.

PROG CD

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

DECK A

RECORD PLAYBACK

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

TAPE PROG

MHz

•

100

•

108

KHz

530

PLAY

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

DECK B

PLAYBACK

English

RECORDING

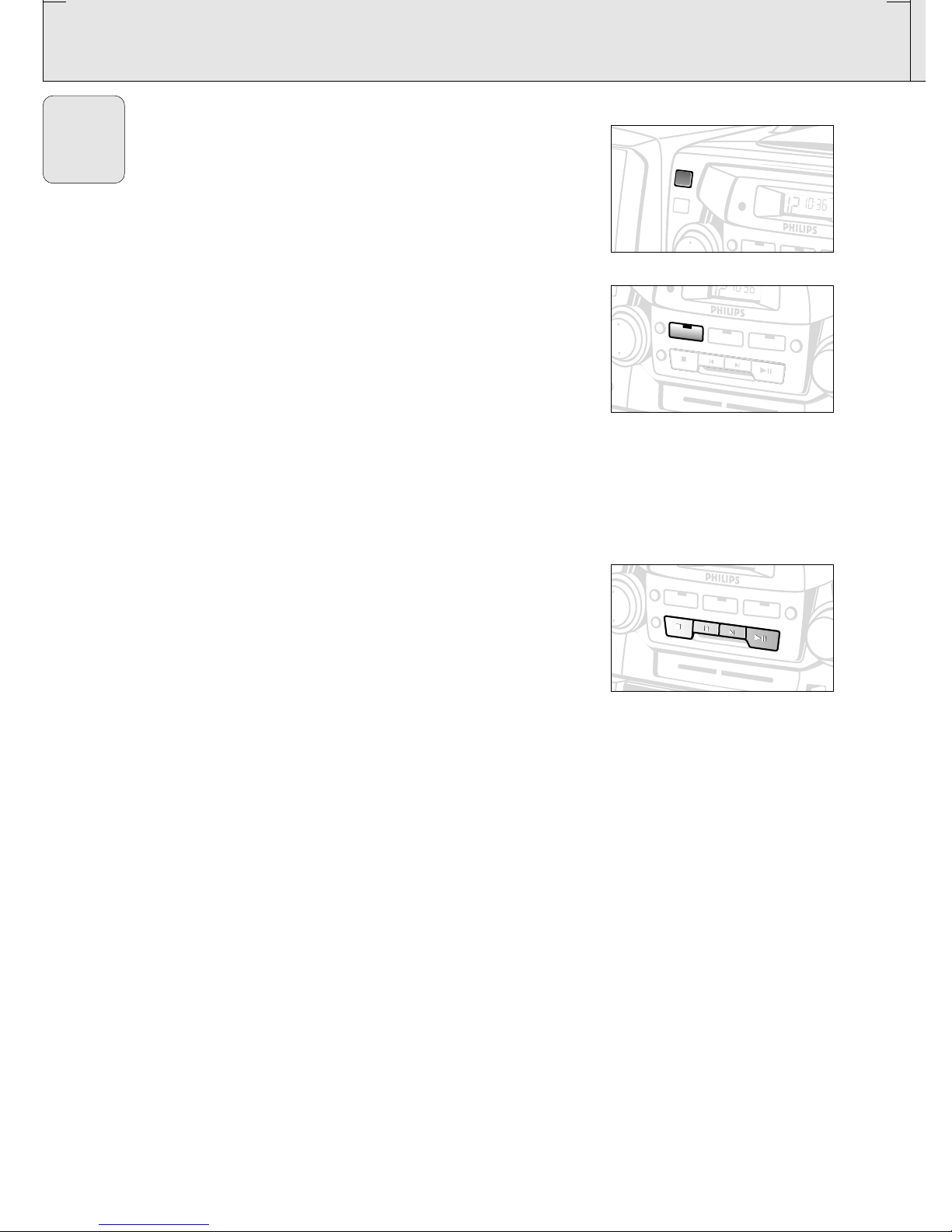

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• Recording is only possible on deck 1.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use NORMAL

type cassettes (IEC I) on which the tabs have not been broken.

• The best recording level is set automatically. Altering the

VOLUME and DBB controls will not affect the recording in

progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

Dubbing: Copying from deck 2 to 1

For best results, use mains power or fresh batteries.

Press TAPE source button.

Press both STOP•EJECT 9/ keys and insert a recorded tape

into deck 2 and a suitable tape for recording in deck 1.

Press PAUSE ;on deck 1 and then RECORD 0.

To start dubbing, press PLAY 2on deck 2. PAUSE ;on

deck 1 is then released.

– By pressing PAUSE ;on deck 1, you can omit undesired

passages while deck 2 continues. Press deck 1 PAUSE ;to

resume dubbing.

– Pressing PAUSE ;on deck 2 will create pauses.

To stop recording, press both STOP•EJECT 9/ keys.

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

BAN

TAPE PROG

MHz

•

100

•

104

•

108

KHz

530 600

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

SOURCE

SEL

ECT

SOURCE

LECT

DECK B

PLAYBACK

DECK A

RECORD PLAYBACK

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Système stéréo portable

Philips

Philips Expanium AZ 4000 Manuel utilisateur

Philips

Philips AZ 2402 Manuel utilisateur

Philips

Philips AZ 2600 Mode d’emploi

Philips

Philips SOUNDMACHINE AZ382 Manuel utilisateur

Philips

Philips AZ9055 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips AZ1133/12 Manuel d'utilisation

Philips

Philips Magnavox FW386C Manuel utilisateur

Philips

Philips AZ3300 Manuel utilisateur

Philips

Philips AZ 2755 Manuel utilisateur

Philips

Philips AZ1515 Manuel utilisateur

Philips

Philips FW 355C Manuel utilisateur

Philips

Philips MCS220 Manuel d'utilisation

Philips

Philips AZ9055 Manuel utilisateur

Philips

Philips CD Soundmachine AZ1047/12 Manuel utilisateur

Philips

Philips AZ1138 Manuel utilisateur

Philips

Philips AZ1575 Manuel utilisateur

Philips

Philips AZ 2045 Manuel utilisateur

Philips

Philips AZ 2804 Manuel utilisateur

Philips

Philips Soundmachine AZ3831 Manuel utilisateur

Philips

Philips AZ 2804 Manuel utilisateur

Philips

Philips AZ202C Manuel utilisateur

Philips

Philips AZ1018 Manuel utilisateur

Philips

Philips AZ 2000 Manuel utilisateur

Philips

Philips AZ 2755 Manuel utilisateur

Manuels Système stéréo portable populaires d'autres marques

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manuel utilisateur

LG SB159ST Manuel utilisateur

Manta

Manta BBX002 Manuel utilisateur

Sony

Sony ZS-BTG900 Manuel utilisateur

Memcorp

Memcorp Disney DB3000-P Manuel utilisateur

Sharp

Sharp GF-800HS Manuel utilisateur

Hyundai

Hyundai H-1443 Manuel utilisateur

Grundig

Grundig RR 300 CD Manuel utilisateur

Insignia

Insignia NS-BCDCAS1 Manuel utilisateur

Sony

Sony ZS-S10CP Manuel d'instructions d'installation

AudioSonic

AudioSonic 42373117 Manuel utilisateur

Akai

Akai A60009 Manuel utilisateur

Sony

Sony HCD-E301 Manuel utilisateur

Memorex

Memorex MW5554 Manuel utilisateur

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manuel utilisateur

GPX

GPX BC232 Manuel utilisateur

Panasonic

Panasonic SCSP100 - COMPACT STEREO SYSTEM Manuel utilisateur

RCA

RCA RP-7987 Manuel utilisateur
