Philips PET1031/12 Manuel utilisateur

PET1031Portable DVD player

www.philips.com/welcome

User manual

567 8 910

16 17 18 19 20 21 22

English

1Control elements and

functional components

1.1 Main unit controls

1.2 Disc door

1.3 Front of player

1.4 Bottom of the player

1.5 Right of player

1.6 Remote Control

2 Introduction

2.1 Your portable DVD player

2.2 Unpacking

2.3 Placement

2.4 Playable disc formats

2.4.1 DVD-Video

2.4.2 Video CD

2.4.3 Audio CD / MP3 CD /

WMA CD

2.4.4 CD with JPEG files

2.4.5 DivX video discs

2.4.6 About SD Memory Card

2.5 Zero Bright DotTM

2.6 Compatibility of the USB

connection on this portable

DVD player:

2.6.1 Music:

2.6.2 Picture:

2.6.3 Video (vary with models):

3General information

4Charging the units

4.1 Charge the DVD player

4.2 Powering your remote control

5Start up

5.1 Setup

5.2 Playback DVD

5.3 Playback VCD

5.4 Playback Super (S)-VCD

5.5 Playback Music CD

5.6 Playback Music MP3/WMA-CD

5.7 Playback Picture-CD

5.8 Playback from USB

6Addition Functions

6.1 DISPLAY Menu

6.2 Connection

6.2.1 Headphone

6.2.2 TV

6.2.3 USB

6.2.4 SD/MMC card slot

6.2.5 S Video

6.2.6 Component

Video(YPbPr/YCbCr)

7Troubleshooting

8Technical data

Content

Congratulations on your purchase and welcome to

Philips!To fully benefit from the support that Philips

offers, register your product at

www.philips.com/welcome.

1Control elements and functional components

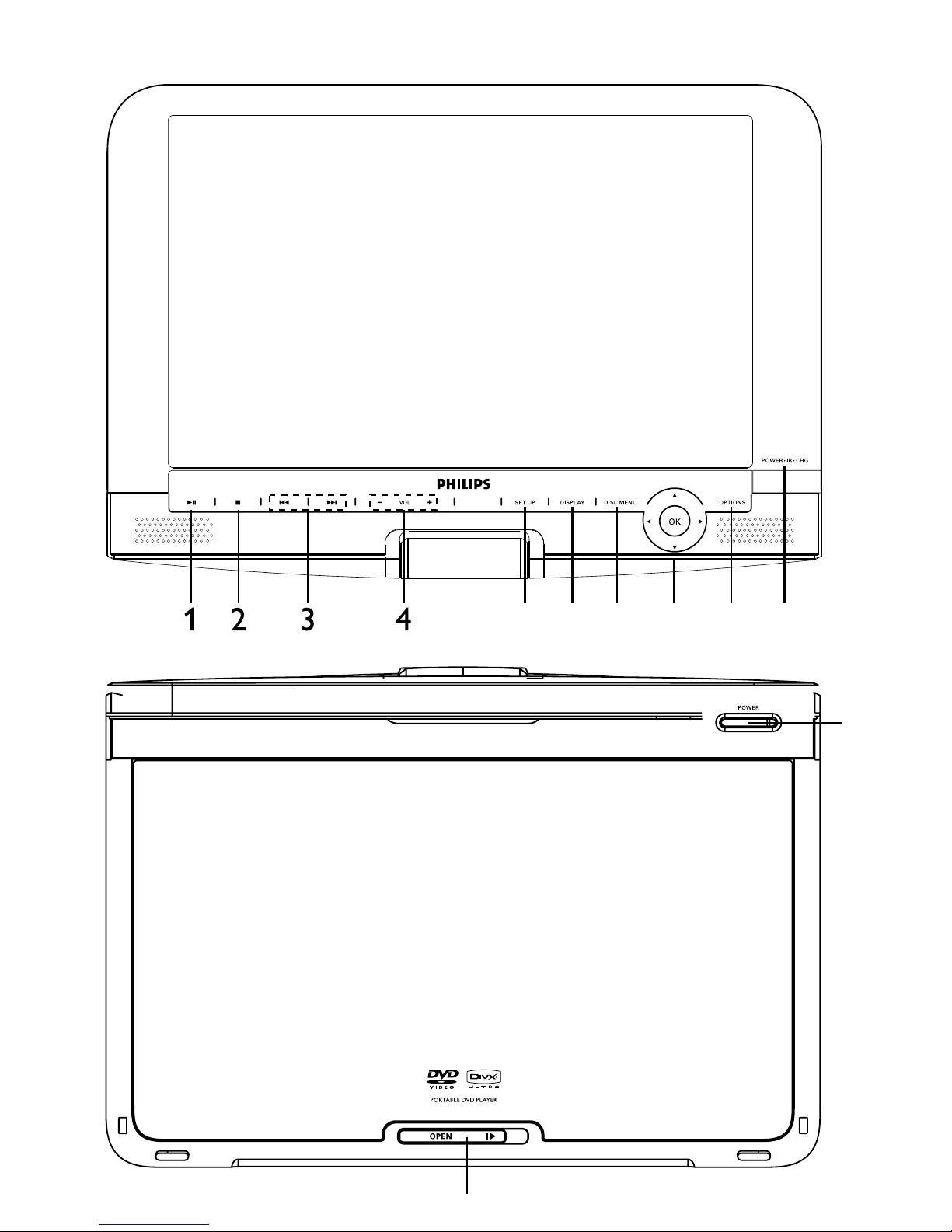

1.1 Main unit controls (see figure 1)

12; Start / pause / resume playback

29Press once to stop playback and store the stop

position. Press twice to stop playback completely.

3J( / )K previous/next track or fast search backward/forward

- VOL +

Volume control

5 SETUP Enter SETUP menu

6 DISPLAY Adjust the display value of the system

7 DISC MENU Display MENU page

83,4,1,2Up / down / left / right cursor

OK Confirm selection

9 OPTIONS Access additional functions

10 POWER•IR•CHR

Power / Remote sensor / charging indicator

1.2 Disc door (see figure 2)

11 POWER Switch the player on / off

12 OPEN .Open disc door to insert or remove disc

1.3 Front of player (see figure 3)

13 POWER•IR•CHG

Power / Remote sensor / charging indicator

1.4 Bottom of the player (see figure 4)

14 RESET Reset the player when it is hanged up

15 Car mounting screw hole

1.5 Right of player (see figure 5)

16 1p 2Headphones jacks

17 AV OUT Audio/Video output

18 USB USB connector

19 SD/MMC CARD

Insert SD/MMC card

20 S VIDEO

S video output

21 COMP. OUT

Component video output

22 DC IN 9V-12V Power supply socket

1.6 Remote Control (see figure 6)

1 MENU Display MENU page

23,4,1,2Up / down / left / right navigation key

OK Confirm selection

VOL+ / -Volume control

3 DISPLAY Adjust the display value of the system

4J( Skip to previous chapter, track or title

52; Start / pause / resume playback

69Press twice to stop playback

70- 9Numeric keypad

8 SUBTITLE Subtitle language selector

9 RETURN For VCD menu page

10 A - B To r epeat or loop a sequence in a title

11 SETUP Enter SETUP menu

12 OPTION Access additional functions

13 )K Skip to next chapter, track or title

14 sMute player volume

15 AUDIO Audio language selector

16 ZOOM Enlarge video image

CAUTION Use of controls or adjustments or performance

of procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

2 Introduction

2.1 Your portable DVD player

Your portable DVD player plays digital video discs conforming to the

universal DVD Video standard.With it, you will be able to enjoy full-

length movies with true cinema picture quality, and stereo or multi-

channel sound (depending on the disc and on your playback set-up).

The unique features of DVD-Video, such as selection of soundtrack

and subtitle languages, and of different camera angles (again depend-

ing on the disc), are all included.

What’s more, parental lock lets you decide which discs your chil-

dren will be able to see.You will find your player remarkably easy

to use with the On-Screen Display and player display in combina-

tion with the remote control.

2.2 Unpacking

First check and identify the contents of your package, as listed below:

•Portable DVD player • Remote Control

•Car adaptor (12V) • User manual

•AC power adaptor • Travel bag

•Audio/Video cable • Component cable

•Svideo cable

2.3 Placement

•Place the player on a firm, flat surface.

•Keep away from domestic heating equipment and direct sunlight.

•If the player cannot read CDs/DVDs correctly, try using a com-

monly available cleaning CD/DVD to clean the lens before taking

the player to be repaired. Other cleaning methods may destroy

the lens.

•Always keep the disc door closed to avoid dust on the lens.

•The lens may cloud over when the player is suddenly moved

from cold to warm surroundings. It is then not possible to play a

CD/DVD. Leave the player in a warm environment until the

moisture evaporates.

2.4 Playable disc formats

In addition to DVD-Video disc, you will also be able to play all

Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.

2.4.1 DVD-Video

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Titles, and each Title may have one or more

Chapters.To make access easy and convenient, your player

lets you move between Titles, and also between Chapters.

2.4.2 Video CD

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Tracks, and tracks may have one or more indexes,

as indicated on the disc case.To make access easy and convenient,

your player lets you move between tracks

and between indexes.

2.4.3 Audio CD / MP3 CD / WMA CD

Audio CDs / MP3 CD / WMA CD contain music tracks

only.You can play them in the conventional way through

a stereo system using the keys on the remote control

and/or main unit, or via the TV using the On Screen

Display (OSD).

2.4.4 CD with JPEG files

You can also view JPEG still photos on this player.

2.4.5 DivX ultra

DivX Ultra provides enhanced playback of advanced

media features like interactive menus, subtitles, and alter-

nate audio tracks supported by the DivX Media Format

2.4.6 About SD Memory Card

SD Memory Card is a slim and compact bridge media

linking various kinds of digital equipment through its easy

connectivity.The card's control circuitry allows data to be read and

written (in its protection area) only when appropriate external

devices are detected. Using decoder software, an SD Memory Card-

compatible device can play music, video clips and more without a

drive mechanism like those in CD and DVD players.

2.5 Zero Bright DotTM

Enjoy highest-quality images that are free from annoying

blank spots on the LCD screen. LCD displays commonly

have imperfections, termed as 'bright dots' by the LCD

industry.A limited number of bright dots were once considered an

inevitable side effect of LCD mass production.With Philips' strict

quality control procedures used in our Portable DVD Players, our

LCD displays are produced with zero tolerance for bright dots.

Select Portable DVD Players come with Philips Zero Bright DotTM

Policy to guarantee optimal screen quality.Warranty service varies

from region to region. Contact your local Philips representative for

more detailed information.

2.6 Compatibility of the USB connection

on this portable DVD player:

This portable DVD player supports most USB Mass storage devices

(MSD) that are compliant to the USB MSD standards.

—Most common Mass storage class devices are flash drives,

memory sticks, jump drives and etc.

—If you see a "Disc Drive" show up on your computer after you

plugged the mass storage device into your computer, most likely it

is MSD compliant and it will work with this portable DVD player.

If your Mass storage device required a battery / power source. Please

make sure you have a fresh battery in it or charge the USB device

first and then plug it into the portable DVD player again.
