TV Tour

1.1

Professional Mode

What you can do

In Professional Mode ON, you can have access to a

large number of expert settings that enable advanced

control of the TV’s state or to add additional

functions.

This mode is intended for installations of TV’s in

places such as hotels, cruise ships, stadia or any other

business area where such control is required.

If you use the TV at home, it is recommended to use it

in Professional Mode OFF.

Please consult the Professional installation manual

for further details.

Setting Up

2.1

Read Safety

Read the safety instructions first before you use the

TV.

2.2

Wall Mounting

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

• 43BFL2214

VESA MIS-F 100x200, M6 (min.: 6 mm, max.:8 mm)

• 50BFL2214

VESA MIS-F 200x100, M6 (min.: 18 mm, max.:22 mm)

• 55BFL2214

VESA MIS-F 200x100, M6 (min.: 10 mm, max.:20 mm)

• 65BFL2214

VESA MIS-F 200x200, M6 (min.: 12mm, max.:18mm)

• 70BFL2214

VESA MIS-F 300x300, M8 (min.: 12mm, max.: 25mm)

• 75BFL2214

VESA MIS-F 300x300, M8 (min.: 12mm, max.: 25mm)

Preparation

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

2.3

Tips on Placement

• Position the TV where light does not shine directly

on the screen.

• The ideal distance to watch TV is 3 times its diagonal

screen size. When seated, your eyes should be level

with the centre of the screen.

Note:

Please keep the TV away from dust-producing

sources such as stoves. It is suggested to clean the

dust regularly to avoid getting dust into the TV.

2.4

Power Cable

• Insert the power cable into the POWER connector

on the back of the TV.

• Make sure the power cable is securely inserted in

the connector.

• Make sure that the power plug, in the wall socket, is

accessible at all times.

• When you unplug the power cable, always pull the

plug, never pull the cable.

2.5

Antenna Cable

Insert the antenna plug firmly into

the Antenna socket at the back of the TV.

You can connect your own antenna or an antenna

signal from an antenna distribution system. Use an

IEC Coax 75 Ohm RF antenna connector.

Use this antenna connection for DVB-T and DVB-C

input signals.

Switching On and

Off

3.1

On or Standby

Make sure the TV is connected to the mains AC

power. Connect the supplied power cord to the AC

in connector at the back of the TV. The indicator light

at the bottom of the TV lights up.

Switch on

Press  on the remote control to switch the TV

on. Alternatively, press // Home. You can

also press the small joystick key on the back or

bottom of the TV to switch the TV on in case you can't

find the remote control or its batteries are empty.

Switch to standby

To switch the TV to standby, press  on the remote

control. You can also press the small joystick key on

the back or bottom of the TV.

In standby mode, the TV is still connected to the

mains power but consumes very little energy.

To switch off the TV completely, disconnect the

power plug.

When disconnecting the power plug, always pull the

power plug, never the cord. Ensure that you have full

access to the power plug, power cord and outlet

socket at all times.

3.2

Keys on TV

If you lost the remote control or its batteries are

empty, you can still do some basic TV operations.

To open the basic menu…

1 - With the TV switched on, press the joystick key on

the back or bottom of the TV to bring up the basic

menu.

2 - Press left or right to select  Volume,

 Channel or  Sources.

3 - Press up or down to adjust the volume or tune to

the next or previous channel. Press up or down to go

through the list of sources, including the tuner

selection.

4 - The menu will disappear automatically.

To switch the TV on standby, select  and press the

joystick key on the back or bottom of the TV.

Remote Control

4.1

Key overview

Top

1 -  Standby / On

To switch the TV on or back to Standby.

2 - Youtube

To open Youtube.

3 -  Alarm (Only in Professional Mode ON )

To set the alarm.

4 -  Google Cast (Only in Professional Mode ON

)

To mirror the content of your mobile device display

on to the TV.

5 -  Weather (Only in Professional Mode ON )

To show the weather information of your location.

6 -  SMART INFO (Only in Professional Mode

ON)

To show information provided by the Hotel.

Middle

1 -  SETTINGS

To open the settings menu.

2 -  TV GUIDE

To open a list of the current and scheduled TV

programmes of your channels.

3 -  BACK

• To switch back to the previous channel you

selected.

• To return to previous menu.

4 -  OPTIONS

To open or close the options menu.

5 - OK key

To confirm a selection or setting.

6 - Arrow / navigation keys

To navigate up , down , left  or right .

7 -  Channel

To switch to the next or previous channel in the

channel list.

8 -  EXIT

To switch back to watching TV.

9 -  HOME

To open the Home menu.

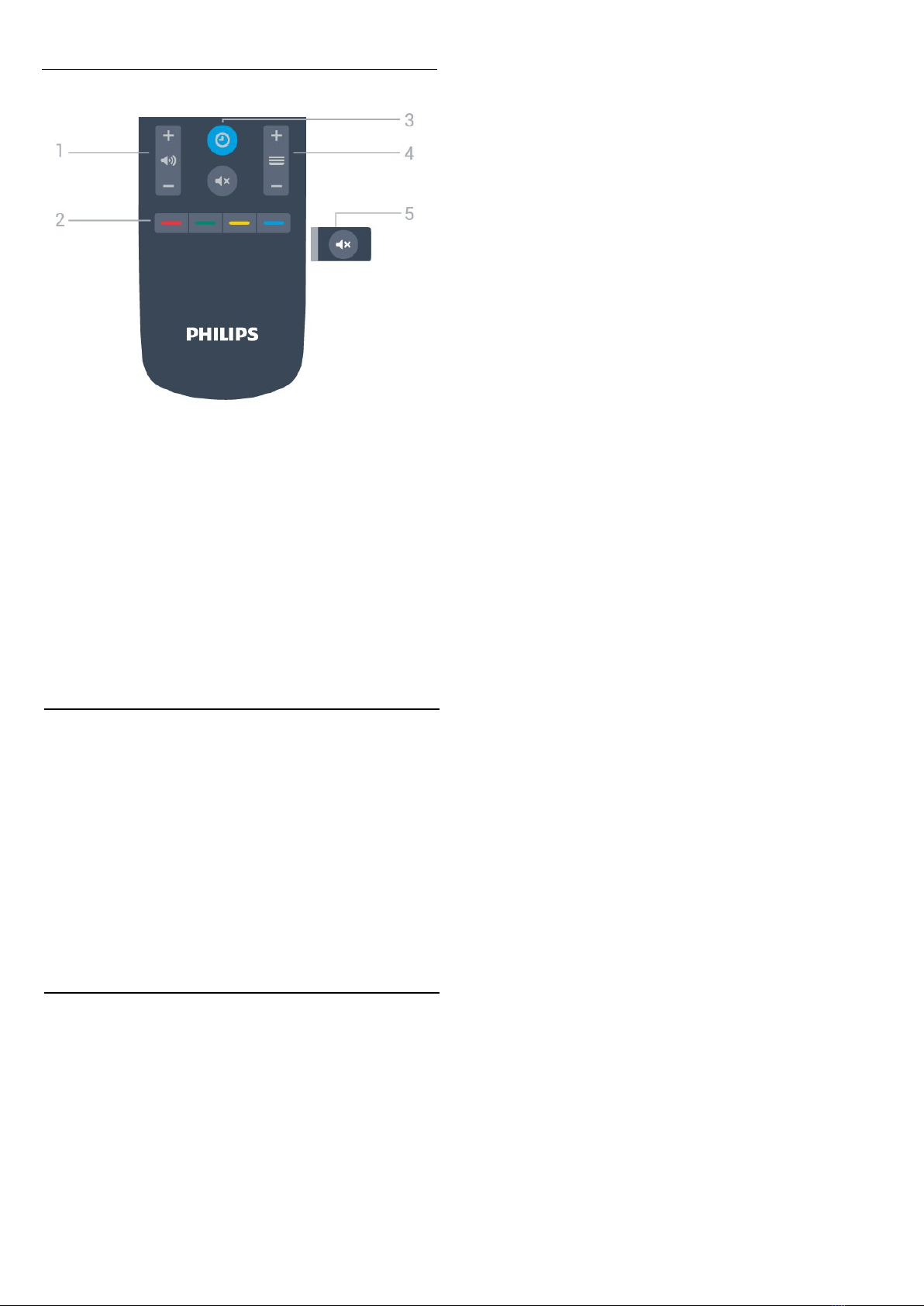

1 -  Volume

To adjust the volume level.

2 -     Colour keys

Direct selection of options.

3 -  CLOCK

To display the clock.

4 -  Channel

To switch to the next or previous channel in the

channel list.

5 -  Mute

To mute the sound or to restore it.

4.2

IR Sensor

The TV can receive commands from a remote control

that uses IR (infrared) to send commands. If you use

such a remote control, always make sure you point

the remote control at the infrared sensor on the front

of the TV.

 Warning

Do not put any objects in front of IR sensor of the TV,

it may block the IR signal.

4.3

Cleaning

Your remote control is treated with a scratch-resistant

coating.

To clean the remote control, use a soft damp cloth.

Never use substances such as alcohol, chemicals or

household cleaners on the remote control.

Bottom

Specifications

5.1

Environmental

Product Information sheet

EPREL registration number

43BFL2214/12 : 956378

50BFL2214/12 : 940372

55BFL2214/12 : 935869

65BFL2214/12 : 935898

70BFL2214/12 : 935914

75BFL2214/12 : 935932

End of Use

Disposal of your old product and batteries

Your product is designed and manufactured with high

quality materials and components, which can be

recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product is

covered by the European Directive 2012/19/EU.

Please inform yourself about the local separate

collection system for electrical and electronic

products.

Please act according to your local rules and do not

dispose of your old products with your normal

household waste. Correct disposal of your old

product helps to prevent potential negative

consequences for the environment and human

health.

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot be

disposed with normal household waste.

Please find out for yourself about the local rules on

separate collection of batteries because correct

disposal will help to prevent negative consequences

for the environment and human health.

5.2

Power

Product specifications are subject to change without

notice. For more specification details of this product,

see www.philips.com/support

Power

• Mains power : AC 220-240V +/-10%

• Ambient temperature : 5°C to 35°C

• Power saving features : Eco mode, Picture mute (for

radio), Auto switch-off timer, Eco settings menu.

5.3

Operating System

Android OS :

Android Pie 9

5.4

Display Type

Diagonal screen size

• 108 cm / 43 inch

• 126 cm / 50 inch

• 139 cm / 55 inch

• 164 cm / 65 inch

• 178 cm / 70 inch

• 189 cm / 75 inch

Display resolution

• 3840 x 2160

• 640 x 480 - 60 Hz

• 800 x 600 - 60 Hz

• 1024 x 768 - 60 Hz

• 1280 x 800 - 60 Hz

• 1280 x 960 - 60 Hz

• 1280 x 1024 - 60 Hz

• 1400 x 900 - 60 Hz

• 1400 x 1050 - 60 Hz

• 1600 x 1200 - 60 Hz

• 1680 x 1050 - 60 Hz

• 3840 x 2160 - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

5.6

Connectivity

TV Side

• Common Interface slot: CI+/CAM

• USB 1 - USB 3.0

• Headphones - Stereo mini-jack 3.5mm

• HDMI 1 in - ARC - Ultra HD

TV Back

• Network LAN - RJ45

• HDMI 2/3 in - ARC - ARC - Ultra HD

• Antenna (75 ohm)

• USB 2 - USB 2.0

• 8  Audio out

• DATA(RJ-48)

5.7

Sound

• Output power (RMS) : 20W

• Dolby Audio

5.5

Display Input Resolution

Video formats

Resolution — Refresh rate

• 480i - 60 H

• 480p - 60 H

• 576i - 50 H

• 576p - 50 H

• 720p - 50 Hz, 60 H

• 1080i - 50 Hz, 60 H

• 1080p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 H

Computer formats

Resolutions (amongst others)

Autres manuels pour 2214 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Moniteur

Philips

Philips 166V3L Manuel utilisateur

Philips

Philips Brilliance 499P9H Manuel utilisateur

Philips

Philips 32BDL3010Q Manuel utilisateur

Philips

Philips EVNIA 34M2C8600 Manuel utilisateur

Philips

Philips 42TA1800 - 1 Manuel utilisateur

Philips

Philips 170S8FS Manuel utilisateur

Philips

Philips 107B10 Manuel utilisateur

Philips

Philips BDL4211V Manuel utilisateur

Philips

Philips 170C4 Manuel utilisateur

Philips

Philips Brilliance BDM3275UP Manuel utilisateur

Philips

Philips 150B5CG Manuel utilisateur

Philips

Philips Brilliance 190BW9CB Manuel utilisateur

Philips

Philips 109B50 Manuel utilisateur

Philips

Philips E Series Manuel utilisateur

Philips

Philips 202F Instructions d'installation et d'utilisation

Philips

Philips 5214U Series Manuel utilisateur

Philips

Philips 107X53 Instructions d'installation et d'utilisation

Philips

Philips BDL4675XU - Manuel utilisateur

Philips

Philips 190B7CB - 19" LCD Monitor Manuel utilisateur

Philips

Philips 150P Instructions d'installation et d'utilisation

Philips

Philips 223E1SB Manuel utilisateur

Philips

Philips 43BDL3017P Manuel utilisateur

Philips

Philips 278C4QHSN/27 Manuel utilisateur

Philips

Philips 220VW8F Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur
