Philips 15B1322Q Manuel utilisateur

15B1322Q11

AutoScan Color Monitor

English Operating Instructions .................... 2 - 23

Français Mode d'emploi ……………... 24 - 45

Appendix

English Information for Users in the U.S. ........ A1

Declaration FCC ........ A2

Warranty/address ........ A3

TCO'95 A6 ........ A7

ENERGY DECLARATION ........ A8

Français Declaration FCC ........ A4

Deutsch Hinweis/GS/ACHTUNG ........ A5

IB7948B001

This "exclamation point" calls attention to a feature for which

you should read the enclosed literature carefully to prevent operating

and maintenance problems.

This "bolt of lightning" indicates that uninsulated material

within your unit may cause an electrical shock. For the safety

of everyone, do not remove product covering.

CAUTION

ATTENTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

CAUTION TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER(OR BACK)

NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

For Customer Use:

Enter below the Serial No. which is located on the

back of the cabinet. Retain this information for

future reference.

Model No. 15B1322Q11

Serial No.

NIntroduction

The PHILIPS 105B colour monitor displays sharp and brilliant images

of text and graphics with a maximum resolution up to 1280x1024 pixels.

It is optimal for Windows, CAD / CAM / CAE, desktop publishing,

spread sheets, multi-media, and any other application which demands

large screen size and high resolutions.

This monitor automatically scans horizontal frequencies from 30KHz to

70KHz, and vertical frequencies from 50Hz to 120Hz. With

microprocessor based digital controlled circuit, the monitor can

automatically adjust itself to the video card’s scanning frequency and

displays an image with precise parameters you desire.The wide range

of scanning frequency supports variety of operating platforms, such as

IBM PC and compatibles, Apple’s Macintosh, Quadra and Centris

families, Power PC and workstations.

FeatureHighlights

•On-Screen-Display function provides more informations when the

user operates the control functions. This feature provides user-

friendliness and ease-of-use when operating the monitor.

•Anti-Glare and Anti-Static screen coating eliminate any bad effects

caused by the screen surface such as reflection of the room lights

and dust attraction.

• With Color Adjustment function you can easily choose different

preset color temperatures or set your own customized color

parameters.

•ImageTilt Adjustment function provides correction of rotated image.

This correction can minimize the distortions caused by outside

environments, such as earth magnetic field.

• With built-in Audio Functions and Microphone the monitor can

connect with an MPC system, sound card, CD-ROM, or any sound

source to operate for multi-media applications.

•Green Design including automatic power saving function (NUTEK)

and low emission TCO'95 (15B1322Q) compliance shows our

commitment in environmental care.

•DDC1/DDC2B allows communication between the monitor and PC

system for optimal video configuration.

Note: If you experienced your monitor display is changing from color to

mono, it's possible that you are using a non-VESA-DDC-standard video

card. Please consult with your local Philips dealer for more information.

As an Energy Star partner, PHILIPS, has determined that this product

meets the Energy Star guidelines for energy effficiency.

ENERGY STAR is a U.S. registered mark.

IBM, IBM PC and Power PC are registered trademarks of International

Business Machines Corporation.

Apple, Macintosh, Quadra and Centris are registered trademarks of

Apple Computer, Inc.

Some of the functions mentioned above such as Audio and Tilt correction

are optional. You may have different options with the monitor you

purchased.

◆

Safety precautions and maintenance

◆Disconnect the monitor from the mains supply if the monitor is not to

be used for an extended period of time.

◆Do not attempt to remove the back cover, as you will be exposed to

a shock hazard.The back cover should only be removed by qualified

service personnel.

◆Do not place objects on top of the monitor cabinet, which could fall

into vents or which could cover them and prevent proper cooling of

the monitor’s electronic devices.

Do not expose the monitor to rain or excessive moisture to avoid the

risk of shock or permanent damage to the set.

◆Do not use alcohol or ammonia based liquid to clean the monitor. If

necessary, clean with a slightly damp cloth. Disconnect the monitor

from the mains supply before cleaning.

◆Consult a service technician if the monitor does not operate normally

when operating instructions of this manual are followed.

Package

Your PHILIPS 105B package includes the following items:

•The monitor (integrated with tilt / swivel pedestal)

•Power cord

•Interface cable (flying-in)

•Audio cable

•Microphone connector cable

•MAC adapter

End of life disposal

Your new set contains materials which can be recycled and reused.

Specialized companies can recycle your product to increase the amount

of reusable materials and to minimize the amount of materials to be

disposed of.

Please inform yourself on local regulations on disposal of your old set.

Installation

Important: Please refer to the user’s manuals of your computer

and video adapter to make sure these equipments are properly

installed and configured before installing the monitor.

Positioning / Ventilation

◆Avoid exposing the monitor to direct sunlight, stoves or any other

heat sources.

◆To prevent overheating, make sure that the ventilation openings of

the monitor are not covered.

◆Keep moisture and dust away.

◆Keep away from any magnetic objects, such as speakers, electric

motors, transformers, ...etc.

◆When positioning this monitor, make sure that the mains plug and

socket are easily accessible.

Pedestal

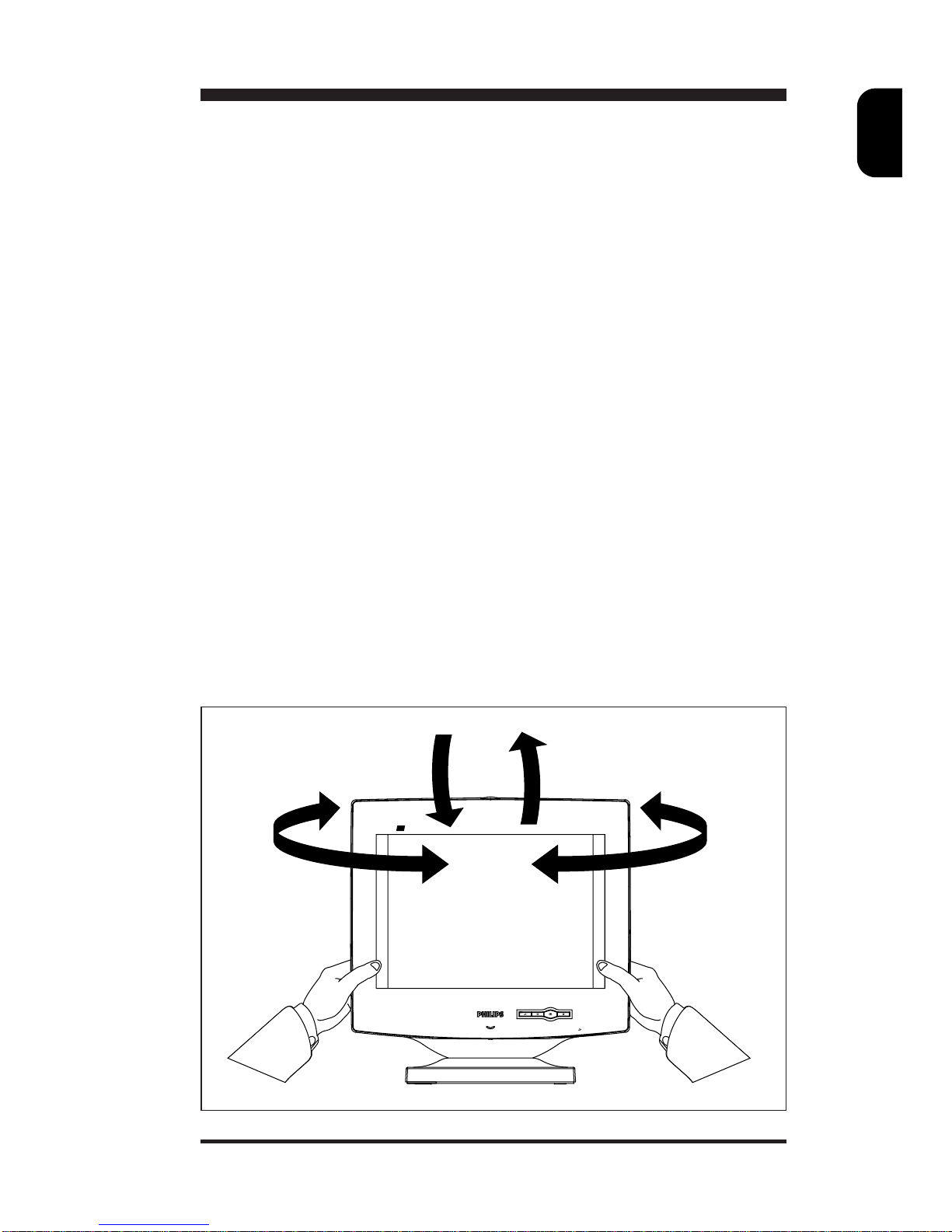

With the built-in pedestal you can tilt and / or swivel the monitor for a

most comfortable viewing angle.

105

Monitor rear view

Important: Please make sure the AC power to your computer is

“OFF”before connecting or disconnecting any display

peripheral. Failure to do so may cause serious personal injury

as well as permanent damage to your computer equipments.

Connection

1. IBM PC, PC/XT, PC/AT, PS/2, or the compatibles:

•Connect the monitor to the computer using the supplied interface

cables. Connection with computer system other than IBM PC or

Apple computers may need different type of adapters.Please consult

your computer supplier for these adapters. Connect the shielded

power cord to a wall outlet after the interface cable is properly

connected.

Apple adapter

VIDEO IN

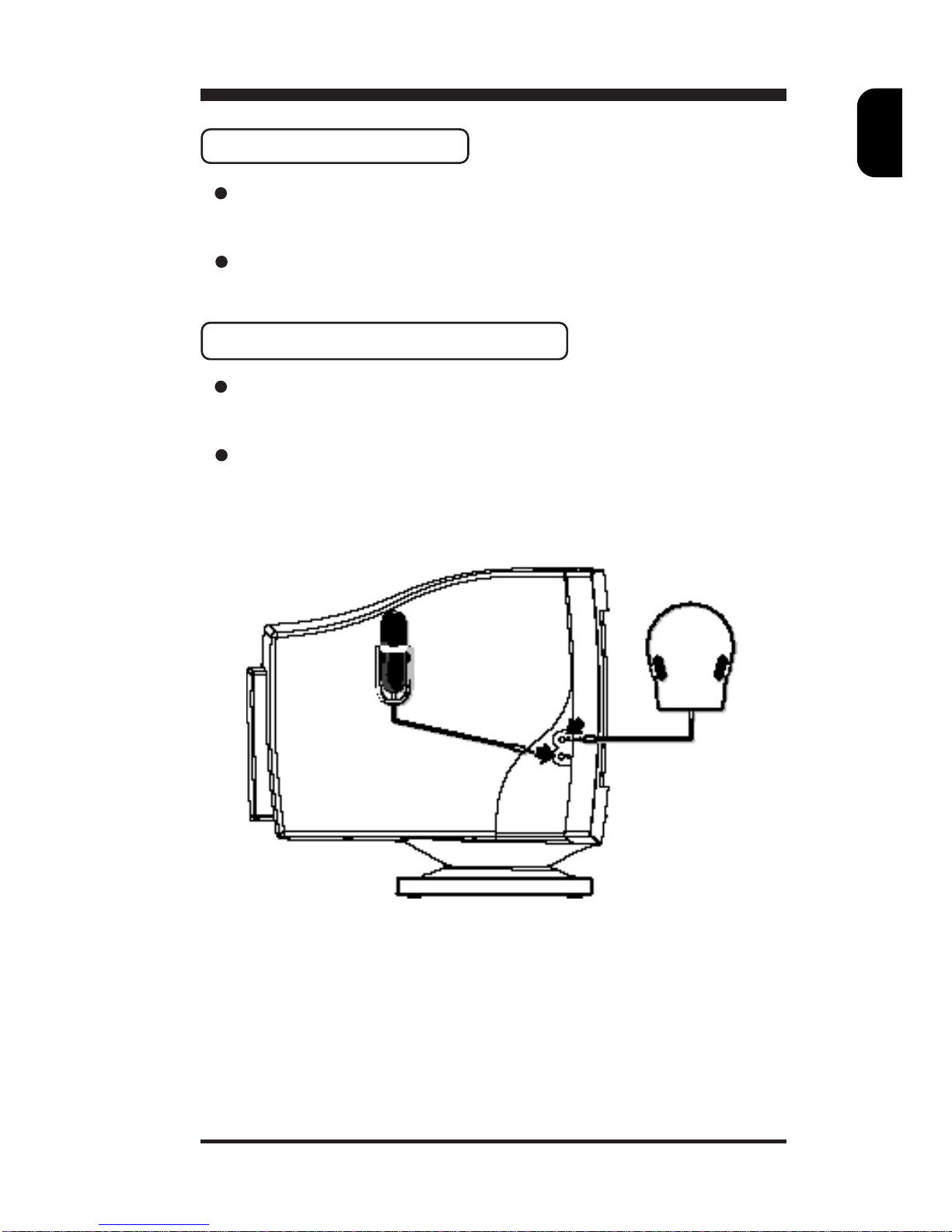

2.Earphone Connection :

Connect your earphone plug (must be mini Jack type) to the

earphone connector on the left side of the monitor.

The speakers will be switched off when earphone is plugged in.

3.External Microphone Connection :

Connect your microphone plug to the microphone connector on

the left side of the monitor.

The internal microphone will be switched off when external

microphone is plugged in.

Descriptions of knobs and keypads on front control panel

➀•Rotary control knob (adjust OSD function).

➁•Activate/terminate contrast OSD menu.

➂•Activate/terminate OSD main menu.

√•Activate/terminate brightness OSD menu.

➄•Activate/terminate volume OSD menu.

Control locations and functions

Monitor control panel

CONT RA S T

45%

BRIGHTNESS & CONTRAST

BRIGHTNESS

45%

VOLUME

45%

①②③④⑤

First level Second level Third level

SIZE & POSITION

HORIZONTAL POSITION

HORIZONTAL SIZE

VERTICAL POSITION

VERTICAL SIZE

CANCEL

GEOMETRY

COLOR TEMPERATURE

SPECIAL

ROTARY DEFAULT

USER COLOR #1

6500K

9300K

USER COLOR #2

RED

GREEN

BLUE

SAVE

CANCEL

POWER SAVING

DEGAUSSING

SAVE

CANCEL

RECALL PRESETS

RECALL COLOR TEMPERATURE

RECALL SIZE & POSITION

RECALL ALL PRESETS

SAVE

CANCEL

DEFAULT BRIGHTNESS

DEFAULT CONTRAST

DEFAULT VOLUME

SAVE

CANCEL

LANGUAGE

DISPLAY MODE

ENGLISH

FRANCE

GERMAN

ITALIAN

SPANISH

SAVE

CANCEL

SAVE

BRIGHTNESS & CONTRAST BRIGHTNESS

CONTRAST

SAVE

CANCEL

TRAPEZOID

PIN/BARREL

TILT

SAVE

CANCEL

SAVE

CANCEL

SAVE

CANCEL

Yes

AUDIO

EXIT

VOLUME

OSD main menu tree structure

NOn-Screen-Display

Activating the On-Screen-Display

The monitor controls are accessed by pressing button to enable

OSD (On-Screen-Display).The main menu will be displayed as follows.

Each Sub-Menu (1-10) is selected by highlighting it via the rotary control

and pressing button to confirm. To exit OSD, highlight at the

bottom of the main menu and press select button .

While operating Sub-Menu, please use rotary control to select or

adjust and press button to confirm.

Note: If adjustment or selection of any OSD menu is not made for more

than 12 seconds, the current setup will be saved and the OSD will

disappear automatically.

Sub Menu-1: BRIGHTNESS & CONTRAST

●BRIGHTNESS : Adjusts background brightness

BRIGHTNESS & CONTRAST

BRI GHTNESS BRI GHTNESS

45%
