Philips 150P3A Manuel utilisateur

FCC ID: A3KM108

Product Information

Product Features •Technical Specifications •Resolution & Preset

Modes •Philips Pixel Defect Policy •Automatic Power Saving •

Physical Specification •Pin Assignment •Product Views •Physical

Function

Product Features

150P3A / 150P3C

Ultra Slim Frame

l15-inch color LCD monitor with excellent display performance

lStereo 48W PMPO (2 x 2W RMS)

lDual input- accepts both DVI Digital and VGA analog inputs

lEmbedded universal AC power supply

lAdjustable viewing height

lPortrait and landscape display

lAUTO adjustment optimizes picture quality

lUser installable bezel for optional protective cover choice

lOptional USB hub

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

•Type TFT LCD

•Screen size 15" visual

•Pixel Pitch 0.297 x 0.297mm (15.0")

•LCD Panel type

1024 x 768 pixels

R.G.B. vertical stripe

Anti-glare polarizer hardness

•Effective viewing

area 304.1 x 228.1mm (15.0")

•Display Colors 16.7M colors

SCANNING

•Vertical refresh

rate 56Hz-76Hz

•Horizontal

30KHz-61KHz

Exhibit 3

Installstion and Operating instructions

FCC ID: A3KM108

•Horizontal

frequency

30KHz-61KHz

VIDEO

•Video dot rate 80 MHz

•Input impedance

Video 75 ohm

Sync 5K6 ohm

•Input signal levels 700m Vpp

•Sync input signal

Separate sync

Composite sync

Sync on Green

•Sync polarities Positive and negative

•Input Frequency

XGA Hsync 48- 61 KHz, Vsync 60 - 76 Hz (N.I.)

SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.)

VGA Hsync 31- 38 KHz, Vsync 60 - 76 Hz (N.I.)

•Video interface Dual input: Both Analog (D-Sub) and DVI-D

(Digital only) are available. It can be switching

via OSD selection.

AUDIO

•Input signal level 0.7 Vpp

•Headphone out

signal level 32 Ohm 20+20mW

•Input signal

connector 3.5mm mini jack

•Loudspeaker 2+2W stereo front firing (PMPO: 48W)

MICROPHONE

•Sensitivity -55dB re 1V/ubar at 1KHz

•Output

impedance 2.2K Ohm max.

•Directivity -5dB at 180°

•Frequency range 300Hz-3KHz

OPTICAL CHARACTERISTICS

•Contrast ratio 350 (typ.)

•Brightness 250 cd/m2(typ.)

•Peak contrast

angle 6 o'clock

•White

x: 0.281 y: 0.311 (at 9300°K) x: 0.312 y: 0.338

FCC ID: A3KM108

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

RETURN TO TOP OF THE PAGE

•White

Chromacity

x: 0.281 y: 0.311 (at 9300°K) x: 0.312 y: 0.338

(at 6500°K)

•Viewing Angle

(C/R >5)

Upper >50°(typ.)

Lower >60°(typ.)

Left >75 °(typ.)

Right >75 °(typ.)

•Response time <=30ms (typ.)

•Maximum 1024 x 768 at 75Hz

•Recommended 1024 x 768 at 60Hz

14 user definable modes

14 factory preset modes:

H. freq (KHz) Resolution V. freq (Hz)

31.469 640*350 70.086

31.469 720*400 70.087

31.469 640*480 59.940

35.000 640*480 67.000

37.861 640*480 72.809

37.500 640*480 75.000

35.156 800*600 56.250

37.879 800*600 60.317

48.077 800*600 72.188

46.875 800*600 75.000

49.700 832*624 75.000

48.363 1024*768 60.004

56.476 1024*768 70.069

60.023 1024*768 75.029

FCC ID: A3KM108

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC,

the monitor can automatically reduce its power consumption when not in use. And if

an input from a keyboard, mouse or other input device is detected, the monitor will

automatically "wake up". The following table shows the power consumption and

signaling of this automatic power saving features:

RETURN TO TOP OF THE PAGE

Physical Specifications

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Power Management Definition

VESA

Mode Video H-

sync V-

sync Power

Used LED

color

ON Active Yes Yes < 30W Green

Stand-by Blanked No Yes < 2W Amber

Suspend Blanked Yes No < 2W Amber

OFF Blanked No No < 2W Amber

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®

Partner, PHILIPS has determined that this product meets the ENERGY

STAR®guidelines for energy efficiency.

•Dimension (WxHxD) * 343 x 354 x 179 mm (incl. Pedestal)

•Weight * 4.6 Kg

•Swivel +/ - 175°

•Portrait display 90°rotation counter clockwise

•Tilt (Forward /

Backward) - 5°/ 25°

•Power supply 100 —240 VAC, 50/60 Hz

•Power consumption 23 W (typ.)

•Temperature (operating) 5°C to 40°C

•Relative humidity 20% to 80%

•System MTBF 50K hrs (CCFL 40Khrs)

•Cabinet color 150P3A: Light Gray

150P3C: Black

FCC ID: A3KM108

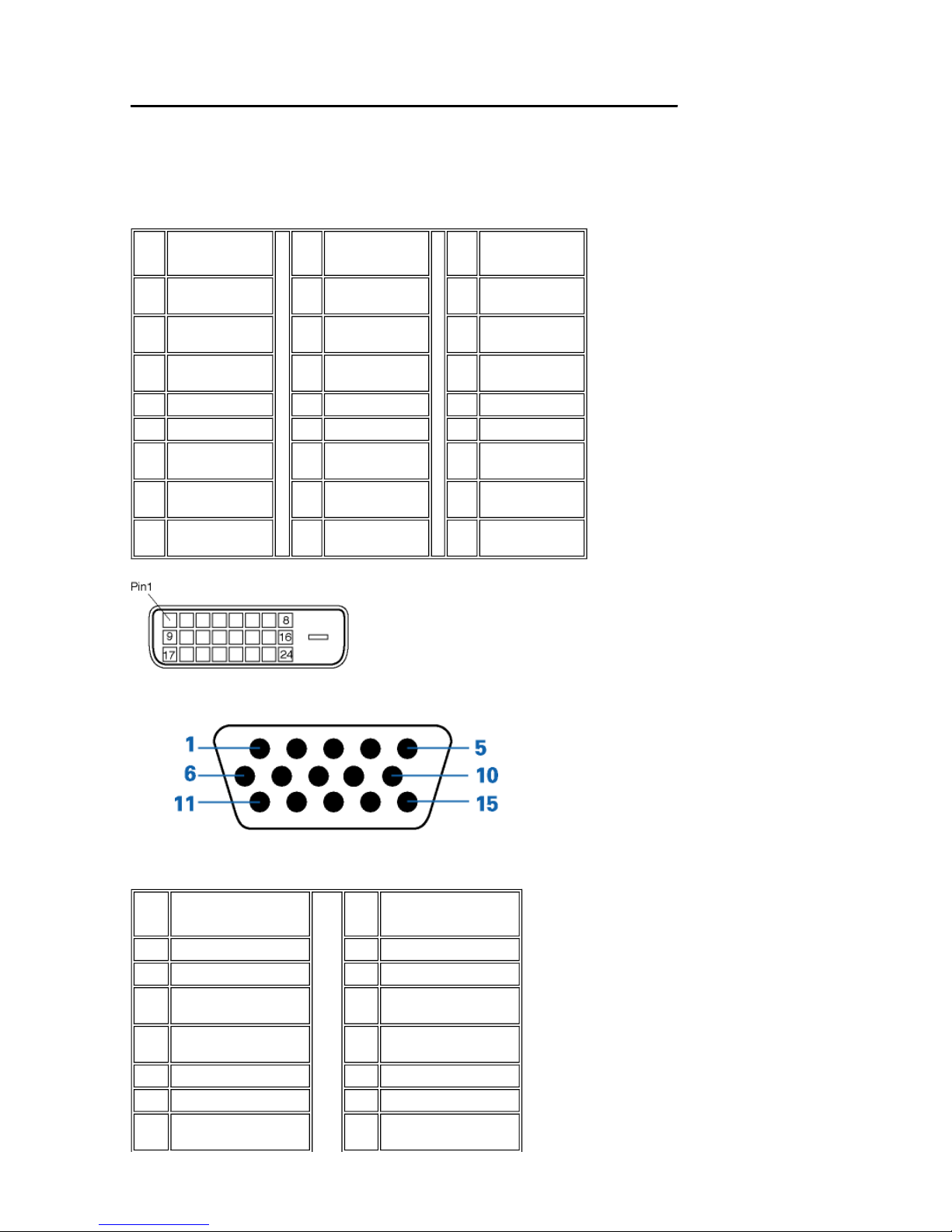

Pin Assignment

1. The digital only connector contains 24 signal contacts organized in three rows of

eight contacts. Signal pin assignments are listed in the table:

2. The 15-pin D-sub connector (male) of the signal cable:

No.

Signal

Assignment

No.

Signal

Assignment

No. Signal

Assignment

1T.M.D.S.

Data2-9T.M.D.S.

Data1- 17 T.M.D.S.

Data0-

2T.M.D.S.

Data2+ 10 T.M.D.S.

Data1+ 18 T.M.D.S.

Data0+

3T.M.D.S.

Data2/4 Shield 11 T.M.D.S.

Data1/3 Shield 19 T.M.D.S.

Data0/5 Shield

4No connect 12 No connect 20 No connect

5No connect 13 No connect 21 No connect

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock

Shield

7DDC Data 15 Ground (for

+5V) 23 T.M.D.S.

Clock+

8No connect 16 Hot Plug Detect 24 T.M.D.S.

Clock-

No.

Assignment

No.

Assignment

1Red video input

9DDC +5V

2Green video input 10 Logic ground

3Blue video input 11 Identical output -

connected to pin 10

4Identical output -

connected to pin 10 12 Serial data line

(SDA)

5Cable detect 13 H. Sync / H+V

6Red video ground 14 V. Sync

7Green video ground 15 Data clock line

(SCL)

FCC ID: A3KM108

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

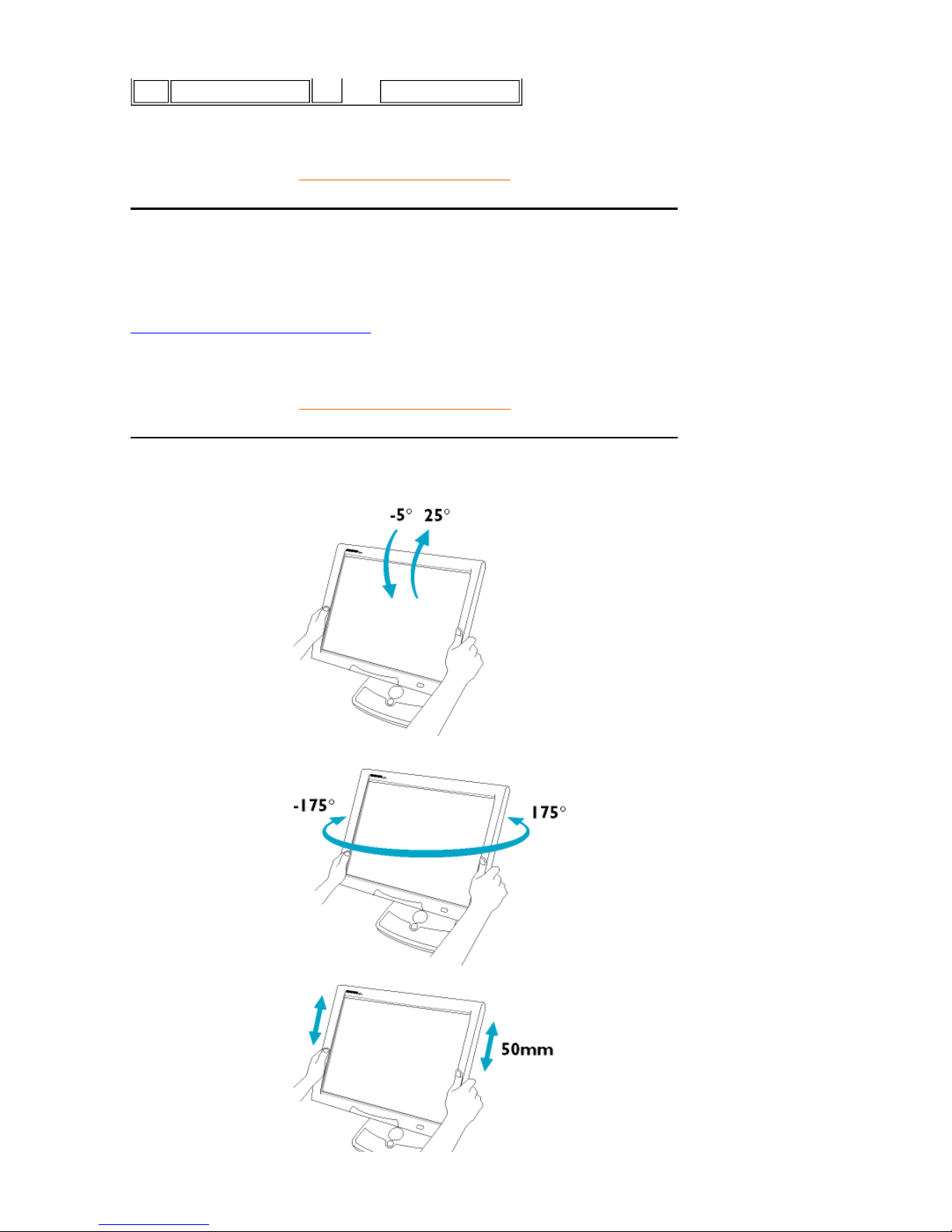

Physical Function

8Blue video ground

1) Tilt

2) Swivel

3) Height

adjustment

FCC ID: A3KM108

4) Portrait display

Turn monitor from landscape view to portrait view

4.1) Tilt the monitor body at an angle

4.2) Rotate the monitor body 90 degrees counter

clockwise.

FCC ID: A3KM108

Installing your LCD Monitor

Your LCD Monitor : Front View Product Description •Connecting to

Your PC •Remove and Re-install the Base •Getting Started •

Optimizing Performance •Accessories (optional)

Front View Product Description

UP and DOWN buttons are used when adjusting the

OSD of your monitor

LEFT and RIGHT buttons, like the UP and DOWN

buttons, are also used in adjusting the OSD of your

monitor.

BRIGHTNESS hotkey. When the UP and DOWN

arrow buttons are pressed, the adjustment controls for

the BRIGHTNESS will show up.

OK button which when pressed will take you to the

OSD controls

POWER button switches your monitor on

Automatically adjust the horizontal position, vertical

position, phase and clock setting.

FCC ID: A3KM108

RETURN TO TOP OF THE PAGE

Side View

RETURN TO TOP OF THE PAGE

Rear View

1. Audio power on/off and volulme adjustment

2. Audio power LED

3. Mute on/off

1. Headphone Jack

2. Microphone Jack

FCC ID: A3KM108

RETURN TO TOP OF THE PAGE

Optimizing Performance

lFor best performance, ensure that your display settings are set at

1024x768@60Hz (for14"/15") or 1280x1024, 60Hz (for17"/18").

1. Audio in

2. Mic out

3. DC 12V in

1. AC power in

2. DC 12V out for Philips Multimedia Base

only

3. D-SUB Connector

4. DVI-D Connector

Note: You can check the current display settings by pressing

the "OK" button once. Go into the Product Information. The

current display mode is shown on the item called

RESOLUTION.
