Installing your Monitor

Front View • Rear View

Front View

Power button switches your monitor on.

MENU MENU button which when pressed will take you to the OSD

controls

(-) Contrast hotkey. When the "(-)" button is pressed, the

adjustment controls for the CONTRAST will show up.

(+) Brightness hotkey. When the "(+)" button is pressed, the

adjustment controls for BRIGHTNESS will show up.

High Bright hot key delivers 4 suitable brightness instantly for text,

internet, game and multimedia.

RETURN TO TOP OF THE PAGE

Rear View

1. Power in - attach power cable here.

2. Video In - this is a cable which is already attached to your monitor.

Connect the other end of the cable to your PC.

RETURN TO TOP OF THE PAGE

On-Screen Display

Description of the On-Screen Display • The OSD Tree • The OSD Controls

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips monitors which allows an end-user to adjust screen performance of

monitors directly through an on-screen instruction window. The user interface provides user-

friendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

On the front controls of your monitor, once you press the MENU button, the On Screen Display

(OSD) Main Controls window will pop up and you can now start making adjustments to your

monitor's various features. Use the (-) (+) to make your adjustments within.

RETURN TO TOP OF THE PAGE

On-Screen Display

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as reference

when you want to later on work your way around the different adjustments.

Your monitor may not include all the items in the OSD tree shown below.

file:///D|/EDFU/crt_17_6/edoc/english/OSD_3/OSDDESC.HTM (2 of 4)2005-05-19 ¤W¤È 10:16:24

On-Screen Display

file:///D|/EDFU/crt_17_6/edoc/english/OSD_3/OSDDESC.HTM (3 of 4)2005-05-19 ¤W¤È 10:16:24

The OSD Controls

Description of the On-Screen Display • The OSD Tree

The OSD Controls : Brightness (HotKey) • Contrast (HotKey) • Language • Zoom

• Adjust Horizontal • Adjust Vertical • Adjust Shape • Adjust Color • Reset to

Factory Settings • Extra Controls • Close Main Controls

BRIGHTNESS

To adjust your screen's brightness, follow the steps below. Brightness is the overall intensity of

the light coming from the screen. A 50% brightness is recommended.

1) Press the (+) button on the monitor. The BRIGHTNESS window appears.

2) Press the (-) or (+) button to adjust the brightness.

3) When the brightness is adjusted to the level desired, press MENU to confirm and the

BRIGHTNESS window will disappear with the new adjustment saved.

RETURN TO TOP OF THE PAGE

CONTRAST

To adjust your screen's contrast, follow the steps bellow. Contrast is the difference between the

light and dark areas on the screen. A 100% contrast is recommended.

1) Press the (-) button on the monitor. The CONTRAST window appears.

2) Press the (-)or (+) button to adjust the contrast.

3) When the contrast is adjusted to the level desired, press MENU to confirm and the

CONTRAST window will disappear with the new adjustment saved.

RETURN TO TOP OF THE PAGE

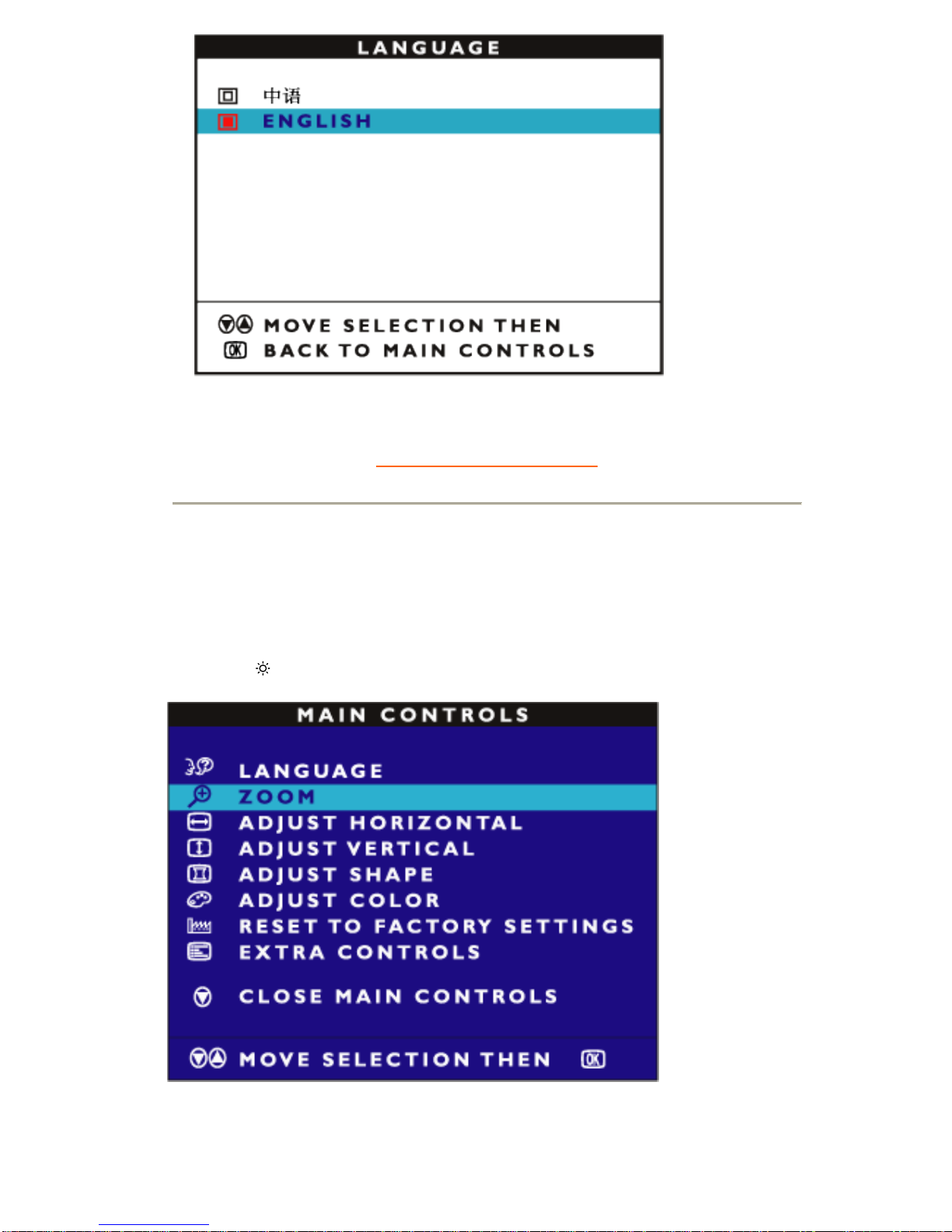

LANGUAGE

The ON SCREEN DISPLAY shows its settings in one of eight or nine languages. The default is

Simplified-Chinese, but you can select English.

1) Press the MENU button on the monitor. The MAIN CONTROLS window appears. LANGUAGE

should be highlighted.

2) Press the MENU button again. The LANGUAGE window appears.

3) Press the (-)or (+) button until the desired language is highlighted.

4) Press the MENU button to confirm your selection and return to MAIN CONTROLS window.

CLOSE MAIN CONTROLS will be highlighted.

RETURN TO TOP OF THE PAGE

ZOOM

ZOOM increases or decreases the size of the images on your screen. To adjust the ZOOM follow

the steps below.

1) Press the MENU button on the monitor. The MAIN CONTROLS window appears.

2) Press the (+)button until ZOOM is highlighted.

3) Press the MENU button. The ZOOM window appears.

4) Press the (-)or (+) button to adjust ZOOM.

5) Press the MENU button to confirm your selection and press MENU again to return to the MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

RETURN TO TOP OF THE PAGE

ADJUST HORIZONTAL

ADJUST POSITION under ADJUST HORIZONTAL shifts the image on your screen either to the

left or right. Use this feature if your image does not appear centered. ADJUST SIZE under

ADJUST HORIZONTAL expands or controls the image on your screen, pushing it out toward the

left and right sides or pulling it in toward the center.

1) Press the MENU button on the monitor. The MAIN CONTROLS window appears.

2) Press the (+)button until ADJUST HORIZONTAL is highlighted.

3) Press the MENU button. The ADJUST HORIZONTAL window appears. press MENU

POSITION should be highlighted.

4) Press the (-) or

(+) button to move the image to the left or right.

5) When the position is adjusted, press the MENU button to confirm. Press the (-) to highlight

SIZE, press MENU to confirm.

6) To adjust the horizontal size, press the (-) or (+) button.

7) When the size is adjusted, press the MENU button to confirm. Press MENU again to return to

MAIN CNTROLS window. CLOSE MAIN CONTROLS will be highlighted.

RETURN TO TOP OF THE PAGE

ADJUST VERTICAL

ADJUST POSITION under ADJUST VERTICAL shifts the image on your screen either up or

down. Use this feature if your image does not appear centered. ADJUST SIZE under ADJUST

VERTICAL expands or controls the image on your screen, pushing it out toward the top or

bottom or pulling it in toward the center.

1) Press the MENU button on the monitor. The MAIN CONTROLS window appears.

2) Press the (+) button until ADJUST VERTICAL is highlighted.
