Your Video RF Modulator is designed to convert the separate audio and

video signals (from a video camera, computer, portable VCR, satellite

receiver, DVD player, etc.) into normal VHF TV signals that you can see on

any regular TV set.

INTRODUCTION

This symbol is intended to inform you that important

operating and maintenance instructions are included

in the literature accompanying this RF Modulator.

This symbol is intended to alert you to the presence of

uninsulated dangerous voltage within the RF

Modulator’s enclosure that might be of sufficient

magnitude to constitute a risk of electric shock. Do not

open the RF Modulator’s case.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION:

REFER SERVICING TO QUALIFIED PERSONNEL.

Warning: For indoor use only; to reduce risk of fire or shock hazard, do not

expose this product to rain or moisture.

Video RF Modulator

Owner’s Manual

This device complies with Part 15 of the

FCC Rules

. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesirable operation.

Even under optimum conditions, your Video RF Modulator may cause

undesirable interference. We suggest the following methods for trouble

shooting:

1. Use an AC outlet that is not the same circuit as the receiver.

2. Place the RF Modulator in a location further away from your receiver.

In the event that interference still occurs after the above steps have been

taken, you are required by FCC regulations to discontinue use of this

product.

Important Safety Information:

1. Before beginning installation of your Video RF Modulator read all

instructions and follow exactly throughout the installation.

2. After installation is complete, keep all instructions in a safe place so

they may be referred to in the future if necessary.

3. Please note the ideal environment for this device is on a hard flat

surface away from all heat sources and moisture.

THE FCC WANTS YOU TO KNOW

You need the following items, not supplied with your Video RF Modulator,

to connect it between a video input source (video game, video camera,

satellite receiver, DVD player, etc.) and your TV.

• Two 75-ohm coaxial cables with F-type connectors

• If your TV does not have a VHF 75-ohm F-connector, you will also

need a 75-ohm-to-300-ohm matching transformer

•One video shielded cable with RCA Plugs and one audio (stereo)

cable with RCA Plugs OR Dubbing Cable for VCR/DVD with RCA

Plugs OR 3 shielded cables with RCA Plugs

•One S-Video Cable

PARTS REQUIRED

Follow these steps to connect your RF Modulator:

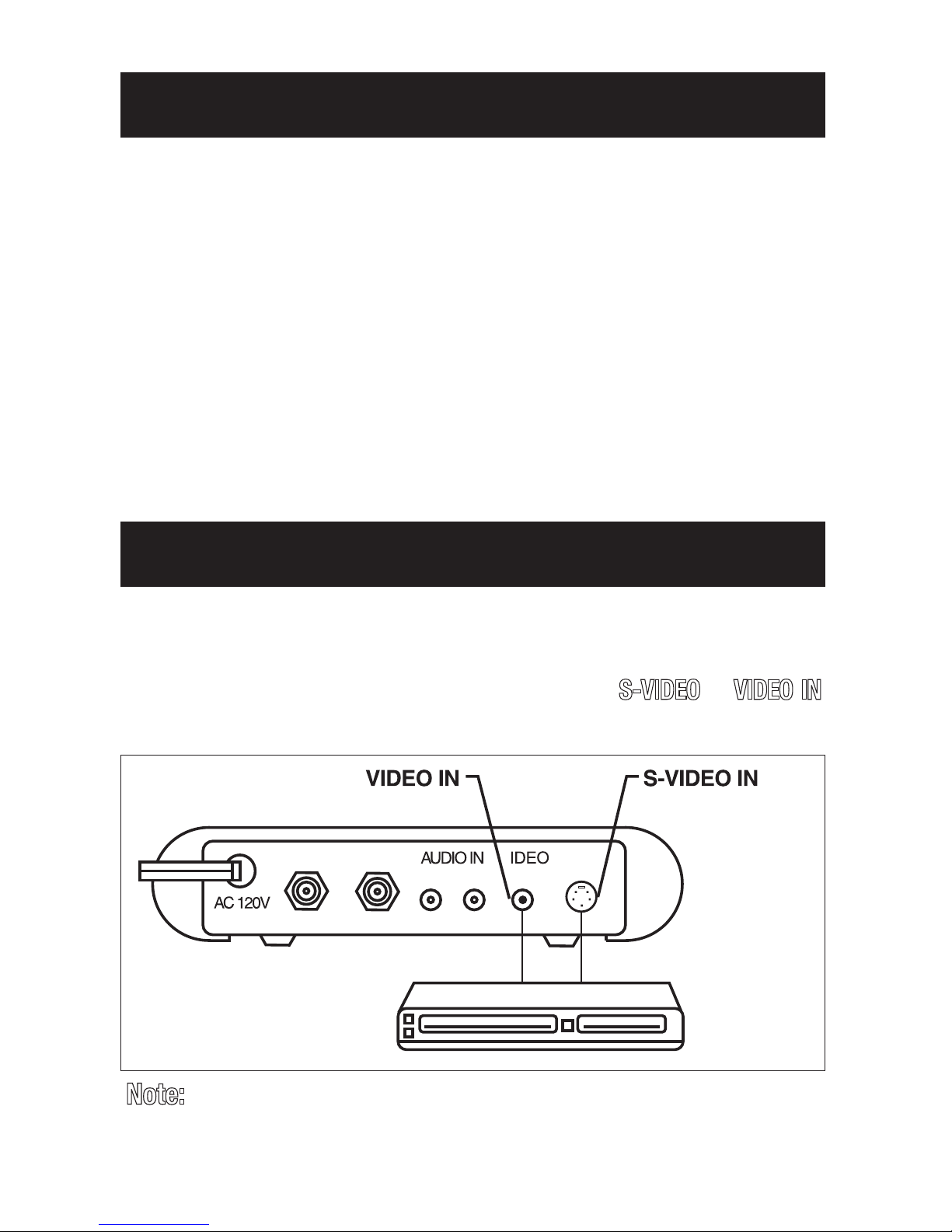

1. Connect an S-Video or video cable between the S-Video or video output

jack on your video source and the RF Modulator’s S-VIDEO or VIDEO IN

jack.

CONNECTIONS

ANT IN

TO TV

60Hz/4.5W

IN S-VIDEO

Jack Jack

S-Video OutputVideo Output OR

Video Source

Note: If both the S-Video and standard video are hooked up,

the S-Video will be given priority

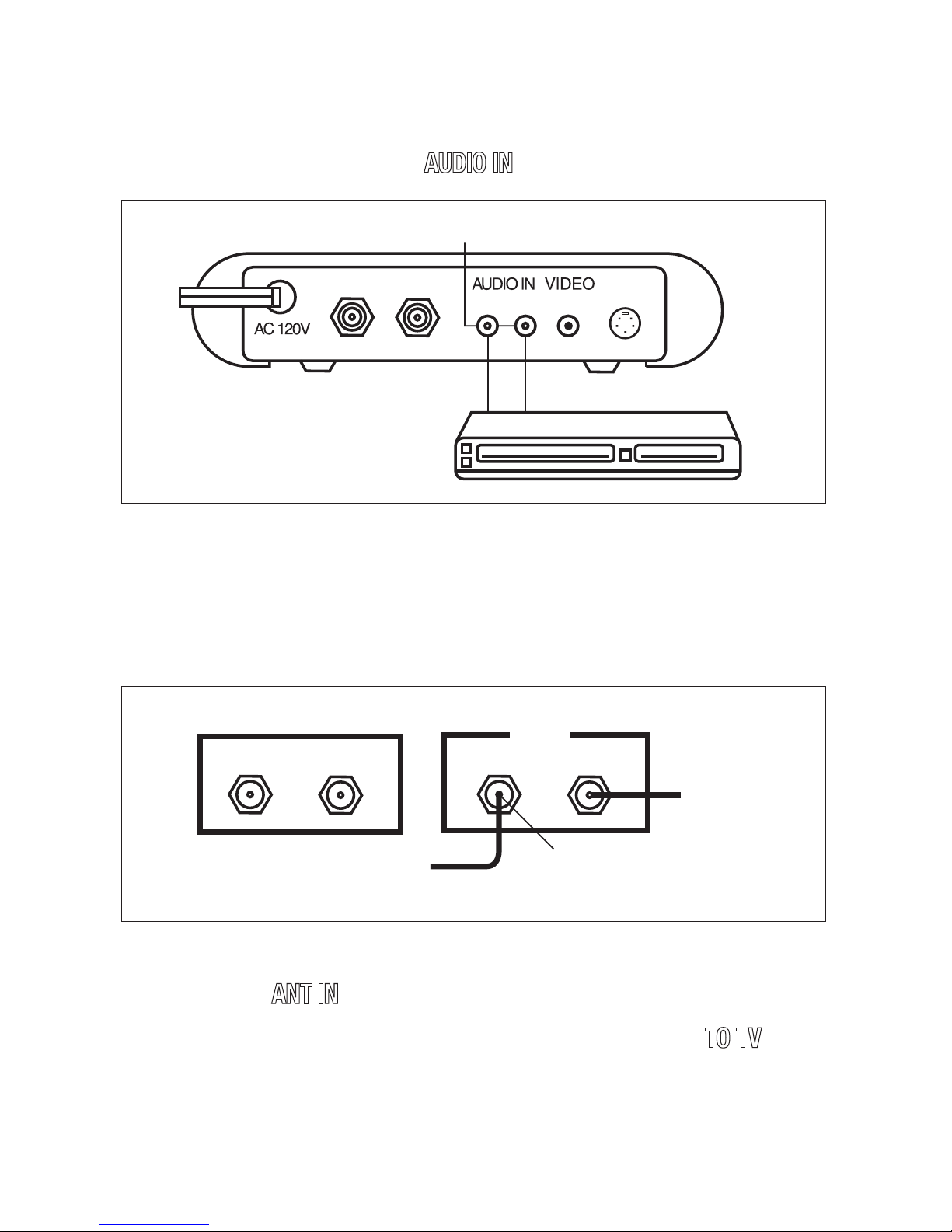

2. Connect an audio cable between the audio output jacks on your video

source and the RF Modulator’s AUDIO IN jacks.

AUDIO IN Jacks

Audio Output

Audio Source

ANT IN

TO TV

60Hz/4.5W

IN S-VIDEO

3. Connect the 75-ohm coaxial cables to the RF Modulator using one of

these two (2) options:

Option 1: If your TV is already connected to another VHF input source

(such as cable TV, VCR, etc.):

TO TV

CATV/ANT

VHF

RF ModulatorVCR

ANT INT mhO57VTO 75 Ohm

Disconnect

from here

a. Disconnect the current CATV/antenna connection from the 75-ohm

input terminal of your VHF source, and reconnect it to the RF

Modulator’s ANT IN terminal.

b. Then add a 75-ohm coaxial cable connected between the TO TV

terminal of the RF Modulator and the 75-ohm input terminal of your

VHF source.

75 Ohm

CATV

300 Ohms

VHF

RF ModulatorTV

ANT INTO TV

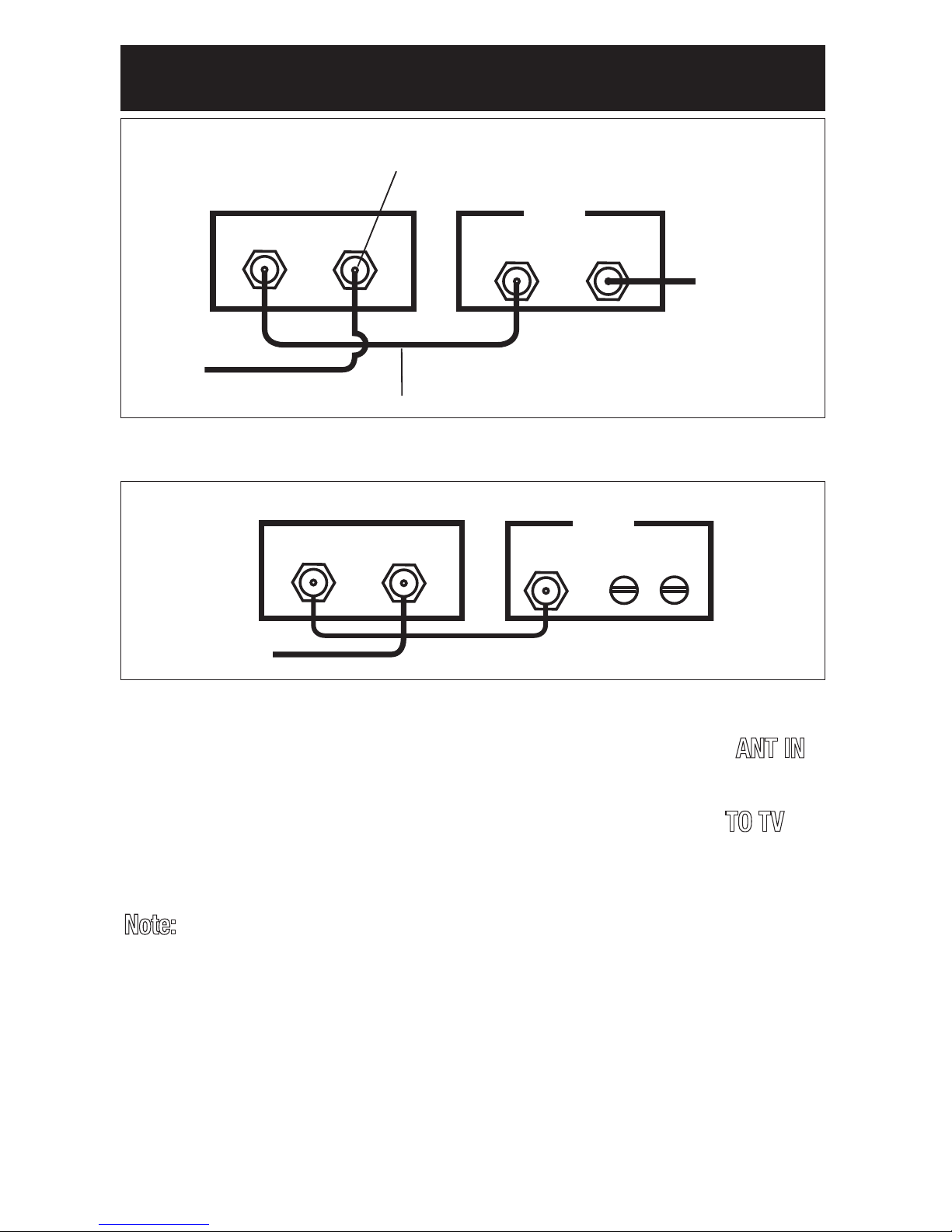

Option 2: If your TV is not already connected to another VHF source:

a. Disconnect the current CATV/antenna cable from the 75-ohm input

terminal of your TV, and reconnect it to the RF Modulator’s ANT IN

terminal.

b. Then add a 75-ohm coaxial cable connected between the TO TV

terminal of the RF Modulator and the 75-ohm VHF input terminal on

your TV.

Note: If your TV has only 300-ohm VHF screw terminals, use a 75-ohm-

to-300-ohm matching transformer to complete the connection.

4. Plug the RF Modulator’s power cord into a standard AC outlet.

CONNECTIONS continued

75 Ohm75 Ohm OUTIN

CATV

VHF

Add this cable

Reconnect

here

RF Modulator VCR

ANT INTO TV

TO TV

3. Turn on the connected video source, the modulator will deliver the

video/audio signal to the TV set and the red light of MOD. ON will be ON.

4. Turn off the connected video source, the modulator will be switched

automatically to deliver the ANT/Cable signal to the TV set and the red

led of MOD. ON will be off.

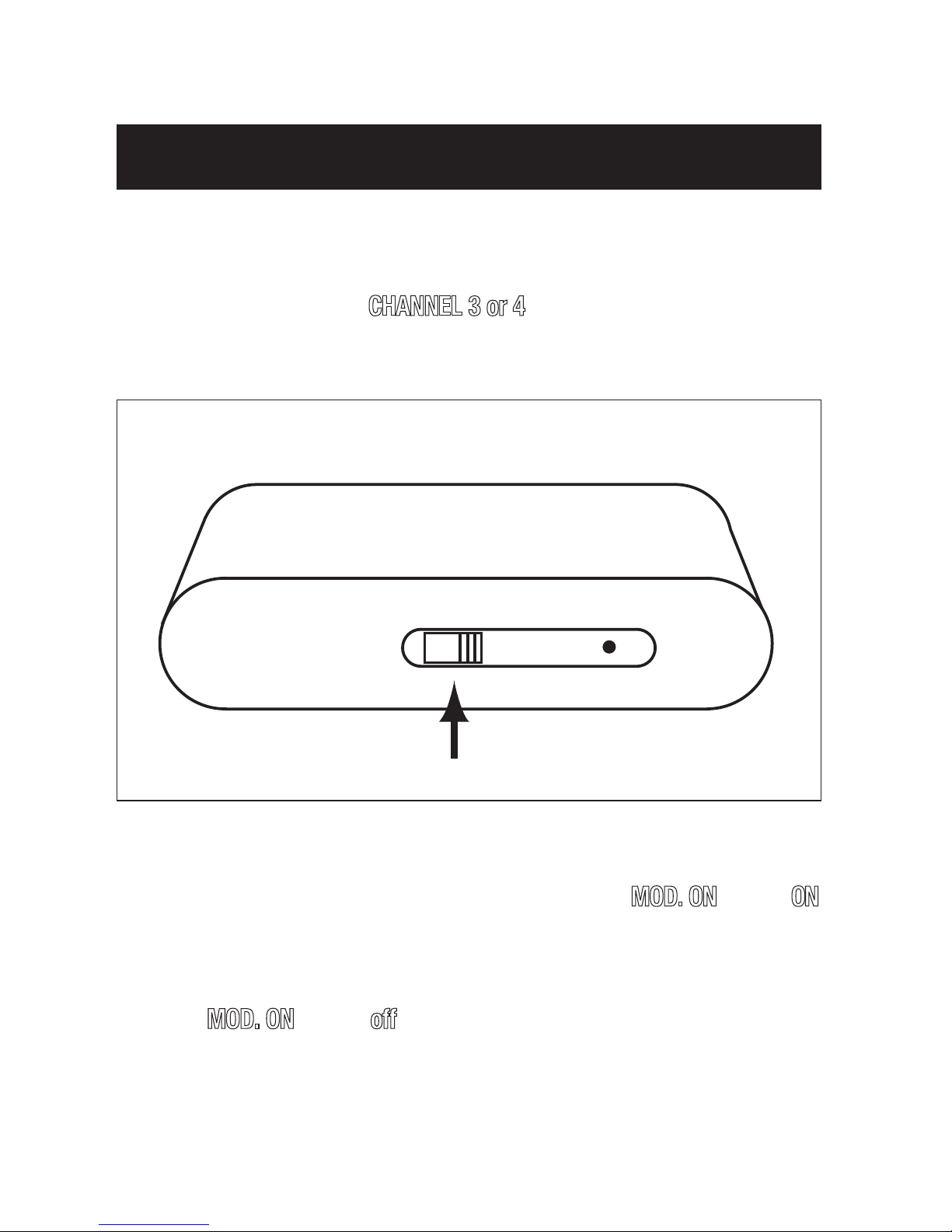

1. Turn on the TV and set it to either Channel 3 or 4, whichever of the

two is not used for regular broadcasts in your area.

2. Set the RF Modulator’s CHANNEL 3 or 4 switch to the same channel

you set on the TV (3 or 4)

OPERATION

MOD. ON

CHANNEL

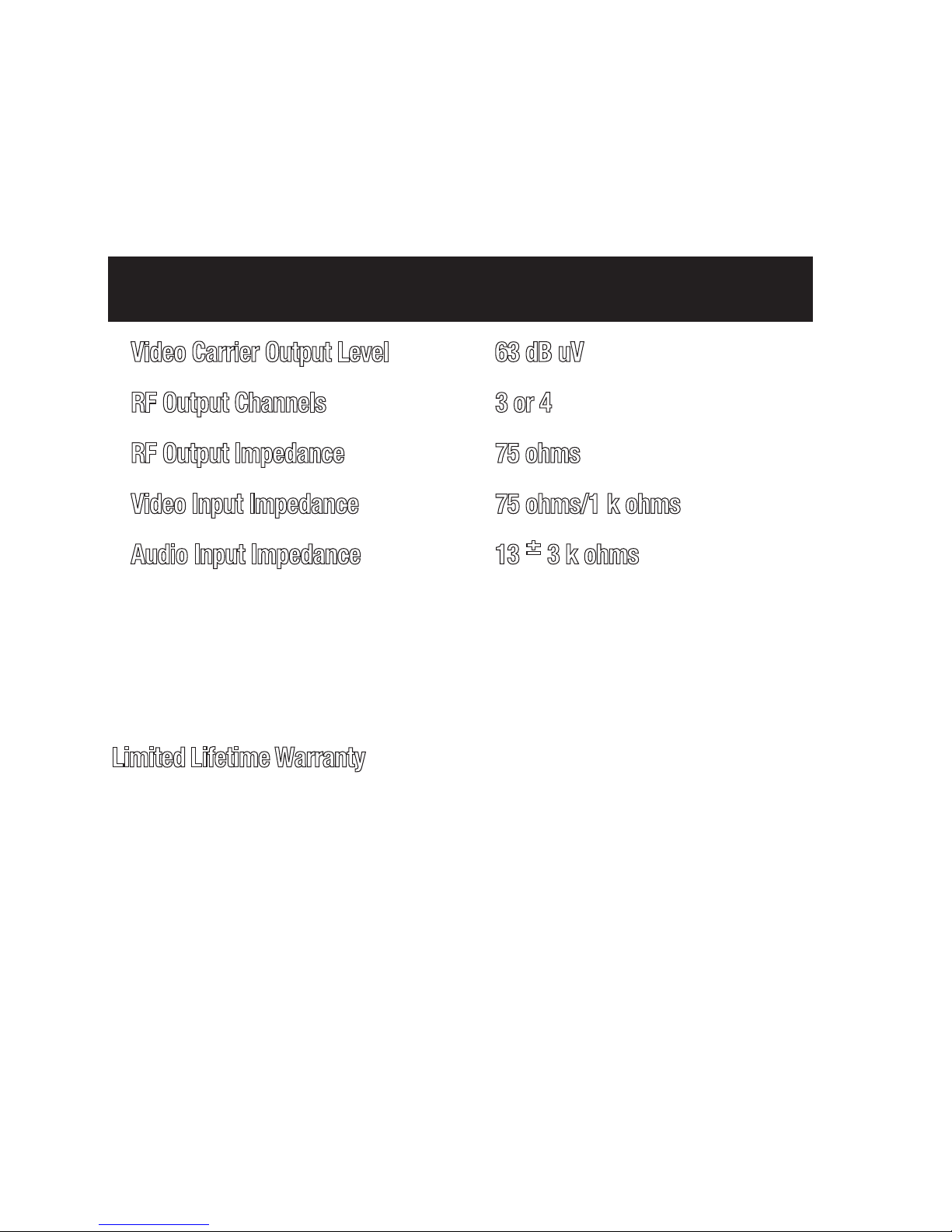

SPECIFICATIONS

Video Carrier Output Level 63 dB uV

RF Output Channels 3 or 4

RF Output Impedance 75 ohms

Video Input Impedance 75 ohms/1 k ohms

Audio Input Impedance 13 ±3 k ohms

Specifications are typical, individual units might vary. Specifications

are subject to change and improvement without notice.

Limited Lifetime Warranty The Manufacturer warrants that this product shall be

free from defects in material, workmanship and assembly, under normal use, in

accordance with the specifications and warnings, for the life of the product. This

warranty extends only to the original purchaser and is non-transferable. Defective

products must be returned with the dated proof of purchase to the place of

purchase for replacement. THERE ARE NO OTHER EXPRESS OR IMPLIED

WARRANTIES. Incidental or consequential damages are disclaimed where permitted

by law.

Este Modulador de RF para Vídeo está diseñado para convertir señales

separadas de audio y de vídeo (provenientes de una videocámara, computa-

dora, videocasetera portátil, receptor satelital, reproductor de DVDs, etc.) en

señales de televisión VHF corrientes, para que Ud. las pueda ver en cualquier

televisor común.

INTRODUCCIÓN

Este símbolo tiene por objeto informarle que la literatura

que acompaña a este Modulador de RF contiene impor-

tantes instrucciones de operación y mantenimiento.

Este símbolo tiene por objeto alertarle acerca de la

presencia de voltaje peligroso sin aislación en el interior

del Modulador de RF, de suficiente intensidad para repre-

sentar peligro de electrochoque. No abra la caja del

Modulador de RF.

PRECAUCIÓN

PELIGRO DE ELECTROCHOQUE

NO ABRIR

PRECAUCIÓN:

SERVICIO A PERSONAL HABILITADO.

Advertencia: para uso en interiores solamente; para reducir el riesgo de

incendio o electrochoque,no exponga este producto a la lluvia o a la humedad.

Modulador de RF para

Vídeo-Manual del Usuario

Este aparato está en conformidad con la Parte 15 de las normas de la

Comisión Federal de Comunicaciones (FCC Rules). Su funcionamiento está

sujeto a las siguientes condiciones: (1) este aparato no debe causar interfer-

encia perjudicial, y (2) este aparato debe aceptar toda interferencia recibida,

incluso interferencia capaz de causar un funcionamiento no satisfactorio.

Aun en las mejores condiciones, el Modulador de RF para Vídeo podría causar

interferencia indeseable. Sugerimos las siguientes medidas para resolver el

problema:

1. Use un tomacorriente de corriente alterna conectado a un circuito distinto

al del receptor.

2. Coloque el Modulador de RF lo más lejos posible del receptor.

Si después que se hayan tomado estas medidas la interferencia persiste, las

reglamentaciones de la FCC exigen suspender el uso de este producto.

Información importante relativa a seguridad:

1. Antes de comenzar la instalación de su Modulador de RF de Vídeo,

lea todas las instrucciones y sígalas estrictamente durante la

instalación.

2. Después de completar la instalación, guarde todas las instrucciones en

un sitio seguro para poder consultarlas en el futuro en caso necesario.

3. Sírvase notar que el sitio ideal para este aparato es colocado sobre

una superficie dura, lejos de toda fuente de calor y de humedad.

LA FCC QUIERE QUE UD. SEPA LO SIGUIENTE:

Para conectar el Modulador de RF de Vídeo entre una fuente de señales de

vídeo (juego de vídeo, videocámara, receptor satelital, reproductor de DVDs,

etc.) y su televisor, se necesitan los siguientes elementos, que no se suminis-

tran con el Modulador.

• Dos cables coaxiales de 75 ohms con conectores de tipo F

• Si su televisor no tiene un conector F de 75 ohms para VHF, también

necesitará un transformador de adaptación de 75 a 300 ohms

• Un cable blindado para vídeo con clavijas de conexión RCA y un cable

para audio (estereofónico) con clavijas de conexión RCA O Cable de

transposición para VCR/DVD con clavijas de conexión RCA O 3 cables

blindados con clavijas de conexión RCA

•Un Cable de S-Video

PIEZAS NECESARIAS

Para conectar su Modulador de RF siga los pasos siguientes:

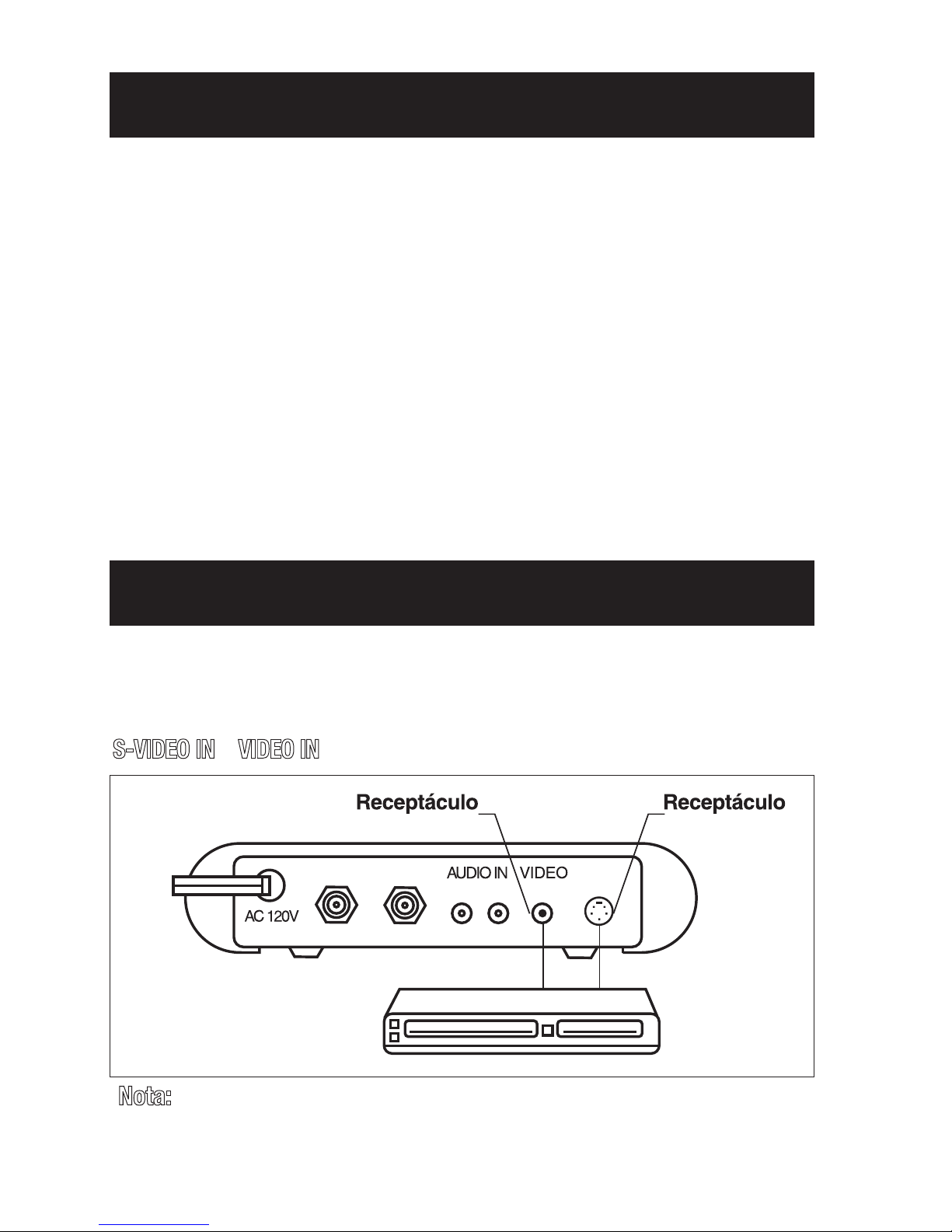

1. Conecte un cable e s-vídeo o vídeo entre el receptáculo de salida de vídeo

de la fuente de señales de s-vídeo o vídeo empleada y el receptáculo rotulado

S-VIDEO IN o VIDEO IN del Modulador de RF.

CONEXIONES

ANT IN

TO TV

60Hz/4.5W

IN S-VIDEO

VIDEO IN S-VIDEO IN

Salida de vídeo OSalida de s-vídeo

Fuente de vídeo

#72102 China

Nota: Si el S-Video y video uniforme se enganchan arriba,

el S-Video se dará la prioridad
