Philips 29PT5026C/79 Manuel utilisateur

Real Flat Television

User Manual

21PT5006

29PT5006

25PT5016

29PT5016

21PT5026

29PT5026

Safety information / Tips .......................................................................................................

Before calling service ............................................................................................................

TV hookup (Basic connection) ...........................................................................................

Remote control use and care .............................................................................................

Audio/Video connections (Playback) .................................................................................

Audio/Video connections (Recording) ..............................................................................

Remote control functions ....................................................................................................

TV control functions .............................................................................................................

Menu language selection .......................................................................................................

Automatic tuning of channels ..............................................................................................

Manual tuning of channels ....................................................................................................

Colour / Sound system .........................................................................................................

Fine Tuning of channels ..........................................................................................................

Picture adjustments ............................................................................................................... 19

Sound adjustments ................................................................................................................

Format adjustments ...............................................................................................................

Signal Strength ........................................................................................................................

Active Control ........................................................................................................................

Smart Picture ..........................................................................................................................

Smart Sound ............................................................................................................................

Personal Zapping ....................................................................................................................

Teletext ....................................................................................................................................

Speciﬁcations ..........................................................................................................................

Recycling Directive – To minimise harm to the environment, the batteries supplied

with the TV set do not contain mercury or nickel cadmium. If possible, when

disposing of batteries, use recycling means available to you.Your TV set uses materials which

are reusable or which can be recycled.To minimise the amount of waste in the environment,

specialist companies recover used sets for dismantling and collection of reusable materials

(contact your dealer).

CONTENTS

Introduction

Basic Installation functions

TV Installation

Features

General

Safety information

• Disconnect mains plug when :

– the red light below the TV screen is ﬂashing continuously.

– a bright white line is displayed across the screen.

– cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois leather

or soft cloth.

– there is a lightning storm.

– the set is left unattended for a prolonged period of time.

• No naked ﬂame sources, such as lighted candles, should be placed on top of the TV or in the

vicinity.

• Do not place your TV set under direct sunlight or heat.

• Leave at least 5 cm around each side of TV set to allow for proper ventilation.

• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain or water.

• No objects ﬁlled with liquids should be placed on top the TV so as to avoid dripping or

splashing of liquids on the set.

Tips

• Do not leave your set on standby mode for a prolonged period of time. Switch off set to

allow it to be demagnetised. A demagnetised set supports good picture quality.

• Do not shift or move the set around when it is switched on. Uneveness in colour in some

parts of the screen may occur.

• Never attempt to repair a defective TV yourself. Always consult a skilled service personnel.

SAFETY INFORMATION AND USEFUL TIPS

Below is a list of frequently occurred symptoms. Before you call for service, make these simple

checks. Some of these symptoms can easily be rectiﬁed if you know what to do.

Symptoms What you should do

Colour patch • Switch off the TV by the mains power button.Wait for 20

(uneveness) minutes before switching on again.

• Check the TV is not placed too near speakers or magnetic

objects.

No power • Check the TV’s AC power cord is plugged into the mains socket.

If there is still no power, disconnect plug.Wait for 60 seconds

and re-insert plug. Switch on the TV again.

No picture • Check the antenna connection at the rear of the TV.

• Possible TV station problem.Try another channel.

Good picture • Try increasing the volume.

but no sound • Check that the sound is not muted. If it is muted, press the

Mute button on the remote control to restore sound.

Good sound but poor • Try increasing the contrast and brightness setting.

colour or no picture

Snowy picture and • Check antenna connection at the rear of the TV.

noise

Horizontal dotted lines • Possible electrical interference e.g. hairdryer, vacuum

cleaner, etc. Switch off appliances.

Double images or • Possible poor positioning of antenna. Using a highly

“Ghost” images directional antenna may improve reception.

TV not responding to • Check life span of batteries of remote control handset. remote

remote control • Aim remote control directly at remote sensor lens on the front

panel of the TV.

BEFORE CALLING SERVICE

Antenna connection

• Connect the aerial plug to the antenna socket

on the backcover.

• Insert the mains plug into the wall socket.

Mains connection

• For correct mains voltage, refer to type sticker

at the rear of the TV set

• Consult your dealer if mains supply is different.

Note :This diagram is not representative of the

actual plug and socket.

Switching on the set

• Press the main power button to switch on/

off theTV.

• If the set is on standby (indicator is lit),

press the Power button on the remote

control to switch on set.

• Insert the correct type of batteries into the

compartment.

• Ensure the batteries are placed in the right

direction.

TV HOOKUP (BASIC CONNECTION)

REMOTE CONTROL CARE AND USE

AV sockets on rear of TV

Back of DVD

DVD (with “Y” , “Pb” and “Pr”

and Output sockets)

You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT (CVI)

sockets on the rear of the TV.

– Connect the CVI cables from the “Y”, “Pb” and “Pr” INPUT of the TV to the “Y”, “Pb”and

“Pr” OUTPUT of the DVD to view playback of DVD discs.

AUDIO/VIDEO CONNECTIONS (PLAYBACK)

OUT

AUDIO

OUT

Pb Pr

L/Mono

S-VIDEO

VIDEO

AUDIO

AV1 in AV2 inMonitor out

COMPONENT VIDEO INPUT

AV sockets on

the rear of TV

Back of VCR

VCR (with Video and

Audio output sockets)

You can view the playback of VCR tapes (Video Disc players, camcorders, etc.) by using the AUDIO

and VIDEO INPUT sockets on the rear of the TV.

– Connect the video and audio RCA cables from the VIDEO and AUDIO IN on the rear of the

TV to the AUDIO and VIDEO OUT of the VCR.

AV sockets on

the rear of TV

Back of S-VHS VCR

The S-Video connection on the rear of the TV is used for the playback of S-VHS VCR tapes,Video Discs,

Video Games or Compact Disc-Interactive (cd-i) discs. Better picture detail and clarity is possible with

the S-Video playback as compared to the picture from a normal antenna (RF) connection.

– Connect the S-VIDEO cable from the S-VIDEO socket on the rear of the TV to the S-VHS

OUT of the VCR.

– Connect the audio RCA cables from the AUDIO IN on the rear of the TV to the AUDIO

OUT of the VCR.

Note : You need not connect the VIDEO IN of the TV if S-VIDEO IN is connected.

ANTENNA

OUT

AUDIO

VIDEO

OUT

L/Mono

S-VIDEO

VIDEO

AUDIO

AV1 in AV2 inMonitor out

COMPONENT VIDEO INPUT

ANTENNA

OUT

AUDIO

RLVIDEO

OUT OUT

S-VIDEO

L/Mono

S-VIDEO

VIDEO

AUDIO

AV1 in AV2 inMonitor out

COMPONENT VIDEO INPUT

AUDIO/VIDEO CONNECTIONS (PLAYBACK)

Connection for recording from the TV channel

AV sockets on

the rear of TV

VCR (with Video and

Audio input sockets)

– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the

MONITOR OUT on the rear of the TV.

– To enhance the sound of your TV, connect the audio cables to an external audio

system instead of the VCR. For mono equipment, connect only the AUDIO L socket.

Connection for recording from cable TV to VCR

AUDIO/VIDEO CONNECTIONS (RECORDING)

ANTENNA

OUT

AUDIO

VIDEO

OUT

L/Mono

S-VIDEO

VIDEO

AUDIO

AV1 in AV2 inMonitor out

COMPONENT VIDEO INPUT

Cable INCable OUT

ANTENNA

OUT

AUDIO

VIDEO

OUT

L/Mono

S-VIDEO

VIDEO

AUDIO

AV1 in AV2 inMonitor out

COMPONENT VIDEO INPUT

– Connect the RF cable from the OUTput of the set top box to the Antenna IN of the VCR.

From the VCR’s Antenna OUT, connect the RF cable to the Antenna socket on the rear of the

TV.

– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the

MONITOR OUT on the rear of the TV.

AV sockets on

rear of TV

VCR (with Video and Audio

input sockets)

Set top box

Cable

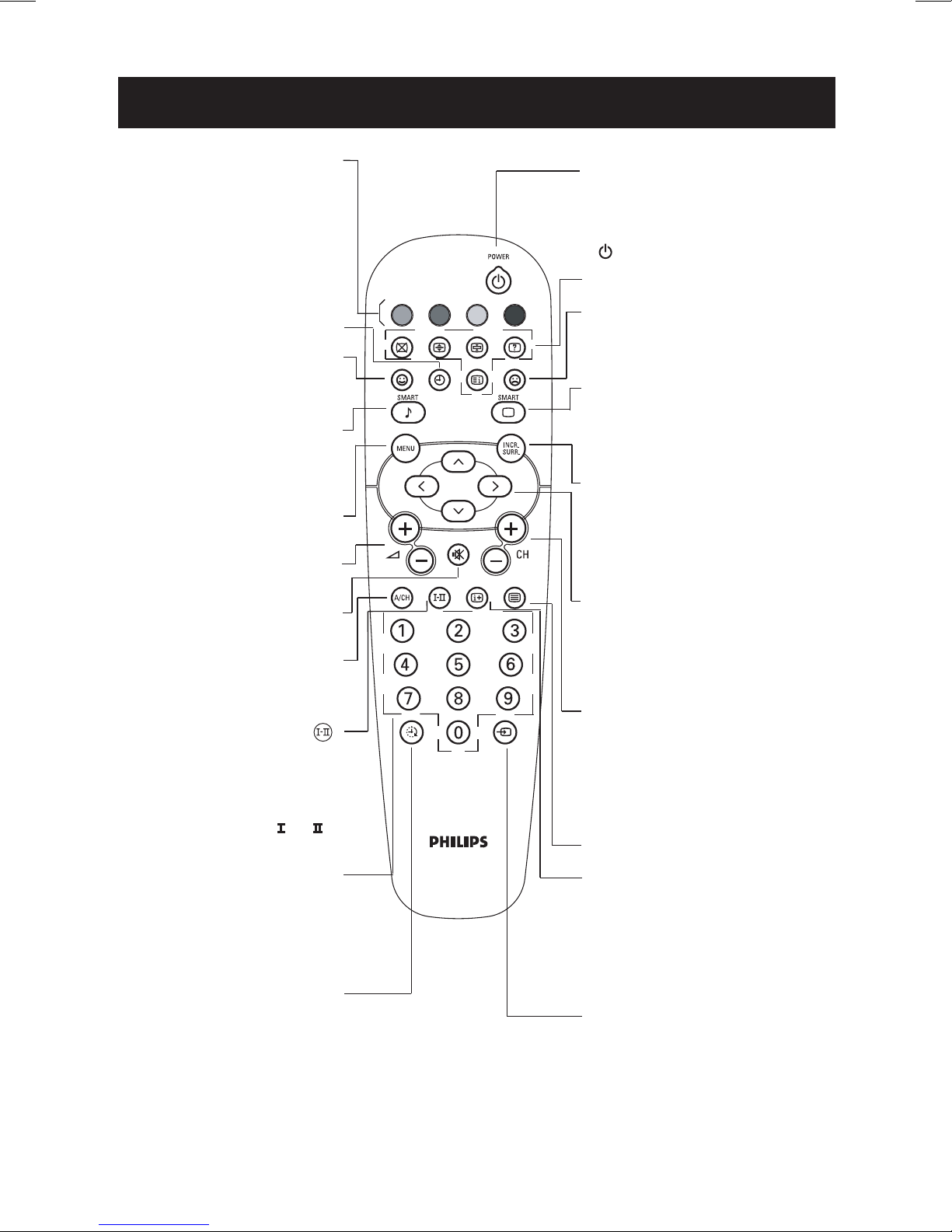

REMOTE CONTROL FUNCTIONS

A/C

POWER

(Refer to the correct page for the remote control that came with your set)

Personal Zapping

You can surf up to 10 personal

channels for each key (p. 26)

Sleeptimer

To select a time period after

which the set switch to standby

mode automatically.

Add Personal Zapping list

Adds and stores channels into

Personal Zapping list (p. 26)

Smart Sound

Used to access a series of

stored settings:Theatre, Music,

Voice or Personal.

To call up or exit menus.

Cursor

These 4 keys are used to move

around the menus or provide

direct access to the different

picture formats

Volume

To adjust the sound level.

Digit keys

Direct access to the channels.

For a 2-digit channel, enter the

2nd digit before the dash

disappears.

Alternate channel

Switches between the current

and the previous channel.

Standby

Lets you place the TV set on

standby. To turn on the TV, press

CH + or –, , AV, A/CH or

digit keys.

AV channel selection

Press several times to select AV1,

CVI,AV2,YPbPr or Side.

Delete Personal Zapping list

Deletes stored channels from

Personal Zapping list (p. 26)

Smart Picture

Used to access a series of

stored settings: Rich, Natural,

Soft, DVD/ VCD or Personal.

Incredible Surround

To enable/disable the Incredible

Surround feature. In stereo, the

speakers appear further apart. In

mono, a pseudo-spatial effect is

obtained.

During stereo transmission, to

switch from Stereo to Mono.

During dual sound transmission,

to switch betwen language or

Channel selection

To access the next or previous

channel.The number and sound

mode are displayed for a few

moments whenever you select a

new channel.

Mute

To mute or restore sound.

On screen display

To display/clear the on screen

information. Hold down key for

3 seconds to activate permanent

display of channel number.This

key is also used to exit from the

menu.

Teletext /Personal Zapping

In teletext mode; the colour

keys allows direct access to an

item or corresponding pages

(p 27-28) In Personal Zapping

mode; you can surf up to 10

personal channels

for each key (p. 26)

Add Personal Zapping list

Adds and stores channels into

Personal Zapping list (p. 26)

Smart Sound

Used to access a series of

stored settings:Theatre,

Music,Voice or Personal.

To call up or exit menus.

Volume

To adjust the sound level.

Mute

To mute or restore sound.

Alternate channel

Switched between the current

and the previous channel.

Digit keys

Direct access to the channels.

For a 2-digit channel, enter the

second digit before the ﬁrst

digit disappears.

Sleeptimer

To select a time period after

which the set switch to standby

mode automatically.

Standby

Lets you place the TV set on

standby.

To turn on the TV, press CH + or –,

, AV, A/CH or digit keys

Delete Personal Zapping list

Deletes stored channels from

Personal Zapping list (p. 26)

Smart Picture

Used to access a series of stored

settings:Rich,Natural,Soft,

DVD/VCD or Personal.

Incredible Surround

To enable/disable the Incredible Sur-

round feature. In stereo, the speak-

ers appear further apart. In mono, a

pseudo-spatial effect is obtained.

Cursor

These 4 keys are used to move

around the menus or provide di-

rect access to the different picture

formats.

Channel selection

To access the next or previous

channel.The number and sound

mode are displayed for a few mo-

ments whenever you select a new

channel.

On screen display

To display/clear the on screen infor-

mation. Press the key for 5 seconds

to activate permanent display of

channel number.This key is also

used to exit from the menu.

AV channel selection

Press several timesto select AV1,

CVI, AV2, YpbPr, or Side.

Teletext keys (p. 27-28)

REMOTE CONTROL FUNCTIONS

(Refer to the correct page for the remote control that came with your set)

During stereo transmission, to

switch from Stereo to Mono.

During dual sound transmission,

to switch between language

or .

Not applicable.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Téléviseur LCD

Philips

Philips 52PFL7803D Manuel utilisateur

Philips

Philips 47PFL7403D Manuel utilisateur

Philips

Philips 21PT6441 Manuel utilisateur

Philips

Philips 23PF9966/37 Manuel utilisateur

Philips

Philips Cineous 32PF9731D Manuel utilisateur

Philips

Philips BDM3490UC Manuel utilisateur

Philips

Philips Cineos 32PF9531/10 Manuel utilisateur

Philips

Philips 17HF9945 Manuel utilisateur

Philips

Philips 23PF9937 Manuel

Philips

Philips 32PFL4508/F8 Manuel utilisateur

Philips

Philips Magnavox 46MF440B Manuel utilisateur

Philips

Philips 55PUS6482 Manuel utilisateur

Philips

Philips 239CL2 Manuel utilisateur

Philips

Philips 27-REAL FLAT SDTV 27PT9015D - Hook Up Guide Manuel utilisateur

Philips

Philips 40PFL4706/F7 Manuel utilisateur

Philips

Philips 32PFL7332D/37 Manuel utilisateur

Philips

Philips 32HF9385D Manuel utilisateur

Philips

Philips 26HF7955H/27 Manuel utilisateur

Philips

Philips 20HF7462 Manuel utilisateur

Philips

Philips 3000 series Manuel utilisateur

Philips

Philips 32PFL7605H Manuel utilisateur

Philips

Philips 49PFL4909 Manuel utilisateur

Philips

Philips 55PUD6794 Manuel utilisateur

Philips

Philips Aurea 42PFL9900/98 Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Dynex

Dynex DX-40L261A12 Manuel utilisateur

JVC

JVC LT-23C50BU Manuel utilisateur
