Philips QC5390 Manuel utilisateur

Downloaded from www.vandenborre.be

www.philips.com/welcome

User manual

QC5390

Downloaded from www.vandenborre.be

3-22 mm 23-42 mm

QC5380/80QC530/80

Downloaded from www.vandenborre.be

QC5390

ENGLISH 6

DANSK 10

DEUTSCH 14

 18

ESPAÑOL 22

SUOMI 26

FRANÇAIS 30

ITALIANO 34

NEDERLANDS 38

NORSK 42

PORTUGUÊS 46

SVENSKA 50

TÜRKÇE 54

Downloaded from www.vandenborre.be

Introduction

Congratulations on your purchase and welcome to Philips! To fully

benet from the support that Philips offers, register your product at

www.philips.com/welcome.

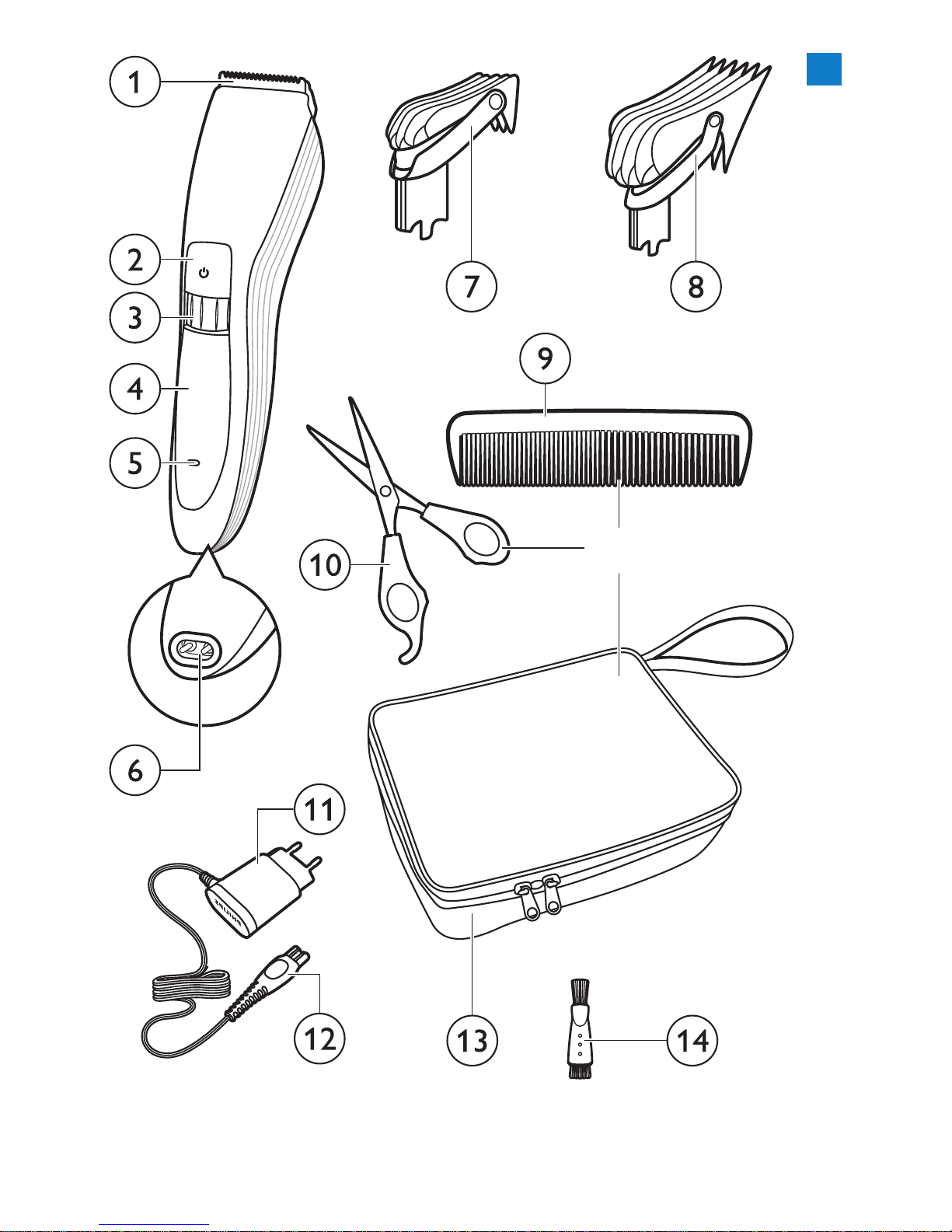

General description (Fig. 1)

1 Cutting element

2 On/off button

3 Zoom wheel

4 Handle

5 Charging light

6 Socket for appliance plug

7 Small comb

8 Large comb

9 Barber comb (QC5390/80 only)

10 Scissors (QC5390/80 only)

11 Adapter

12 Appliance plug

13 Pouch (QC5390/80 only)

14 Cleaning brush

Preparing for use

Note:You can also use the appliance directly from the mains when the battery

is empty.

Charging

Charge the appliance for at least 1 hour before you use it for the rst

time and after a long period of non-use.

When the appliance is fully charged, it has a cordless operating time of

up to 60 minutes.

When the charging light lights up orange, the battery is running low

(approx. 10 minutes of operating time left) and you need to recharge

the appliance.

1 Make sure the appliance is switched off.

2 Insert the appliance plug into the socket of the appliance and put the

adapter in the wall socket.

,The charging light starts ashing green to indicate that the appliance

is charging.

,When the batteries are fully charged, the charging light lights up

green continuously. After 30 minutes the charging light goes out to

save energy.

ENGLISH

Downloaded from www.vandenborre.be

Using the appliance

Clipping with comb

The appliance comes with 2 combs for different hair lengths.

The hair length settings are indicated in millimetres on the comb.

The settings correspond to the remaining hair length after clipping.

1 Select the comb you want to use.

The small comb cuts the hair to a length of 3mm to 22mm.

The large comb cuts the hair to a length of 23mm to 42mm.

2 Slide the comb straight into the guiding grooves on both sides of

the handle (‘click’).

3 To set the comb to the desired setting, turn te zoom wheel to

the desired hair length setting.

,The display on front of the appliance shows the selected hair length

in millimetres after cutting.

,After 8 minutes, the display goes out to save energy.To activate

the display again, turn the zoom wheel or press the on/off button.

Tip:Write down the hair length settings you selected to create a certain

hairstyle as a reminder for future clipping sessions.

4 Press the on/off button to switch on the appliance.

5 Move the appliance through the hair slowly.

Tips

- To clip most effectively, move the appliance against the hair

growth direction.

- Since all hair does not grow in the same direction, you need to move

the appliance in different directions (upwards, downwards and across).

- Make sure that the at part of the comb is always fully in contact

with the scalp to obtain an even result.

- Make overlapping passes over the head to ensure that you cut all

the hair that needs to be cut.

6 Regularly remove cut hair from the comb.

If a lot of hair has accumulated in the comb, remove the comb from

the appliance and blow and/or shake the hair out of it.

ENGLISH 7

Downloaded from www.vandenborre.be

Contouring without comb

You can use the appliance without comb to clip hair very close to the skin

(0.5mm) or to contour the neckline and the area around the ears.

Be careful when you clip without comb because the cutting

element removes every hair it touches.

1 Pull the comb off the appliance.

2 Before you start to contour the hairline around the ears, comb the

hair ends over the ears.

3 Press the on/off button to switch on the appliance.

4 Tilt the appliance in such a way that only one edge of the cutting

element touches the hair ends when you shape the contours around

the ears.

Only cut the hair ends.The hairline should be close to the ear.

5 To contour the neckline and sideburns, turn the appliance and make

downward strokes.

Move the appliance slowly and smoothly. Follow the natural hairline.

ENGLISH8

Downloaded from www.vandenborre.be

Cleaning

Clean the appliance every time you have used it with the cleaning brush

and with warm water (max. 40°C).

Never use compressed air, scouring pads, abrasive cleaning agents or

aggressive liquids such as petrol, acetone or ethereal oils to clean the

appliance.

Note:The appliance does not need any lubrication.

1 Switch off the appliance and disconnect it from the mains.

2 Remove the comb from the appliance and clean it with the

cleaning brush.

3 Brush the outside of the shaving unit.

4 Push the centre top end of the cutting element upwards with your

thumb until it opens.

5 Use the cleaning brush to remove the cut hair.

6 Clean the appliance under a warm running tap.

ENGLISH 9

Downloaded from www.vandenborre.be

Introduktion

Tillykke med dit køb og velkommen til Philips! For at få fuldt udbytte

af den support, Philips tilbyder, skal du registrere dit produkt på

www.philips.com/welcome.



1 Skærenhed

2 On/off-knap

3 Zoomring

4 Håndgreb

5 Opladeindikator med lys

6 Tilslutningsstik

7 Lille afstandskam

8 Stor afstandskam

9 Barberkam (kun QC5390/80)

10 Saks (kun QC5390/80)

11 Adapter

12 Apparatstik

13 Etui (kun QC5390/80)

14 Rensebørste

Klargøring

Bemærk: Du kan også bruge apparatet direkte fra stikkontakten, når

batterierne er tomme.

Opladning

Oplad apparatet i mindst 1 time før første anvendelse og efter en lang

periode, hvor det ikke er blevet brugt.

Når apparatet er fuldt opladet, har det en ledningsfri brugstid på op til

60 minutter.

Når opladeindikatoren lyser orange, er batteriet ved at være tomt

(ca. 10 minutters brugstid tilbage), og du skal genoplade apparatet.

1 Kontroller, at apparatet er slukket.

2 Sæt apparatstikket i apparatet og adapteren i stikkontakten.

,Opladeindikatoren begynder at blinke grønt for at vise, at

apparatet oplades.

,Når batterierne er fuldt opladede, lyser opladeindikatoren

konstant grønt. Efter 30 minutter slukker opladeindikatoren for at

spare på energien.

DANSK
