Philips HR7730/80 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Foodprocessor

HR7730/80

05/01

PRODUCT INFORMATION

Features

- Click & Go : Easy assembly and dissasembly system

- Powerful (700 W) : Capable of handling even the toughest tasks.

- Large bowl (3,6 L dry, 1,8 L liquid capacity) : Capable of processing large batches at once.

- Easy Clean button : Easy cleaning of chopper bowl, which is also dishwasher safe.

- 2 speeds and pulse function : Optimally adjusting the speed to the job.

- Graphics on the appliance : Quickly choosing the right accessory for the job.

- Suction feet : Keeping the appliance perfectly stable and safe during operation.

- Cord Storage : Adjusting the cord length to the specific situation.

Accessories

- Stainless steel metal blade : Chopping, blending, pureeing, and mixing of meat, fish, vegetables, dairy,

fruits and nuts.

- Plastic insert holder : Disc-shaped space-saving tool holder for different inserts.

- Stainless steel slicing insert medium : Slicing vegetables and fruits.

- Stainless steel shredding insert medium : Shredding vegetables, fruits and cheese.

- Plastic kneading accessory : Kneading all kinds of dough (up to 1,3 kg dough) and mixing cake batters

(up to 0,8 kg of batter).

- Plastic emulsifying disc : For all kinds of whipping, whisking and emulsifying jobs.

- Citrus press : For making large quantities (1,8L) of citrus juice in a short time.

- Plastic pusher : Pushing the ingredients in the bowl during the process.

The pusher has a hole, so that oil can gradually be added.

Safety

- Automatic resettable thermal cut off : Protecting the motor against overheating.

- Built-in safety lock : Detects whether lid & bowl are assembled.

- Brake system : Stops the accessories within 1,5 seconds.

HR7730/80

2-8

- Motor : Universal, radio/TV interference suppressed

- Power consumption : 700 Watt max

- Voltage and frequency : 220 V - 240 V, 50 Hz

- Cord set : 100 cm, double insulated with moulded on plug

- Speed setting : 2 speeds & pulse

- Bowl capacity : 3,6 L dry ingredients, 1,8 L liquid ingredients

Materials used

- Bowl, lid : SAN

- Housing, pusher, inlay bowl handle, : PP

Citrus press (sieve & cone),

emulsifying disc, kneading accessory

- Insert holder : ABS

Colours

- White with orange and yellow accents, clear transparent bowl and jar.

Preliminary data No. of pcs Weight (kg) Dimensions (mm)

- F-box 1 5,2 390 x 290 x 400

TECHNICAL INFORMATION

Pos Service code Description

4203 065 65570

4203 065 65370

4203 065 65380

4203 065 65150

4203 065 65140

4203 065 65310

4203 065 65320

4203 065 65160

4203 065 65240

4203 065 65250

4203 065 65270

4203 065 65330

4203 065 65180

4203 065 65130

4203 065 65390

4203 065 65220

4203 065 65280

4203 065 64020

4203 065 64000

4203 065 65400

Housing Cap HR7730

Screw cap Rear

Screw cap Front

Screw cap (3 pcs.)

Housing Top

Coupling Toolholder

Toolholder

Blender Coupling

Power Knob

Quick Clean Knob

Spring - Quick Clean Knob

Cordset Holder

Detection Lever - Jar

Housing HR7730

Spring Bowl Detection

PCB Frame Assy HR7730-40

PCB Assy HR7730

Cordset EU

Cordset UK

Cordset Swiss

Pos Service code Description

4203 065 65170

4203 065 65450

4203 065 65300

4203 065 65780

4203 065 65770

4203 065 65440

4203 065 65260

4203 065 65410

4203 065 65460

4203 065 65620

4203 065 65610

4203 065 65630

4203 065 65600

4203 065 65520

4203 065 65530

4203 065 61540

4203 065 61560

4203 065 65510

4203 065 65500

4203 065 65490

4203 065 65790

Airtunnel

Motor Assy

Bottom Assy

Retaining Ring

Washer

Coupling Assy

Tension Assy

Toothed Wheel Assy

Belt

Pusher Chopper Bowl

Chopping Bowl Lid

Rubber Sealing Ring

Chopper Bowl

Citrus Press Cone

Citrus Press Sieve

Slicing Insert medium

Shredding Insert medium

Insert Holder Assy

Plastic Kneader

Chopping Knife Assy

Emulsifying Disc

PARTS LIST

HR7730/80

3-8

EXPLODED VIEW

Shown parts without Pos. no. are not available as spareparts!

HR7730/80

4-8

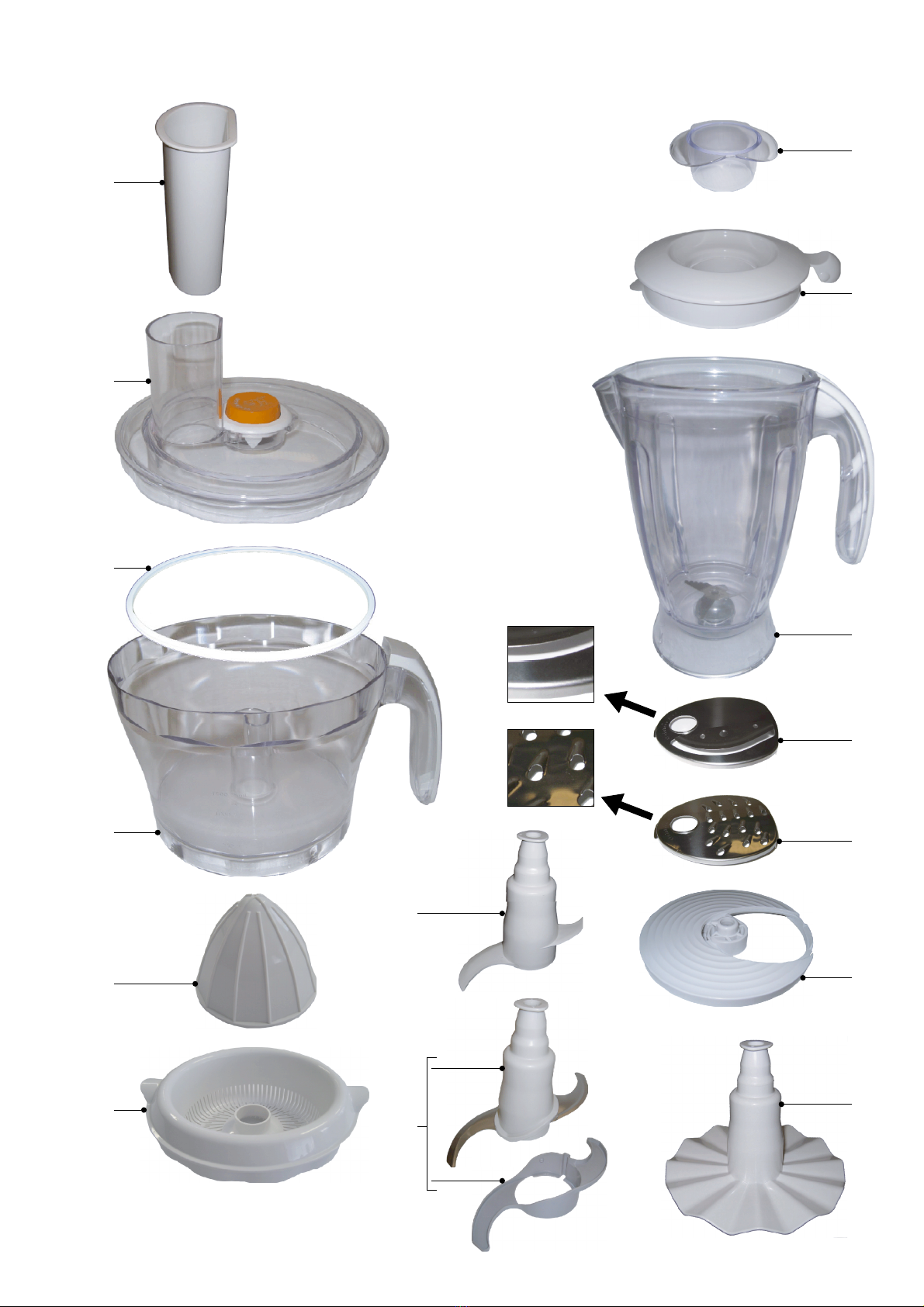

EXPLODED VIEW

HR7730/80

5-8

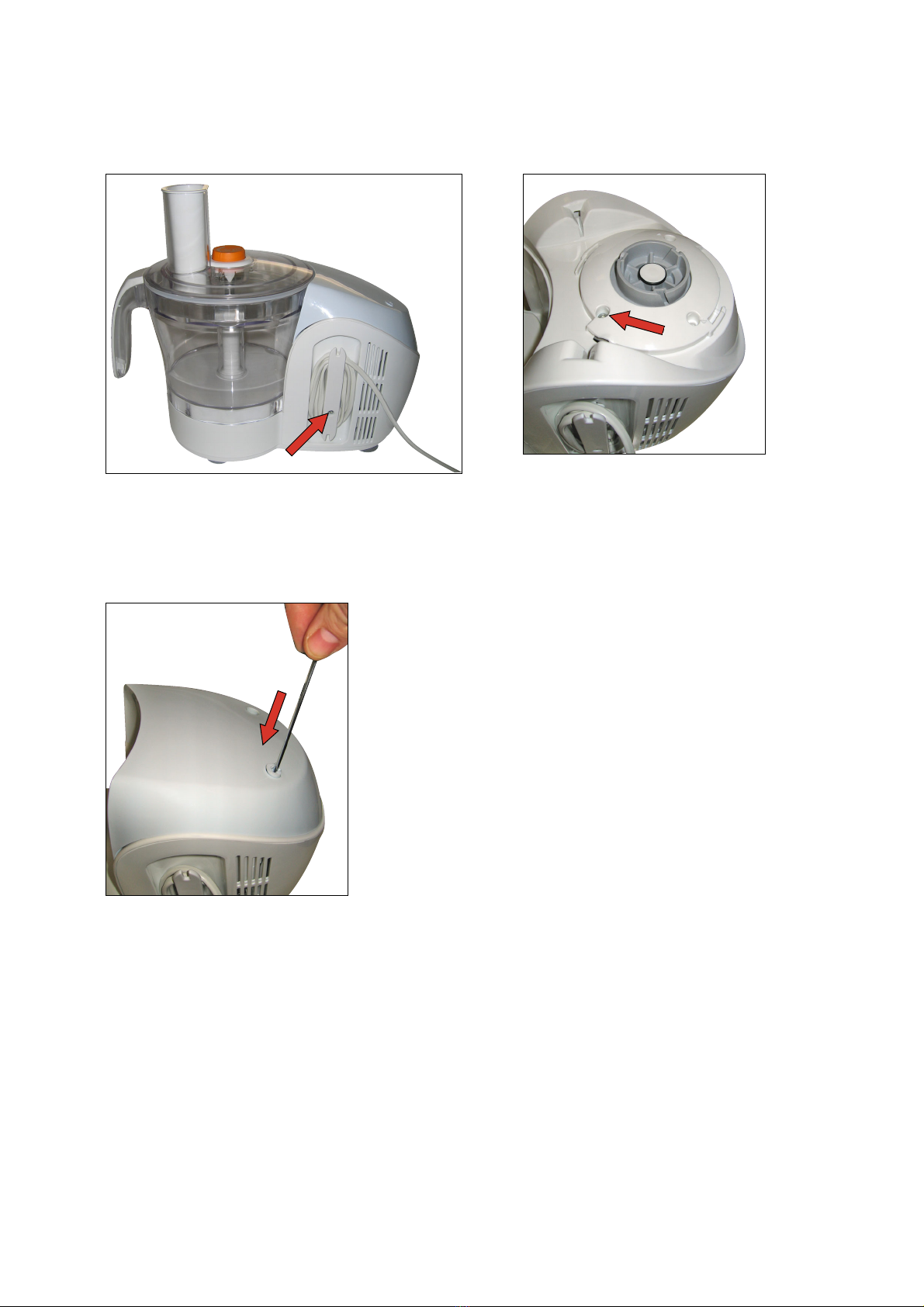

REPAIR INSTRUCTION

To repair something inside the foodprocessor:

1. Remove the screw of the cord holder.

To remove the Top Housing:

1. Push a screwdriver through the 2 Screw Caps of the

Housing Cap to remove them.

2. Use a screwdriver Torx T15 to remove the 2 screws from

the Housing Cap.

To remove the Housing Top:

1. Remove the screw of the Housing Top and lift it up.

HR7730/80

6-8

- In this situation, you could replace for example the cord set

or the PCB.

- Be sure, that you don´t loose the Spring – Bowl detection

on the bottomside of the housing!

- Be sure, that a replaced cord set is also placed in the

designed cable guide.

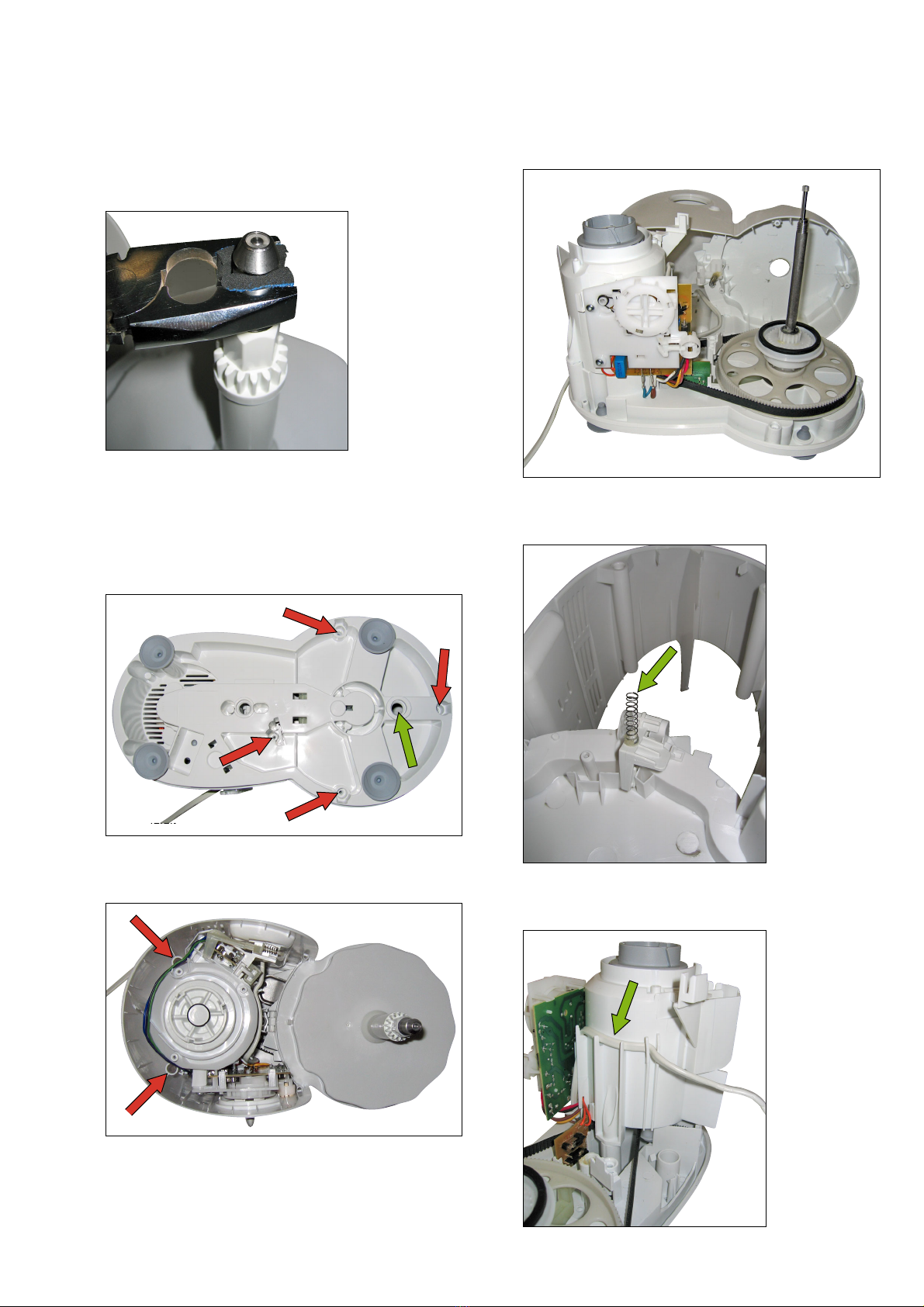

To remove the Housing:

1. Remove the Toolholder coupling by turning it

counterclockwise with protected tongs to prevent the

coupling from damages (You can use e.g. foam rubber).

2. Remove the 4 screws on the bottomside of the

foodprocessor.

The green arrow shows you the hole, where you can stick

through a pin to ﬁxate the acc. drive wheel, when you want

to remove the blender coupling. After that you can turn

the blender coupling clockwise ´for removing it.

3. Remove the 2 last screws (marked with the red arrows).

After this you can remove the housing.

REPAIR INSTRUCTION

HR7730/80

7-8

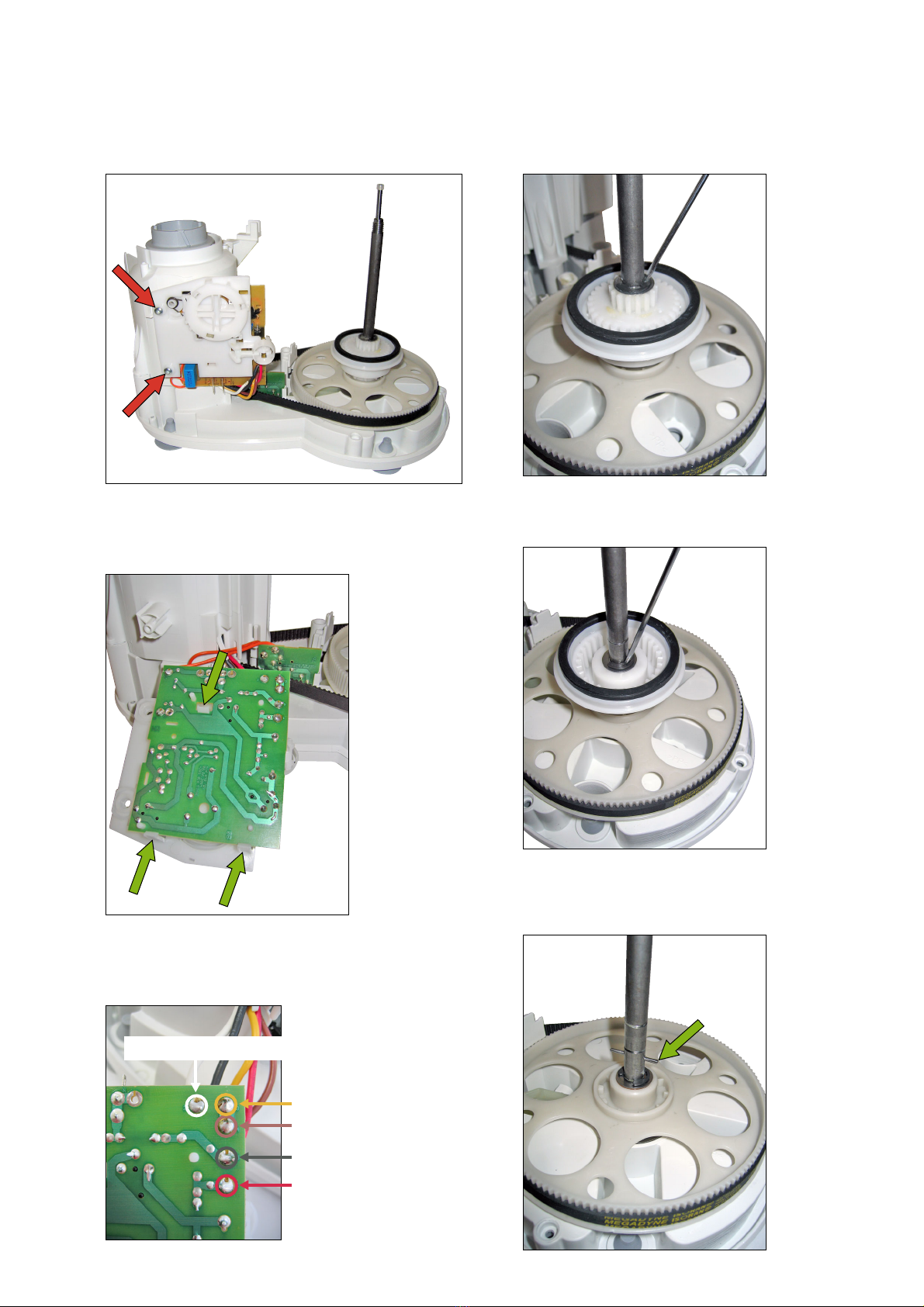

To remove the PCB´s:

1. Remove the 2 screws to loosen the Main PCB.

To remove the PCB Frame:

1. Release the 3 snaphooks, which hold the PCB on the

frame.

Soldering of Motor wires on PCB:

- Here you can see the colours of the Motor wires and their

soldering points on the PCB.

Solder point 4 - brown wire

Solder point 3 - yellow wire

Solder point 5 - black wire

Solder point 1 - red wire

Solder point 2 - white wire

To remove the upper part of the coupling:

1. Remove the retaining ring with a screwdriver.

To remove the lower part of the coupling:

1. Remove the retaining ring with a screwdriver.

If you want to exchange the toothed wheel, you have to

remove the small axle from the „click & go“ system (green

arrow).

REPAIR INSTRUCTION

HR7730/80

8-8

To remove the toothed wheel:

1. Remove the retaining ring with a screwdriver.

To replace the Motor:

1. Remove the 3 screws from the Airtunnel.

After removing the Airtunnel, you can exchange the motor,

the belt or the belt tension.

Remove the Belt tension, by lifting it a little bit

(green arrow) and pulling it in direction of the red arrow.

REPAIR INSTRUCTION
