Quick Start Guide

How to use this guide

The purpose of this Quick Start Guide is to assist you in

getting this Philips Commercial television installed as quickly

as possible. It contains the necessary information needed

for most typical connections and installations. For detailed

documentation of additional features, please consult the

user manual or online help at www.philips.com/professional.

Go through this Quick Start Guide and read the

instructions on :

- how to install TV programmes

- how to change the settings of a channel

- how to configure theVolume / Picture

and other common settings

- how to clone the TV configuration to a

SmartLoader and from the SmartLoader

to the TV

- how to install a System SmartCard or System Box

- how to diagnose basic problems

42” model

x 4

26” / 32” models

2 What you can find in the box

Slide the button on the remote

control to the SETUP position.

To power outlet

AC in

To wall socket

Insert the aerial plug into the wall socket and the mains power cord

into the power outlet.

EXT 3

HDMI 1HDMI 2

EXT 4

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

CPower on the TV.

POWER

SLEEP

GUIDE

RESET

CLOCK A / V

SMART

GUEST

DCM

SETUP

TEXT

RECALL

EFG

DBC

A/CH

VOL CH

3 InstallingTV Programmes

Change the settings of the

channels as desired.

Refer to “Changing the

settings of a channel”

section in this guide.

Change the TV settings as

desired.

Refer to “Conguring

Volume / Picture and

Other Common settings”

section in this guide. For

detailed explanation, refer to

the user manual.

Record the TV conguration

settings into a Wireless

SmartLoader. Refer to the

“Cloning the TV

conguration to a

SmartLoader and the

SmartLoader conguration

to the TV” section in this

guide.

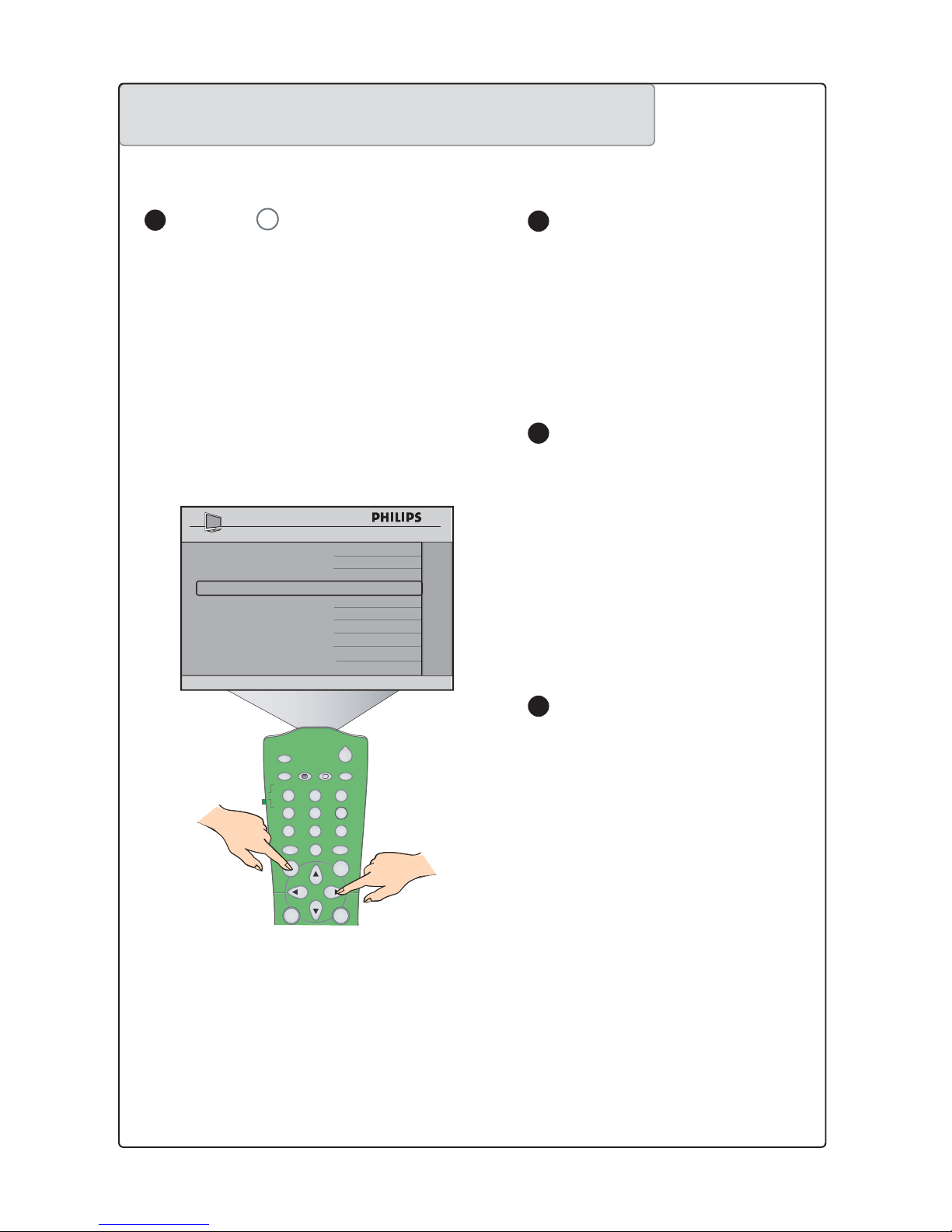

Press the button on the

remote to display SETUP

menu and press the Cursor

Down button repeatedly until

PROGRAM INSTALL is

highlighted.

Press the Cursor Right button

to access the PROGRAM

INSTALL menu and perform

the installation of the TV

channels.

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

A/CH

SETUP

LANGUAGE ENGLISH

COMMUNICATION >

NO. OF PROGRAMS >

PROGRAM INSTALL >

CONFIGURATION >

CLOCK SETUP >

...... InstallingTV Programmes

Note: This section is only

applicable after channels

have been installed in the

TV (refer to Section 3 on

“Installing TV Programmes” ).

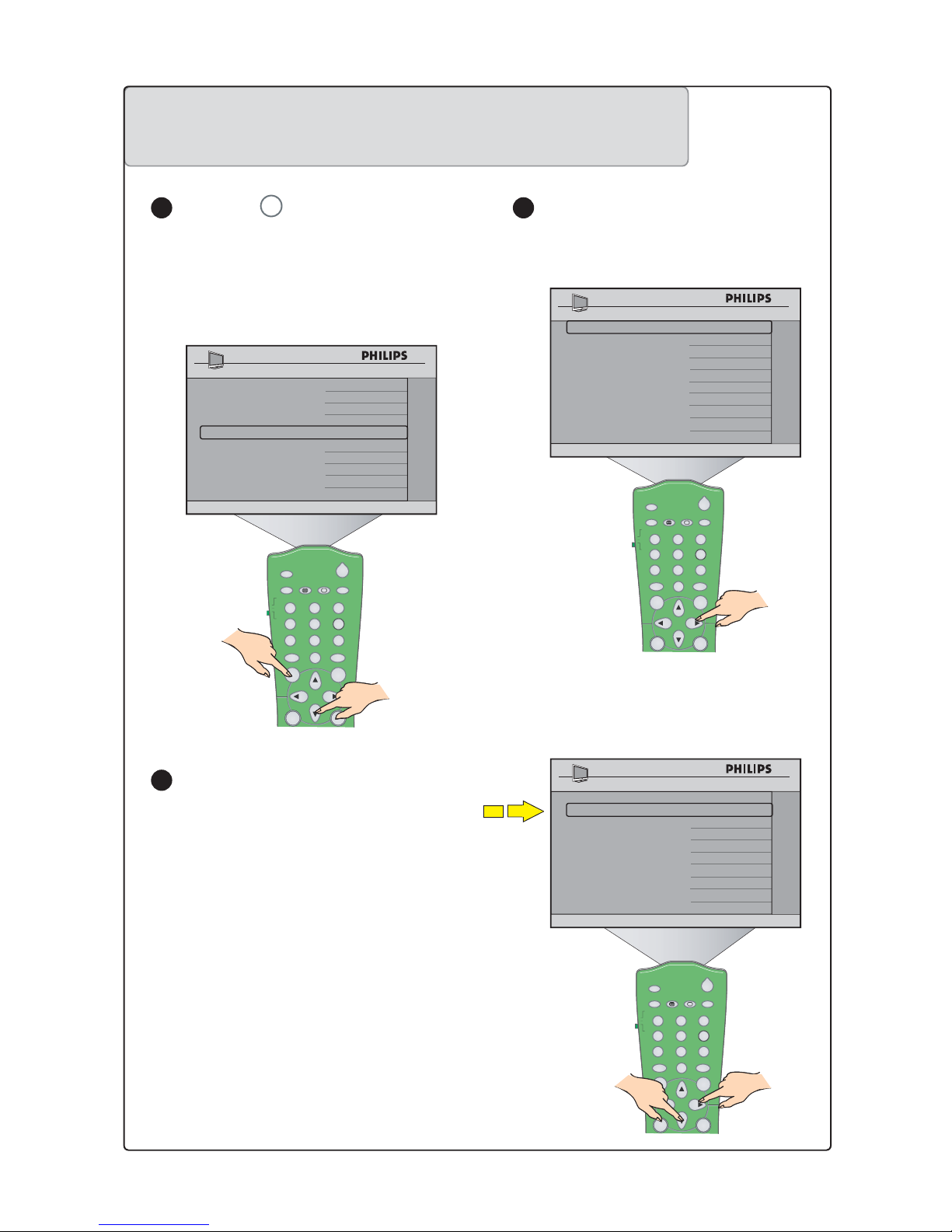

Press the button on the

remote to display the SETUP

menu.

Press the Cursor Down

button repeatedly until

PROGRAM INSTALL

is highlighted.

APress the Cursor Right button to

enter into the PROGRAM INSTALL

menu and use the Digit 0 - 9 buttons

to select a programme number.

Press the Cursor Down button to

select INPUT and use the Cursor

Left or Right button to select input

source.

Do likewise for the other items in

this menu to modify the options or

settings.

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

CHANNEL INSTALL

PROGRAM INSTALL

INPUT TUNER

SYSTEM WEST EU

FREQUENCY 559 . 2500 >

LABEL

STORE

()>

FINE TUNE 0

MUTE

WEST EU

NONE

TELETEXT LANGUAGE

PROTECTION NO

PROGRAM NO. TV 1

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

CHANNEL INSTALL

PROGRAM INSTALL

INPUT TUNER

SYSTEM WEST EU

FREQUENCY 559.2500 >

LABEL

STORE

()>

FINE TUNE 0

MUTE

WEST EU

NONE

TELETEXT LANGUAGE

PROTECTION NO

PROGRAM NO. TV 1

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

SETUP

LANGUAGE ENGLISH

COMMUNICATION >

NO. OF PROGRAMS >

PROGRAM INSTALL >

CONFIGURATION >

CLOCK SETUP >

4 Changing the settings of a channel

Press the button on the

remote to display the SETUP

menu and press the Cursor

Down button repeatedly

until CONFIGURATION

is highlighted.

APress the Cursor Right

button to enter into the

CONFIGURATION menu.

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

CONFIGURATION

SWITCH ON / OSD

PICTURE / SOUND

SECURITY

CONTROL

FEATURES >

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

CPress the Cursor Right button again

to enter the SWITCH ON / OSD

menu. Press the Cursor Down button

to select SWITCH ON PROGRAM.

Press the Cursor Right button to

select the channel that you want it to

appear when the TV is powered on.

Do likewise for the other items in this

menu to modify the options or settings.

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

WELCOME MESSAGE >

SWITCH ON PROGRAM TV 2

SWITCH ON VOLUME 30

SWITCH ON PIC FMT WIDESCREEN

POWER ON LAST STATUS

VOLUME INDICATOR YES

PROGRAM DISPLAY ALL

SWITCH ON / OSD

SETUP

LANGUAGE ENGLISH

COMMUNICATION >

NO. OF PROGRAMS >

PROGRAM INSTALL >

CONFIGURATION >

CLOCK SETUP >

5 Configuring theVolume / Picture

and Other Common settings

EIn the CONFIGURATION menu,

select CONTROL. Press the

Cursor Left or Right button to

enter the CONTROL menu and

select MAX VOLUME to set your

desired maximum volume setting.

In the CONFIGURATION menu, select

VIDEO ADJUSTMENT and press the

Cursor Right button to enter the

VIDEO ADJUSTMENT menu. Select

HORIZONTAL or VERTICAL and

use the Cursor Left or Right button to

adjust picture horizontally or vertically.

Do likewise for the other items in this

menu to modify the settings.

PHASE, CLOCK,AUTO ADJUST

and RESET are only available when input

sources selected areVGA, EXT4 CVI and

CARD EXT4.

Note : VIDEO ADJUSTMENT

function is only available for HDMI1,

HDMI 2,VGA, EXT4 CVI and CARD

EXT4 input sources only.

In the CONFIGURATION menu,

select PICTURE / SOUND.

Press the Cursor Left or Right

button to enter the PICTURE /

SOUND menu and change to

your desired picture and sound

settings.

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

Do likewise for the other items in this

menu to modify the options or settings.

BRIGHTNESS 45

COLOUR 38

CONTRAST 70

SHARPNESS 50

TINT 36

ACTIVE CONTROL YES

TREBLE

BASS

BALANCE

AVL

PICTURE / SOUND

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

CONTROL

ESP

AUDIO/VIDEO MUTE NO

STEP TUNING YES

DIGIT TIMEOUT 3.0

AUTO SCART NO

ALWAYS RGB AUTO

MIN VOLUME 18

MAX VOLUME 33

..... Configuring the Volume / Picture

and Other Common settings

VIDEO ADJUSTMENT

HORIZONTAL

VERTICAL

PHASE

CLOCK

AUTO ADJUST

RESET

< >

APress the MENU button on

SmartLoader to display menu

on TV.

To load the TV conguration

into a SmartLoader, select

“TV to SmartLoader”

and press the Cursor Right

button to start.

To load the SmartLoader

conguration into the TV, select

“SmartLoader to TV” and press

the Cursor Right button to start.

Note: In both cases, the process

takes approximately 30 seconds to

complete.

Slide button up on the left of

the SmartLoader to the

position. Aim SmartLoader at

green LED (5 to 15 cm away

from TV).

SMARTLOADER

SMARTLOADER TO TV

TV TO SMARTLOADER

SMARTLOADER

SMARTLOADER TO TV >

TV TO SMARTLOADER

SMARTLOADER TO TV >

TV TO SMARTLOADER

SMARTLOADER

6 Cloning the TV configuration to a

SmartLoader and the SmartLoader

configuration to the TV

ANote : Ensure that the TV is

turned off.

For the System SmartCard,

insert the SmartCard into the

SmartCard slot on the rear of

the TV (available for certain

models only) and connect the

other cables as directed by the

System provider.

After SmartCard has been

inserted and the cables

connected, turn on the TV.

BNote:The default setting in

the Communication menu is

OFF. If a System SmartCard

or System Box is used with

this TV, the Communication

menu item must be set to

the correct communications

protocol. For purposes of

providing an example only,

this Guide will refer to SP - I2C

as the communications

protocol.

In the SETUP menu, select

COMMUNICATION.

Press the Cursor Right button

to enter COMMUNICATION

menu. Press the Cursor Right

button to select SP - I2C.

Press the Cursor Down button

to select ENABLE CARD SLOT.

Press the Cursor Right button

to select YES in the ENABLE

CARD SLOT option (if applicable).

Press the Cursor Down button

to select STORE and press the

Cursor Right button to store

selections.

Sample of

System

SmartCard

Connect to the Data 1(RJ 12)

connector at the rear of the TV.

Sample of

System box

For the System Box, insert the

RJ12 cable of the System box to

the DATA 1

(RJ12) connector on

the rear of the TV and connect

the other cables as directed by the

System provider.

After all the connection of cables

are completed, turn on the TV.

POWER

SLEEP

GUIDE

RESET

SMART

GUEST

DCM

SETUP

TEXT

RECALL

A/CH

COMMUNICATION SP - I2C

STORE >

ENABLE CARD SLOT YES

COMMUNICATION

DCM TYPE >

7 Installing a System SmartCard or System Box

Autres manuels pour 26HF7875/10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Téléviseur à écran plat

Philips

Philips 32-LCD HDTV MONITOR FLAT TV DIGITAL CRYSTAL CLEAR... Manuel utilisateur

Philips

Philips Cineos 50PF9631D Manuel utilisateur

Philips

Philips 37FD9954 - 37" Plasma Panel Manuel utilisateur

Philips

Philips 37PF1600T Manuel utilisateur

Philips

Philips 42PFL7762D Manuel utilisateur

Philips

Philips 32PFL7862D Manuel utilisateur

Philips

Philips Cineos 50PF9631D Manuel utilisateur

Philips

Philips Matchline 30PF9946/12 Manuel utilisateur

Philips

Philips 28PW8506/12 Manuel utilisateur

Philips

Philips 32PW6526/05 Manuel utilisateur

Philips

Philips 42ta648bx/37 Manuel utilisateur

Philips

Philips 42PFL9632D Manuel utilisateur

Philips

Philips 50PF7321D/37 Manuel utilisateur

Philips

Philips 42PFL7332 - annexe 1 Manuel utilisateur

Philips

Philips 42PFL7782D/12 Manuel utilisateur

Philips

Philips 15PF5121 Manuel utilisateur

Philips

Philips 47PFL5522D Manuel utilisateur

Philips

Philips 50PF9967D Manuel utilisateur

Philips

Philips MatchLine FlatTV 50PF9965 Manuel utilisateur

Philips

Philips Brilliance 298X4 Manuel utilisateur

Philips

Philips 29PT8805 Manuel utilisateur

Philips

Philips 32PFL3403D Manuel utilisateur

Philips

Philips MatchLine 32PW9546 Manuel utilisateur

Philips

Philips 37PFL5322 Manuel utilisateur

Manuels Téléviseur à écran plat populaires d'autres marques

Samsung

Samsung LT-P326W Mode d’emploi

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manuel utilisateur

JVC

JVC LT-26DX7BFN Manuel utilisateur

Samsung

Samsung CT2Z45 Manuel utilisateur

Samsung

Samsung LNR1550X Manuel utilisateur

Westinghouse

Westinghouse TX-42F970Z Manuel utilisateur

Toshiba

Toshiba 32BV500B Manuel utilisateur

Samsung

Samsung Smart TV UN55D6000 Mode d’emploi

RCA

RCA MR53R400 Manuel utilisateur

JVC

JVC GGT0362-001A-H Manuel utilisateur

Sanyo

Sanyo FVM4212 Manuel utilisateur

JVC

JVC LT-32Z48 Manuel utilisateur

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Instructions d'utilisation

Vizio

Vizio M190MV Manuel d'utilisation et d'entretien

Samsung

Samsung UN55F7050AF Manuel utilisateur

RCA

RCA TruFlat F20TF30 Manuel utilisateur

Samsung

Samsung LW32A33W Guide de démarrage rapide

Sony

Sony FD Trinitron Wega KV-30HS420 Manuel utilisateur
