Philips DV900VHS01 Document technique

Hookup Pages

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Digital Video Disc Player

& Video Cassette Recorder

DV900VHS01

ANT-IN

ANT-OUT

CH3 CH4

75Ω

ANT /

CABLE

ANT /

CABLE

8 Hookups Without a Cable Box/Direct Broadcast System

The basic antenna/cable to DVD/VCR to TV is shown below.

If you have a Cable Box or a Direct Broadcast System, please see pages 10-11. For better

sound and picture quality when using the DVD player, refer to the Optional Hookups on pages

12-14. After you hook up the DVD/VCR, go to page 16 to turn on the DVD/VCR.

ANTENNA IN

Jack

(on back of TV)

Cable

(75 ohm)

Back of DVD/VCR

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT-IN (Antenna In) Jack of your

DVD/VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

CH 4

CH 3

CH3 / CH4

Switch

ANT-IN

ANT-OUT

CH3 CH4

ANT-IN

ANT-OUT

CH3 CH4

75‰

ANT/

CABLE

ANT /

CABLE

RF coaxial cable

Antenna

or Cable

Connect the RF coaxial cable (supplied) to the ANT-IN (Antenna In) Jack on the

back of the DVD/VCR and to the ANTENNA IN Jack on the TV. (You may use

either a snap-on type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

Set the CH3/CH4 switch on the back of the DVD/VCR to CH3 or CH4,

whichever channel is not used or least used in your area. Set the TV to the same

channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the

TV should be on channel 03.

Hookups Without a Cable Box/Direct Broadcast System (cont’d) 9

ANTENNA IN Jack

(on back of TV)

example only

Plug in the TV and the DVD/VCR.

You are ready to turn on the DVD/VCR. Please go to page 16 before turning

on the DVD/VCR.

10 Hookups With a Cable Box/Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the DVD/VCR. With this connection:

●You may view any channel.

●You must select channels at the Cable Box/DBS. Channels cannot be changed at the DVD/VCR.

●You may not view a channel other than the one you are recording.

●You may not program channels at the DVD/VCR.

●You can only program a timer recording for one channel at a time. Set the TV and the DVD/VCR to the

Cable Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch to the same channel. Set your

Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a

timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 37.)

Leave the Cable Box/DBS on for a timer recording.

OUT

ANT /

CABLE

DVD/VCR

AUDIO OUT

DVD/VCR

OUT

VIDEO

ANT-IN

ANT-OUT

AUDIO

CH3 CH4

TV’s

ANTENNA IN

Jack

Cable Box/DBS DVD/VCR

Recording/Viewing Any Channel

Connections

With the DVD/VCR on and in VCRposition (the VCR light and the VCR/TV

light will appear on the display panel), use the CHANNEL o/pbuttons to

set the DVD/VCR to the Cable Box/DBS output channel (channel 03

or 04). Set the CH3/CH4 switch to the same channel.

Set the TV to the same channel to which you set the DVD/VCR.

Select the channel you want to view/record at the Cable Box/DBS.

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable

Box/DBS to the ANT-IN (Antenna In) Jack on the DVD/VCR.

Use a second RF coaxial cable to connect the ANT-OUT (Antenna Out) Jack on

the DVD/VCR to the TV’s ANTENNA IN Jack.

Cable

Signal

RF coaxial

cable

RF coaxial

cable

Hookups With a Cable Box/Direct Broadcast System (cont’d) 11

DVD/VCR

AUDIO OUT

DVD/VCR

OUT

VIDEO

ANT-IN

ANT-OUT

AUDIO

CH3 CH4

IN OUT

ANT /

CABLE

With this connection:

●You may watch one channel while recording another.

●You may not record scrambled channels.

Recording One Channel/Watching Another

Put the Cable Box/DBS on the same channel as the

DVD/VCR’s CH3/CH4 switch. Set the TV to the Cable

Box/DBS output channel (03 or 04).

Then, with the DVD/VCR in VCR position (the VCR light and the

VCR/TV light will appear on the display panel), use the CHAN-

NEL o/pbuttons to select the channel you want to

record at the DVD/VCR. Start the recording.

Press the VCR/TV button once to put the DVD/VCR in

TV position. (The VCR/TV light will disappear.)

Select the channel you want to watch at the Cable

Box/DBS.

TV’s ANTENNA

IN Jack

Cable Box/DBS

DVD/VCR

• When you play a tape, make sure

the Cable Box/DBS is set to the

same channel as the CH3/CH4

switch on the DVD/VCR. Set the

TV to the Cable Box/DBS output

channel (03 or 04).

Helpful Hint

Connect a Cable signal to the DVD/VCR’s ANT-IN (Antenna In)

Jack.

Use an RF coaxial cable (supplied) to connect the ANT-OUT

(Antenna Out) Jack on the DVD/VCR to the IN Jack on the Cable

Box/DBS.

Use a second RF coaxial cable to connect the OUT Jack on the

Cable Box/DBS to the ANTENNA IN Jack on the TV.

Connections

Cable

Signal

RF coaxial

cable

RF coaxial

cable

12 Optional Hookups

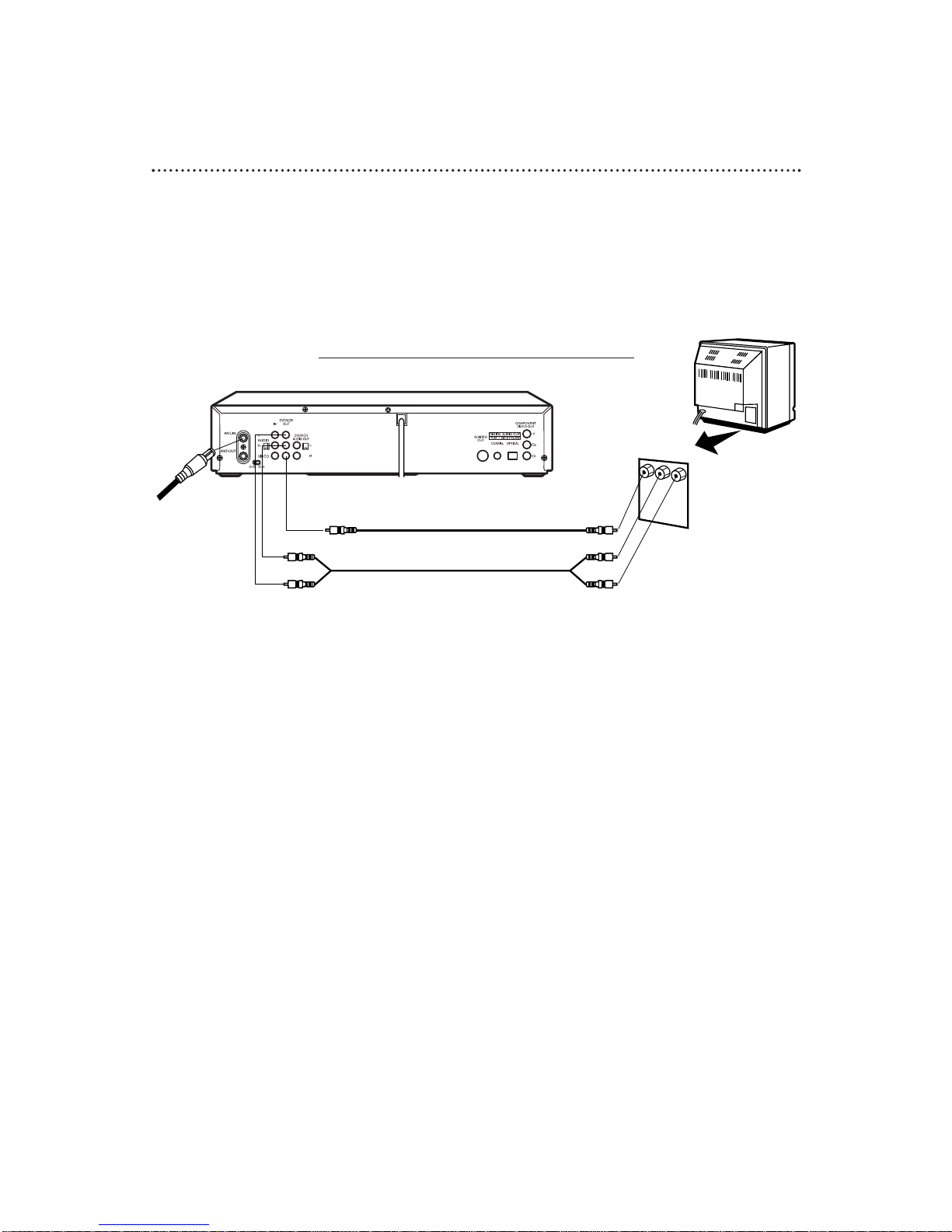

Connecting the DVD/VCR to a Stereo TV

You may connect the DVD/VCR several different ways, depending on your existing equipment and your prefer-

ences for sound and picture quality. To determine which hookup is best for you, examine the options on the

following pages, then see which best matches your situation. Before you hook up the DVD/VCR, remember:

●Connect the DVD/VCR directly to a TV. If you connect the DVD/VCR to a VCR, then connect the VCR to

the TV, the picture may be distorted by the copyright protection system.

●Turn off the power of all equipment before making any connections.

●Refer to the owner’s manuals of your other equipment for additional information.

●Depending on your connection, you may need to purchase additional cables.

●When you use the DVD/VCR AUDIO and VIDEO OUT jacks on the DVD/VCR, press the DVD/VCR

OUTPUT button to select VCR mode (or DVD mode).

Connect the antenna or cable to the ANT-IN (Antenna In) jack of your DVD/VCR.

Connect the red and white audio cables (supplied) to the red and white DVD/VCR AUDIO OUT

jacks on the DVD/VCR and to the red and white AUDIO IN jacks on the TV, matching the cable

colors to the jack colors. If the TV has a single AUDIO IN jack, use the white audio cable to connect the

DVD/VCR’s white DVD/VCR AUDIO OUT jack to the TV’s AUDIO IN jack. You will not use the red audio

cable.

Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR

and to the VIDEO IN jack on the TV. Or, for better picture quality, connect an S-Video cable (not sup-

plied) to the S-VIDEO OUT jack on the DVD/VCR and to the S-VIDEO IN jack on the TV. You will not

use the supplied yellow video cable.

Connect the TV’s power cord to a power outlet. Turn on the TV and set it to the Audio/Video In

channel, which also may be referred to as A/V In or Auxiliary In. This channel usually is located near channel 00.

See your TV owner’s manual for details. Or, if you used the S-Video cable at step 3, select the S-Video In channel at

your TV. See your TV owner’s manual for details.

Connect the DVD/VCR’s power cord to a power outlet. Press the POWER button, then press

the DVD/VCR OUTPUT button so that the DVD light appears on the DVD/VCR. “HELLO” will

appear briefly on the DVD/VCR’s display panel. You should see the DVD logo on the TV screen briefly. If you

do not, check your connections and make sure the TV is set to the correct Audio/Video In channel. If there is

no disc in the DVD/VCR, “no DISC” will appear on the display panel.

antenna or

cable to

ANT-IN

Jack

Video Cable

Audio Cables

Audio and Video

IN Jacks on TV

Optional Hookups (cont’d) 13

Connecting to a TV and a Stereo

TV has Component Video In Jacks

●Set DOLBY DIGITAL and DTS to OFF on the DVD/VCR. Details are on pages 68-69. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DVD/VCR

AUDIO OUT

DVD/VCR

OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

ANT-IN

ANT-OUT

AUDIO

CH3 CH4

LDIGITALAUDIO OUT

PCM / BITSTREAM

Cb/B-Y

Cr/R-Y

AUDIO (RIGHT) IN

AUDIO (LEFT) IN

COMPONENT

VIDEO IN

Connect the antenna or cable to the ANT-IN (Antenna In) jack of your DVD/VCR.

Connect the red and white audio cables to the red and white DVD/VCR AUDIO OUT Jacks on

the DVD/VCR and to the red and white AUDIO IN jacks on the Stereo, matching the cable col-

ors to the jack colors.

Connect an optional component video cable to the COMPONENT VIDEO OUT jacks on the

DVD/VCR and to the COMPONENT VIDEO IN jacks on the TV.

Plug in the Stereo’s power cord. Turn on the Stereo and select the Stereo’s Auxiliary IN station.

During Disc playback, you will adjust the volume at your Stereo. See your Stereo owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the Component Video In channel,

which usually is located near channel 00. During Audio CD playback, you may check the status of Audio

CDs on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s

manual for details.

Connect the DVD/VCR’s power cord to a power outlet. Press the POWER button, then press

the DVD/VCR OUTPUT button so that the DVD light appears on the DVD/VCR. “HELLO” will

appear briefly on the DVD/VCR’s display panel. You should see the DVD logo on the TV screen briefly. If you

do not, check your connections and make sure the TV is set to the correct Component Video In channel. If

there is no disc in the DVD/VCR, “no DISC” will appear on the display panel.

Back of TV

(example only)

DVD/VCR

Back of Stereo

(example only)

• Optical cable may be

damaged when bent

at acute angles.

Ensure cables are

coiled in loops with a

diameter of 6 inches or more

when storing them.

• Use a cable which is 9.8 feet or

shorter.

• Insert cable plugs firmly into the

jacks when making connections.

• If a plug has minor scratches or is

dirty, clean it with a soft cloth

before inserting it into a jack.

• Replace the protective cap on the

OPTICAL jack when it is not in use.

Helpful Hints

Minimum 6 in.

in diameter

14 Optional Hookups (cont’d)

Connecting to a Dolby Digital Decoder, DTS Decoder, or Amplifier

Some Discs are recorded in a 5.1 channel Dolby Digital Surround or Digital Theater System (DTS) Surround format.

These Discs will sound best if you connect the DVD/VCR to a Dolby Digital or DTS Decoder.

●You will need a coaxial digital audio cable or an audio optical cable (not supplied). See Helpful Hints below.

●If you use the OPTICAL jack, remove the protective cap.

●If you connect the DVD/VCR to a Dolby Digital Decoder, set DOLBY DIGITAL to ON. Details are on pages 68-69.

●If you connect the DVD/VCR to a DTS Decoder, set DTS to ON. Details are on pages 68-69.

●If the DVD/VCR is not connected to a Dolby Digital or DTS decoder, set DOLBY DIGITAL and DTS to OFF.

Incorrect settings may cause noise distortion and damage the speakers.

●Select the 5.1 channel Dolby Digital Surround sound in the Disc menu.

●Connect a subwoofer and the center, front, and surround speakers to the Decoder as described in the Decoder

owner’s manual.

●If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot dub the Disc in digital sound using a

Mini-Disc or Digital Audio Tape Deck.

VIDEO

L/MONO

AUDIO

VIDEO IN

COAXIAL DIGITAL

AUDIO IN

Connect the antenna or cable to the ANT-IN (Antenna In) jack of your DVD/VCR.

Connect a coaxial digital audio cable (not supplied) to the COAXIAL jack on the DVD/VCR and to

the COAXIAL DIGITAL AUDIO IN jack on the Decoder or Amplifier. (Or, you may connect an audio

optical cable (not supplied) to the OPTICAL jack on the DVD/VCR and to the OPTICAL DIGITAL AUDIO IN jack

on the Decoder or Amplifier.)

Connect the supplied yellow video cable to the yellow DVD/VCR VIDEO OUT jack on the DVD/VCR

and to the VIDEO IN jack on the TV. (Or, you may connect a component video cable or a S-Video cable. Details

are on pages 12-13.)

Back of TV

(example only) Back of Decoder

(example only)

DVD/VCR

Plug in the power cord of the Decoder or Amplifier. Turn on the

Decoder or Amplifier and select its Auxiliary IN station. During

Disc playback, you will adjust the volume at the Decoder or Amplifier. See

its owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the

correct Video In channel. During Audio CD playback, you may check

the Disc status on your TV screen. During DVD playback, you will watch

the program on the TV. See your TV owner’s manual for details.

Connect the DVD/VCR’s power cord to a power outlet. Press the

POWER button, then press the DVD/VCR OUTPUT button so

that the DVD light appears on the DVD/VCR. “HELLO” will appear

briefly on the DVD/VCR’s display panel. You should see the DVD logo on

the TV screen briefly. If you do not, check your connections and make sure

the TV is set to the correct Video In channel. If there is no disc in the

DVD/VCR, “no DISC” will appear on the display panel.

26 Front Panel

STOP

STOP/EJECT

REW PLAY F.FWD RECORD

CST.IN

VCR/TV

VIDEO

AUDIO

TIMER SET

CHANNEL

PLAY

DVD VCR

POWER

OPEN/CLOSE

OUTPUT

OPEN/CLOSE Button

Press to open or close the Disc tray.

Details are on page 50.

PLAY Button

Press to play a tape. Press to release Slow, Search, or Still mode and return to

tape playback. Details are on page 44. Press to select an item in the VCR menu.

STOP/EJECT Button

Press once to stop the tape.

When playback is stopped,

press to eject the tape. Press to

select an item in the VCR menu.

RECORD Button

Press once to start a recording. Press repeatedly to start a One-Touch Recording.

Details are on page 35.

CHANNEL Buttons

In VCR mode, press to change channels at the DVD/VCR. Or, press to adjust the tracking of a

tape during normal playback or slow motion playback. Also, press to remove vertical jitter in a

Still picture. Details are on page 45.

F.FWD (Fast

Forward) Button

When tape playback is

stopped, press to fast

forward the tape at high

speed. During tape play-

back, press to fast for-

ward the tape while the

picture stays on the

screen. Details are on

page 44. Press to

advance to the next

VCR menu or to

change the setting of an

item in the VCR menu.

SEARCH Buttons

Press for a fast forward or

reverse search during Disc play-

back. Details are on page 54.

Remote Sensor

Receives a signal from your

remote control so you can

operate your DVD/VCR

from a distance.

REW(ind) Button

When tape playback is stopped, press to rewind the tape at high speed. During

playback, press to rewind the tape while the picture stays on the screen. Details

are on page 44. Press to return to a previous VCR menu.

OUTPUT Button

Press to select DVD mode

or VCR mode.

TIMER SET Button

Press to put the DVD/VCR into standby mode for a timer recording. Details are on page 38.

POWER Button

Press to turn the power on and off.

VIDEO In Jack

Connect a video cable coming from the video out jack of a camcorder, another VCR, or

a video source (laser disc player, video disc player, etc.) here. Details are on page 40.

AUDIO In Jacks

Connect audio cables coming from the audio out jacks of a cam-

corder, another VCR, or an audio source here. Details are on page 40.

STOP Button

Press to stop Disc playback.

Details are on page 50.

PLAY Button

Press to start or

resume Disc playback.

Details are on page 50.

COMPONENT VIDEO OUT Jacks

Connect optional component video

cables here and to the component

Video In jacks of a television. Details

are on page 13.

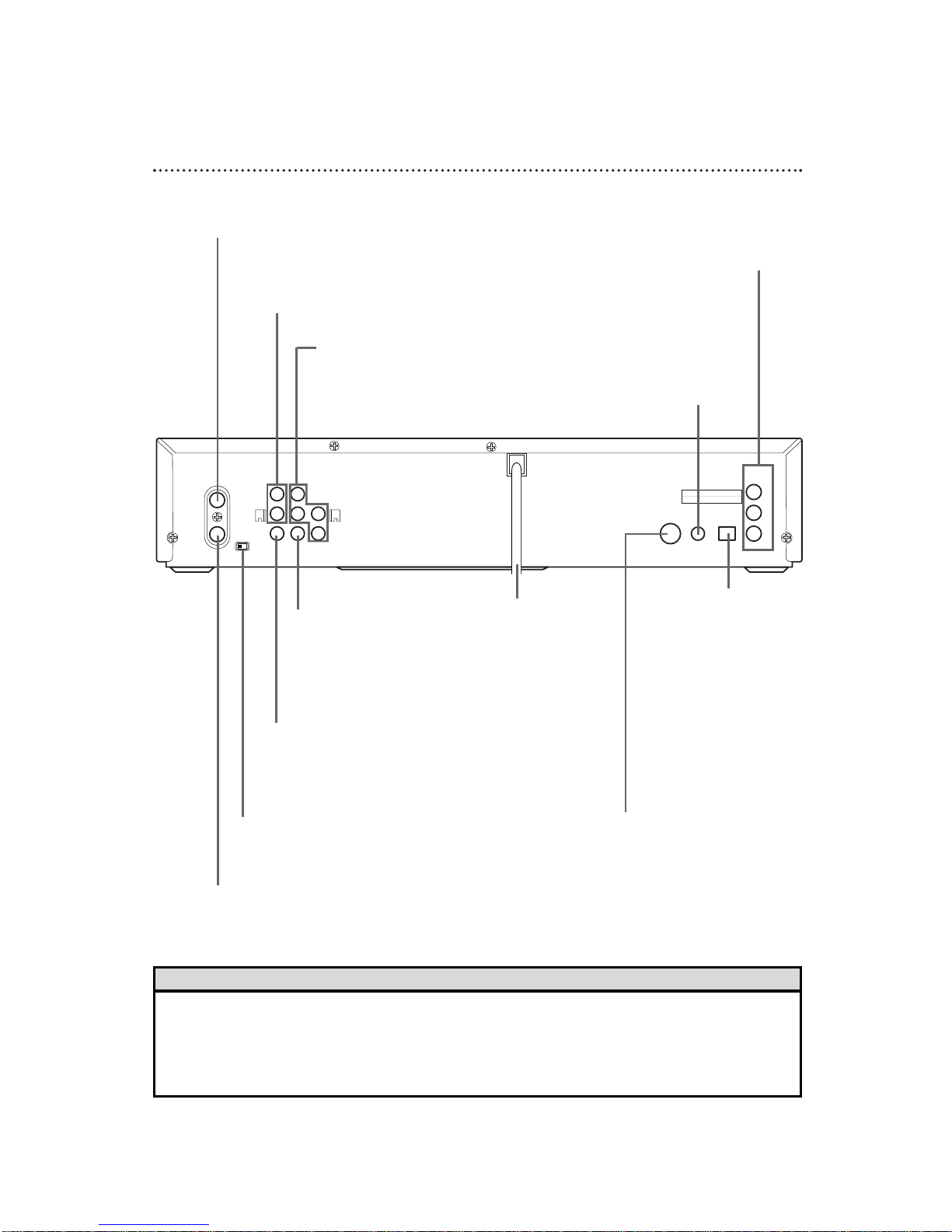

Rear Panel 27

DVD/VCR

AUDIO OUT

DVD/VCR

OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

ANT-IN

ANT-OUT

AUDIO

CH3 CH4

LDIGITAL AUDIO OUT

PCM / BITSTREAM

AC Power

Cord

Connect to a

standard AC out-

let to supply

power to the

DVD/VCR.

COAXIAL Jack

Connect an optional coaxial

digital audio cable here and to

the Coaxial Digital Audio In

jack of a decoder or amplifier.

Details are on page 14.

S-VIDEO OUT Jack

Connect an optional S-Video cable here

and to the S-Video In jack of a televi-

sion. Details are on pages 12 and 14.

DVD/VCR

VIDEO OUT Jack

Connect the yellow video cable

(supplied) here and to the TV’s

Video In jack. Details are on

pages 12 and 14.

DVD/VCR AUDIO OUT Jacks

Connect the supplied audio cables

here and to the Audio In jacks of a

television or other audio equipment.

Details are on pages 12-14.

OPTICAL Jack

Connect an optional

audio optical cable here

and to the Optical

Digital Audio In jack of a

decoder or amplifier.

Details are on page 14.

When the OPTICAL jack

is not in use, make sure

its protective cap is in

place.

ANT-IN (Antenna In) Jack

Connect your antenna or cable here.

Details are on pages 8-14.

ANT-OUT (Antenna Out) Jack

Use the supplied RF coaxial cable to connect this jack to

the ANTENNA IN Jack on your TV, Cable Box, or

Direct Broadcast System. Details are on pages 8-11.

CH3/CH4 Switch

Set to channel 3 or 4 to use your TV with your

DVD/VCR. Details are on pages 8-11.

VIDEO IN Jack

Connect a cable coming from the video out jack

of a camcorder, another VCR, or an audio-visual

source (laser disc player, video disc player, etc.)

here. Details are on page 40.

AUDIO IN Jacks

Connect audio cables coming from the audio

out jacks of a camcorder, another VCR, or an

audio source here. Details are on page 40.

• You only need one audio connection and one video connection, so you will not have a cable connected to every

jack. For example, if you are using the S-VIDEO OUT jack, you will not use the yellow VIDEO OUT jack or the

COMPONENT VIDEO OUT jacks.

• The S-VIDEO OUT jack, COAXIAL jack, OPTICAL jack,and COMPONENT VIDEO OUT jacks are only useful in

DVD mode.

• When you use the DVD/VCR AUDIO and VIDEOOUT jacks, press the DVD/VCR OUTPUT button on the

remote control to select VCR mode or DVD mode.

Helpful Hints

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Combo DVD/magnétoscope

Philips

Philips DVP721VR/14 Manuel d'utilisation

Philips

Philips DVDR600VR Manuel utilisateur

Philips

Philips DVD755VR Manuel utilisateur

Philips

Philips DVP3345VB/F7 Manuel utilisateur

Philips

Philips DVDR630VR Manuel utilisateur

Philips

Philips DVDR3545V/F7 Manuel utilisateur

Philips

Philips DVDR3510V/05 Manuel utilisateur

Philips

Philips DVP620VR/78 Manuel d'utilisation

Philips

Philips DVDR3320V Series Manuel utilisateur

Philips

Philips DVP3355V Manuel utilisateur

Philips

Philips DVDR3320V/37 Manuel utilisateur

Philips

Philips DVDR3320V/01 Manuel utilisateur

Philips

Philips DVDR600VR/37B Manuel d'utilisation

Philips

Philips DVP3345V/F7 Manuel utilisateur

Philips

Philips DVDR3512V Manuel utilisateur

Philips

Philips MX5100VR/02 Manuel utilisateur

Philips

Philips DVP3050V/37B Manuel d'utilisation

Philips

Philips DVDR3320V/37B Manuel utilisateur

Philips

Philips DVP620VR/17 Manuel utilisateur

Philips

Philips DVP3050V/37 Manuel utilisateur

Philips

Philips DVP620VR/78 Manuel utilisateur

Philips

Philips DVP3200V/37B Manuel utilisateur

Philips

Philips DVDR3432V/12 Manuel utilisateur

Philips

Philips DVD740VR/001 Manuel utilisateur

Manuels Combo DVD/magnétoscope populaires d'autres marques

Samsung

Samsung DVD-V2000 Manuel utilisateur

Toshiba

Toshiba D-VR3SG Manuel utilisateur

Sharp

Sharp DV-NC230SB Manuel utilisateur

Samsung

Samsung DVD-V5500 Manuel utilisateur

Seg

Seg DVRC 600 Manuel utilisateur

Memorex

Memorex MVD4540C Manuel utilisateur

JVC

JVC HR-XVC29SUM Manuel utilisateur

JVC

JVC DR-MV1BEK Guide de l'administrateur

Samsung

Samsung DVD-V9090 Manuel utilisateur

Samsung

Samsung DVD-V5450 Manuel utilisateur

Samsung

Samsung DVD-V55K Manuel utilisateur

Pioneer

Pioneer DV-PT100-S Manuel utilisateur

Toshiba

Toshiba DVR610 - DVDr/ VCR Combo Manuel utilisateur

Toshiba

Toshiba SD-K531SU Manuel utilisateur

JVC

JVC HR-XVS20AA Manuel utilisateur

Toshiba

Toshiba RDXV60KB Manuel utilisateur

Toshiba

Toshiba D-VR600 - DVDr/ VCR Combo Manuel utilisateur

Magnavox

Magnavox ZV457MG9 A Manuel utilisateur
