Service Manual
Service
Service
Service
Service
Service
DVDR520H/00/02/05/37
©Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by LO-MF AV System Printed in The Netherlands Subject to modification
GB
3139 785 30850
HDD / DVD Recorder Combi
Version 1.0
HDD/DVD Recorder Combi 2
CONTENTS
1. Specification ……. ……………………………..……………………… 1-1
2. Exploded View Drawing…………………………………………….. 2-1
3. Introduction ………………………..……………….………………..… 3-1
4. Product Validation Strategies and Process
4.1 System Block Diagram…………………………………………. 4-1
4.2 Main Board ………………………………………………………. 4-2
4.3 Front Panel ………………………………………………………… 4-2
4.4 Power PCB …………………………………………………………. 4-2
4.5 Power Module …………………………………………………….. 4-2
5. Test Tool Instruction ……………………..……………………………...…5-1
6. Fault Finding Tree………………………………….………………………. 6-1
7. Disassembly Instruction
7.1 Disassemble the Top-Cover. ……………………………………. 7-1
7.2 Disassemble the Drive……………………………………………. 7-2
7.3 Disassemble HDD …………………………….…………………… 7-3
7.4 Disassemble the M/B ………………………….…………………. 7-4
7.5 Disassemble Power module. …………………………………… 7-5
7.6 Jump of HDD & ODD………………………………………………. 7-6
8. Firmware Update …………………………………………….………… 8-1
9. Spare parts list ….……………………………….………………………… 9-1
HDD/DVD Recorder Combi 3
1. Specifications
HDD/DVD Recorder Combi 4
2. Exploded View Drawing
HDD/DVD Recorder Combi 5
3. Introduction
This document states engineering specifications of both hardware and firmware of
DVDR520H.
DVDR520H adapts LSI DMN8652 chip, DMN-8652 is a single chip dual drive
(HDD/DVD) recorder processor. DMN-8602/DMN-8652 will be the evolutionary
product family after DMN-8600 and DMN-8650. In this sense, DMN-8602/8652 will
offer the same features as their predecessors, allow cost saving at the system level
due to integration, and offer more features at the C-Ware level.
System Requirements
HDD/DVD Recorder Combi 6
4. Product Validation Strategies and Process
4.1. System Block Diagram
4.1.1 Front Panel
There are six parts in the front panel of DVDR520H: (A) POWER, (B) AV Input 2 (C)
DVD+/-RW Drive, (D) LED Display (E) IEE1394 (F) Command Buttons.
Part Button/Display
(A)POWER (A-1) POWER
(B)AV Input 2 (B-1) VIDEO IN, AUDIO IN (*)
(C)DVD+RW Drive DDW-401s
(D)LED Display (D-1) LED Displayer
(E)IEEE1394 (E-1) IEEE1394 4-pin mini connector
(F)Comment Buttons (F-1) ~ (F-6) are to be defined
¾AV Input 2: For easy access, standard red (right channel), white (left channel), and yellow
(video) CVBS (RCA) audio/video jacks are located on the front panel of the DVDR520H. To
connect a camcorder or other audio/video source, simply connect the unit’s RCA input
jacks to the corresponding output jacks on the other side.
HDD/DVD Recorder Combi 7
4.1.2 Rear Panel
AV Input 1
The rear panel of the DVDR520H features
standard red (right channel), white (left
channel), and yellow (video) CVBS (RCA)
audio/video jacks, such as those are
commonly found in VCRs, record players,
and a wide variety of other audio/video
sources.
AV Input 1 for S-VIDEO IN
The rear panel AV Input 1 of the
DVDR520H features an S-Video
connector, which allows a higher-quality
connection to a camcorder, television, or
other video source. When recording
from the S-Video source, the audio input
will be sourced from the red (right
channel) and white (left channel) audio
jacks (labeled “R” and “L”, respectively)
on the rear panel.
AV Output
The rear panel of the DVDR520H features
standard red (right channel), white (left
channel), and yellow (video) CVBS (RCA)
audio/video jacks, such as are commonly
found in VCRs, players, and a wide
variety of other audio/video sources.
AV Output for S-VIDEO
The rear panel AV Output of the
DVDR520H features an S-Video
connector, which allows a higher-quality
connection to a camcorder, television, or
other display device.
AV Output for Component Colors:
YCbCr
The rear panel AV Output of the
DVDR520H also features a component
colors (YCbCr) output, which allows a
higher-quality connection to a
camcorder, television, or other display
device.
2CH Audio Output
The rear panel of the DVDR520H features
a set of 2CH audio connectors, which
allows a high-quality audio output.
Digital Audio Output
The rear panel of the DVDR520H features
a coaxial connector and an optical
connector, which allows a high-quality
audio output.
Tuner
The rear panel of the DVDR520H features
a set of Tuner, which allows recording
broadcast programs with stereo audio at
following areas: NTSC – USA/Taiwan, PAL:
B/G/D/K/I. Besides the cable TV signal
input, a loop-through connector is also
provided.
HDD/DVD Recorder Combi 8
4.2 Main Board
zMain processor and MPEG CODEC : DMN-8652
zRAM : 256MB DDR
zFLASH : 4MB
zTV Encoder : NTSC/PAL Composite, S-Video or Component
zTV Decoder : NTSC/PAL Composite or S-Video
zAudio Input : Stereo
zAudio Output : Stereo
zTuner : NTSC or PAL, monotone
zIEEE 1394 PHY : IEEE1394a, 100/200/400Mbps
zIDE : 1. Port
zFront panel I/O : 1. IR interface
2. LED display module
3. Scheduled boot-up
4. Repeat key scan (up to 5 times per second)
5. System power on/off control
6. Extended I/O
4.3 Front Panel
zLED display module : 8 numeric characters
zKey : 6
zRCA jack : 1
zMini IEEE-1394 jack : 1
zIR receiver : 1
4.4 Power PCB
zKey : 1
4.5 Power module
zInput: 100V ~ 240V, 50/60Hz
zOutput: 12V / 5V / 3.3V / AUX_5V
zCapacity: ~50W
HDD/DVD Recorder Combi 9
5. Test tool introduction
There will be a testing DVD disc (for NTSC system named as 5-1 disc, for PAL system
named as 5-2P disc) as a tool when repair, below will introduce the content of the
disc
5.1 Performance Testing Procedure mainly contains 6 parts:
1). Video Signal Test
2). Speaker & Sound Signal Test
3). Music Demo
4). Video Demo
5). Karaoke Demo
6). Digital Signal Test (not usable for the time being)
5.2 Test Instructions:
1). Video Signal Test need go through 6 screen pictures to check the
output
Note of Step:
Login the picture as below for no. 1--Video Signal Test
Then, 3 pictures will show up on the screen: 1.Color bar, 2.Mono scope
and 3.Dot Pattern.
And test will automatically go on to playback the 3 pictures shown as
below:
HDD/DVD Recorder Combi 10

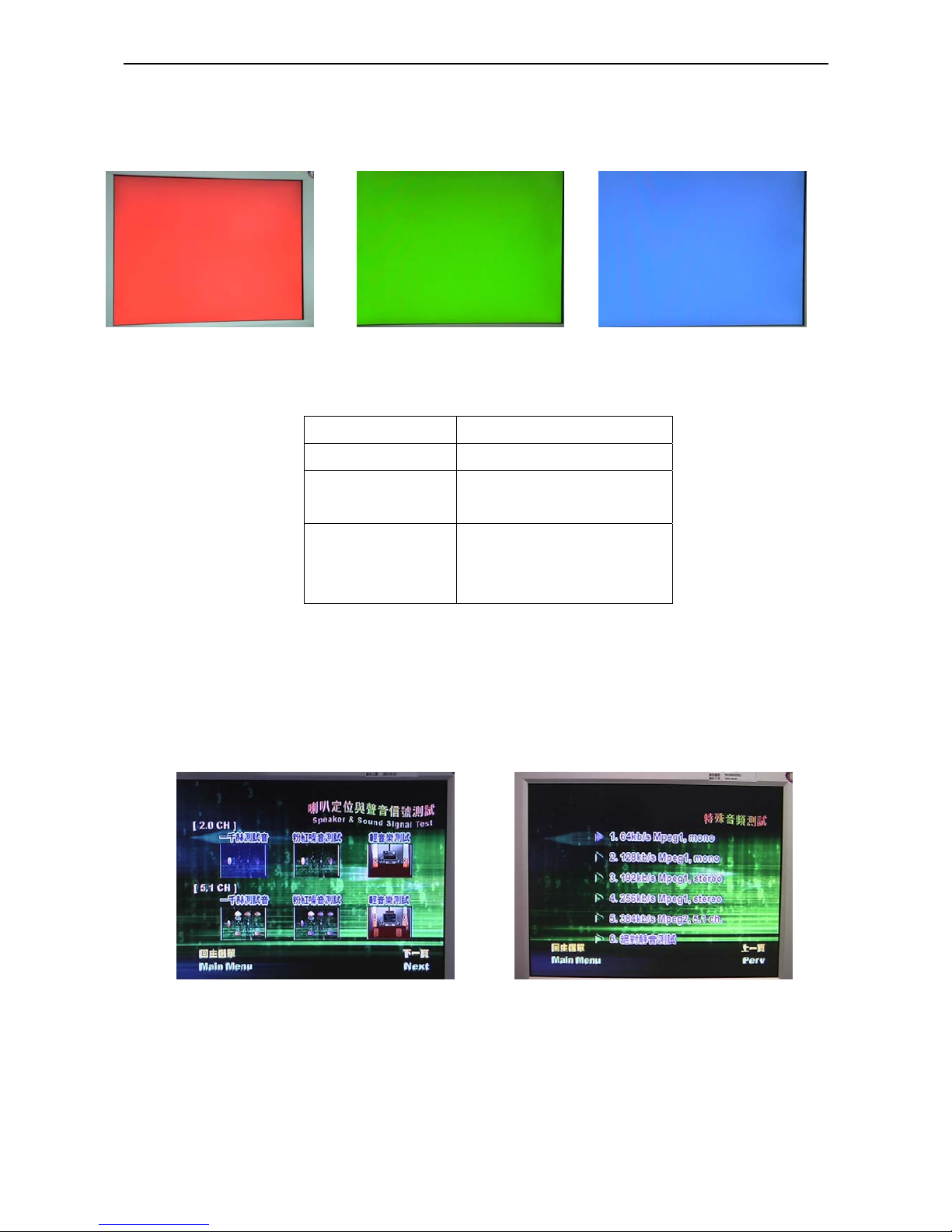

¾Test Criteria:
Color bar has sharp, bright and stable color show;
Mono scope or Dot pattern has no tilt or twisted effect;
The RGB picture as below has normally good effect to the naked eyes.
If anything undeterminable, please refer to the following factors to evaluate:
Video Performance (The test appliance is Tektronix VM 700/s-video VM500/Component):
DA Converter 10-bit/54 MHZ
Composite Output 1Vpp &5 Ohm
S-video Output Y: 1Vpp 75Ohm
C: 0.3Vpp 75 Ohm
Component
Output
Y: 1Vpp 75Ohm
Pb: 0.7 Vpp 75 Ohm
Pr: 0.7 Vpp 75 Ohm
2). Speaker & Sound Signal Test is to test its output audio fineness and locating
efficiency of the speaker.
Note of Step:
Select no.2 --- Speaker & Sound Signal Test in the login. The test will check the
locating efficiency and audio signal as well as special frequency.
¾Test Criteria:
The standard audio output is clear without popping and the signal output from Hi-Fi is normal.
If anything undeterminable, please refer to the following factors to evaluate:
Audio Performance (The test appliance is Audio position SWR-2122U)
