Philips HTS3531/12 Manuel utilisateur

TABLE OF CONTENTS

Page

Service Manual

. Mechanical and Dismantling Instructions…………........................3-1

. Software Upgrades ........................................................................4-1

. Trouble Shooting Chart……………………………………………….5-1

. Wiring Diagram………………………………………..………..….….6-1

. Electrical Diagrams and Print-layouts..….…………………....….…7-1

. Set Mechanical Exploded view & Part list.…………………..….….8-1

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise

without the prior permission of Philips.

CLASS 1

LASER PRODUCT

PHILIPS

. DFU Instruction..............................................................................2-1

. Revision List..................................................................................9-1

. Technical Specifications…………....………………………..............1-

. Safety Instruction, Warning & Notes….……………………....….....1-

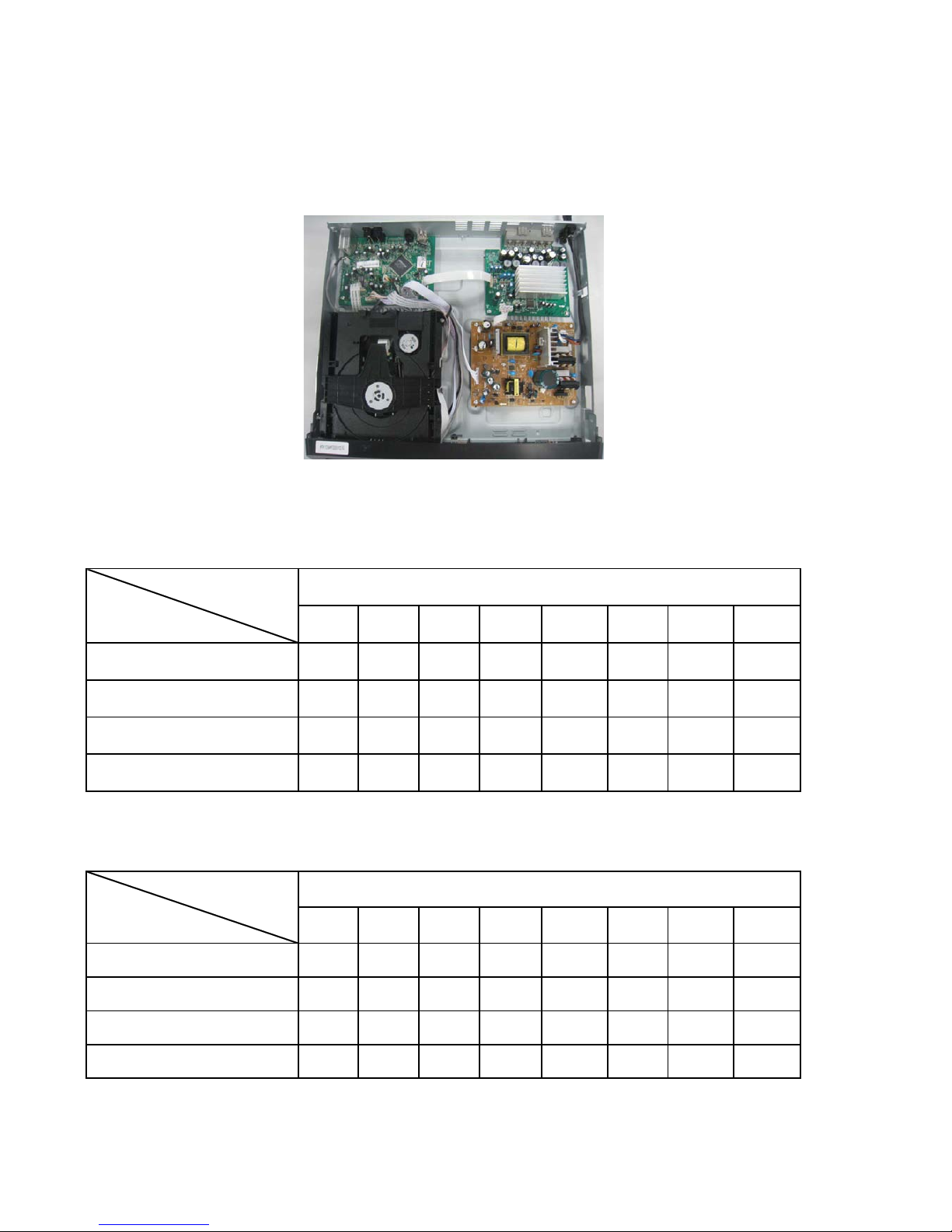

. Location of PCB Boards&Version Variation&Repair Scenario Matrix..........1-2

Published by RY&LLL - 1147 BU AVM Printed in The Netherlands Subject to modification

3139 785 35843

Version 1.3

Service

. Change settings.......................................…………........................4-2

HTS3531/12/51/94/98/F7/55/78/93

Home Theater DVD Player

Version Variation

/12 /51 /94 /98 /F7 /55 /78 /93

Output Power- 300W X X X X X X X X

Voltage(220~240V~) X X X X

Voltage(110~240V~) X X X X

MP3 LINK X X X X X X X X

Repair Scenario Matrix

/12 /51 /94 /98 /F7 /55 /78 /93

Main Board B B C C C C C C

Front Control Board B B C C C C C C

Amplifier Board B B C C C C C C

Power Board B B C C C C C C

*Bd:Board Level Replacement

*C:Component Level Repair

Type/Versions

Features

Type/Versions

Board in used

HTS3531

Note

•Speciﬁcations and design are subject to change

without notice.

Region codes

The type plate on the back or bottom of the

home theater shows which regions it supports.

Media formats

•DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW, Audio CD,

Video CD/SVCD, Picture ﬁles, MP3 media,

WMA media, DivX media, USB storage

device

File formats

•Audio: .mp3, .wma

•Video: .avi, .divx, .mpg, .mpeg,

•Picture: .jpg, .jpeg

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

HTS3531/12/55/78:

Product Specifications:

1-3

Ampliﬁer

•Total output power: 300W RMS (30%

THD)

•Frequency response: 20 Hz-20 kHz / ±3 dB

•Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

•Input sensitivity:

•AUX: 2 V

•Music iLink: 1 V

Video

•Signal system: PAL / NTSC

•HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

•S/PDIF Digital audio input:

•Optical: TOSLINK

•Sampling frequency:

•MP3: 32 kHz, 44.1 kHz, 48 kHz

•WMA: 44.1 kHz, 48 kHz

•Constant bit rate:

•MP3: 32 kbps - 320 kbps

•WMA: 64 kbps - 192 kbps

Radio

•Tuning range:

•Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

•Asia Paciﬁc/Latin America: FM 87.5-108

MHz (50/100 kHz)

•Signal-to-noise ratio: FM 50 dB

•Frequency response: FM 200 Hz-12.5 kHz

/ ±6 dB

USB

•Compatibility: Hi-Speed USB (2.0)

•Class support: USB Mass Storage Class

(MSC)

•File system: FAT16, FAT32

•Maximum memory support: < 160 GB

Main unit

•Power supply:

•Europe/China/Russia/India: 220-240V,

~50 Hz

•Latin America/Asia Paciﬁc: 110-240V

~50-60 Hz

•Power consumption: 55 W

•Standby power consumption: 0.9 W

•Dimensions (WxHxD): 360 x 58 x 325 mm

•Weight: 2.3 kg

Subwoofer

•Output power: 50 W RMS (30% THD)

•Impedance: 4 ohm

•Speaker drivers: 133 mm (5.25”) woofer

•Dimensions (WxHxD): 160 x 265 x 265 mm

•Weight: 2.5 kg

•Cable length: 3 m

Speakers

Center speaker:

•Output power: 50 W RMS (30% THD)

•System: 1 x 63.5 mm (2.5”) full range

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) woofer

•Dimensions (WxHxD): 159 x 84.5 x 80 mm

•Weight: 0.35 kg

•Cable length: 2 m

Front/Rear speaker:

•Output power: 4 x 50 W RMS (30% THD)

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) full range

•Dimensions (WxHxD): 84.5 x159 x 80mm

•Weight (front): 0.35 kg/each

•Weight (rear): 0.35 kg/each

•Cable length (front): 4 m

•Cable length (rear): 10 m

Remote control batteries

•2 x AAA-R03-1.5 V

Laser

•Type: Semiconductor laser GaAIAs (CD)

•Wave length: 645 - 665 nm (DVD), 770 -

800 nm (CD)

•Output power: 6 mW (DVD), 7 mW

(VCD/CD)

•Beam divergence: 60 degrees.

1-4

Ampliﬁer

•Total output power: 300W RMS (30%

THD)

•Frequency response: 20 Hz-20 kHz / ±3 dB

•Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

•Input sensitivity:

•AUX: 2 V

•Music iLink: 1 V

Video

•Signal system: PAL / NTSC

•HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

•S/PDIF Digital audio input:

•Optical: TOSLINK

•Sampling frequency:

•MP3: 32 kHz, 44.1 kHz, 48 kHz

•WMA: 44.1 kHz, 48 kHz

•Constant bit rate:

•MP3: 32 kbps - 320 kbps

•WMA: 64 kbps - 192 kbps

Radio

•Tuning range:

•Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

•Asia Paciﬁc/Latin America: FM 87.5-108

MHz (50/100 kHz)

•Signal-to-noise ratio: FM 50 dB

•Frequency response: FM 200 Hz-12.5 kHz

/ ±6 dB

USB

•Compatibility: Hi-Speed USB (2.0)

•Class support: USB Mass Storage Class (MSC)

•File system: FAT16, FAT32

•Maximum memory support: < 160 GB

Note

•Speciﬁcations and design are subject to change

without notice.

Region codes

The type plate on the back or bottom of the

home theater shows which regions it supports.

Media formats

•DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW, Audio CD,

Video CD/SVCD, Picture ﬁles, MP3 media,

WMA media, DivX media, USB storage

device

File formats

•Audio: .mp3, .wma

•Video: .avi, .divx, .mpg, .mpeg,

•Picture: .jpg, .jpeg

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

1-5

HTS3531/51

Product Specifications:

Main unit

•Power supply:

•Europe/China/Russia/India: 220-240V,

~50 Hz

•Latin America/Asia Paciﬁc: 110-240V

~50-60 Hz

•Power consumption: 55 W

•Standby power consumption: 0.9 W

•Dimensions (WxHxD): 360 x 58 x 325 mm

•Weight: 2.3 kg

Subwoofer

•Output power: 50 W RMS (30% THD)

•Impedance: 4 ohm

•Speaker drivers: 133 mm (5.25”) woofer

•Dimensions (WxHxD): 160 x 265 x 265 mm

•Weight: 2.5 kg

•Cable length: 3 m

Speakers

Center speaker:

•Output power: 50 W RMS (30% THD)

•System: 1 x 63.5 mm (2.5”) full range

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) woofer

•Dimensions (WxHxD): 159 x 84.5 x 80 mm

•Weight: 0.35 kg

•Cable length: 2 m

Front/Rear speaker:

•Output power: 4 x 50 W RMS (30% THD)

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) full range

•Dimensions (WxHxD): 84.5 x159 x 80mm

•Weight (front): 0.35 kg/each

•Weight (rear): 0.35 kg/each

•Cable length (front): 4 m

•Cable length (rear): 10 m

Remote control batteries

•2 x AAA-R03-1.5 V

Laser

•Type: Semiconductor laser GaAIAs (CD)

•Wave length: 645 - 665 nm (DVD), 770 -

800 nm (CD)

•Output power: 6 mW (DVD), 7 mW

(VCD/CD)

•Beam divergence: 60 degrees.

1-6

Ampliﬁer

•Total output power: 300W RMS (30%

THD)

•Frequency response: 20 Hz-20 kHz / ±3 dB

•Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

•Input sensitivity:

•AUX: 2 V

•Music iLink: 1 V

Video

•Signal system: PAL / NTSC

•HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

•S/PDIF Digital audio input:

•Optical: TOSLINK

•Sampling frequency:

•MP3: 32 kHz, 44.1 kHz, 48 kHz

•WMA: 44.1 kHz, 48 kHz

•Constant bit rate:

•MP3: 32 kbps - 320 kbps

•WMA: 64 kbps - 192 kbps

Radio

•Tuning range:

•Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

•Asia Paciﬁc/Latin America: FM 87.5-108

MHz (50/100 kHz)

•Signal-to-noise ratio: FM 50 dB

•Frequency response: FM 200 Hz-12.5 kHz

/ ±6 dB

USB

•Compatibility: Hi-Speed USB (2.0)

•Class support: USB Mass Storage Class

(MSC)

•File system: FAT16, FAT32

•Maximum memory support: < 160 GB

Note

•Speciﬁcations and design are subject to change

without notice.

Region codes

The type plate on the back or bottom of the

home theater shows which regions it supports.

Media formats

•DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW, Audio CD,

Video CD/SVCD, Picture ﬁles, MP3 media,

WMA media, DivX media, USB storage

device

File formats

•Audio: .mp3, .wma

•Video: .avi, .divx, .mpg, .mpeg,

•Picture: .jpg, .jpeg

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

1-7

HTS3531/94

Product Specifications:

Main unit

•Power supply:

•Europe/China/Russia/India: 220-240V,

~50 Hz

•Latin America/Asia Paciﬁc: 110-240V

~50-60 Hz

•Power consumption: 55 W

•Standby power consumption: 0.9 W

•Dimensions (WxHxD): 360 x 58 x 325 mm

•Weight: 2.3 kg

Subwoofer

•Output power: 50 W RMS (30% THD)

•Impedance: 4 ohm

•Speaker drivers: 133 mm (5.25”) woofer

•Dimensions (WxHxD): 160 x 265 x 265 mm

•Weight: 2.5 kg

•Cable length: 3 m

Speakers

Center speaker:

•Output power: 50 W RMS (30% THD)

•System: 1 x 63.5 mm (2.5”) full range

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) woofer

•Dimensions (WxHxD): 159 x 84.5 x 80 mm

•Weight: 0.35 kg

•Cable length: 2 m

Front/Rear speaker:

•Output power: 4 x 50 W RMS (30% THD)

•Speaker impedance: 4 ohm

•Speaker drivers: 1 x 63.5 mm (2.5”) full range

•Dimensions (WxHxD): 84.5 x159 x 80mm

•Weight (front): 0.35 kg/each

•Weight (rear): 0.35 kg/each

•Cable length (front): 4 m

•Cable length (rear): 10 m

Remote control batteries

•2 x AAA-R03-1.5 V

Laser

•Type: Semiconductor laser GaAIAs (CD)

•Wave length: 645 - 665 nm (DVD), 770 -

800 nm (CD)

•Output power: 6 mW (DVD), 7 mW

(VCD/CD)

•Beam divergence: 60 degrees.

1-8

Note

•Speciﬁcations and design are subject to change

without notice.

Region codes

The type plate on the back or bottom of the

home theater shows which regions it supports.

Media formats

•

DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW, Audio CD,

Video CD/SVCD, Picture ﬁles, MP3 media,

WMA media, DivX media, USB storage

device

File formats

•

Audio: .mp3, .wma

•

Video: .avi, .divx, .mpg, .mpeg,

•

Picture: .jpg, .jpeg

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

Ampliﬁer

•Total output power: 300W RMS (30%

THD)

•Frequency response: 20 Hz-20 kHz / ±3 dB

•Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

•Input sensitivity:

•AUX: 2 V

•Music iLink: 1 V

Video

•Signal system: PAL / NTSC

•HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

•S/PDIF Digital audio input:

•Optical: TOSLINK

•Sampling frequency:

•MP3: 32 kHz, 44.1 kHz, 48 kHz

•WMA: 44.1 kHz, 48 kHz

•Constant bit rate:

•MP3: 32 kbps - 320 kbps

•WMA: 64 kbps - 192 kbps

Radio

•Tuning range:

•Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

•Asia Paciﬁc/Latin America: FM 87.5-108

MHz (50/100 kHz)

•Signal-to-noise ratio: FM 50 dB

•Frequency response: FM 200 Hz-12.5 kHz

/ ±6 dB

USB

•Compatibility: Hi-Speed USB (2.0)

•Class support: USB Mass Storage Class

(MSC)

•File system: FAT16, FAT32

•Maximum memory support: < 160 GB

1-9

HTS3531/98

Product Specifications:

Main unit

•

Power supply:

•

Europe/China/Russia/India: 220-240V,

~50 Hz

•

Latin America/Asia Paciﬁc: 110-240V

~50-60 Hz

•

Power consumption: 55 W

•

Standby power consumption: 0.9 W

•

Dimensions (WxHxD): 360 x 58 x 325 mm

•

Weight: 2.3 kg

Subwoofer

•

Output power: 50 W RMS (30% THD)

•

Impedance: 4 ohm

•

Speaker drivers: 133 mm (5.25”) woofer

•

Dimensions (WxHxD): 160 x 265 x 265 mm

•

Weight: 2.5 kg

•

Cable length: 3 m

Speakers

Center speaker:

•

Output power: 50 W RMS (30% THD)

•

System: 1 x 63.5 mm (2.5”) full range

•

Speaker impedance: 4 ohm

•

Speaker drivers: 1 x 63.5 mm (2.5”) woofer

•

Dimensions (WxHxD): 159 x 84.5 x 80 mm

•

Weight: 0.35 kg

•

Cable length: 2 m

Front/Rear speaker:

•

Output power: 4 x 50 W RMS (30% THD)

•

Speaker impedance: 4 ohm

•

Speaker drivers: 1 x 63.5 mm (2.5”) full range

•

Dimensions (WxHxD): 84.5 x159 x 80mm

•

Weight (front): 0.35 kg/each

•

Weight (rear): 0.35 kg/each

•

Cable length (front): 4 m

•

Cable length (rear): 10 m

Remote control batteries

•

2 x AAA-R03-1.5 V

Laser

•

Type: Semiconductor laser GaAIAs (CD)

•

Wave length: 645 - 665 nm (DVD), 770 -

800 nm (CD)

•

Output power: 6 mW (DVD), 7 mW

(VCD/CD)

•

Beam divergence: 60 degrees.

1-10

Autres manuels pour HTS3531/12

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Lecteur DVD

Philips

Philips AZ5738 Manuel utilisateur

Philips

Philips DVP3650KX/77 Manuel utilisateur

Philips

Philips DVD712/G51 Manuel utilisateur

Philips

Philips DVD590M/17 Manuel d'utilisation

Philips

Philips DVP 5965K Manuel utilisateur

Philips

Philips DVP3310K/93 Manuel utilisateur

Philips

Philips DVD941AT Manuel utilisateur

Philips

Philips DVP3100/79 Manuel utilisateur

Philips

Philips PD7006 Fiche d'information produit

Philips

Philips DVP2980 Manuel utilisateur

Philips

Philips Quick Start Guide DVP 3020K Manuel utilisateur

Philips

Philips DVD840/931 Manuel utilisateur

Philips

Philips DVP5960/05 Manuel utilisateur

Philips

Philips 510 Manuel utilisateur

Philips

Philips BDP2180 Manuel utilisateur

Philips

Philips PET1030 Manuel utilisateur

Philips

Philips DVP3850 Manuel utilisateur

Philips

Philips DVP762/05 Manuel utilisateur

Philips

Philips DVDR5520H Manuel utilisateur

Philips

Philips DVP642/37 Manuel utilisateur

Philips

Philips DVP3360K/51 Manuel utilisateur

Philips

Philips DVP3690K Manuel utilisateur

Philips

Philips DVP3721X Manuel utilisateur

Philips

Philips DVP2850X Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

Sony

Sony DVP-F11 Manuel utilisateur

LENCO

LENCO DVP-740 X2 Manuel utilisateur

JVC

JVC XV-N650BEU Manuel utilisateur

Aiwa

Aiwa XD-DV370 Manuel utilisateur

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuel utilisateur

Denon

Denon DVM-1805 - DVD Changer Manuel utilisateur

Toshiba

Toshiba SD-3815 Manuel utilisateur

Tevion

Tevion 44330 Manuel utilisateur

Samsung

Samsung DVD-HD860 Manuel utilisateur

Sylvania

Sylvania DP170SL8 Manuel utilisateur

Toshiba

Toshiba SD-P1200 Manuel utilisateur

JVC

JVC XV-D9000E Manuel utilisateur

Dolby Laboratories

Dolby Laboratories CP650 Manuel utilisateur

Denon

Denon DVD-5900 Manuel utilisateur

Sony

Sony DVP-SR201P Manuel utilisateur

Toshiba

Toshiba SD-V394SU Manuel utilisateur

Toshiba

Toshiba SD5300KC Manuel utilisateur

Impecca

Impecca DVHP-9109 Manuel utilisateur
