3EN

1 Important

• Follow all instructions.

• Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

• Do not install near any heat sources such

as radiators, heat registers, stoves, or

otherapparatus(includingampliers)that

produce heat.

• Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

• Onlyuseattachments/accessoriesspecied

by the manufacturer.

• Unplug this apparatus during lightning

storms or when unused for long periods

of time.

• Referallservicingtoqualiedservice

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

• Battery usage CAUTION – To prevent

battery leakage which may result in bodily

injury, property damage, or damage to the

unit:

• Install all batteries correctly, + and - as

marked on the unit.

• Do not mix batteries (old and new or

carbonandalkaline,etc.).

• Remove batteries when the unit is not

used for a long time.

• Batteries (battery pack or batteries

installed)shallnotbeexposedto

excessiveheatsuchassunshine,reor

the like.

• Apparatus shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on the

apparatus(e.g.liquidlledobjects,lighted

candles).

• Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

•Never remove the casing of this apparatus.

•Never place this apparatus on other electrical

equipment.

•Keep this device away from direct sunlight, naked

amesorheat.

•Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect the apparatus from

the power.

English

2 Your Docking

Speaker

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

back of the apparatus.Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Introduction

With this docking speaker, you can enjoy audio

from the iPod/iPhone, and other external audio

devices.

What's in the box

Check and identify the contents of your

package:

• Main unit

• AC power adaptor

• Quick start guide

•

5EN

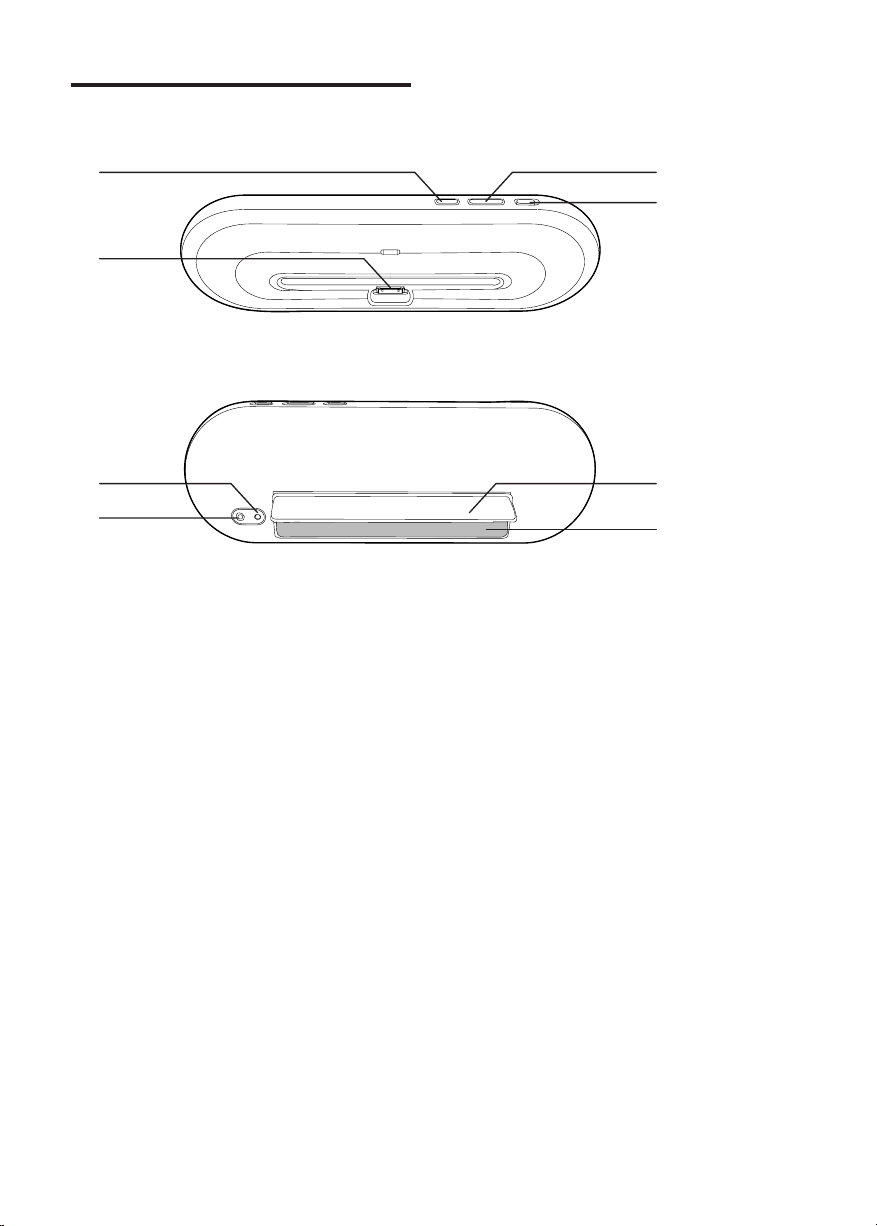

Overview of the main unit

a DBB

• Switch on/off Dynamic Bass Boost.

b Dock for the iPod/iPhone.

c ON/OFF

• Switch on/off the docking speaker.

d - VOLUME +

• Adjust volume.

e DC IN

• Connect power.

f AUX IN

• Connect an external audio device.

g Battery compartment

h Stand foot

English

3 Get started

Always follow the instructions in this chapter in

sequence.

Connect power

This docking speaker can be powered by either

AC power or batteries.

Option 1:AC power

Caution

•Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the unit.

•Risk of electric shock! When you unplug the AC

adaptor, always pull the plug from the socket. Never

pull the cord.

Connect the AC power adaptor to:

• the power socket at the back of the

docking speaker.

• the wall socket.

Option 2: Battery power

Caution

•Risk of explosion! Keep batteries away from heat,

sunshineorre.Neverdiscardbatteriesinre.

•Remove batteries if they are exhausted or will not be

used for a long time.

•Batteries contain chemical substances, so they should

be disposed of properly.

1 Open the battery compartment.

2 Insert4x1.5VAAbatterieswithcorrect

polarity(+/-)asindicated.

3 Close the battery compartment.

PUSH

7EN

Turn on

Switch the power button to ON position to

turn on the docking speaker.

» The LED indicator lights up.

Switch to standby mode

The docking speaker switches to economic

standby mode in the following situations:

• Thespeakerisidlefor15minuteswhen

• The iPod/iPhone or external audio device

is disconnected when the speaker is

operated on batteries.

» The LED indicator lights off.

English

4 Play

Play from iPod/iPhone

You can enjoy audio from your iPod/iPhone

through this docking speaker.

Compatible iPod/iPhone

The docking speaker supports the following

iPod and iPhone models:

Made for.

• iPodtouch(2nd,3rd,and4thgeneration)

• iPod classic

• iPodnano(1st,2nd,3rd,4th,5th,and6th

generation)

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

Listen to the iPod/iPhone

Philips DockStudio app brings a suite of new

features to your docking speaker, including

Internet radio and a multi-function alarm clock.

To enjoy more features, you are recommended

to install this free application.

1 Switch the power button to ON position.

» The LED indicator lights up.

2 Insert the iPod/iPhone into the dock.

3 Forrst-timeuse,youwillbeaskedto

install DockStudio app on your iPod/

iPhone.

4 Tap [Yes] (yes)toaccepttheinstallation

request.

5 Follow the on-screen instructions to

complete the installation.

6 Launch the app after the installation.

7 Play audio on your iPod/iPhone.

» You can hear audio from this docking

speaker.

Charge the iPod/iPhone

When the docking speaker is connected to

power, the docked iPod/iPhone begins to

charge automatically.

9EN

Play from an external audio

device

With this docking speaker, you can also enjoy

audio from an external device such as an MP3

player.

Note

•Make sure that no iPod/iPhone is docked in the docking

speaker.

1 ConnectanMP3linkcable(notsupplied)

to:

• the MP3-LINK socket at the back of

the docking speaker.

• the headphone socket on an external

device.

» The docking speaker switches to MP3

link mode automatically.

2 Play music on the device (see the device's

usermanual).

Adjust volume

During play, press - VOLUME + to adjust

volume.

Enrich sound output

During play, switch on DBB to enrich sound

output.

English

5 Product

information

Note

•Product information is subject to change without prior

notice.

Specications

Amplier

Total Output Power 2 x 5 W RMS

Signal to Noise Ratio >60 dBA

MP3 Link 0.6VRMS22

kohm

General information

AC Power Model:

S018KC0900200

Input:100-240V~

50/60Hz, 500mA;

Output:9V 2000 mA

Operation Power

Consumption <18W

Eco Standby Power

Consumption <0.5 W

Max. load for iPod/

iPhone 5V 1A

Dimensions

-MainUnit(WxHxD) 311x111x37.6mm

Weight

- Main Unit 0.28 kg
