Philips IP65 Manuel utilisateur

SL STRIP 400 TW LED Luminaires

IP65 Rated Models

24-004-3449-00 Rev1.0

About this Manual

Sh wline

PREFACE

1. About this Manual

The document provides installation and operation instructions for the following products:

Please read all instructions before installing or using this product.Retain this manual for future reference .

Additional product information and descriptions may be found on the product specification sheet.

Note: The SL STRIP 400 TW LED Luminaire is universal voltage 100 to 240 VAC (auto-ranging).

2. Included Items

Each SL STRIP 400 TW LED Luminaire includes the following items:

Installation and User’s Manual (this document)

SL STRIP 400 TW LED Luminaire Accessories

SL STRIP 400 TW LED Luminaire Power Input Cables (North American Models Only)

SL STRIP 400 TW LED Luminaires

SL STRIP 400 TW LED Luminaire (IP65 rated)

SL STRIP 400 TW LED Luminaire

PC1BE AC Power Input Cable 39 inches-( / ), * (* ,1 meter Powercon with Bare End Note user supplies and installs

own AC input connector)

Part Number Description

PC1BE SL S RI TW LED Lumin I 3 P witT P 400 aire AC Power nput Cable ( 9 inches / 1 meter), owercon h Bare

End Note user supplies and installs own AC input connector* (* , )

PC1GP SL S RI TW LED Lumin I 3 P witT P 400 aire AC Power nput Cable ( 9 inches / 1 meter), owercon h

Stagepin Connector

PC1GTL SL S RI TW LED Lumin I 3 P witT P 400 aire AC Power nput Cable ( 9 inches / 1 meter), owercon h

Twistlock Connector

PC1GR SL S RI TW LED Lumin I 3 P witT P 400 aire AC Power nput Cable ( 9 inches / 1 meter), owercon h

Edison Connector

PC3BE SL S RI TW LED Lumin I 9 Fee 3 met witT P 400 aire AC Power nput Cable ( .8 t / er), Powercon h Bare

End Note user supplies and installs own AC input connector* (* , )

PC8BE SL S RI TW LED Lumin I 2 e 8 met BT P 400 aire AC Power nput Cable ( 6 F et / er), Powercon with are

End Note user supplies and installs own AC input connector* (* , )

PC8GR SL S RI TW LED Lumin I 2 e 8 met ET P 400 aire AC Power nput Cable ( 6 F et / er), Powercon with dison

Connector

Part Number Description

MC Mega Claw, Black, Anodized

SC Molded Yoke C-Clamp

HC Light Weight Half Coupler

82003 Safety Cable

Installation & User’s Manual SL STRIP 400 TW LED Luminaires

4SL STRIP 400 TW LED LUMINAIRE OVERVIEW Sh wline

SL STRIP 400 TW LED LUMINAIRE OVERVIEW

1. SL STRIP 400 TW LED Luminaire Components

Major Luminaire Components

Figure 1: SL STRIP 400 TW LED Luminaire Components

Note: *Mounts can be removed and reversed. See "Mounting Luminaire" on page 9 for more information

Side of Unit

Bottom of Unit

DMX512 /

AC Input

LCD Display / Menu System

Luminaire Mount*

Safety Cable Anchor Point

RDM Input

Top of Unit

DMX512 /

AC Output

RDM Output

Luminaire Mount*

High-Intensity Warm White & Cool White LED Array (x36)

Connecting Power 7

SL STRIP 400 TW LED Luminaires Installation & User’s Manual

Sh wline

Connecting SL STRIP 400 TW LED Luminaires to AC Power

If the unit is supplied with an AC input cable without an input connector installed. The input connector is a user-

supplied accessory.

Table 2 describes how to connect power to your SL STRIP 400 TW LED Luminaire. Field wiring of the SL STRIP

400 TW LED Luminaire is straight forward. A total of 3 wires/conductors is supplied from the unit. The following

wiring scheme is used:

Table 2: SL STRIP 400 TW LED Luminaire (IP65 Rated Models) AC Input Connections

Figure 3: SL STRIP 400 TW LED Luminaire AC Input & Output Connections

CAUTION: In the event the AC input cable of this luminaire is damaged, it must be replaced, by the user, with an

approved cable through an Authorized Showline Dealer or Service Center.

Wire Color Purpose

Brown Main / Line (100 to 240VAC)

Blue Neutral

Green/Yellow Ground (Earth)

Bottom of Unit

AC Input AC Output

Installation & User’s Manual SL STRIP 400 TW LED Luminaires

8INSTALLATION AND SET UP Sh wline

3. Connecting to the DMX512 Network

Basic DMX512 installation consists of connecting multiple SL STRIP 400 TW LED Luminaires together (up to 32

luminaires) in "daisy-chain" fashion. A cable runs from the control console (or DMX512 control source) to the DMX

connector on the first SL STRIP 400 TW LED Luminaire. Another cable runs from the other DMX connector on the

first unit to a DMX connector on the next SL STRIP 400 TW LED Luminaire (or DMX512 device to be controlled).

Figure 4: SL STRIP 400 TW LED Luminaire DMX512 Input / Output Connections

Note: For more information on DMX512 networking and systems, refer to "Additional Resources for DMX512" on

page 1. For SL STRIP 400 TW LED Luminaire DMX Mapping, refer to "DMX CONTROL" on page 17.

Figure 5: SL STRIP 400 TW LED Luminaire - DMX512 Connections

Bottom of Unit

DMX512 / RDM Input DMX512 / RDM Output

DMX512

DMX512 (out from first

to second luminaire)

DMX512 (out to the next

luminaire or DMX512

controlled device)

SL STRIP 400 TW

DMX512 Connections

Note: Remaining pins on each connector are not used.

DMX512 Signal XLR Pin

Common (Drain) 1

DMX512 - 2

DMX512 + 3

(from console or

control device)

LED Luminaires

Autres manuels pour IP65

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Matériel de DJ

Philips

Philips AZ1006 Manuel utilisateur

Philips

Philips VL1000 TS Manuel utilisateur

Philips

Philips ColorBlaze TRX Manuel utilisateur

Philips

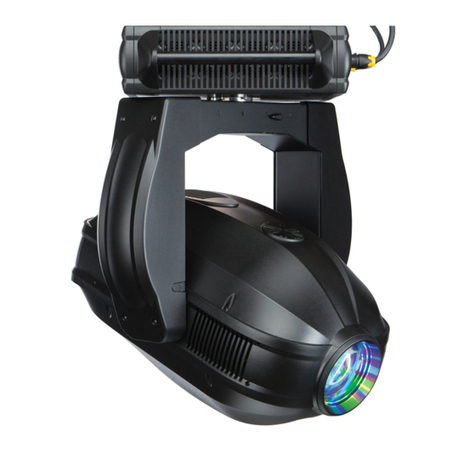

Philips VARI-Lite VL4000 Manuel utilisateur
