Philips 7FF1CME Manuel utilisateur

•Packing list

•Initial setup

•Specification

Getting started

Packing List

Digital Photo Frame Photo Frame Stand

Quick start guide User manual CD

Power adaptor USB Cable to PC

(male A type plug)

What else you'll need

Power outlet Digital Photos, memory card or PC

ll rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance,

transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips

Electronics NV

•

Packing list

•Initial setup

•Specification

Getting started

Initial setup

Philips digital Photo Frame can be placed either vertically or horizontally to fit

the photos on display. Its internal rechargeable battery provides you the

freedom to pass it around and show photos without the power cord. Or, you

can place it somewhere in the room for constant Photo Frame by connecting

it to the main.

A. Removing the protective bag/film on parts

B. Attaching the Photo Frame stand

•Place head of stand into socket

•Rotate clockwise until stand locks in-place

C. Connecting to a power source

•

Connect the supplied power cable from Photo Frame to a power outlet .

The internal battery will start charging and the battery LED turn orange.

Locate control keys

•Use your Photo Frame by pressing the control keys in the back.

RETURN TO TOP OF THE PAGE

•LCD display also shows the function icon for each key at the same position.

Previous/Left Switch view Setup

Next/ Right Show/ Hide icon Photo setting

Up Copy Confirm

Down Delete Escape

C. Turning on Photo Frame

•Slide the power switch up to the ON position.

The power LED will be green and the Startup screen will appear.

D. Choose your preferred language

•Press the key (the 3rd key from the left on the rear of Photo Frame)

A menu with general settings for Photo Frame will appear.

•Use the or key to highlight Language and press the key to

select.

•Use the or key to choose your preferred language. Press to

confirm your selection. The new setting will be effective immediately.

•Press again to leave the Language menu.

•Packing list

•Initial setup

•Specification

Getting started

Specification

Picture/Display

-Effective display area: 137 x 91 mm (5.4" x 3.6"), 6.5" diagonal

-Vertical dot pitch: 0.1905 mm

-Horizontal dot pitch: 0.1905 mm

-Resolution: 720 x 480 pixels

-Brightness: 200 nits

-Viewing angle (CR>5): Horizontal (-85°~85°), Vertical (-85°~85°)

-Backlight Half-Life time: 20,000 hours

Connectivity

- Card reader: Built-in Secure digital (SD), Multimedia card (MMC), Memory stick

(MS, MS Pro), Compact flash (CF) type I only.

Convenience

Photo format supported: Up to 12M pixels, JPEG photos following EXIF and DCF

standards

Memory size: 50 photos or more

Placement supported: Landscape, Portrait

Control buttons: 6 buttons

Display mode Automatic slideshow, Full-Screen browse, Thumbnail browse

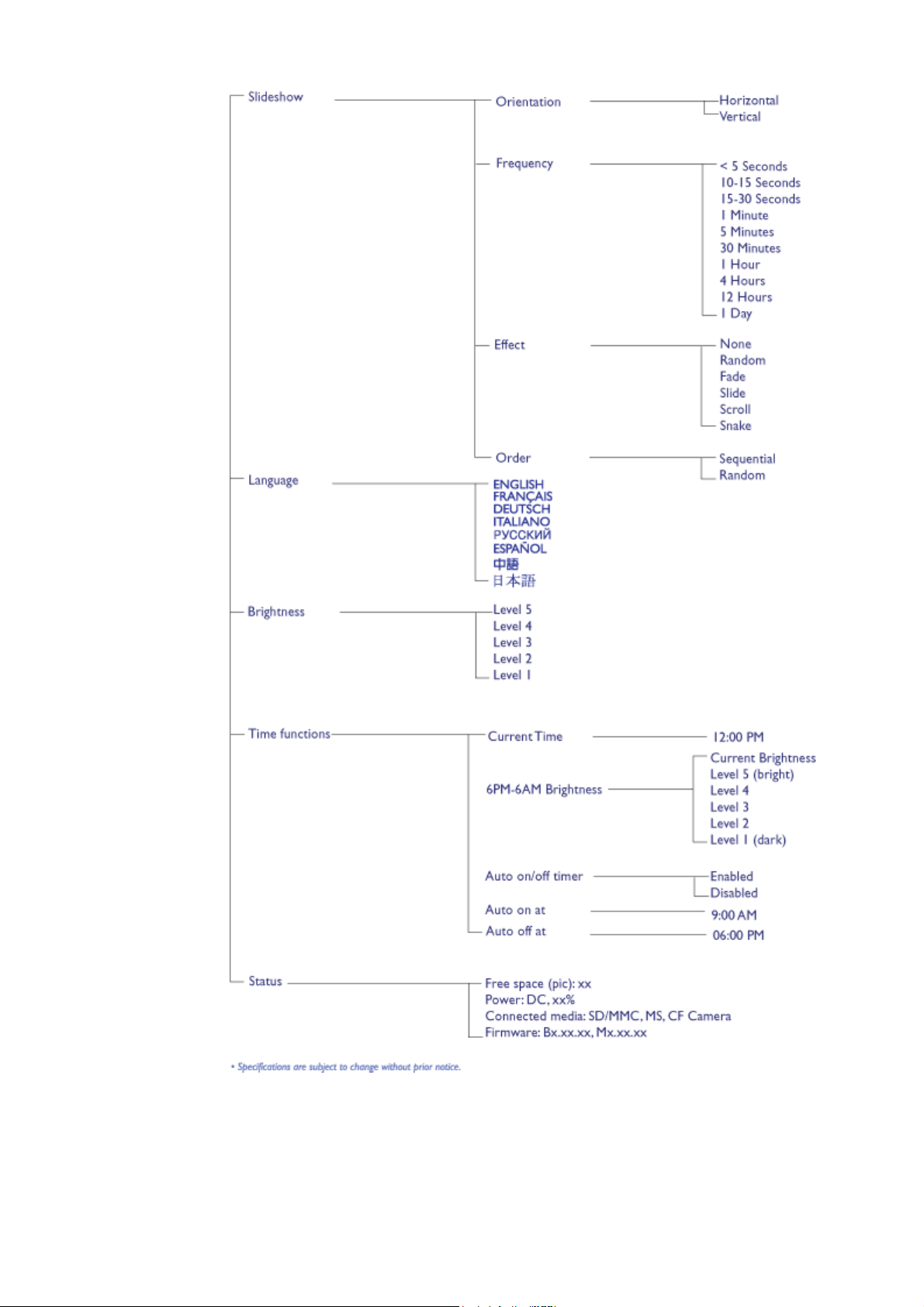

Setup menu:

Photo menu:

OSD languages: English, French, German, Italian, Spanish, Simplified Chinese,

Russian, Japanese

Plug & Play compatibility: Windows 2000/XP or later, Mac OS X or later, Linux

Accessories

-Included accessories: AC power adaptor (AC 100~240V 50/60 Hz 0.36A-->DC 5V

2.5A), USB cables, Quick start guide

-User manual: Yes (in CD-ROM)

Power

-Power LED indicator Green (power on), Off (power off)

-Battery LED indicator Orange (charging), Off (not charging)

-Power mode supported Battery powered, AC powered

•Viewing

photos

•

Copying

photos

•Viewing


slideshows

•Deleting

and

Rotating

hotos

Enjoying photos

Viewing Photos

When there is no memory card in photo Frame, it displays photos stored in local memor

When a memory card is inserted to Photo Frame, it will display photos from most recentl

connected media in a "Last-in, First-display" order.

You can choose from three Photo Frame viewing modes. Press ( the 1st key fro

the left on the rear of Photo Frame) to to

le amon

the three viewin

modes; us

to view the previous photo and to view the next photo. ( and are the firs

two keys from the right on the rear of Photo Frame. )

THUMBNAIL-List of photos.

AEach icon represents the function of the corresponding

key in the rear of Photo Frame.

BSource of photos on screen

Memory stick Compact flash

SD, MMC Photo Frame

CCurrent Photo

DCurrent Photo number

ESlideshow icon

(If shown, this photo will be shown in slideshow.)

FCurrent photo number, same as D

GTotal photo count

HResolution of current photo (in pixels).

IDate current photo was taken

JSource of displayed photos.

SLIDESHOW- Automatic, Rotating display of photos.

BROWSE—Manual viewing of photos one-by-one. (Displays size and date)

Each icon represents the function of the corresponding key in the rear of Photo Frame.

AEach icon represents the function of the corresponding

key in the rear of Photo Frame.

B Source of photos on screen

Memory stick Compact flash

SD, MMC Photo Frame

C Current Photo number

D Total photo count

E Resolution of current photo (in pixels)

F Date current photo was taken

Viewing photos on Photo Frame

•Remove any memory card from photo Frame.

Photos stored in the Photo Frame will appear.

Viewing digital camera photos from a memory card

•Insert the memory card into the slot in the frame:

•For Compact Flash card, firmly slide card in the larger slot end first and face DOWN.

•For SD, MMC, or Memory Stick card, slide card in the smaller slot end first and face UP

until it locks in-place.

After a few seconds photos on the memory card will display.

How to remove a memory card:

•To remove Compact Flash card, pull out the card slowly.

•To remove SD, MMC, or Memory Stick card, push the card again to unlock and then pull

out the card.

•Viewing

photos

•

Copying

photos

•Viewing


slideshows

•Deleting

and

Rotating

hotos

Enjoying photos

Copying Photos

You can copy photos stored on a memory card, or PC to Photo Frame. Photo Frame will

then internally store a resized copy of the original photo. This resized copy will remain

inside Photo Frame until you delete it from Photo Frame.

Photo Frame's internal memory will store 50 or more resized photos. Please see the

Deleting and Rotating Photos section to learn how to delete photos stored in Photo Frame.

Copying from a memory card

You may copy photos one by one in Browse mode or several photos at once in Thumbnail

Mode

Copying photo one by one in Browse mode

•Change view mode to Browse.

•Insert the memory card into Photo Frame.

Photos from memory card will appear.

•With the photo for copy shown on screen, press the key (the 4th key from the left

on the rear of Photo Frame). Four different orientations of the selected photo will appear.

•Use the or key to select the desired photo orientation and then press the

key.

Do not remove the memory card before the copy screen disappears upon completion.

If a warning message shows up indicating no free space for more photos, you may need

to remove some already stored photos first before copying more photos.

•After the copy screen disappears upon completion, a resized copy of the photo is stored

inside Photo Frame.

•You may move to other photos and continue this process until all the photos you want

are copied to Photos Frame.

Copy several photos at once in Thumbnail mode

•Change view mode to Thumbnail.

•Insert the memory card into Photo Frame.

Photos from memory card will appear.

•Highlight the photo for copy in Thumbnail mode and press the key (the 4th key from

the left on the rear of Photo Frame).

A multi-photo copy screen with small photos from current thumbnail screen will appear.
