Contents

Preparation 2

Keypad on top of the TV 2

Your remote control 3-5

Use of the menus and the menu system 6

Menu Info / Remote Control Info 7

Select the menu language 7

Store TV channels

Automatic installation 8

Manual installation 9

Give name 9

Reshuffle the channel list 9

Select favourite TV channels 9

Install TV setup

Speakers 10-11

General 11-12

Source 12

Demo 12

Installation

TV menu

Picture menu 13

Sound menu 14-15

Features menu 15-16

Dual screen/PIP 16

Multipip 17

Teletext 17-18

Connect Peripheral Equipment

Connecting and selecting equipment 20-24

Remote control functions for peripherals 24

Recording 24

Before calling service 25

Tips 26

Glossary 26

Specifications 27

Help?

If this instruction manual does not

give an answer or if ‘Before calling

service’ do not solve your TV

problem, you can call your Local

Philips Customer or Service Centre.

See the supplied World-wide

guarantee booklet.

Please, have the Model and Product

number which you can find at the

back of your television set or on the

packaging, ready, before calling the

Philips helpline.

Model:

Product No:

Operation

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 1

2Installation

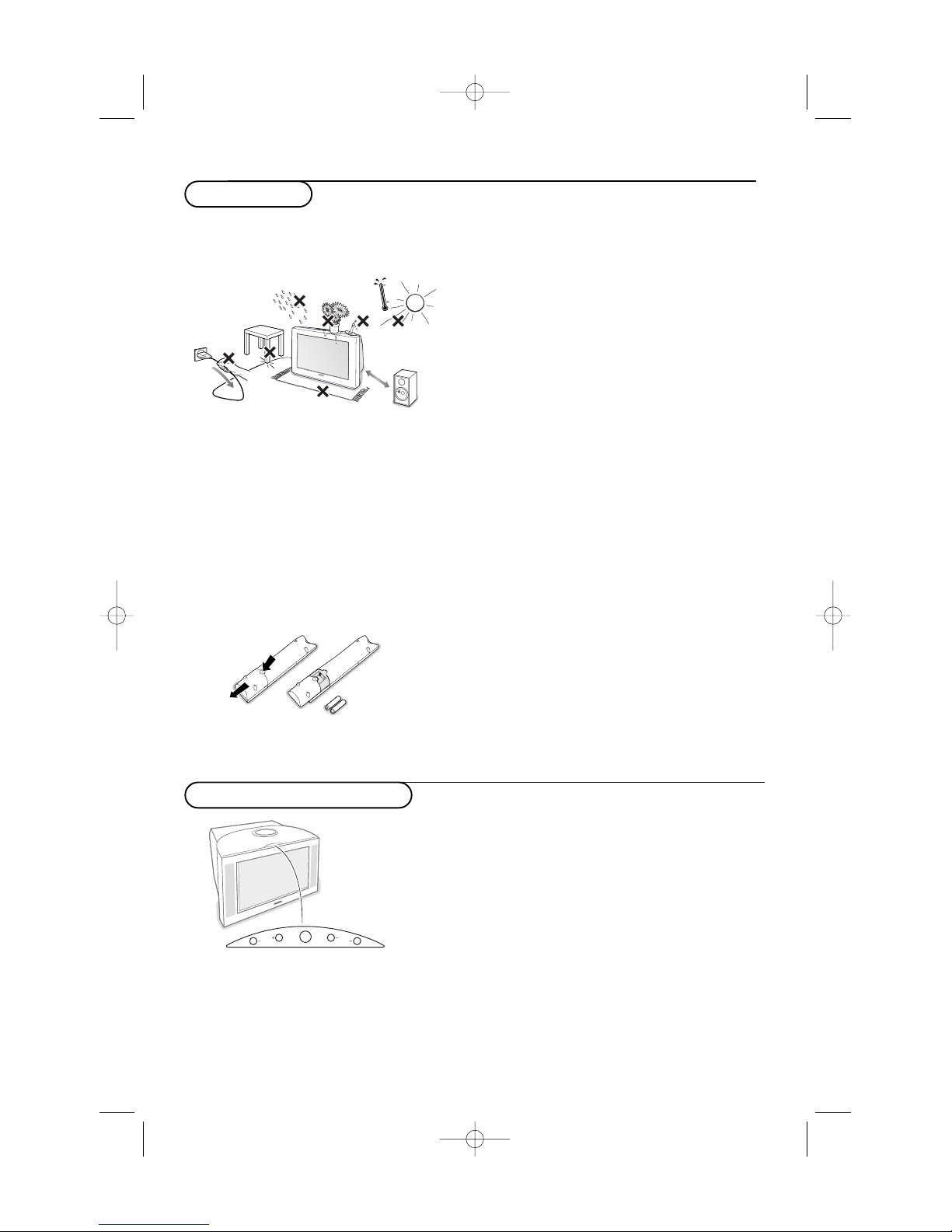

&Place the TV on a solid surface.

For ventilation, leave at least 5 cm free all

around the TV.

Do not place the TV on a carpet.

To prevent any unsafe situations, do not place

any objects on top of the TV.Avoid heat,

direct sunlight and exposure to rain or water.

Keep mobile telephones at a safe distance to

avoid disturbances in picture and sound.

éInsert the aerial plug firmly into the aerial

socket xat the back of the TV. For best

picture quality use the suppressor-aerial cable

supplied.

“Remote control: Remove the cover of the

battery compartment.

Insert the 2 batteries supplied (Type R6-1,5V).

Preparation

min.

The batteries supplied do not contain the

heavy metals mercury and cadmium.

Nevertheless in many countries exhausted

batteries may not be disposed of with your

household waste. Please check on how to

dispose of exhausted batteries according to

local regulations.

Note: this remote control functions with TVs and

other equipment which use the RC6 signalling

standard.

‘Insert the mains plug of the TV in the wall

socket having a mains voltage of 220V-240V.

To prevent damaging the mains (AC) cord

which could cause a fire or electric shock, do

not place the TV on the cord.

(Switch the TV on : Press the power switch

Aon the front of your TV.

A green indicator on the front of the TV

lights up when the screen is on.

If the indicator is red, press the - CH + keys

on the remote control.

The green lamp blinks every time you press a key

on the remote control.

When you switch on your set for the first time,

the menu Language automatically appears on

the screen.The explanation appears in different

languages one at a time. Choose your own

language and press the OK key on the remote

control.

VCH

Keypad on top of the TV Should your remote be lost or broken you can still change

some of the basic settings with the keys on top of your TV.

• Press the V- or + key to adjust the volume.

• Press the CH - and + key to browse through the TV

channels or sources stored and to select them.

• Press the Mkey to summon the main menu.

Use the V- and + keys to select the menu items in the

horizontal axis.

Use the CH - and + keys to select submenu items in the

vertical axis.

Note:

- Sometimes not all the menu items are visible on the screen.

Press the CH + key to reveal all items.

- Exit lets you dismiss the menu. Select Exit and press the Mkey.

AA - 1,5V

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 2

Use of the remote control

Installation

Mha

SMART

ACTIVE

CONTROL

SMART

PICTURESOUND

213

546

879

®Ò‡π

†

DVDVCR AMP AUX

¬V CH

Sb ﬁ

PIXEL

PLUS

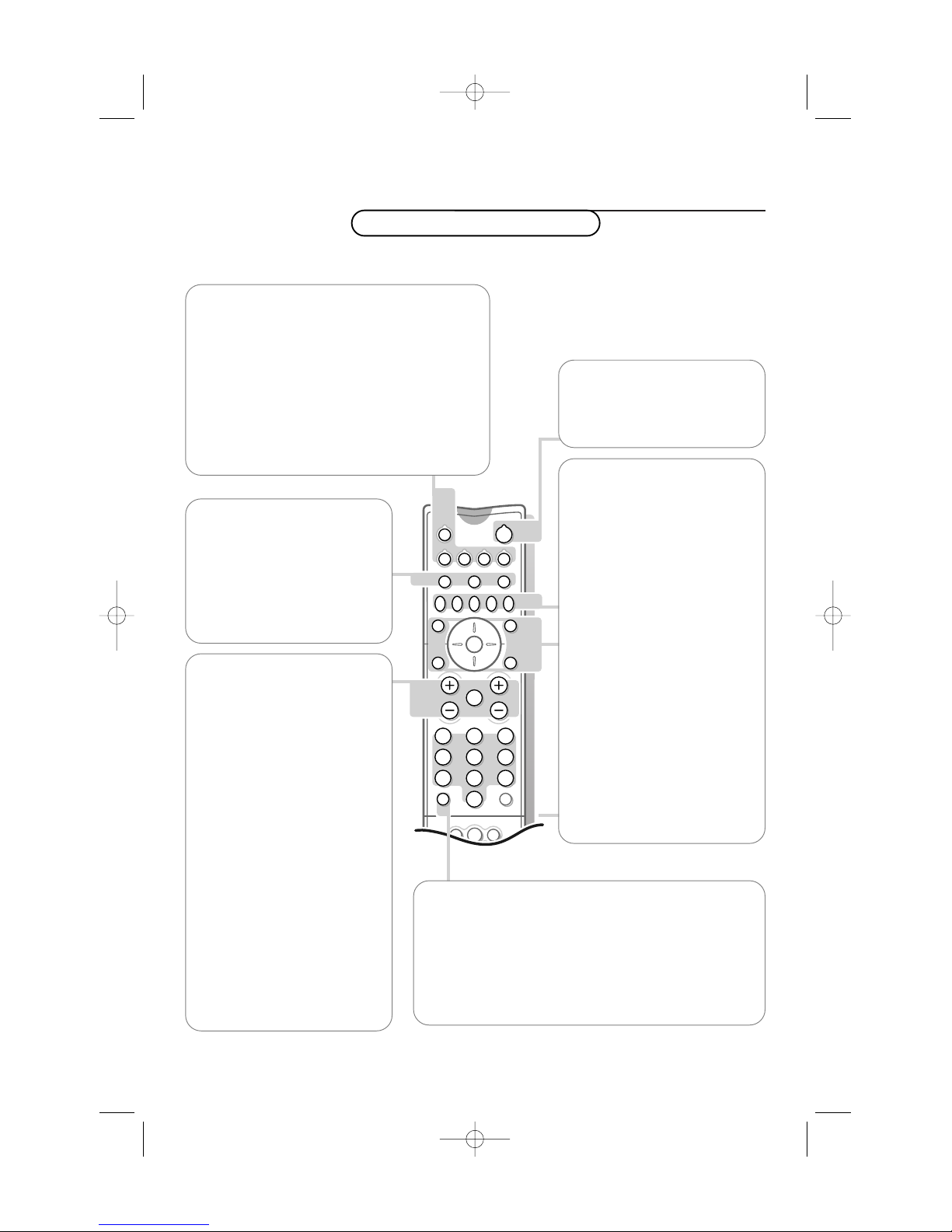

vSelect peripherals

Press this key repeatedly to select AV1,AV2,AV3,

AV4 or SIDE, according to where you connected

the peripherals (p. 20).

VCR DVD AMP AUX

Press one of these keys to use the remote control

directly in the video recorder, DVD, amplifier or

other auxiliary mode (CD,SAT). A green indicator

lights up.

To return to TV mode, press the key again or wait

for the indicator to dim (20 sec.)

BStandby

The set is switched off and the

red indicator lights up.

To switch the TV on again, press

again.

®Ò‡π†

Video recorder see p. 20

xSwitching Pixel Plus

demo on/off

&Press the Pixel Plus key.

The TV screen is divided into 2

parts:

- in the left part Pixel Plus and

Digital Natural Motion switched

off;

- in the right part Pixel Plus and

Digital Natural Motion switched

on.

éPress the Pixel plus key again to

switch the Pixel Plus demo off.

bTeletext on/off p. 17

ÏMain menu on/off p. 13

OK Press this key to activate

your choice, when in the menus.

bDual screen see p. 16.

SFreeze

To activate/de-activate the frozen

picture, p. 12 and to hold a

teletext page. See p. 18.

ﬁMultipip see p. 17.

Use the on-screen info for more information about the different

keys. See p. 7.

Use of the remote control

VPress + or - to adjust the

volume.

¬ Interrupt the sound or

restore it.

CH Channel selection

To browse through the TV

channels and sources stored.

Only those channels which are

in the favourite list can be

selected with the - CH + keys.

0/9 Digit keys

To select a TV channel.

For a two digit channel number,

enter the second digit within 2

seconds.

To switch immediately to a

selected one digit TV channel,

keep the digit key pressed a bit

longer.

iScreen information

Press to display information about the selected TV channel

and programme.

Menu / Remote Control Info

When the menu is on screen, press ito display info on

the selected menu item.While the menu info is displayed,

press any key to display remote control info. See p. 7.

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 3

QZqc

213

546

879

®Ò‡π

†

VCR DVD AMP AUX

¬V CH

Sbﬁ

PIXEL

PLUS

4Use of the remote control

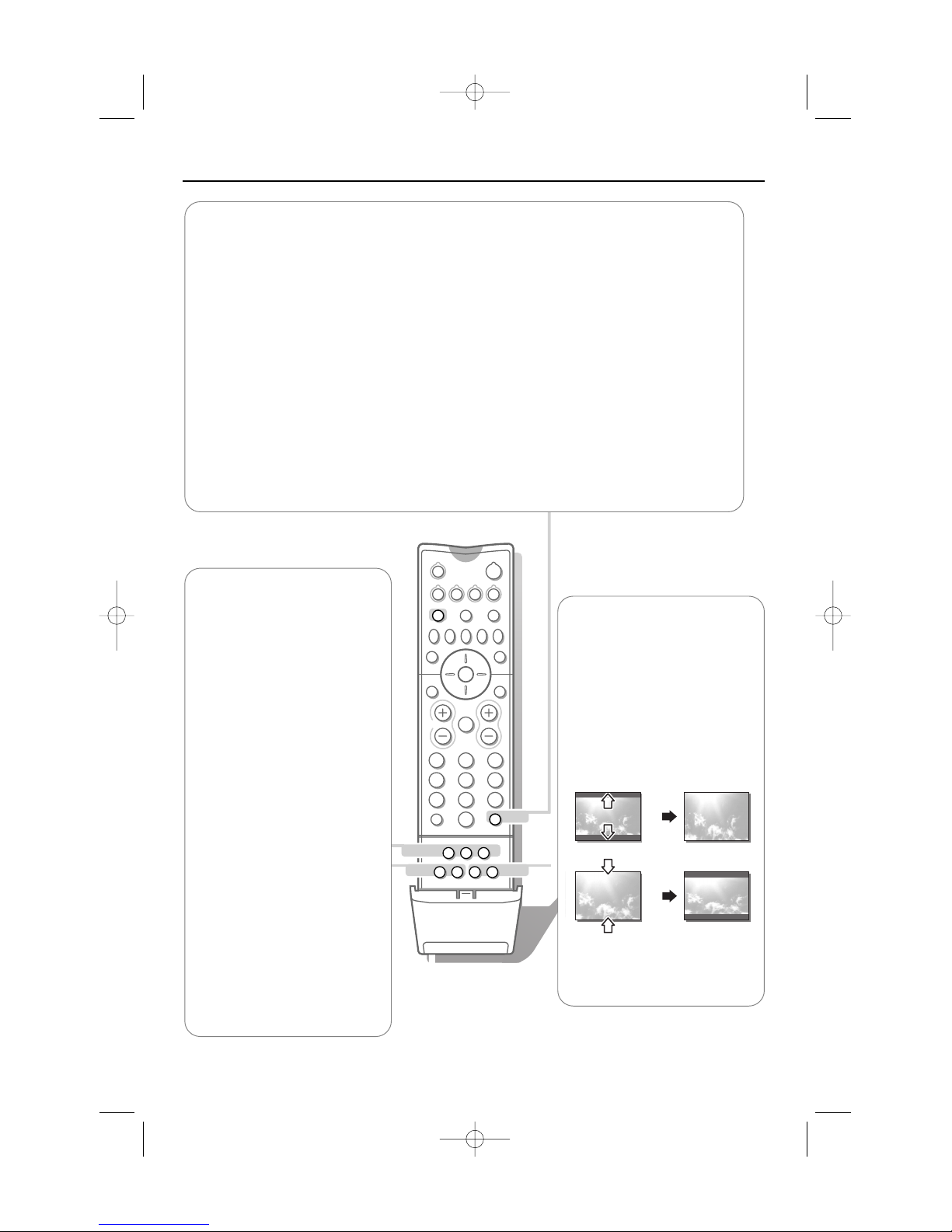

0Smart surf

With this feature you can easily switch between up to 9 different TV channels/sources.

In the menu system, you can set Smart surf to 2- or 9-channel.

Press this key to select the previously viewed TV channel or source in case of a 2 channel

surf, or to select the surf ring in case of a 9 channel surf.

In case of a 9 channel surf, a list appears at the right side of the screen. On top, the most

recent channel is displayed.The puck is on the channel number currently viewed.

Press the 0key to turn to the next channel in the list or press cursor up/down to

immediately select the desired TV channel of the list.

To add a new channel or source: tune to the channel or source you wish to add.

Press the 0key. Press the cursor right to add.

If there are already nine channels/sources in the list, the one at the bottom of the list will be

removed.

To remove a channel or source: select the channel number you want to remove.

Press the 0key. Press the cursor right to remove.

Press the OK key or wait for the time out to dismiss the Smart surf display.

UTime display: The time

is displayed on the screen.

hTeletext function p. 18.

QSurround mode

Press this key repeatedly to

select another available

surround mode: Stereo, Dolby 3

Stereo, 3D Surround, Hall or

Dolby Pro Logic.

ZZOOM on/off

Press the ZOOM Zkey to

activate/ deactivate the zoom

function.Press the OK key

repeatedly to select one of the

zoom magnifications (x1, x4, x9,

x16). Use the cursor up/down,

left/right to shift the selected

zoom window over the screen

with the cursor.

The zoom window is reset

after: selecting another TV

channel, another picture format

or when another picture format

is selected automatically.

qPicture format

Press this key repeatedly to

select another picture format:

Auto format, 4:3 or Vertical

squeeze.

Auto format makes the picture

fill the screen as much as

possible.

Vertical squeeze squeezes the

picture to a wide screen picture

format.

cSwapping screens

See p. 16.

Auto format

Vertical squeeze

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 4

Mah

213

546

879

¬V P

SMART SMART

ACTIVE

CONTROL

rc2049 use rc 3

5Use of the remote control

Personal refers to the personal

preference settings of picture

and sound selected in the

picture and sound menu.

Remark: the moment you are in a

predefined smart sound or picture

setting and you modify a setting in

the picture or sound menu, all

values of the menu will overwrite

the previously made Personal

settings. The predefined factory

settings remain unchanged.

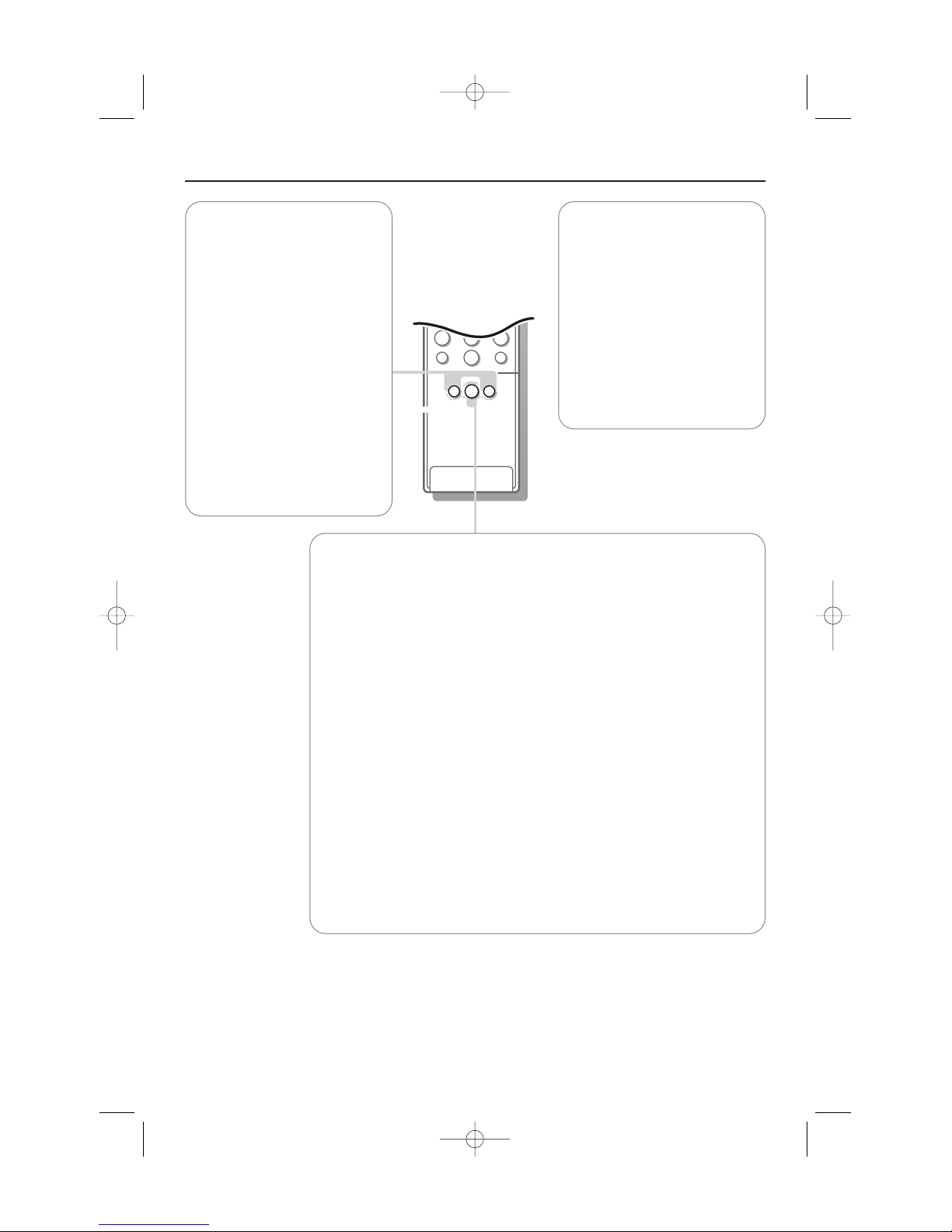

Smart Keys

To select predefined picture and

sound settings.

M Smart Sound

Each time it is pressed, a

different sound setting is

selected, corresponding with

specific factory settings of treble

and bass.

aSmart Picture

Each time it is pressed, a

different picture setting is

selected, corresponding with

specific factory settings of

Contrast, Colour, Sharpness,

Dynamic Contrast and Colour

enhancement.

hActive control

Active control is a pro-active and automatic system.The TV continuously

measures and corrects all incoming signals in order to provide the best

picture possible.Thanks to the Ambient Light Sensor which measures the

light conditions of the room, the contrast, dynamic contrast, brightness and

colour picture settings are adjusted automatically. The light sensor is active

when the Active control function is switched to Medium or Maximum.

Press the hkey repeatedly to select the Active Control values Off,

Minimum, Medium (recommended) or Maximum.

Off Sharpness and Dynamic Contrast are controlled automatically

Minimum Sharpness, Dynamic Contrast and Noise Reduction are

controlled automatically.

Medium Sharpness, Dynamic Contrast, Noise reduction and Colour are

controlled automatically.

Maximum Sharpness, Dynamic Contrast, Noise reduction, Colour and

Contrast are controlled automatically.

Press the cursor right to select INFO+.

The Active Control demo menu appears.

The picture settings are being adapted continuously and automatically.

The menu items cannot be selected.

The sliders will be moving, showing how the TV is tweaking the current

picture. None of the sliders is user controllable.

Press the OK key to switch off the Demo.

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 5

66 Installation

Use of the menus and the menu system

213

546

VCR DVD AMP AUX

¬V CH

Sb ﬁ

PIXEL

PLUS

OK key to

activate

cursor to select

adjustments

return or switch

main menu on/off

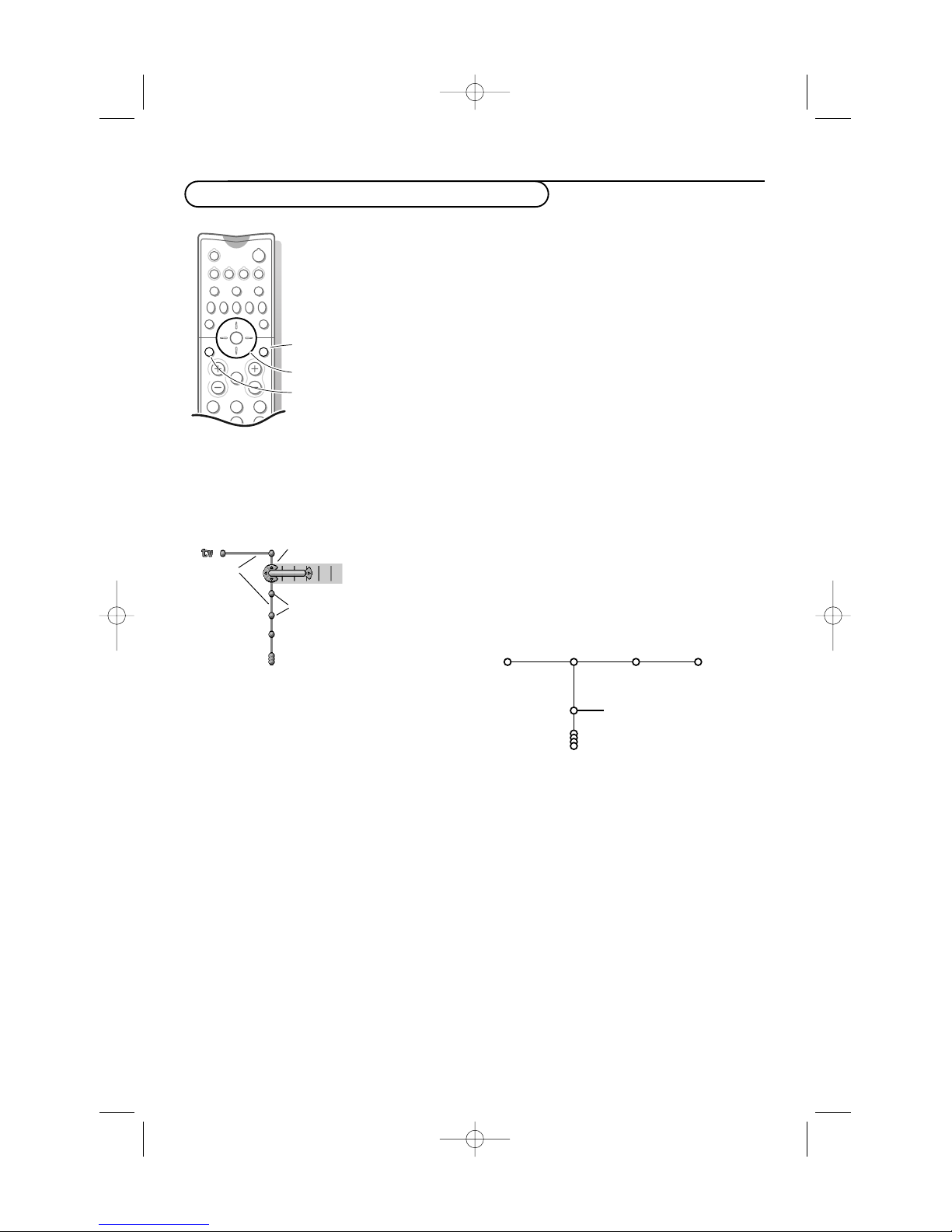

&Press the MENU Ïkey on the remote control to

summon the main menu.

Note: Should your remote control be lost or broken you can still

use the keys on top of the TV. See p. 2.

éUse the cursor in the up/down direction to select the TV,

Settings, Install or Demo menu.

Note: Sometimes not all the menu items are visible on the screen.

Press the cursor down to reveal all items.

“Use the cursor left/right to select the menu item.

‘Use the cursor up/down again to select the control you

want to select or to adjust. For instance, see Picture menu.

(Press the MENU Ïkey to turn off the main menu.

The menu system

Pipes, balls and a puck

The hierarchy of menus and controls is

represented by an animated visual mechanism of

pipes, balls and a puck. Unlike a map, however, the

animated mechanism constantly shows the current

whereabouts, continually expands the view of the

immediate neighbourhood.

The puck surrounds the ball indicating the user’s

current position in the menu hierarchy.The puck is

always present when the menu system is displayed.

The puck is divided into 4 parts.They correspond

to the directional controls (up/down, left/right) on

the remote control.The arrows on the cursor

indicate which directions to choose. In this way

users can navigate through the menu hierarchy to

the control they wish to adjust.

When menu items are more numerous than can

fit comfortably on the TV display, only a portion

are shown.

Those omitted are indicated by a cluster of balls

which indicates that there are ‘more’below.

Direct selection and control

Menu items are controlled as soon as they are

selected by the puck. Only a few items require

information with the OK key.

List controls

A list control is used to select one or more items

from a list of options. Press the right key to move

the puck into the list.At least one item is the

current value and is highlighted.

Moving the puck up or down with the up/down

key causes the list to move up or down.

pipes

puck

balls

Picture Sound Features

Digital options

100 Hz Dig. Scan

Pixel Plus

Double lines

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 6

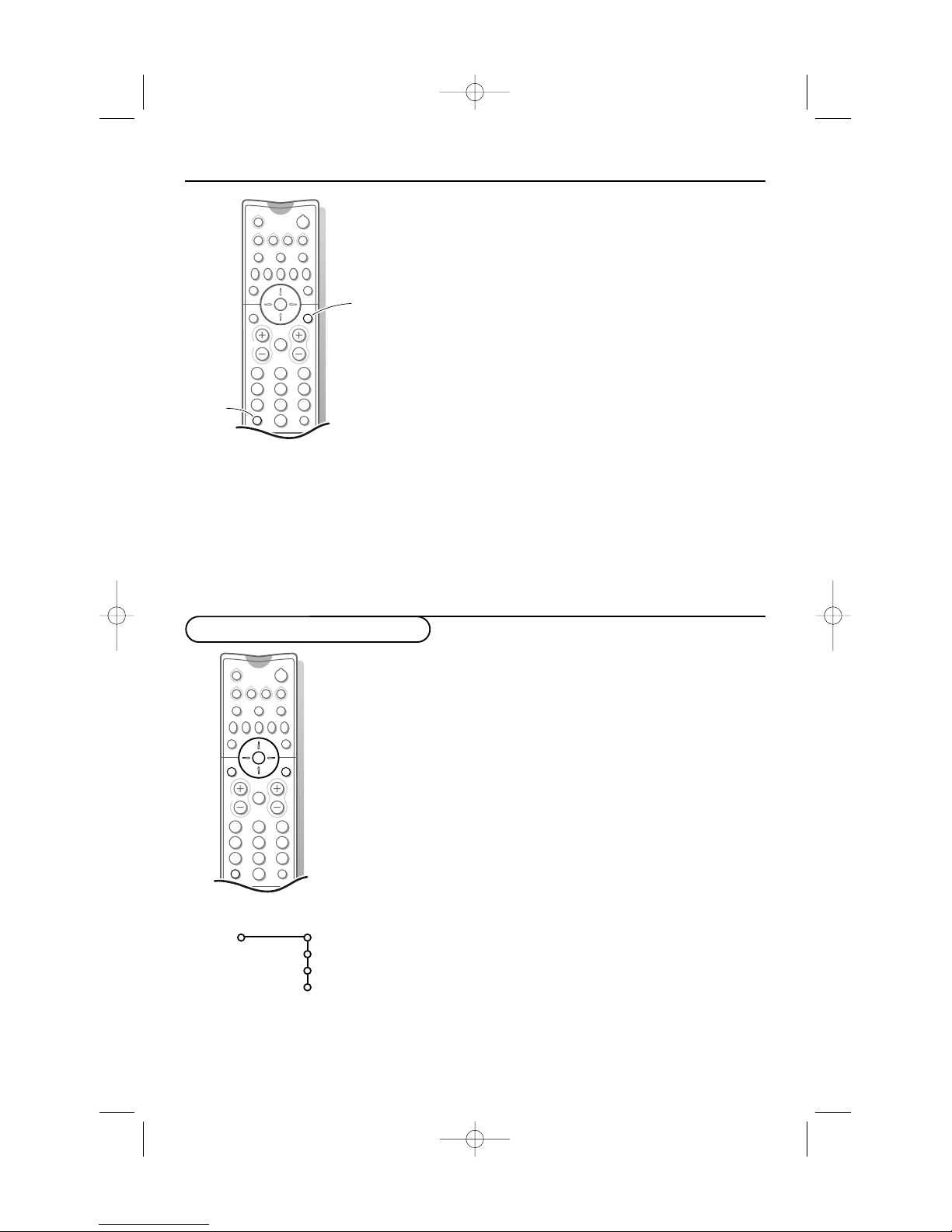

77Installation

213

546

879

VCR DVD AMP AUX

¬V CH

Mqa

SMARTSMART

Sb ﬁ

PIXEL

PLUS

Language

English

....

.....

Install

Menu Info

&Press the MENU Ïkey and select a menu item or

submenu item.

éPress the ikey on the remote control to get

information about the selected menu item.

“Press the ikey again to exit.

Remote Control Info

&Press the MENU Ïkey.

éPress the ikey.

“Press any key on the remote control (except the

cursor keys, the OK, the MENU Ï, the digit, the i

and the Bkeys) and you get information about the

pressed key.

The normal function of the key is not executed.

The moment one of the remote control keys which do

not invoke remote control info, is pressed, remote info

is cancelled.

‘Press the ikey to display the menu that was on

screen before a remote control key for info was

pressed.

213

546

879

VCR DVD AMP AUX

¬V CH

Mqa

SMARTSMART

Sb ﬁ

PIXEL

PLUS

Select the menu language

&Press the MENU Ï key on the remote control.

When you switch on your TV for the first time and no

channels are stored so far, the menu Language

automatically appears on the screen. This menu also has

an additional item Exit with which the menu can be

dismissed.The explanation appears in different languages

one at a time. Choose your preferred language and press

the OK key on the remote control. Proceed with the Install

menu.

éUse the cursor down to select Install.

“Use the cursor right to select Language.

Follow the instructions on screen.

‘Use the cursor up/down to select your preferred

language and press the OK key to confirm your

selection.

(Proceed with the Install menu.

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 7

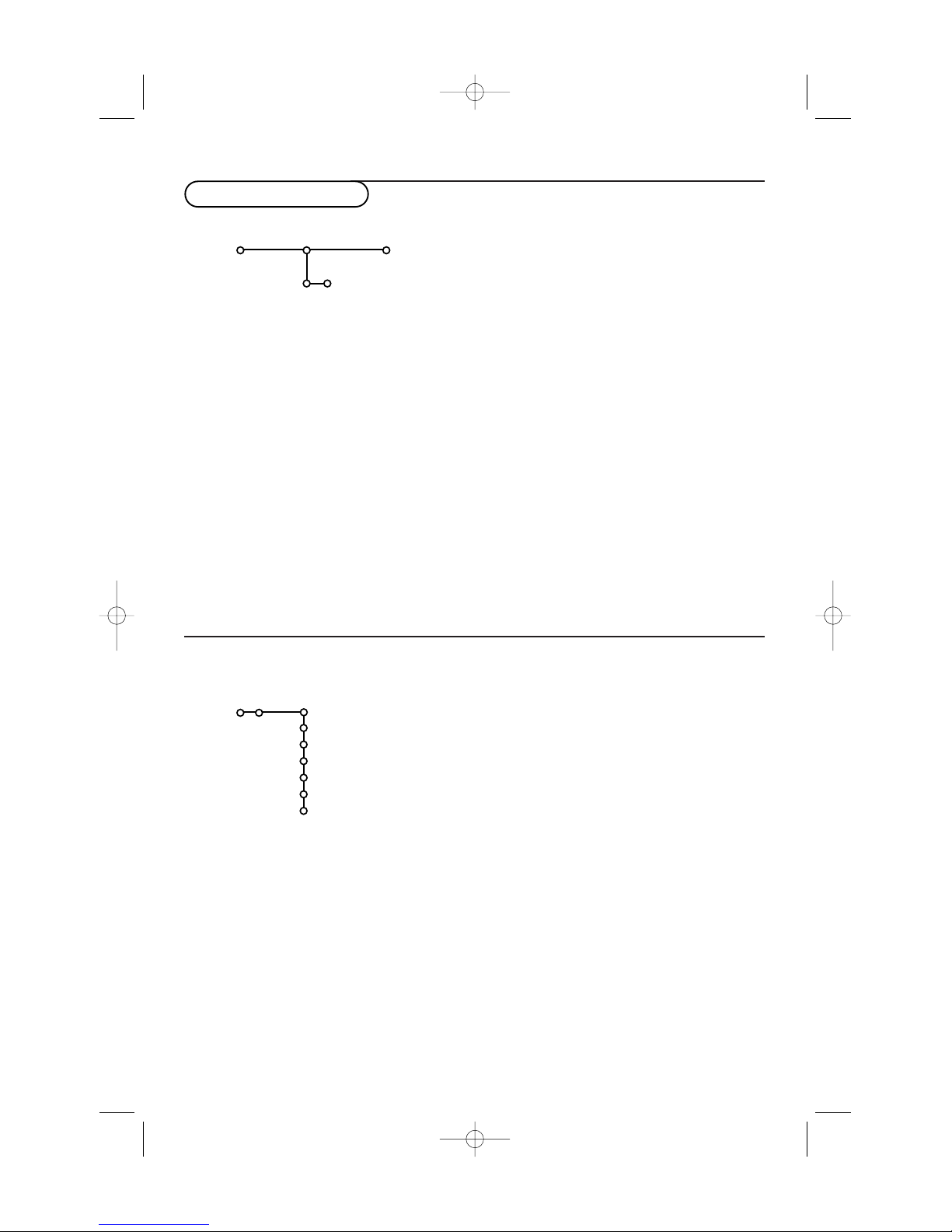

Store TV channels

8Installation

Automatic install

Install Start

Install

You can now search for and store the TV channels in

two different ways: using Automatic Installation or

Manual Installation (tuning-in channel by channel).

Select your choice with the cursor right.

Automatic installation

&Select Automatic installation in the

Install menu.

Note: All channels must be unlocked in order

to autoprogram. If requested, enter your PIN

to unlock all channels. (See TV, Features

menu, Child lock, p. 15.)

éPress the cursor down.

The autoprogramming option label Start

appears.

“Press the cursor right.

‘The message Searching appears and the

progress of autoprogramming is

displayed.

When the Automatic installation is

complete, the puck navigates to Install

again.

The channel list is automatically filled

with all the channel numbers of the TV

channels transmitted.

Note: Channel numbers and names will

always be written in Latin characters, even

when a language has been selected which

uses other characters.

Manual installation

Searching for and storing TV channels is

done channel by channel.You must go

through every step of the Manual

Installation menu.

Press the i key on the remote

control to get information about the

selected menu item.

&Select Manual installation in the Install

menu.

éPress the cursor down.

Follow the instructions on screen.

Note: Search or direct selection of a TV

channel. If you know the frequency, enter the

3 digits of the frequency directly with the

digit keys 0 to 9 (e.g. 048). Press the cursor

down to proceed.

Repeat to search for another TV channel.

Manual install

Install

System

Channel

Fine tune

Antenna level

Store

315 2145.3 (16X24) 31-10-2002 08:43 Pagina 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Téléviseur à tube cathodique

Philips

Philips 21PT5221S Manuel utilisateur

Philips

Philips 28PW8506 Manuel utilisateur

Philips

Philips 28PW778B/78R Manuel utilisateur

Philips

Philips 17HT3304 Manuel utilisateur

Philips

Philips Matchline 34PW9818 Manuel utilisateur

Philips

Philips TS2556C Manuel utilisateur

Philips

Philips 28PT4523/36 Manuel utilisateur

Philips

Philips TP3697B Manuel utilisateur

Philips

Philips PR1390C Manuel utilisateur

Philips

Philips 28PW9545 - annexe 1 Manuel utilisateur

Philips

Philips MX3691C Manuel utilisateur

Philips

Philips 28ML8765/00B Manuel utilisateur

Philips

Philips 21PT1320 Manuel utilisateur

Philips

Philips 32PW9545 - annexe 1 Manuel utilisateur

Philips

Philips 29PT5107 Manuel utilisateur

Philips

Philips 15PT1320/71R Manuel utilisateur

Philips

Philips COLOR TV 32 INCH TABLE TS3258C Manuel utilisateur

Philips

Philips NICAM 28PT7104 Manuel utilisateur

Philips

Philips 21PT9457 Manuel utilisateur

Philips

Philips 28PT 4657 Manuel utilisateur

Philips

Philips 21PT1663 Manuel utilisateur

Philips

Philips 107S2 CM2300 Manuel utilisateur

Philips

Philips 26LW5022/22 Manuel utilisateur

Philips

Philips MatchLine 29PT 9007 Manuel utilisateur

Manuels Téléviseur à tube cathodique populaires d'autres marques

JVC

JVC AV-21QS5SP Manuel utilisateur

Hitachi

Hitachi 27CX01B Manuel utilisateur

LG 30FZ1DC Manuel utilisateur

Sony

Sony FD TRINITON WEGA KV-24FS120 Manuel utilisateur

RCA

RCA F19442 Manuel utilisateur

Samsung

Samsung CS761 Manuel utilisateur

Panasonic

Panasonic TC-29P100 Series Manuel utilisateur

RCA

RCA F19422 Manuel utilisateur

Sony

Sony WEGA KV 32HS20 Manuel utilisateur

Samsung

Samsung SlimFit TX R3079WH Manuel utilisateur

Palsonic

Palsonic MODEL 5179G Manuel utilisateur

Toshiba

Toshiba CF13H22 Manuel utilisateur

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manuel

Toshiba

Toshiba 14AF41 Manuel utilisateur

Mitsubishi

Mitsubishi CS-35305 Manuel utilisateur

Hitachi

Hitachi 35UX60B, 35TX10B Manuel utilisateur

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Manuel utilisateur

Toshiba

Toshiba 27A34 - 27" CRT TV Manuel utilisateur
