Philips SBCRU960/05 Manuel utilisateur

User Guide

Pronto User Guide

(Belgium)

Remark:

All rights are reserved. Reproduction in whole or in part is prohibited without prior

consent of the copyright owner.

Royal Philips Electronics is not liable for omissions or for technical or editorial

errors in this manual or for damages directly or indirectly resulting from the use of

the TSU 3500 / SBC RU960 Pronto.

The information in this user guide may be subject to change without prior notice.

All brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

Pronto

User Guide

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 1

User Guide

Table of Contents

Taking a First Look 4

Pronto: The Home Theater Control Panel 4

The Device 5

The Touch Screen 7

The Docking Station 8

What’s New for Pronto? 8

Before You Start 10

Installing the Battery Pack 10

Charging the Pronto 11

Getting Started 13

Turning on Pronto 13

Setting the Contrast 13

Setting Time and Date 14

Changing the Time Format 14

Changing the Time 14

Changing the Date 15

Setting the Language 16

Operating Pronto 17

Device Overview 17

Page Overview 18

Customizing Pronto 19

Using the Tools 19

Defining the Brand for a Device 20

Learning Commands 23

Labeling Elements 25

Adding Devices 28

Deleting Elements 30

Moving Devices 31

Adjusting the Settings 32

Setting the Brightness of the Backlight 33

Setting the Timeout of the Button Backlight 33

Setting the Timeout of the LCD Screen 34

Setting the Volume Level 34

Setting the Navigation for Pronto 35

Setting the Animation Mode 35

Calibrating the Touch Screen 35

Adjusting the Screen Activation Settings 36

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 2

User Guide

Table of Contents

Using the Power Features 38

Creating and Editing Macros 38

Creating a Macro 38

Editing a Macro 40

Creating and Editing Timers 41

Activating Timers 47

Operating Pronto with the Cursor 48

Operating Pronto with RF 50

Selecting RF to Operate your Devices 51

Selecting IR to Operate your Devices 52

ProntoEdit 53

FAQ 55

Troubleshooting 57

General Problems 57

Customizing Problems 58

Memory Storage Problems 59

Pronto error messages 59

Connection to the PC 59

Maintaining Pronto 60

Important Notices 60

Cleaning Pronto 60

Upgrading Pronto 60

List of Symbols 61

Specifications 64

Glossary 65

Index 68

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 3

User Guide

Taking a First Look

Pronto:

The Home Theater Control Panel

Pronto is a Home Theater Control Panel that allows maximum flexibility and

customization for even the most sophisticated home entertainment system. It can

control almost any device that works with infrared (IR) remote control signals.

Its intuitive interface makes it a perfect remote control for every user.

Pronto is easy to configure. It contains a huge universal database where

IR codes are stored to control different brands for all kinds of video, audio devices

and even home automation equipment. By default Pronto is set up to control

Philips and Marantz devices. For other brands you simply choose the brands of

your devices when you use Pronto for the first time.

Pronto offers you some extra powerful features:

■You can create and edit macros, allowing you to send a series of commands

with one single touch.

■You can set timers for certain actions to be carried out at predefined times,

e.g. switching on your lights or recording your favorite daily TV-show with

your VCR.

■You can choose to have Pronto working with radio frequency (RF) signals to

operate devices from a distance or from an adjacent room. To do this, you

need an optional RF Extender that converts Pronto RF signals into IR signals.

With ProntoEdit software you can create your own screens and define a personal

look. ProntoEdit’s Online Help system (accessible via the ‘Help’ icon in ProntoEdit)

will guide you through the process.

See ‘ProntoEdit’ on page 53 for more information. You can find ProntoEdit on the

included CD-ROM and on the Philips website www.pronto.philips.com. In the

Downloads section of the website you can also find the latest upgrades for your

Pronto software.

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 4

User Guide

Taking a First Look

The Device

Pronto has several hard buttons. Most are freely programmable, some have a

predefined function:

■The buttons on the left side of the Pronto screen have predefined functions:

Page up, Page down and Backlight.

■The 4 firm keys below the touch screen are freely programmable. You can

reprogram the function of these buttons and change the label on the touch

screen.

■The cursor and the OK and Home buttons on the right side of the cursor are

programmed to operate devices (e.g. navigating through the on screen menu of

your TV).

With the Toggle button you can change the working of the cursor.

The free programmable button is meant for future purposes.

■The buttons on the right side of the screen are used to control the volume and

channel: Channel up, Channel down, Mute, Volume up and Volume

down. Although these buttons each have a predefined function, you can

program them yourself. If you learn one of these buttons or assign a macro to

it, its predefined function will be permanently lost.

Learning eye

LCD touch screen

Firm keys

Free programmable

Toggle button

Cursor

Channel up

Channel down

Mute

Volume up

Volume down

Home

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 5

User Guide

Taking a First Look

Backlight

Page up

Page down

USB port

Reset button

Connection to docking station

Battery

compartment

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 6

User Guide

Taking a First Look

Labels for the

firm keys

Device

Pronto Icon

Device

Overview

button

Page

Overview

button

Soft

buttons

The Touch Screen

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 7

User Guide

The Docking Station

The docking station is used to charge the Pronto’s battery pack.

When your Pronto is placed in the docking station, you can connect Pronto to your

computer via the USB port of the docking station, instead of the USB port of the

Pronto.

USB port

Connector for

Pronto

Adapter Connector

What’s New for Pronto?

This new Pronto offers several new features compared to the previous model of

Pronto. The most important ones are:

■Transparency

Pronto supports transparency in buttons and other objects. This makes it easier

to create complex user interfaces. You can now place buttons with a

transparent background on top of a background image and let transparent

buttons overlap.

■16 gray scales

The number of gray scales has increased from 4 to 16. Therefore the buttons

look much more natural.

Taking a First Look

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 8

User Guide

■USB

Pronto has a USB port to make downloading and uploading easier.

■4 MB of Memory

Pronto has 4 Megabyte of memory. This enables you to download larger

configuration files to Pronto.

■Integrated Macros

Macros are now better integrated in the configuration file. Each button can be

a macro, this means each button can contain more than one action.

■More advanced Timers

Your Pronto is able to set timers for certain actions to be carried out at any

time you choose. Timers are not an entirely new feature of Pronto, but they are

easier to use and better integrated with the configuration file. You can

activate and deactivate the timers you created and you can also set them to

repeat daily or weekly. For instance, you can have the lights switched on every

day at sunset. You can also create a timer to set your VCR to record your

favorite TV-show on Wednesday and Saturday.

■RF

By default, Pronto operates your devices with IR signals. However, you can

choose to have Pronto working with radio frequency (RF) signals to operate

devices from a distance or from an adjacent room. An RF Extender (not

included) is therefore required.

■Page Overview

The Page Overview offers you a list of all the pages for one device. Every

device comes with a Page Overview, making it easier and faster to browse

through the device pages.

■Cursor Navigation

By default the cursor is programmed to operate devices. The functions

assigned to the cursor button depend on the device active on Pronto.

Pronto also offers you the possibility to use the cursor for navigating through

devices and pages on the screen. The Left and Right cursor buttons allow you

to scroll through the devices, with the Up and Down cursor buttons you scroll

through the different pages.

■Animation Mode

Pronto provides navigation feedback through graphical animations of mode

transitions and page transitions. You can enable and disable the animations of

your Pronto in the Settings Pages.

■Multi Language Support

Pronto now supports besides English also Spanish, French, German and Dutch.

Taking a First Look

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 9

User Guide

Installing the Battery Pack

1Press the latch on the battery cover with your thumb and then slide the

cover forward firmly.

2 Lift up the battery cover.

Before You Start

3Place the battery pack in the battery compartment.

ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Panneau de contrôle

Philips

Philips Pronto TSU9400 Manuel utilisateur

Philips

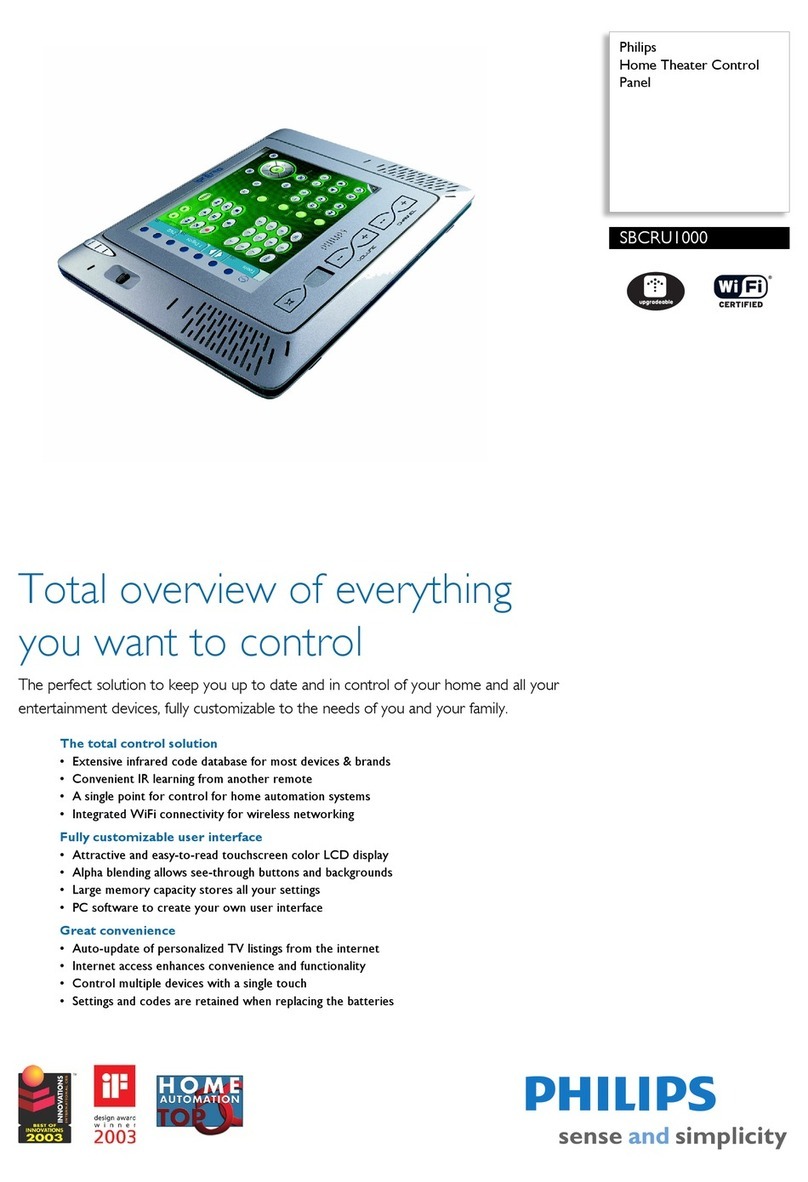

Philips SBCRU1000/05 Manuel utilisateur
