Philips HD7446/00 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffeemaker “Café Comfort”

HD7446/00

06/01

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 230 V

- Frequency : 50 Hz

- Power consumption : 900 W

- Contents jug : 1200 cc

- Coloursetting : White

- Filter size : 1 x 4

- Thermostat switch-off temp : 140 ± 5 °C

- Fuse cut-off temp : 228 °C

- SAP coding : HD7446/00

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Base removal

Besides two screws, two plastic snap connections have to

be detached by means of using a simple screwdriver, as

indicated on the base of the appliance.

REPAIR INSTRUCTION

- Electrical circuit

When the appliance does not work, check the electrical

circuit. If the thermal fuse or thermostat prove defective,

the complete pump unit has to be replaced.

- De-scaling

If the water system is nearly or less clogged by scale then

operate the coffeemaker a few times with vinegar or with a

10-15% solution of either vinegar-acid, citric acid or tartar

acid, into cold tap water.

Do not use other de-scaling agents as these may harm the

appliance.

If this procedure does not restore the function, then switch

off the coffeemaker when the acid has passed through

during approximately. 3 min. Keep the appliance in this

condition overnight and continue/repeat the cleaning

operation. After the de-scaling procedure, operate the

coffeemaker twice with tap water in order to rinse away any

residual substances.

OPTIONAL (accessories)

- Commercial trade number :

HD7983/70 (Jug included lid)

HD7446/00

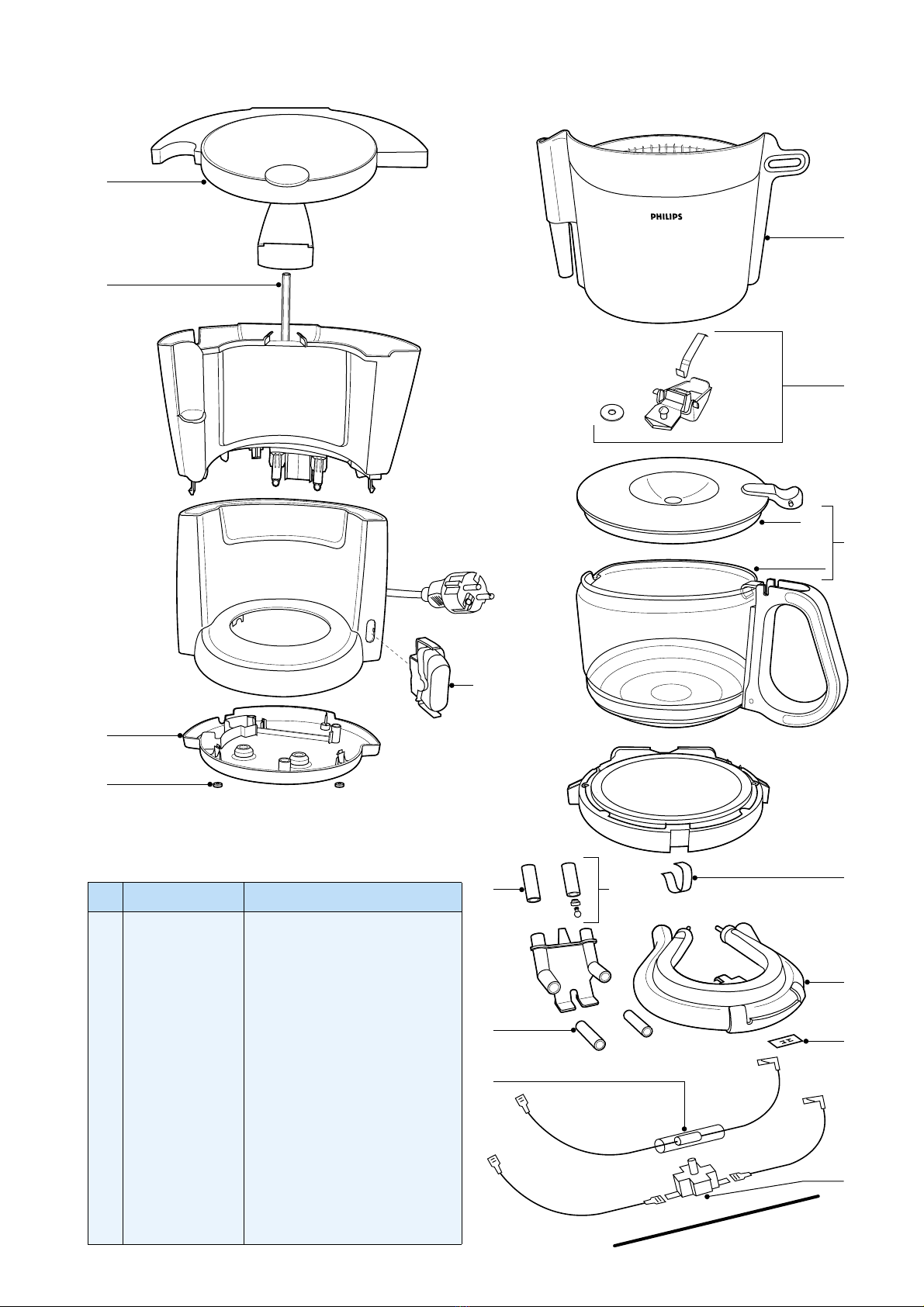

PARTS LIST & EXPLODED VIEW

Pos Service code Description

4222 247 41030

4222 247 52530

4222 247 41010

4822 441 80831

4222 246 17840

4222 247 06440

4222 259 34210

4222 259 20460

4222 259 35790

4222 259 00400

4222 247 41060

4222 259 36720

4222 240 06290

4222 259 33970

4222 248 25620

4222 259 19960

Tank lid Bright White

Spoutpipe

Base Bright White

Foot

Switch Bright White

Hose piece

Fuse assy

Valve + hose piece assy

Filter printed Bright White

Dripstop assy

Jug lid Bright White

Jug + lid Bright White

Leaf assy

Basic pump module III 230 V

Speednut

Thermostat
