Stereo Radio Cassette Recorder AQ5130

www.philips.com/welcome

User Manual

AQ5130_61 2/15/08 12:49 Page 1

Hearing Safety

Listen at a moderate volume.

•Using headphones at a high volume can

impair your hearing. This product can pro-

duce sounds in decibel ranges that may cause

hearing loss for a normal person, even for

exposure less than a minute. The higher

decibel ranges are offered for those that may

have already experienced some hearing loss.

•Sound can be deceiving. Over time your

hearing "comfort level" adapts to higher vol-

umes of sound. So after prolonged listening,

what sounds "normal" can actually be loud

and harmful to your hearing. To guard against

this, set your volume to a safe level before

your hearing adapts and leave it there.

To establish a safe volume level:

•Set your volume control at a low setting.

•Slowly increase the sound until you can hear

it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

•Prolonged exposure to sound, even at nor-

mally "safe" levels, can also cause hearing loss.

•Be sure to use your equipment reasonably

and take appropriate breaks.

Be sure to observe the following guide-

lines when using your headphones.

•Listen at reasonable volumes for reasonable

periods of time.

•Be careful not to adjust the volume as your

hearing adapts.

•Do not turn up the volume so high that you

can't hear what's around you.

•You should use caution or temporarily discon-

tinue use in potentially hazardous situations.

•Do not use headphones while operating a

motorized vehicle, cycling, skateboarding, etc.;

it may create a traffic hazard and is illegal in

many areas.

CAUTION

Use of controls or adjustments or

performance of procedures other than

herein may result in hazardous radiation

exposure or other unsafe operation.

AQ5130_61 2/15/08 12:49 Page 2

AQ5130_61 2/15/08 12:49 Page 3

Korean Controls/ Power Supply

Congratulations on your purchase and

welcome to Philips!

To fully benefit from the support that

Philips offers, register your product at

www.philips.com/welcome.

Supplied accessories

–

AC power cord

Top and front panels (See 1)

FM STEREO indicator – lights up for

stereo FM reception.

Cassette recorder keys:

PAUSE ;

–

pauses playback or recording

STOP•EJECT 9

–

stops playback or recording.

–

opens the cassette holder.

F. FWD/REWIND 5 or 6

–

fast winds/rewinds the tape

PLAY 1

–

starts playback

RECORD 0

–

starts recording

3VOLUME rotary – adjusts volume level

4p- 3.5mm stereo headphone jack

Helpful hints:

– Connecting the headphones will switch off

the speakers.

5MIC

(built-in microphone)

–

for voice recording

Band selector: MW, FM

–

selects wavebands, MW or FM

Source selector:TAPE, RADIO

–

selects tape or radio source of sound

–

switches off the set

8TUNING rotary – tunes to radio stations

Back panel (See 1)

9Telescopic antenna

- improves FM reception.

0AC INPUT - inlet for power cord

!Voltage selector – (inside the battery

compartment, not for all versions) adjust to

match the local voltage 110/220V before

plugging in the set.

@Battery door - open to insert 6 X 1.5

batteries, type R20 or D-cells

Power supply

Whenever convenient, use the power cord if

you want to conserve battery life. Make sure

you remove the plug from the set and wall

outlet before inserting batteries.

Batteries (not included)

•Insert 6 batteries, type R20 or D-cells

(preferably alkaline) with the

correct polarity. (See 1)

Batteries contain chemical substances,

so they should be disposed of properly.

• Incorrect use of batteries can cause

electrolyte leakage and will corrode the

compartment or cause the batteries to burst:

• Do not mix battery types: e.g. alkaline with

carbon zinc. Only use batteries of the same

type for the set.

• When inserting new batteries, do not try to

mix old batteries with the new ones.

• Remove the batteries if the set is not to be

used for a long time.

AQ5130_61 2/15/08 12:49 Page 4

Power Supply General Operation/ Radio

Using AC power

1 Check if the power voltage, as shown on

the type plate located on the

bottom of the set,corresponds to your

local power supply. If it does not, consult your

dealer or service center.

2 If your set is equipped with a voltage

selector, adjust the selector so that it

matches with the local mains.

3 Connect the power cord to the AC INPUT

inlet and the wall socket.The power cord is

now connected and ready for use.

4 To switch the set off completely, withdraw the

power cord from the wall socket.

•Disconnect the power cord from the wall

socket to protect your set during heavy

thunderstorms.

Helpful hints : To avoid unnecessary energy

consumption, always adjust the Source

selector to

TAPE

after using the set. Also

check that the tape deck keys are released.

The type plate is located on the bottom

of the set.

General operation

Switching on and off and selecting

functions

1 To switch on, push the Source selector

slider to TAPE or

RADIO as desired.

2 To switch off, push the Source selector

TAPE

and check the cassette keys are

released.

Helpful hints:

–To change from TAPE to RADIO ,or when

you are switching off the set: first, make sure you

press the

STOP•EJECT 9

/key to end

playback and all the cassette keys are released.

Adjusting volume

•Adjust the volume with the

VOLUME

control.

Radio reception

1 Adjust the source selector to

RADIO

2Adjust the band selector to select your

desired waveband, MW or FM.

3Tu r n TUNING to tune to a station.

- FM STEREO lights up for stereo FM

reception.

4To switch off the radio, adjust the source

selector to

TAPE

position.

To improve radio reception:

• For FM,extend and turn the telescopic

antenna for best reception. Reduce its

length if the signal is too strong.

• For MW,the set uses a built-in antenna.

Direct this antenna for best reception by

turning the whole set.

AQ5130_61 2/15/08 12:49 Page 5

Cassette playback

1Push the Source selector to TAPE

2Press

STOP•EJECT 9

/to open the

cassette holder and insert a cassette and

close the deck.

3Press

PLAY 1

to start playback.

4To pause playback press

PAUSE ;

To resume, press the key again.

5By pressing

F.FWD/REWIND 5 or 6

fast forwading/ rewinding of the tape is

possible in both directions.To stop fast

winding, press

//.

6To stop the tape, press

//.

Helpful hints:

–During playback, the keys are automatically

released at the end of a tape and the set is

switched off (unless

PAUSE ;

mode has been

activated.)

–During fast forwarding/rewinding, the keys will

not be released at the end of a tape.To switch

off the set, make sure the cassette keys are also

released.

General information on recording

•Recording is permissible insofar as copyright

or. other rights of third parties are not

infringed.

•For recording, use only NORMAL type

cassettes (IEC type I) on which the tabs have

not yet been broken.This deck is not suited

for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes.

•The best recording level is set automatically.

Altering the VOLUME will not affect the

recording.

•To protect a tape from accidental erasure,

break out the tabs. If you wish to record again,

cover the tabs with a piece of adhesive tape.

Recording from the Radio

1Select RADIO source.

2Tune to the desired radio station (see Radio

reception).

3Press

//to open the cassette holder.

Insert a blank tape and close the deck.

4Press

REC 0

to start recording.

5For brief interruptions press

;

To resume recording, press

;

again.

6To stop recording, press

//.

Making your recording

1Select TAPE source.

2Follows steps 3-4 under Recording from

the Radio.

3Speak towards the built-in microphone

MIC (see 1).

4Follows steps 6-7 under Recording from

the Radio.

Cassette Recorder

The making of unauthorized copies of

copy-protected material, including com-

puter programmes, files, broadcasts and

sound recordings, may be an infringe-

ment of copyrights and constitute a

criminal offence.This equipment should

not be used for such purposes.

AQ5130_61 2/15/08 12:49 Page 6

Maintenance & safety

Ta pe deck maintenance

To ensure quality recording and playback of

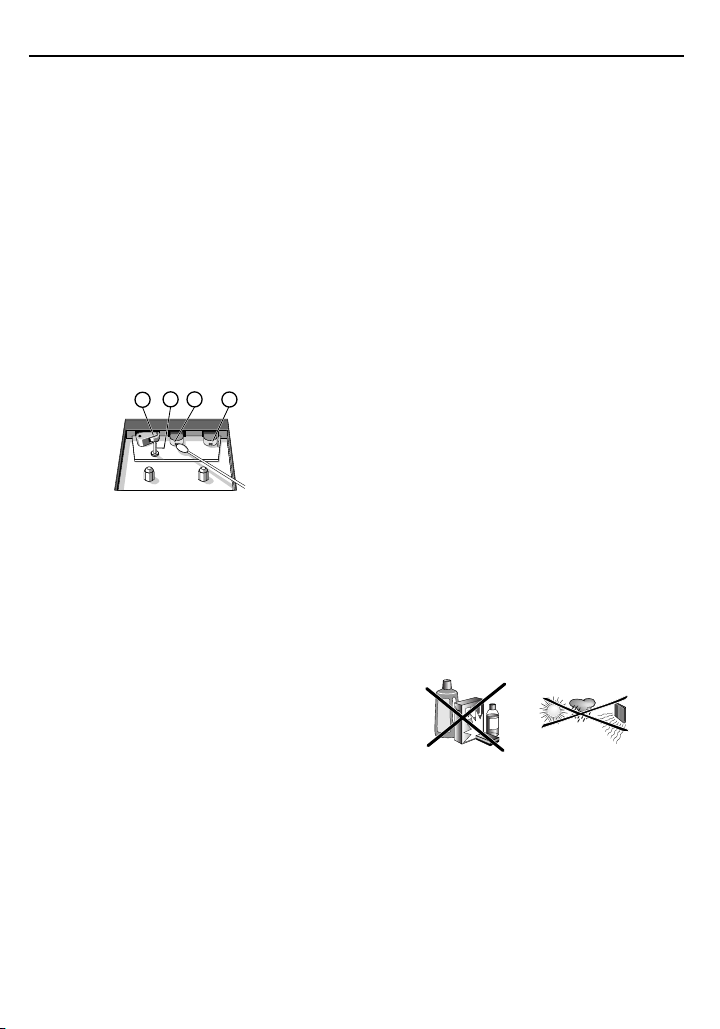

the tape deck, clean parts A,Band Cas

shown, once a month. Use a cotton bud

slightly moistened with alcohol or a special

head cleaning fluid to clean the deck.

1Open the cassette holder by pressing

2Press 1and clean the roller C.

3Press

;

and clean the heads A,and the

capstan B.

4After cleaning, press

➜Cleaning of the heads can also be done by

playing a cleaning cassette through once.

Safety information

•Place the set on a flat, hard and stable surface

so that the system does not tilt.

•Where the MAINS plug or an appliance cou-

pler is used as the disconnet device, the dis-

connet device shall remain readily operable.

•Do not expose the set, batteries to humidity,

rain, sand or excessive heat caused by heating

equipment or direct sunlight.

•The apparatus shall not be exposed to

dripping or splashing.

•Adequate ventilation with a minimum gap of

15cm (6 inches) between the ventilation

holes and surrounding surfaces is necessary

to prevent heat build-up.

•Do not cover the ventilation openings with

items such as newspapers, table-cloths,

curtains, etc.

•No objects filled with liquids, such as vases,

shall be placed on the apparatus.

•No naked flame sources, such as lighted

candles, should be placed on the apparatus.

•The mechanical parts of the set contain

self-lubricating bearings and must not be

oiled or lubricated.

•To clean the set, use a dry cloth. Do not

use any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these

may harm the housing.

A AB

AQ5130_61 2/15/08 12:49 Page 7

Problem

–Possible cause

•Remedy

No sound /power

–Volume not adjusted

•Adjust the VOLUME

–Power cord not securely connected

•Connect the AC power cord properly

–Batteries dead/ incorrectly inserted

•Insert (fresh) batteries correctly

–Headphones connected to the set

•

Disconnect headphones.

Display does not function properly/

No reaction to operation of any of the

controls

–Electrostatic discharge

•Switch off and unplug the set. Reconnect after

a few seconds

Severe radio hum or noise

–Electrical interference: set too close to TV,VCR

or computer

•Increase the distance

Poor radio reception

–Weak radio signal

•FM: Adjust the FM telescopic antenna

•MW: Direct this antenna for best reception

by turning the whole set.

Poor cassette sound quality

–Dust and dirt on the heads, etc.

•Clean deck parts, see Maintenance

–Use of incompatible cassette types (METAL or

CHROME)

•Only use NORMAL (IEC

) for recording

Recording does not work

–Cassette tab(s) may be broken

•Apply adhesive tape over the missing tab space

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Do not open the set as there is a risk of electric shock. Under no

circumstances should you try to repair the set yourself, as this will

invalidate the guarantee.

Environmental information

All unnecessary packaging material has been omitted.The packaging can be easily

separated into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a

specialized company. Please observe the local regulations regarding the

disposal of packaging, dead batteries and old equipment.

AQ5130_61 2/15/08 12:49 Page 8

AQ5130_61 2/15/08 12:49 Page 9

Meet Philips at the Internet

http://www.philips.com

PDCC-LL-0802

AQ5130

Printed in China

AQ5130_61 2/15/08 12:49 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Lecteur de cassettes

Philips

Philips AQ6691 Manuel utilisateur

Philips

Philips AW7090 Manuel utilisateur

Philips

Philips AQ5190 Manuel utilisateur

Philips

Philips ACT6688 Manuel utilisateur

Philips

Philips AJ3280 - annexe 2 Manuel utilisateur

Philips

Philips AW 7250/00S Manuel utilisateur

Philips

Philips AQ6491 Manuel utilisateur

Philips

Philips AZ 8490 Mode d’emploi

Philips

Philips AQ6485/14 Manuel utilisateur

Philips

Philips AW7140 - annexe 1 Manuel utilisateur

Philips

Philips AQ6492/00 Manuel utilisateur

Philips

Philips AQ6601/00 Manuel utilisateur

Philips

Philips FC 911 Manuel utilisateur

Philips

Philips AQ6426 Manuel utilisateur

Philips

Philips AQ6560/00B Manuel utilisateur

Philips

Philips AZ1000 - annexe 1 Manuel utilisateur

Philips

Philips AQ6562 Manuel utilisateur

Philips

Philips AZ 1040 Manuel utilisateur

Philips

Philips AZ 2905 Manuel utilisateur

Philips

Philips ND 7500 Manuel utilisateur

Philips

Philips AQ4150 Feuille d'instructions

Philips

Philips ND 7600/58 Manuel utilisateur

Philips

Philips Video Cassette Recorder Manuel utilisateur

Philips

Philips ND 6600/58 Manuel utilisateur

Manuels Lecteur de cassettes populaires d'autres marques

Aiwa

Aiwa TP-VS535 Manuel utilisateur

Yamaha

Yamaha MT8X Manuel utilisateur

Manta

Manta MA408 Manuel utilisateur

Sherwood

Sherwood Newcastle D-480 Manuel utilisateur

Tascam

Tascam 122MKIII Mode d’emploi

GPO

GPO W0162B Manuel utilisateur

Sony

Sony HST-471 Manuel utilisateur

Sharp

Sharp JC-AV1 Manuel utilisateur

Pioneer

Pioneer CT-W103 Manuel utilisateur

Aiwa

Aiwa HS-JX899 Manuel utilisateur

Sony

Sony TC-K615S Manuel utilisateur

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder Manuel utilisateur

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... Manuel utilisateur

Aiwa

Aiwa HS-TA21 Manuel utilisateur

Sanyo

Sanyo MCD-ZX700F Manuel utilisateur

Aiwa

Aiwa CS-P77 Manuel utilisateur

Sony

Sony Pressman TCM-465V Manuel utilisateur

Sony

Sony WALKMAN WM-GX808 Manuel utilisateur
