Philips BDP3200/51 Manuel utilisateur

BDP3200(X)/51/55/77/78

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without

the prior permission of Philips.

Blu-ray Disc Player

Version 1.1Version 0.0

LASER PRODUCT

CLASS 1

314178535911

Published by CY_SL1108 BG AVM Printed in The Netherlands Subject to modification

TABLE OF CONTENTS

Chapter

Technical Specification, PCBs Location………………….. 1

Safety Instruction ……………………………………………… 2

Instruction for Use………………………………………………3

Mechanical and Dismantling Instructions…………………. 4

Service Modes, Troubleshooting……………………………. 5

Overall Block Diagram, Wiring Diagram…………………….6

Electrical Diagram……………………………………………… 7

Exploded View Diagram & Service Part List………………..8

Revision List……………………………………………………. 9

1.1 Specifications

Specifications are subject to change without notice

Video

Signal system: PAL / NTSC

Composite video output: 1 Vp-p (75 ohm)

Component video output: 480/576i, 480/576p,

720p, 1080i

Y: 1 Vp-p (75 ohm)

Pb: 0.7 V-pp (75 ohm)

Pr: 0.7 V-pp (75 ohm)

HDMI output 480p, 576p, 720p, 1080i, 1080p,

1080p24

Audio

2 Channel analog output

Audio Front L&R : 2 Vrms (> 1 kohm)

Digital output: 0.5 Vp-p (75 ohm)

Coaxial

HDMI output

Sampling frequency:

MP3: 32 kHz, 44.1 kHz, 48 kHz

WMA: 44.1 kHz, 48 kHz

Constant bit rate:

MP3: 112 kbps - 320 kpbs

WMA: 48 kpbs - 192 kpbs

USB Compatibility: Hi-Speed USB (2.0)

Class support: UMS (USB Mass Storage Class)

Power supply rating: AC 220-240V~, ~50 Hz

Power consumption: 25 W

Power consumption in standby mode: < 0.5 W

Dimensions (w x h x d): 435 x 60 x 227 (mm)

Net Weight: 2.35 kg

Accessories supplied

Remote control and batteries

Audio/Video cables

Power cable

Quick start guide

User manual

CD-ROM built in multi-lingual user manual

Laser Specification

Laser Type:

BD Laser Diode: AlGaInN

DVD Laser Diode: AlGaInP

CD Laser Diode: AlGaInP

BD: 405 +5nm/-5nm

DVD: 655 +10nm/-10nm

CD: 790 +10nm/-20nm

Output power:

BD: Max. ratings: 20mW

DVD: Max. ratings: 6mW

CD: Max. ratings: 7mW

Main unit

Wave length

1-1

1.1 PCBs Location

VERSION VARIATIONS

Type/Versions:

Service policy

Board in used:

BDP3200

*TIPS: C -- Component Lever Repair.

M -- Module Lever Repair

X -- OCX

1-2

51 55

MAIN PCBA

VFD DISPLAY PCBA

30W/2P OPEN PCBA

30 W/2P OPEN PCBA M

C C

MAIN BOARD

Software check and upgrade

Preparation to upgrade software

1)Start the CD burning software & create a folder named "UPG_ALL", B. Read out the software versions to confirm upgrading

2)Then copy the Bin file (BDP3XXXXX-XXX-XXXXXX.bin) into it,

3)Burn the data onto the blank CD.

A. Procedure for software upgrade

A) Upgrade software via Disc

4) In homemenu,enter "setup"->"advanced"->"version info", press "OK"

1) Power on the set and insert the prepared Upgrade

CDR.

and other information will display on the TV screen as below:

2) The set will starts reading disc & response with the Model:XXX.XXX

following display TV screen: Versions

Now searching for upgrade software!

Please wait…!

3) Then screen will display :

software upgrades for this player has been found!Do you want to upgrade? Caution: The set must not be power off during

upgrading, otherwise the Main board will be

Cancel Start damaged entirely.

4) Press Right cursor button to choose "Start", then press <OK>;

5) The software will updagrde and screen will display as below:

Upgrade is ongoing, Please wait…

Please do not unplug or switch off the device.

6) Restart the set.

B) Update software via USB Flash Drive:

1) Go to www.philips.com/support to check if the latest software

version is available for this player.

2) Download the software onto a USB flash drive's root DIR named "UPG_ALL".

3) Insert the USB flash drive to the USB jack of the rear panel.

4) In the Home menu, select <Setup>-<Advanced>-<Software

update>-<USB>.

5) Then press OK

6) you'll see now searching for new software, please wait.......

7) Waiting, the you'll see "software for this player has been found ......"

8) Then select "Start" and press "OK"

9) then you'll see "upgrade is ongoing ......", wait until it ends.

10) Player will restart automatically or press "Restart now" to restart, after restarting the upgrade ends.

subinfo:xxxx

system SW:xxxx

ethernet MAC:xxxxxxxx

http://www.philips.com/support

1-3

2.0 Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation

transformer.

. Replace safety components indicated by the

symbol

Only by components identical to the original ones.

Any

Other component substitution (other than original

type)

May increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you

must

Return the unit in its original condition. Pay, in

particular,

Attention to the following points:

. Route the wires/cables correctly, and fix them with

the

mounted cable clamps

. Check the insulation of the mains lead for external

Damage

. Check the electrical DC resistance between the

mains

Plug and the secondary side:

1) Unplug the mains cord, and connect a wire

between

The two pins of the mains plug.

2) Set the mains switch the “on” position (keep

the

Mains cord unplug).

3) Measure the resistance value between the

mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M Ω

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire

between

the two pins of the mains plug.

2. Laser safety

This unit employs a laser. Only qualified service

personnel

May remove the cover, or attempt to service this

device

(due to possible eye injury).

Laser device unit

Type :Semiconductor laser GaAIAs

Wavelength :650nm (DVD)

:780nm (VCD/CD)

Output power :7mW(DVD)

:10mW(DVD/CD)

Beam divergence:60 degree

Note: Use of controls or adjustments or

performance of procedure other than those

specified herein, may result in hazardous

radiation exposure. Avoid direct exposure to

beam.

2-1

3.0 Instruction for Use

You can download this information from the following websites:

http://www.philips.com/support

http://www.p4c.philips.com

3-1

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

The following guidelines show how to dismantle the player.

Step1: Remove 6 screws around the Top Cover, and then remove the Top Cover(Figure1)

4-1

Step2: Remove the 8 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD & DECK

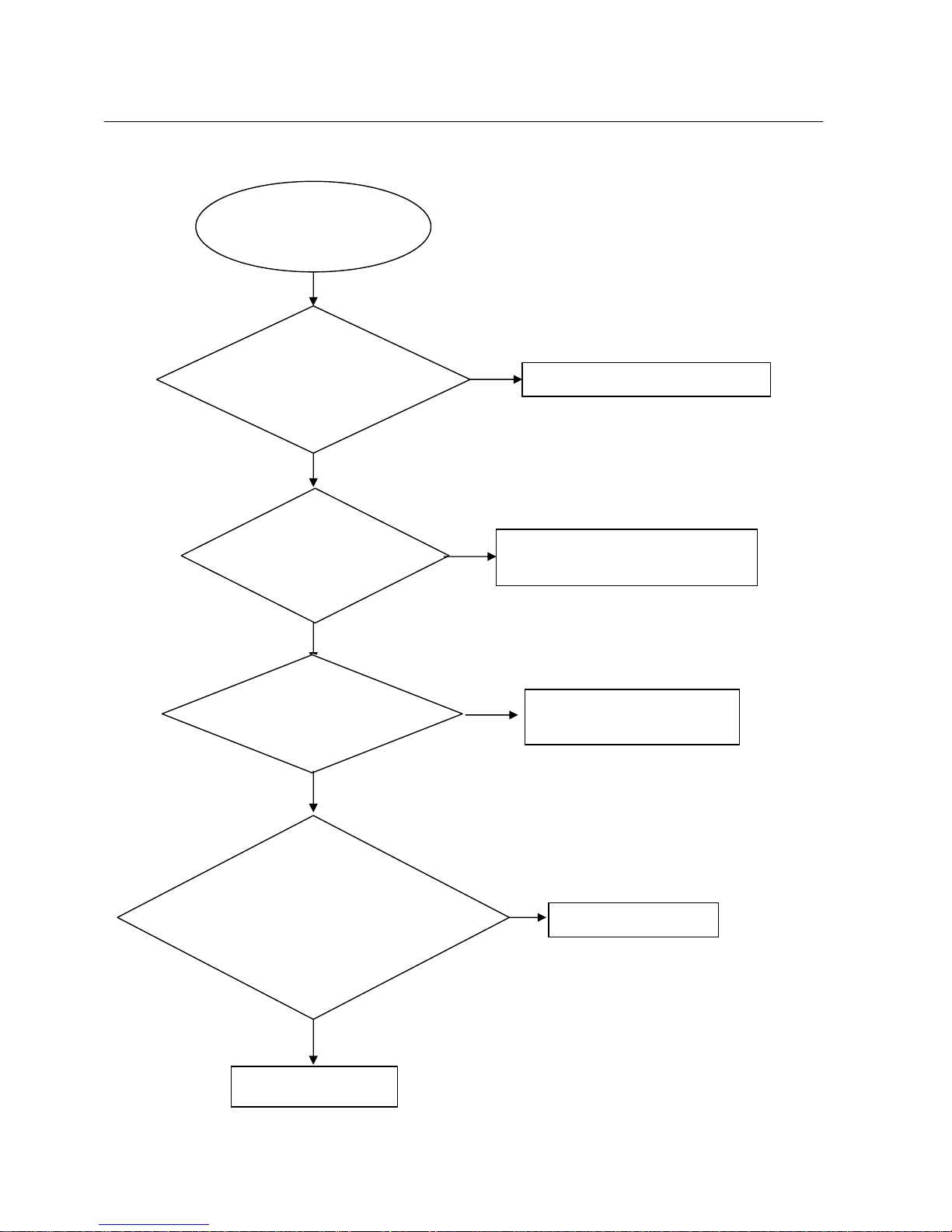

No display on VFD, and buttons do not work

Yes

No display on VFD, and

buttons do not work

Check every supply

voltage on main board is

normal Refer to Power supply board part

Correct connection

Replace VU1 or VFD

Yes

Check +5V,+12V,-24V

voltage on the power

and front board

SG,GR on the front board

1.Check whether bad solder exists

on VU1 and pins of VFD

2.Check whether the circuit

connected to K1, K2, K3, K4 is

broken.

Fix the connection J3 on front board

and CN4 on power board

Trouble shooting chart

5-1

Check the signals of the VU1's Check the VU1 power supply

(VU1.38= +5V and VU1.27= -24V)

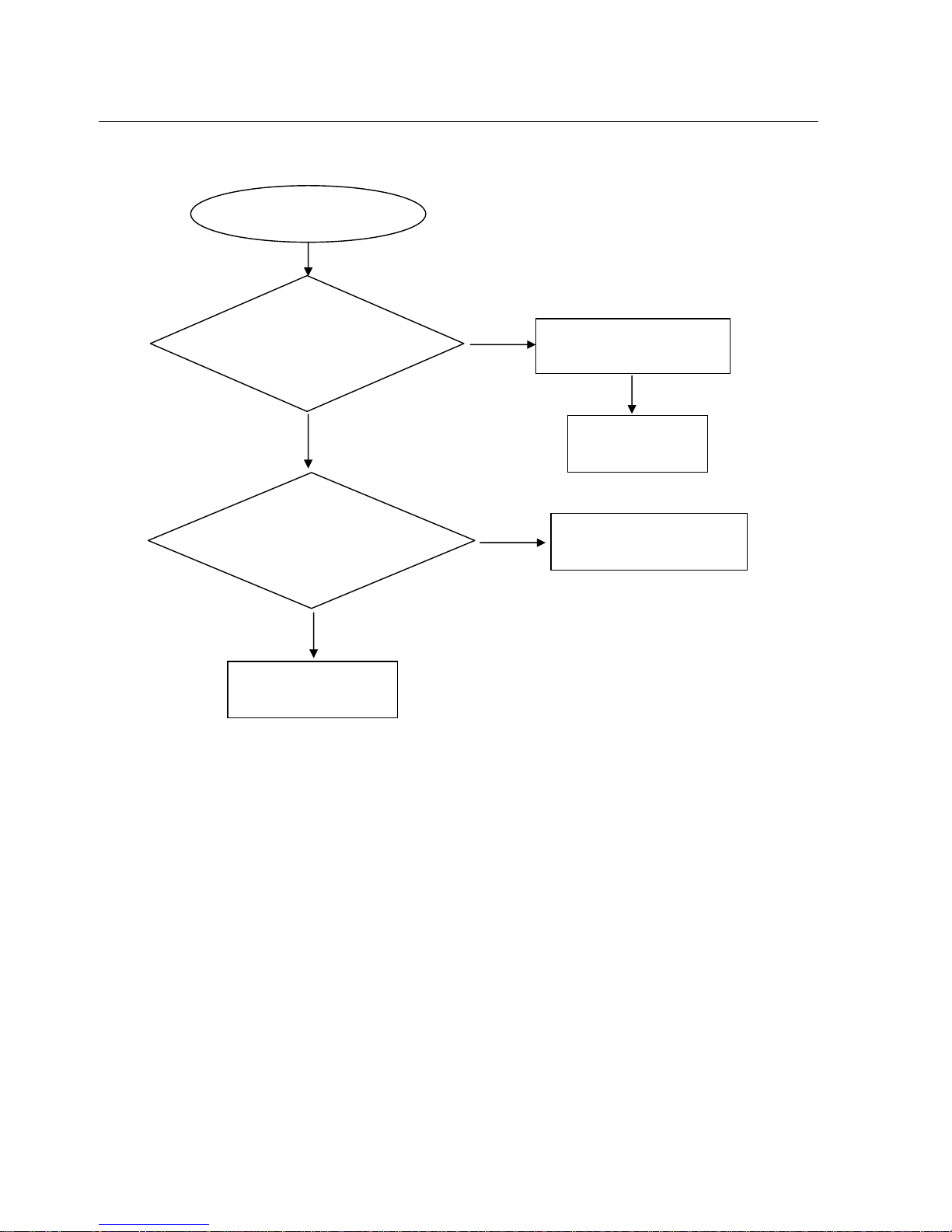

No audio output

Check whether the audio

signal is right from the

U1's pin 8, 9

Correct connection

Yes

No audio output

Trouble shooting chart

5-2

exists on pins of J7

Check whether bad solder

Replace the J7

Yes

Check the U1 power supply

(U1.1= +3.3V and U1.11= +5V)

Yes

Replace the U1

Remote control does not work

Yes

Remote control

does not work

Replace the battery for remote

controller

Check whether the remote

controller’s battery is

exhausted or not.

Check the Power supply board part

Replace IR1

Trouble shooting chart

5-3

Check the IR1 power supply is OK

Check the connection J2 on front board

and J502 on main board is broken

Yes

Fix the connection

Yes
