Philips BDP2900/F7 Manuel utilisateur

BDP2900/F7/12/05/55

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without

the prior permission of Philips.

Blu-ray Disc Player

Version 1.0Version 0.0

Published by SS_SL BG LE Printed in The Netherlands Subject to modification

TABLE OF CONTENTS

Chapter

Technical Specification, PCBs Location………………….. 1

Safety Instruction ……………………………………………… 2

Instruction for Use………………………………………………3

Mechanical and Dismantling Instructions…………………. 4

Service Modes, Troubleshooting……………………………. 5

Overall Block Diagram, Wiring Diagram…………………….6

Electrical Diagram……………………………………………… 7

Exploded View Diagram & Service Part List………………..8

Revision List……………………………………………………. 9

314178537370

1.1 Specifications

Specifications are subject to change without notice

1-1

Playable media

- BD-Video, BD 3D

- DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer)

- VCD/SVCD

- Audio CD, CD-R/CD-RW, MP3 media, WMA media, JPEG iles

- DivX (Ultra)/DivX Plus HD media, MKV media

- USB storage device

File format

- Video: .avi, .divx, .mp4, .mkv

- Audio: .mp3, .wma, .wav

- Picture: .jpg, .gif, .png

Video

- Signal system: PAL / NTSC

- HDMI output 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p/24Hz

Audio

- Digital output: 0.5 Vp-p (75 ohm)

- Coaxial

- HDMI output

- Sampling frequency:

- MP3: 32 kHz, 44.1 kHz, 48 kHz

- WMA: 44.1 kHz, 48 kHz

- Constant bit rate:

- MP3: 112 kbps - 320 kpbs

- WMA: 48 kpbs - 192 kpbs

USB

- Compatibility: Hi-Speed USB (2.0)

- Class support: USB Mass Storage Class

- File system: FAT16, FAT32

- Support HDD (a portable hard drive disc): an external power source may be needed.

Main unit

- Power supply rating: AC 110-127V~, 50Hz - 60Hz

- Power consumption: 11 W

- Power consumption in standby mode: < 1 W

- Dimensions (w x h x d): 310 X 40 X 203 (mm)

- Net Weight: 1.1 kg

Accessories supplied

- Remote control and 2 AAA batteries

- User manual

Laser Specification

- Laser Type (Diode): AlGaInN (BD), AlGaInP (DVD/CD)

- Wave length: 405+7nm/-7nm (BD), 660+4nm/-10nm (DVD), 790+6/-6nm (CD)

- Output power: 1mW (BD), 0.3mW (DVD), 0.28mW (CD)

Optional accessory

- A wireless Philips USB adaptor(named WUB1110,sold separately)

- Multimedia connections:Wi-Fi 802.11b/g/n

- Connectivity: USB

- Ambient temperature:5 degC to 40 degC

- Dongie dimensions (W X H X D):28.4 X 82 X13.4mm

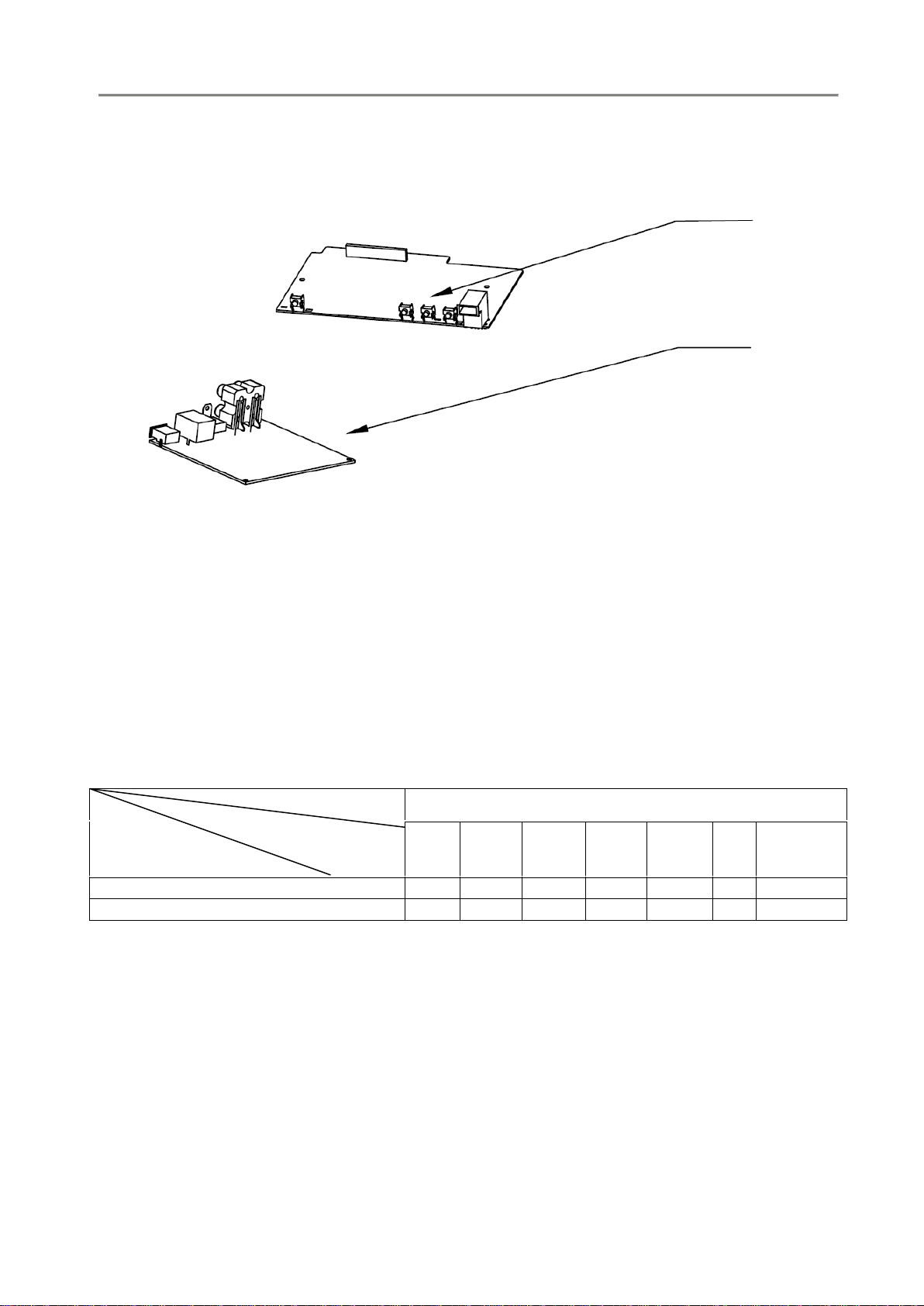

1.1 PCBs Location

VERSION VARIATIONS

Type/Versions:

Service policy

Board in used:

BDP2900

*TIPS: C -- Component Lever Repair.

M -- Module Lever Repair

X -- OCX

1-2

/12

PSU PCBA

MAIN BOARD M

PSU PCBA

MAIN BOARD

/05 /55

Software check and upgrade

Preparation to upgrade software

1)Start the CD burning software & create a folder named "UPG_ALL", B. Read out the software versions to confirm upgrading

2)Then copy the Bin file (BDP3XXXXX-XXX-XXXXXX.bin) into it,

3)Burn the data onto the blank CD.

A. Procedure for software upgrade

A) Upgrade software via Disc

4) In homemenu,enter "setup"->"advanced"->"version info", press "OK"

1) Power on the set and insert the prepared Upgrade

CDR.

and other information will display on the TV screen as below:

2) The set will starts reading disc & response with the Model:XXX.XXX

following display TV screen: Versions

Now searching for upgrade software!

Please wait…!

3) Then screen will display :

software upgrades for this player has been found!Do you want to upgrade? Caution: The set must not be power off during

upgrading, otherwise the Main board will be

Cancel Start damaged entirely.

4) Press Right cursor button to choose "Start", then press <OK>;

5) The software will updagrde and screen will display as below:

Upgrade is ongoing, Please wait…

Please do not unplug or switch off the device.

6) Restart the set.

B) Update software via USB Flash Drive:

1) Go to www.philips.com/support to check if the latest software

version is available for this player.

2) Download the software onto a USB flash drive's root DIR named "UPG_ALL".

3) Insert the USB flash drive to the USB jack of the rear panel.

4) In the Home menu, select <Setup>-<Advanced>-<Software

update>-<USB>.

5) Then press OK

6) you'll see now searching for new software, please wait.......

7) Waiting, the you'll see "software for this player has been found ......"

8) Then select "Start" and press "OK"

9) then you'll see "upgrade is ongoing ......", wait until it ends.

10) Player will restart automatically or press "Restart now" to restart, after restarting the upgrade ends.

subinfo:xxxx

system SW:xxxx

ethernet MAC:xxxxxxxx

http://www.philips.com/support

1-3

2.0 Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation

transformer.

. Replace safety components indicated by the

symbol

Only by components identical to the original ones.

Any

Other component substitution (other than original

type)

May increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you

must

Return the unit in its original condition. Pay, in

particular,

Attention to the following points:

. Route the wires/cables correctly, and fix them with

the

mounted cable clamps

. Check the insulation of the mains lead for external

Damage

. Check the electrical DC resistance between the

mains

Plug and the secondary side:

1) Unplug the mains cord, and connect a wire

between

The two pins of the mains plug.

2) Set the mains switch the “on” position (keep

the

Mains cord unplug).

3) Measure the resistance value between the

mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M Ω

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire

between

the two pins of the mains plug.

2. Laser safety

This unit employs a laser. Only qualified service

personnel

May remove the cover, or attempt to service this

device

(due to possible eye injury).

Laser device unit

Type :Semiconductor laser GaAIAs

Wavelength :650nm (DVD)

:780nm (VCD/CD)

Output power :7mW(DVD)

:10mW(DVD/CD)

Beam divergence:60 degree

Note: Use of controls or adjustments or

performance of procedure other than those

specified herein, may result in hazardous

radiation exposure. Avoid direct exposure to

beam.

2-1

3.0 Instruction for Use

You can download this information from the following websites:

http://www.philips.com/support

http://www.p4c.philips.com

3-1

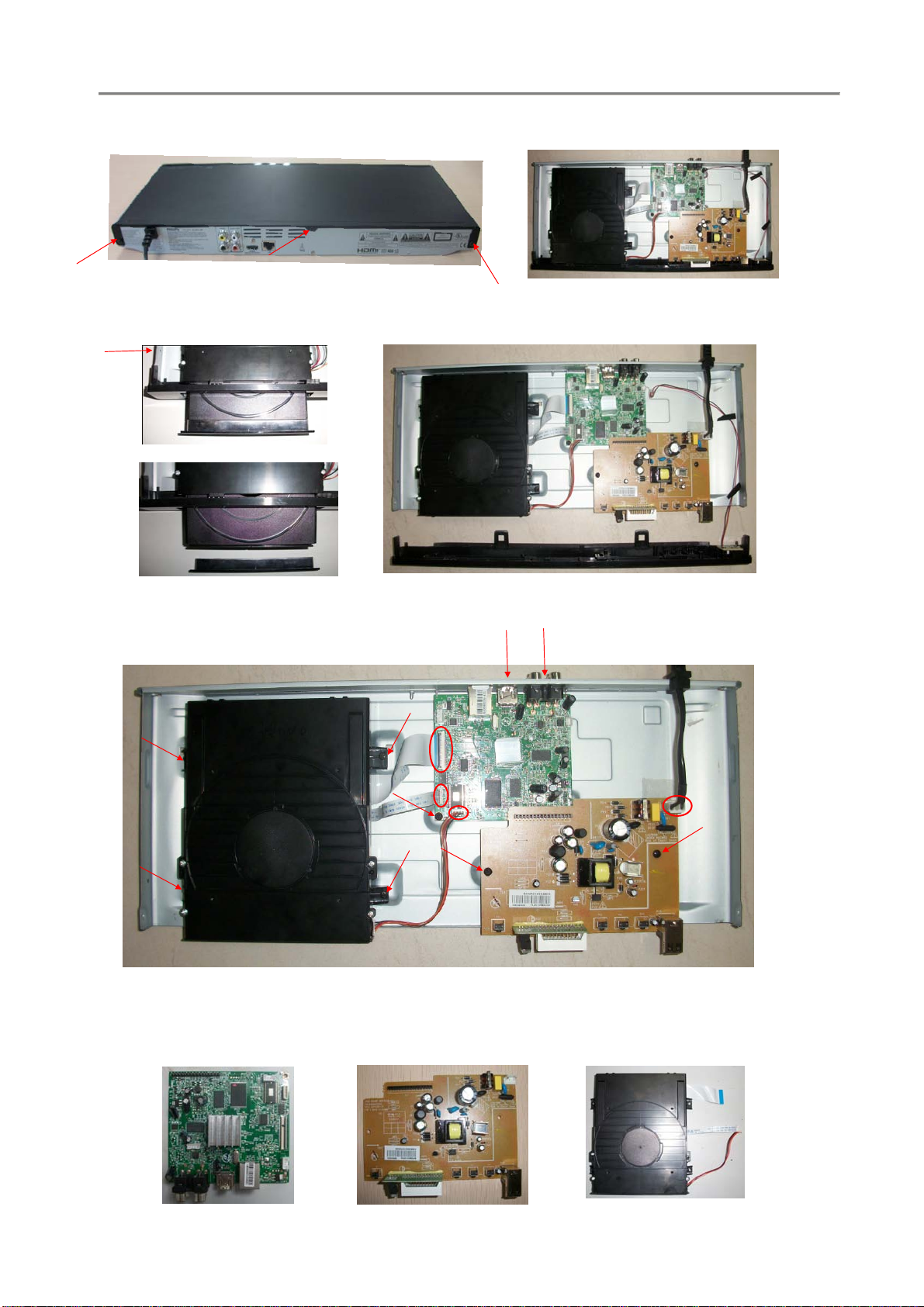

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

The following guidelines show how to dismantle the player.

Step1: Remove 3 screws around the Top Cover, and then remove the Top Cover

4-1

Step3: Remove the 9 screws on board to dismantle the DVD BOARD & PSU BOARD & DECK

Step2: Dismantling Front Panel,the CD door should be removed first, then gently pull the Panel out from the set.

PS: insert reset hole once the disc tray jammed

use an acuate press the reset hole to release the disc tray; remove the door from the tray;

No display , and buttons do not work

Yes

No display on LED DISPLAY, and

buttons do not work

Check every supply

voltage on main board is

normal Refer to Power supply board part

Correct connection

Replace PU4 or LED DISPLAY

Yes

Check +5V,+12V,

voltage on the power

board

DATA,CLK,STB,on the power board

1.Check whether bad solder exists

on PU4 and pins of LED DISPLAY

2.Check whether the circuit

connected to PK1, PK2 is broken.

Fix the

power board

Trouble shooting chart

5-1

Check the signals of the PU4's Check the PU4 power supply

(PU4.7= +5V and PU4.21= +5V)

Remote control does not work

Yes

Remote control

does not work

Replace the battery for remote

controller

Check whether the remote

controller’s battery is

exhausted or not.

Check the Power supply board part

Replace IR1

Trouble shooting chart

5-2

Check the IR1 power supply is OK

Check whether bad solder exits on IR1'pins Yes Fix the connection

Yes

Can’t read disc or can’t open the disk door

Yes

Check the connection of the 16PIN cable

from PJ1 on the Power Board.

Can’t read disc or can’t

open the disk door

Check 40pin and 8pin cable

from main board connection to

the loader is normal

Check the U409 and the peripheral

components near them on the main board

Check whether the

DVD loader running is

normal

Fix the connection

Yes

Trouble shooting chart

5-3
