Perle S-1110-XT Manuel utilisateur

P/N 5500321-10

Perle10/100/1000 Ethernet

Extended Temperature

Media Converters

Installation Guide

S-1110-XT

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Overview

This document contains instructions necessary for the installation

and operation of the Perle Standalone Extended Temperature

10/100/1000 rate converting Media Converters (S-1110-XT).

These products have the ability to convert 10/100/1000Base-T

cable connections (copper) to 100/1000Base-X connections

(fiber). The fiber connection can be either single mode (SM) or

multimode (MM) and can operate over different wavelengths and

distances, depending on the model selected (see table below).

Extended Temperature Models

Model Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110-M2xx05-XT

SC/ST MM

550 m/1804

850 nm

S-1110-S2xx10-XT

SC/ST SM

10 km/6.2 mi. 1310 nm

S-1110-S1SC10U-XT

SC SM

10 km/6.2 mi. 1310/1490 nm

S-1110-S1SC10D-XT

SC SM

10 km/6.2 mi. 1490/1310 nm

S-1110P-SFP-XT SFP Note 1.

Note 1: Fiber characteristics will depend on the SFP fiber module

selected.

Please visit Perle’s website for the most up to date Installation

guides models and specifications.

http://www.perle.com/

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Installation

The default DIP switch settings (all switches in the UP position)

will work for most installations.

These are the steps required to configure the Perle S-1110-XT

Ethernet media converter:

1. Insert SFP Module (SFP Model only).

2. Set the Auto-MDIX jumper setting (optional).

3. Set the DIP switch settings (if required).

4. Set the Powering Option Jumpers (if required).

5. Install and connect the fiber cable(s).

6. Install and connect the copper cable(s).

7. Power up the media converter.

Auto-MDIX Jumper Settings

Note: The factory settings for Auto-MDIX will work for most

installations, but in the rare case that you need to modify the

settings, the procedure is below.

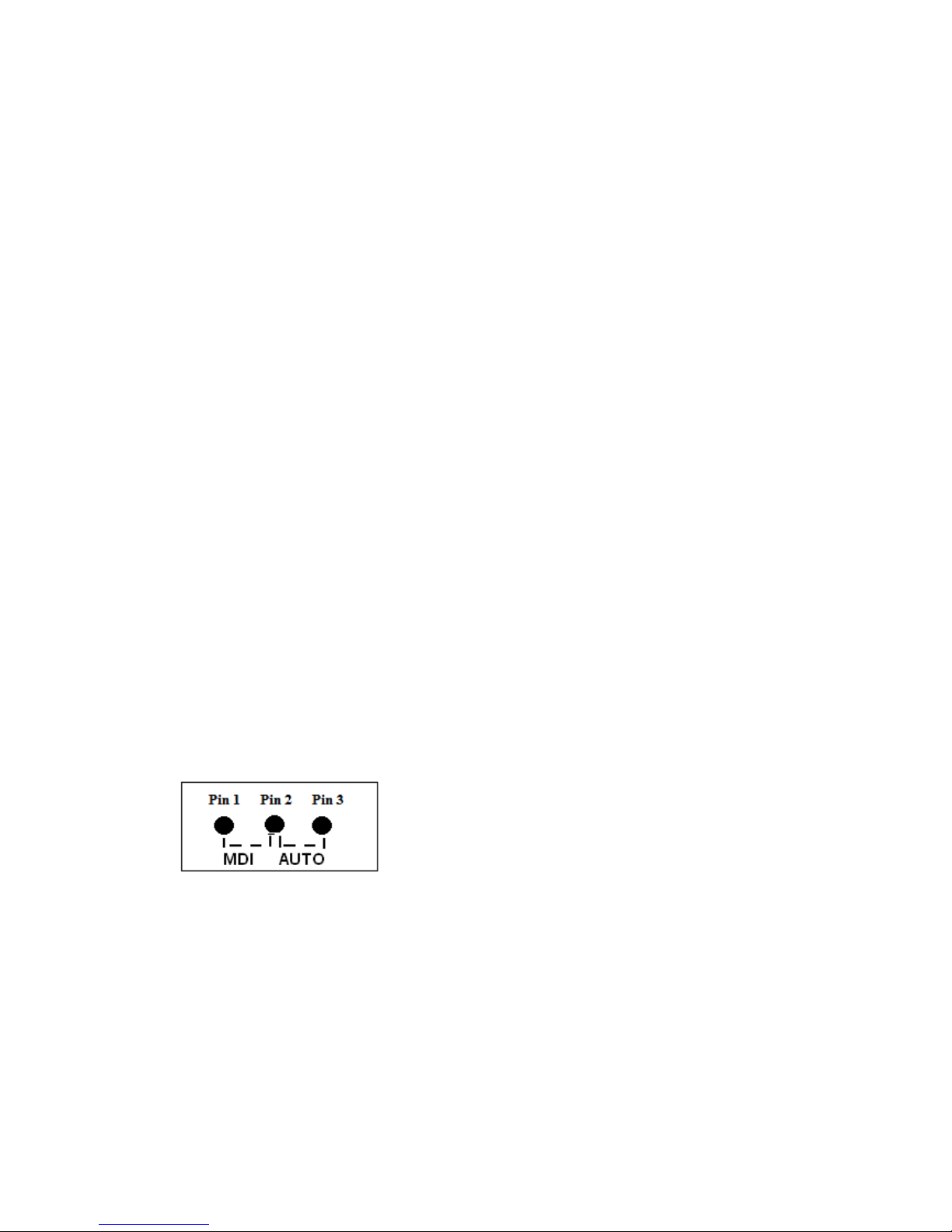

To access the Auto-MDIX jumper settings, unscrew the six side

screws on the case and remove the cover plate. Locate the MDIX

AUTO jumper set as detailed below. By covering or strapping pins

1 and 2, the S-1110-XT will operate as an MDIX device. By

covering or strapping pins 2 and 3, the S-1110XT will

automatically detect the Ethernet cable’s polarity. Removing the

strapping is the same as AUTO.

Note: The default jumper setting is AUTO

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

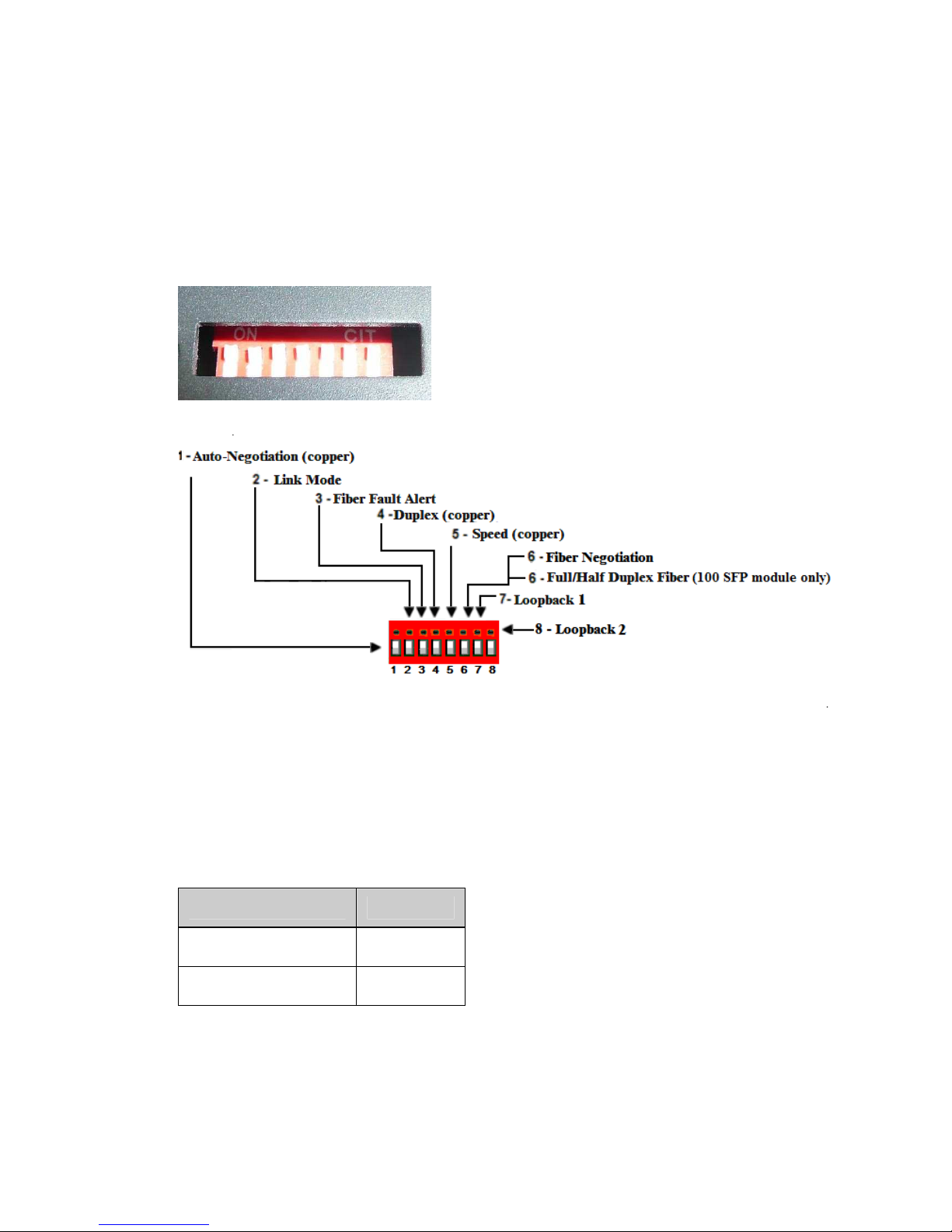

DIP Switches

The DIP switches are accessible through the opening in the side

of the enclosure.

Note: All switch changes take effect immediately.

DIP Switch Settings

Auto Negotiation copper (Switch 1)

Switch Position Copper

Up (default) Auto

Down Off

Note: Auto negotiation should only be turned off, if the copper link

partner does not support Auto Negotiation and fixed settings are

required by the copper link partner.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Auto: When enabled, the media converter will negotiate with its

link partner to determine the most optimal parameters for this

connection. The S-1110-XT will advertise capabilities of 10,100

and 1000 Mbps, full and half duplex as well as pause, and remote

fault capabilities to the link partner.

If the copper link partner does not support Auto negotiation, the

S-1110-XT will parallel detect to 10 or 100 Mbps and force Half

Duplex mode as per IEEE specifications.

Off: When the Auto Negotiation switch is set to the OFF position,

the media converter will not negotiate the Ethernet parameters

with the copper link partner. The parameters used by the media

converter will be determined by the Duplex (switch 4) and Speed

(switch 5) DIP switch settings.

Link Mode (Switch 2)

Switch Position Mode

Up (default) Standard Mode

Down Smart Link Pass-Through

Standard Mode: In this mode, link on the fiber and copper sides

can be brought up and down independently of each other. A loss

of link on either the fiber or copper port can occur without affecting

the other connection.

Smart Link Pass-Through In this mode, the link state on one

connection is directly reflected through the media converter to the

other connection. If link is lost on one of the connections, then the

other link will be brought down by the media converter.

If the installation has a media converter on both ends of the fiber

link and both are set-up for Smart Link Pass-Through, then a loss

of copper link on the far end device will propagate through both

media converters and will result in a loss of link at the near end

device.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Fiber Fault Alert (Switch 3)

Switch Position Fiber Port

Up (default) Enabled

Down Disabled

Enabled: If the media converter detects a loss of signal on the

fiber receiver, it will immediately disable its fiber transmitter signal

on the same port. This, in effect, notifies the fiber link partner that

an error condition exists on the fiber connection.

If the remote media converter is set up for Fiber Fault Alert (FFA)

and the local media converter is set up with Link Pass-Through, a

loss of fiber link will be passed through to the local copper

connection thus notifying the connected device.

If the media converter has been set to Smart Link Pass-Through

mode, the effect will be the same as FFA, since the link loss on

the fiber receiver will result in bringing down the copper link, which

will in turn cause the transmit fiber link to be brought down.

Note: This feature only takes effect if Fiber Negotiation has been

turned off.

Disabled: The media converter will not monitor for or generate

Fiber Fault Alert.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

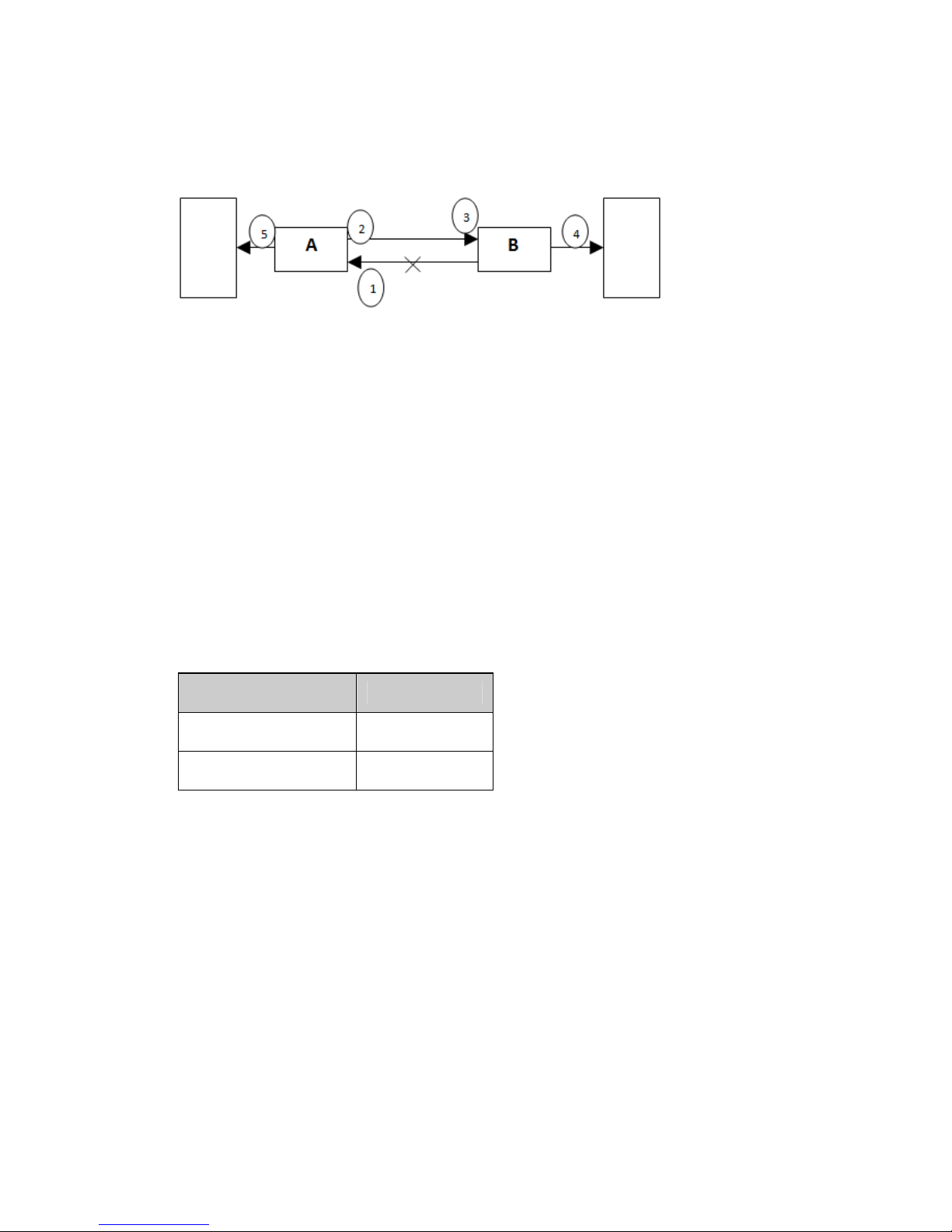

Illustration of the FFA

The following diagram is an illustration of the operation of this

feature.

(A) – Remote Media Converter setup for Fiber Fault Alert Enabled,

Fiber Negotiation – OFF and Link Mode – Standard.

(B) – Local Media Converter setup for Fiber Fault Alert Enabled,

Smart Link Pass-Through On and Fiber Negotiation - OFF

1 – (A) Loses fiber connection on its receiver.

2 – (A) Sends FFA.

3 – (B) Detects FFA signal and shuts down the fiber link.

4 – (B) Drops link on copper connection because Smart Link

Pass-Through is configured.

5 – (A) Link on copper connection is not affected because Smart

Link Mode is set to Standard.

Duplex copper (Switch 4)

Switch Position Copper port

Up (default) Full Duplex

Down Half Duplex

Note: When Auto Negotiation (SW1) is set to Off, the media

converter will use this Duplex setting for the copper port.

Full Duplex: In the Up switch position; the media converter will be

set to Full Duplex mode.

Half Duplex: The media converter will be set to Half Duplex

mode.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Speed copper (Switch 5)

Switch Position Copper port

Up (default) 100

Down 10

Note When Auto Negotiation (SW1) is set to Off, the media

converter will use this switch setting for the copper port speed.

100: When Switch 5 is in the Up position, the S-1110-XT will force

the speed to 100 Mbps.

10: When Switch 5 is in the Down position the media converter will

force the speed to 10 Mbps.

Auto Fiber Negotiation (Switch 6)

Switch

Position Fiber

1000 Mbps

Up (default) Auto

Down Off

Auto: The Media Converter will negotiate Ethernet parameters on

the fiber connection. This will ensure that the most optimal

connection parameters will be in effect. If connecting to another

Perle Media Converter, this parameter should be set to Auto. The

Media Converter Module will advertise 1000Mbps, Full and Half

Duplex, no Pause.

Off: The Media Converter Module’s fiber will be fixed to

1000Mbps, Full Duplex.

When using a 100 Mbps SFP module

Full/Half Duplex on Fiber (Switch 6)

Switch

Position Fiber

100 Mbps

Up (default) Full Duplex

Down Half Duplex

Full Duplex: The Media Converter Module will be set to Full

Duplex mode on its fiber link.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Half Duplex: The Media Converter Module will be set to Half

Duplex mode on its fiber link.

Loopback Fiber-1 (Switch 7)

Switch Position Mode

Up (default) Disabled

Down Enabled

Disabled: The loopback feature is disabled. This is default

position for normal operation. The switch must be set to this

position in order for data to pass through the media converter.

Enabled: This is a test mode. All data received on the receive

(RX) fiber connection is looped back to the transmit (TX) fiber

connection. The data link will be disabled; however power to the

powered devices will be maintained. This mode will override all

other switch settings.

Installing the SFP Fiber Module

SFP models only.

1. Locate the appropriate fiber module and insert the SFP into

the opening on the front of the media converter.

2. Ensure the SFP module is properly seated. The release latch

of the SPF fiber transceiver must be in the closed (up) position

before insertion.

3. The SFP module may be inserted before or after applying

power to the media converter.

4. Proceed with cable connections.

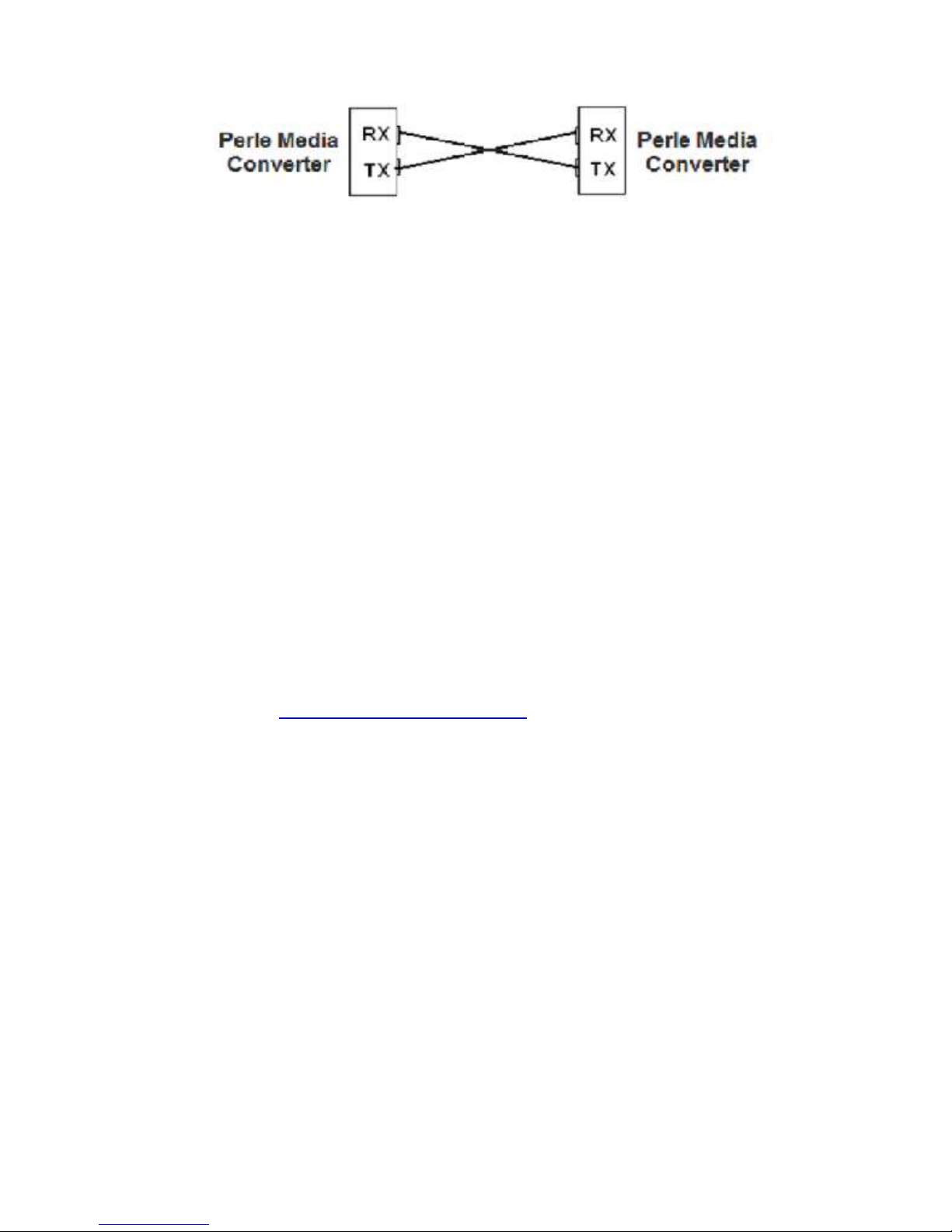

Installing the Duplex Fiber Cable

1. Locate a 1000Base-X compliant duplex (2 strands) fiber cable

with appropriate connectors.

2. Connect the fiber cables from one media converter to the

other media converter/switch/fiber device ensuring that the RX

and TX are reversed (crossed) at the opposite end.

Perle 10/100/1000 Ethernet Extended Temperature Media Converter

Installation uide

Installing the Simplex Fiber Cable

1. Locate a 1000Base-X compliant simplex (1 strand) fiber cable

with appropriate connectors. Ensure that the TX wavelength

matches the RX wavelength at the other end and the RX

wavelength matches the TX wavelength at the other end.

2. Connect the fiber cable from one media converter to the other

media converter/switch/fiber device.

Installing the Copper Cable

1. Locate 10/100/1000Base-T compliant copper cables with the

appropriate connectors.

2. Connect the RJ-45 cable between the Perle media converter

and the device.

Note: The Perle media converter supports Auto-MDIX which

allows connection of a straight-through or cross-over Ethernet

cable. See Auto-MDIX Jumper Settings in this guide for jumper

positions.

Grounding the Media Converter

If your installation requires additional grounding this procedure can

be followed.

Grounding the chassis requires the following items:

•One grounding lug (not provided).

•Grounding wire 12 to 18 AWG (not provided).

•Cross-head screwdriver (not provided).

Note: For your safety, when installing this equipment, always

ensure that the chassis ground connection is installed first and

disconnected last.

Table des matières

Autres manuels Perle Convertisseur de média

Perle

Perle S-1110HP Manuel utilisateur

Perle

Perle C-1000MM Series Manuel utilisateur

Perle

Perle SMI-10GT Manuel utilisateur

Perle

Perle C-1000MM-XXXXXX Manuel utilisateur

Perle

Perle S-10GRT-SFP Manuel utilisateur

Perle

Perle S-4GPT-DSFP Manuel utilisateur

Perle

Perle C-110-M2ST2 Manuel utilisateur

Perle

Perle S-1110P Manuel utilisateur

Perle

Perle S-10GT-SFP Manuel utilisateur

Perle

Perle S-1110HP-XT Manuel utilisateur

Perle

Perle S-1110-M2xx05 Manuel utilisateur

Perle

Perle SR-100 Series Manuel utilisateur

Perle

Perle S-100-XXXXX Manuel utilisateur

Perle

Perle C-10GRT-SFP Manuel utilisateur

Perle

Perle CM-10G-STS Manuel utilisateur

Perle

Perle S-110 series Manuel utilisateur

Perle

Perle SMI Media Converter Manuel utilisateur

Perle

Perle S-1110-XT 10 Manuel utilisateur

Perle

Perle MCR200 Manuel utilisateur

Perle

Perle C-1110-M2SC05 Manuel utilisateur

Perle

Perle SMI Media Converter Manuel utilisateur

Perle

Perle S-110-P Manuel utilisateur

Perle

Perle S-100MM-XXXXX Manuel utilisateur

Perle

Perle S-110-P Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
