Perle C-110-M2ST2 Manuel utilisateur

P/N 5500307-12

Perle 10/100 Ethernet

Media Converter

Module

Installation Guide

Unmanaged Managed

C-110-M2ST2 CM-110-M2ST2

C-110-M2SC2 CM-110-M2SC2

C-110-M2LC2 CM-110-M2LC2

C-110-S2SC20 CM-110-S2SC20

C-110-S2LC20 CM-110-S2LC20

C-110-S2SC40 CM-110-S2SC40

C-110-S2SC80 CM-110-S2SC80

C-110-S2SC120 CM-110-S2SC120

C-110-S1SC20U CM-110-S1SC20U

C-110-S1SC20D CM-110-S1SC20D

C-110-S1SC40U CM-110-S1SC40U

C-110-S1SC40D CM-110-S1SC40D

Perle 10/100 Media Converter Module – Installation Guide

Overview

This document contains instructions necessary for the installation and

operation of the Perle 10/100 Ethernet Media Converter Module(s) (C-

110 and CM-110) that are used in conjunction with a Perle MCR Chassis.

The C-110 are unmanaged media converter modules, and the CM-110

are the managed versions. These products convert a 10/100Base-T

connection (copper) to a 100Base-X connection (fiber). The fiber

connection can be either single mode (SM) or multimode (MM) and can

operate over different wavelengths and distances, depending on the

model (see table below). For information on management options of the

CM-110 module, refer to the MCR-MGT Module User’s Guide.

Model Connector Mode - Distance Wavelength

C-110-M2ST2

CM-110-M2ST2 ST MM – 2 km/1.2 mi. 1310 nm

C-110-M2SC2

CM-110-M2SC2 SC MM – 2 km/1.2 mi. 1310 nm

C-110-M2LC2

CM-110-M2LC2 LC MM – 2 km/1.2 mi. 1310 nm

C-110-S2SC20

CM-110-S2SC20 SC SM – 20 km/12.4 mi. 1310 nm

C-110-S2LC20

CM-110-S2LC20 LC SM - 20 km/12.4 mi. 1310 nm

C-110-S2SC40

CM-110-S2SC40 SC SM - 40 km/24.9 mi. 1310 nm

C-110-S2SC80

CM-110-S2SC80 SC SM - 80 km/49.7 mi. 1550 nm

C-110-S2SC120

CM-110-S2SC120 SC SM - 120 km/74.6 mi. 1550 nm

C-110-S1SC20U

CM-110-S1SC20U SC SM - 20 km/12.4 mi. 1310/1550 nm

C-110-S1SC20D

CM-110-S1SC20D SC SM - 20 km/12.4 mi. 1550/1310 nm

C-110-S1SC40U

CM-110-S1SC40U SC SM - 40 km/24.9 mi. 1310/1550 nm

C-110-S1SC40D

CM-110-S1SC40D SC SM - 40 km/24.9 mi. 1550/1310 nm

Note 2: Please refer the Perle web site for the most up to date

Installation guides, models and specifications:

http://www.perle.com/

Perle 10/100 Media Converter Module – Installation Guide

Installation

The module comes equipped with a bank of DIP switches and

jumpers for setting configuration.

The default dip switch settings (all switches in the UP position) and

default jumper settings will work for most installations.

The following steps are used to configure the Perle 10/100 Ethernet

Media Converter Module:

1. Set the Auto-MDIX jumper (optional).

2. Set the Auto-Config jumper (CM-110 only) (optional)

3. Set the DIP switch settings (optional).

4. Insert the Media Converter Module into the Chassis.

5. Connect the fiber cable.

6. Connect the copper cable.

Auto-MDIX Jumper

Note: The factory settings for Auto-MDIX will work for most

installations, but if there is a need to modify the settings, follow the

procedure below.

The AUTO-MDIX jumper (J5) is located on the upper edge, at the

midpoint of the module (see diagram below for labelling).. By

covering or strapping pins 2 and 3(AUTO), the C-110 and CM-110

will automatically detect the Ethernet cable’s polarity and

configure itself as either an MDI or an MDIX device. By covering

or strapping pins 1 and 2(MDIX), the C-110 and CM-110 will

operate as an MDIX device Removing the strapping is the same

as AUTO.

NOTE: The default jumper setting is AUTO

Perle 10/100 Media Converter Module – Installation Guide

Auto-Config Jumper (CM-110 only)

The Auto-Config jumper (J6) is located just below the Auto-MDIX

jumper (see above). Refer to the diagram below for labelling. This

jumper only applies to CM-110 modules.

Strapping pins 1 and 2 of the jumper will set the module in SW

mode and strapping pins 2 and 3 will set it in Auto Config mode.

Auto: When set to Auto the module will, at power-up, check its

internal flash memory to see if configuration information has been

downloaded to it from a management module. If so it will use this

as its running configuration. If there is no configuration in flash it

will read the settings of the DIP switches and use those as its

running configuration.

SW: When set to SW (Switch), the module will, at power-up, read

the settings of the DIP Switches and use those as its running

configuration. It will ignore any configuration information in its

flash memory.

NOTE: The default jumper setting is Auto

Perle 10/100 Media Converter Module – Installation Guide

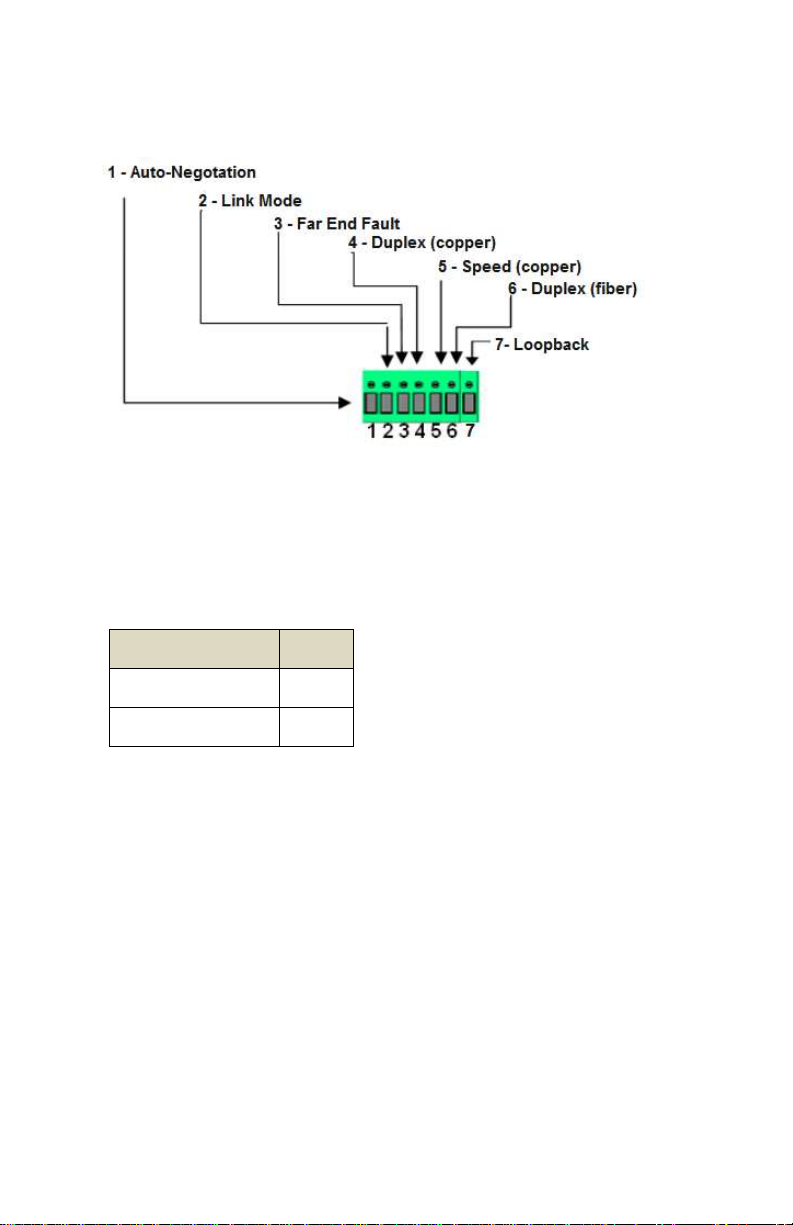

DIP Switches

DIP Switch Settings

Auto Negotiation (Switch 1)

Switch Position

Mode

Up (default) Auto

Down Off

Note: Auto negotiation should only be turned off, if the copper link

partner does not support Auto Negotiation or fixed settings are

required by the copper link partner.

Auto: In this mode of operation the Media Converter Module will

negotiate Ethernet parameters on the copper connection. This will

ensure that the most optimal connection parameters will be used.

If the copper link partner does not support Auto negotiation, the

Media Converter Module will parallel detect to 10 or 100 Mbps

and force Half Duplex mode as per IEEE specifications.

Off: When the Auto Negotiation switch is set to the OFF position,

the Media Converter Module will not negotiate the Ethernet

parameters with the copper link partner. The parameters used by

Perle 10/100 Media Converter Module – Installation Guide

the Media Converter Module will be determined by the Duplex

(switch 4) and Speed (switch 5) dip switch settings.

Link Mode (Switch 2)

Switch Position

Mode

Up (default) Link Pass-Through Mode

Down Standard Mode

Link Pass-Through: In this mode, the link state on one

connection is directly reflected through the Media Converter

Module to the other connection. If the link is lost on one of the

connections, then the other link will be brought down.

With Media Converters on both ends of the fiber link and both

setup for Link Pass-Through, a loss of copper link on the far end

device will propagate through both Converters and will result in a

loss of copper link at the near end device. This would, in effect,

resemble a direct copper connection

Standard Mode: In this mode, the links on the fiber and copper

sides can be brought up and down independently of each other. A

loss of link on either the fiber or copper port can occur without

affecting the other connection.

Far End Fault (Switch 3)

Switch Position

Mode

Up (default) Enabled

Down Disabled

Enabled: If the Media Converter Module detects a loss of receive

fiber signal, it will transmit a FEF signal to the remote Media

Converter. This, in effect, notifies the fiber link partner that an

error condition exists on the fiber connection.

Perle 10/100 Media Converter Module – Installation Guide

If the remote Media Converter is set up for Far End Fault (FEF)

and the local Media Converter is set up with Link Pass-Through, a

loss of fiber link on either the transmit or receive line will be

passed through to the local copper connection thus notifying the

connected device.

If the Media Converter has been set to Link Pass-Through mode,

the effect will be the same as FEF, since the link loss on the fiber

receiver will result in bringing down the copper link, which will in

turn cause the transmit fiber link to be brought down.

Note: If it is required to either generate or detect the FEF signal,

then the FEF switch needs to be set.

Disabled: The Media Converter Module will not monitor for or

generate Far End Fault.

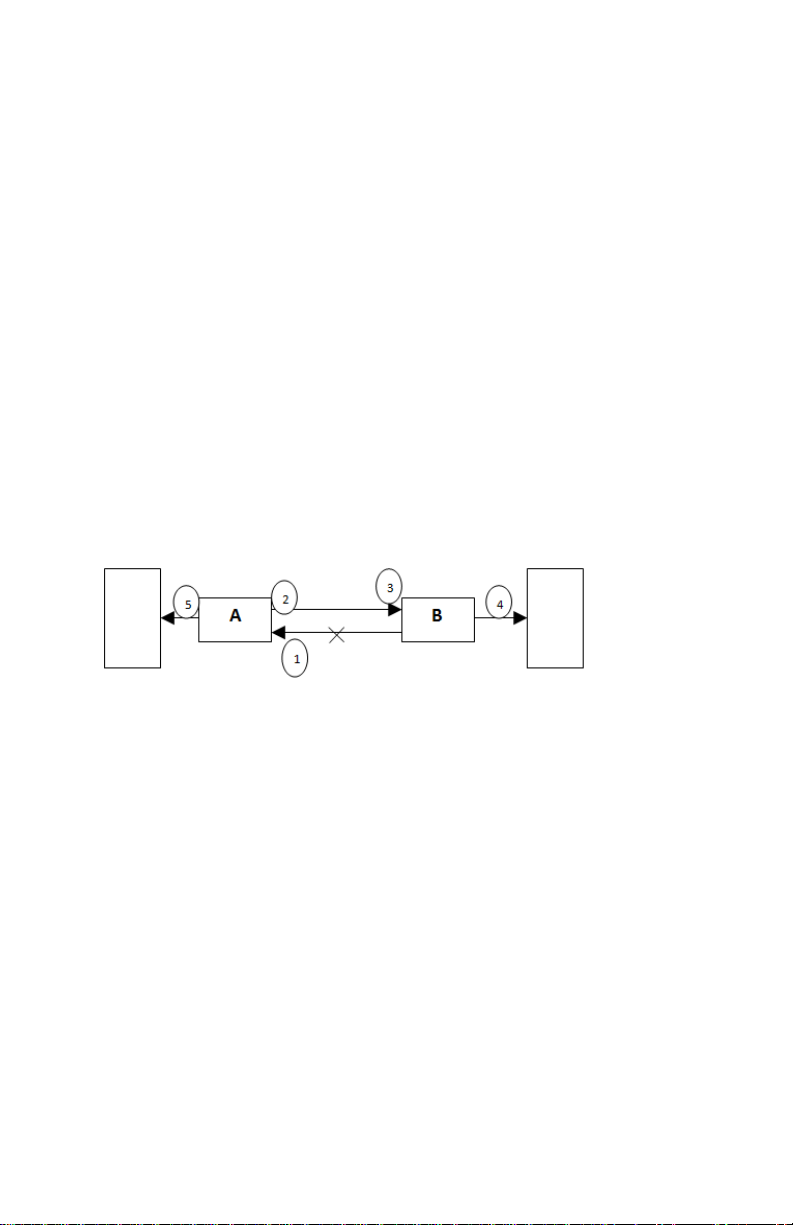

The following diagram is an illustration of the operation of this feature.

(A) – Remote Media Converter setup for Far End Fault Enabled,

Auto Negotiation – OFF and Link Mode – Standard.

(B) – Local Media Converter setup for Far End Fault - Enabled,

Link Pass-Through - On and Auto Negotiation - OFF

1 – (A) Loses fiber connection on its receiver.

2 – (A) Sends FEF.

3 – (B) Detects FEF signal and shuts down the fiber link.

4 – (B) Drops link on copper connection because Link Pass-

Through is configured.

5 – (A) Link on copper connection is not affected because Link

Mode is set to Standard.

Perle 10/100 Media Converter Module – Installation Guide

Duplex (copper) (Switch 4)

Switch Position

Mode

Up (default) Full

Down Half

Note: When Auto Negotiation (SW1) is set to Off, the Media

Converter will use this Duplex setting for its copper connection.

Up: The Media Converter Module will be set to Full Duplex mode.

Down: The Media Converter Module will be set to Half Duplex

mode.

Speed (copper) (Switch 5)

Switch Position

Mode

Up (default) 100

Down 10

Note: When Auto Negotiation (SW1) is set to Off, the Media

Converter Module will use this Speed setting for its Ethernet

copper connection.

Up: The Media Converter will be fixed at 100 Mbps.

Down: The Media Converter will be fixed at 10 Mbps.

Perle 10/100 Media Converter Module – Installation Guide

Duplex (fiber) (Switch 6)

Switch Position

Mode

Up (default) Full

Down Half

Up: The Media Converter Module’s fiber link will be set to Full

Duplex Mode.

Down: The Media Converter Module’s fiber will be set to Half

Duplex Mode.

Loopback (Switch 7

Switch Position

Mode

Up (default) Disabled

Down Enabled

Disabled: This is the setting for normal operation. The switch

must be set to this position in order for data to pass through the

Media Converter Module.

Enabled: This is a test mode. All data received on the receive

(RX) fiber connection is looped back to the transmit (TX) fiber

connection. The state of the copper link is not relevant since no

data is passed through to the copper side. This mode will override

all other switch settings.

Perle 10/100 Media Converter Module – Installation Guide

Installing or Replacing Media Converter

Modules

Caution: Observe electrostatic discharge precautions

when installing the Media Converter Module(s) into the

Chassis. Failure to observe this caution could result in

damage to the Media Converter Module(s) and /or chassis.

The Perle Media Converter Modules can be installed in any

available slot and in any order within the Chassis.

Installing or Replacing a Media Converter Module

1. Remove the Media Converter Module from its packaging.

2. Using a cross-head screwdriver, remove the screw holding

the face plate to the Chassis to reveal the slot opening.

3. Set the jumpers and DIP switches on the Media Converter

Module to the desired operating mode.

4. Locate the top and bottom alignment guides inside the

Chassis.

5. Using the module alignment guides gently slide the module

into the slot until it becomes flush with the front of the

Chassis. Light pressure may be needed to seat the module.

Do not force the module as you might cause some damage.

If there is resistance, remove the module, check the module

connector for damaged or incorrectly aligned pins, if there is

no damage, retry module insertion.

6. Tighten the captive retainer screw to ensure the Media

Converter Module is locked in place.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Perle Convertisseur de média

Perle

Perle SMI Media Converter Manuel utilisateur

Perle

Perle S-1110-XT 10 Manuel utilisateur

Perle

Perle C-10GT-SFP Manuel utilisateur

Perle

Perle C-100-XXXXX Manuel utilisateur

Perle

Perle S-1110P Manuel utilisateur

Perle

Perle SMI Media Converter Manuel utilisateur

Perle

Perle S-100-XXXXX Manuel utilisateur

Perle

Perle S-1110-M2 05 Series Manuel utilisateur

Perle

Perle C-10G-STS Manuel utilisateur

Perle

Perle S-10GRT-SFP Manuel utilisateur

Perle

Perle S-10G-XTXH Manuel utilisateur

Perle

Perle C-1110-M2SC05 Manuel utilisateur

Perle

Perle C-1000MM Series Manuel utilisateur

Perle

Perle C-1110 Series Manuel utilisateur

Perle

Perle C-1000-XXXXX Manuel utilisateur

Perle

Perle S-4GPT-DSFP Manuel utilisateur

Perle

Perle S-1000MM-XXXXXX Manuel utilisateur

Perle

Perle C-110-XXXXX Manuel utilisateur

Perle

Perle S-1110-M2xx05 Manuel utilisateur

Perle

Perle CM-10G-STS Manuel utilisateur

Perle

Perle MCR200 Manuel utilisateur

Perle

Perle S-1110P Manuel utilisateur

Perle

Perle S-1000-SFP Manuel utilisateur

Perle

Perle S-100MM-XXXXX Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
