Percussion Play Duo Manuel utilisateur

Ground Fixed

Duo

Page 1 of 4

KS2 - 400mm

Ground Surface

KS1,2

KS1 - 550mm

KS1 –700mm

KS2 –850mm

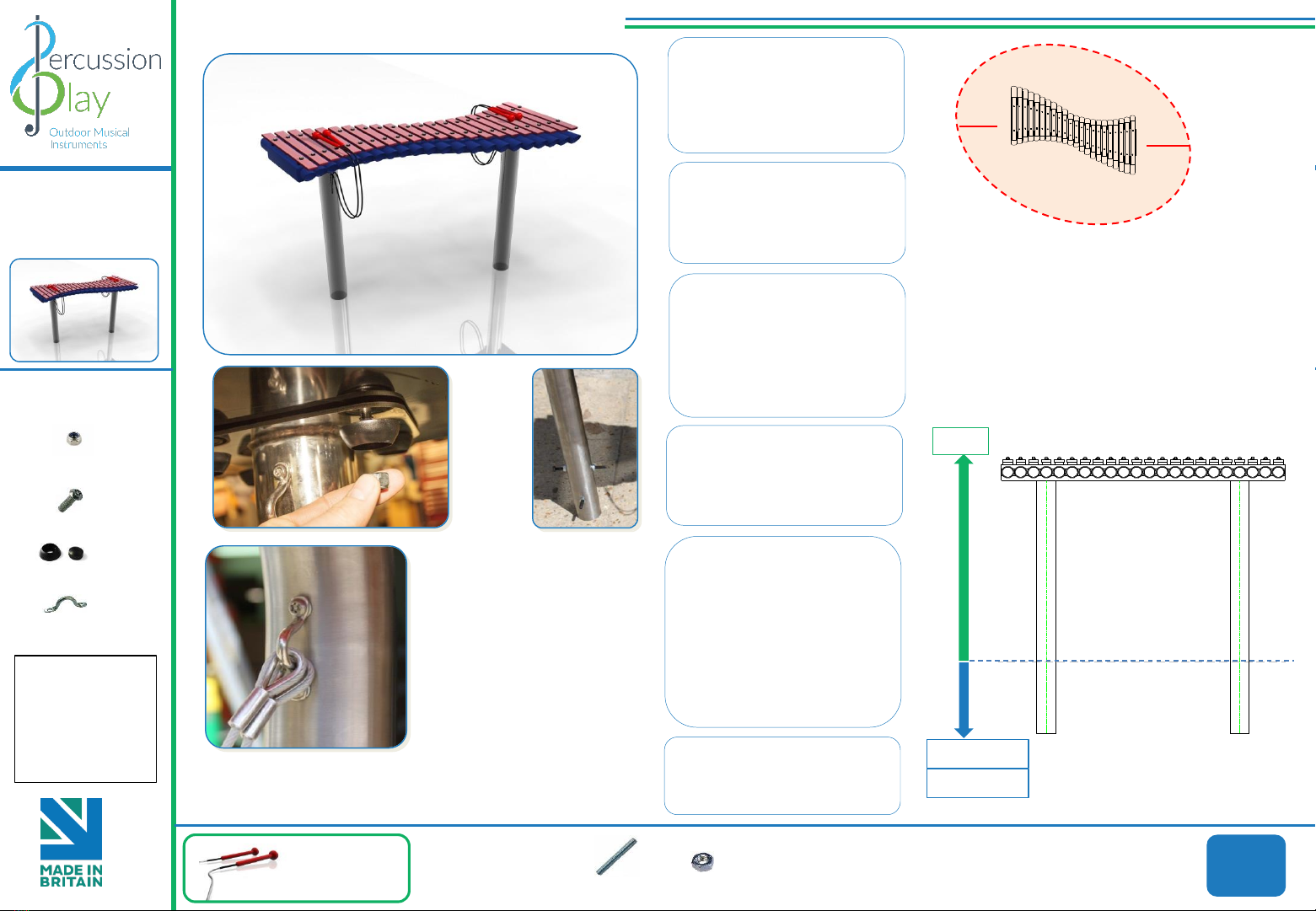

Installation Instructions

(1.1) (1.2)

(1.3)

Instrument

Components:

M8 Nyloc Nut

M6x20 Security Screw

M6 Saddle Strap

2 Part Cover Cap

M10x200 Bolt

M10 Nut

6. Attach the 1 pair of beater

to the saddle strap on the leg.

(1.3)

Ground Fix

Components: 28 Kg

2. Attach Ground Fixing posts

to legs(1.2) (See Ground Fix

Post Installation Sheet)

1. Attach the steel legs to the

base of the instrument with

the M8 Nyloc Nuts and 2 part

security caps. (1.1) (See

Assembly Guide)

5. Once happy with location

of the Instrument, fill holes

using rapid hardening

concrete. Be sure to compact

concrete around legs and

leave to dry according to

manufactures guidelines.

3.Excavate 2 holes for the

Steel legs 250mm diameter

by 400-550mm deep

depending on Key stage, in

desired location upon

decision from customer.

4. Locate (lower) legs into

holes making sure they are

vertical and level prior to

concreting in place.

Install Instrument

with 1.5m free space

(from widest point)

around it.

1.5m

Pair Small Red

Beaters X2

Weight of heaviest part 14kg (Duo)

BS EN 1176

Metric Conversion:

250mm/ 10”

400mm/ 15 3/4”

550mm/ 21 21/32”

700mm/ 27 9/16”

850mm/ 33 15/32”

1.5m/ 59”

Spares available from

percussionplay.com or from your

local distributor

Ground Fixed

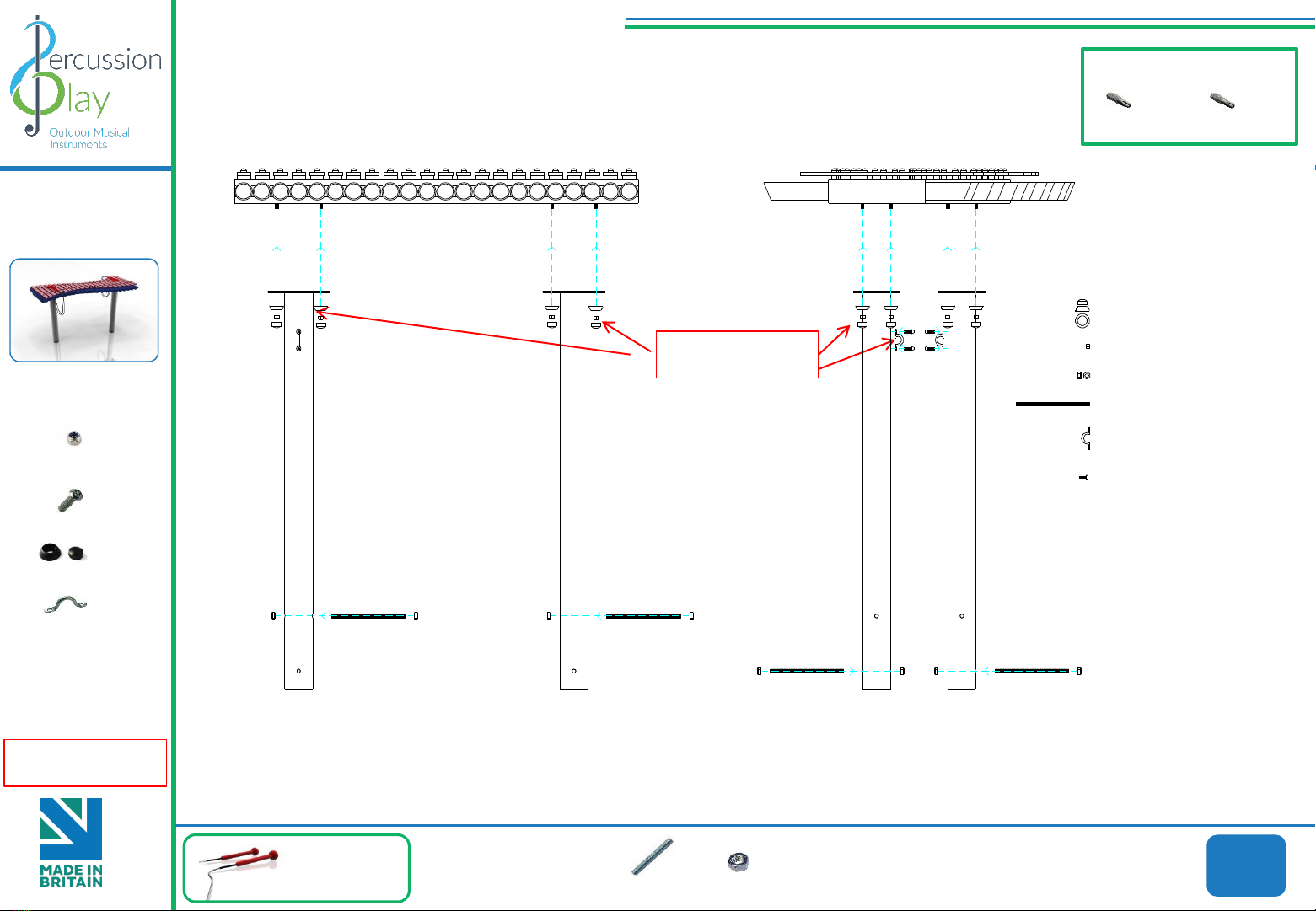

Assembly Guide PPDUO

(1.1)

M10x200 Bolt

M10 Nut

Ground Fix

Components: 28 Kg

Pair Small Red

Beaters X2

Duo

Page 2 of 4

BS EN 1176

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

2 Part Cover Cap X8

M10 Nut X8

M10x200 Threaded Bar X4

COMPONENTS LIST:

Saddle Strap X2

M6x20 Pin torx X4

PPDUO FRONT PPDUO SIDE

M8 Nyloc nut X8

Instrument

Components:

M8 Nyloc Nut

M6x20 Security Screw

M6 Saddle Strap

2 Part Cover

Cap

TX 30 Driver Bit

TX 40 Driver Bit

Tools:

Spares available from

percussionplay.com or from your

local distributor

Ground Fixed

Components:

Ground Fix Post Installation

(1.1)

M10x200 Bolt

M10 Nut

Duo

Page 3 of 4

BS EN 1176

Foundations should not present a hazard. These foundations are recommended as a

guide, for more information on foundation details for various surface see Part 7 of BS EN

1176.

Metric Conversion:

193mm/ 7 19/32”

231mm/ 9 3/32”

581mm/ 22 7/8”

612mm/24 3/32”

750mm/ 29 17/32”

785mm/ 30 29/32”

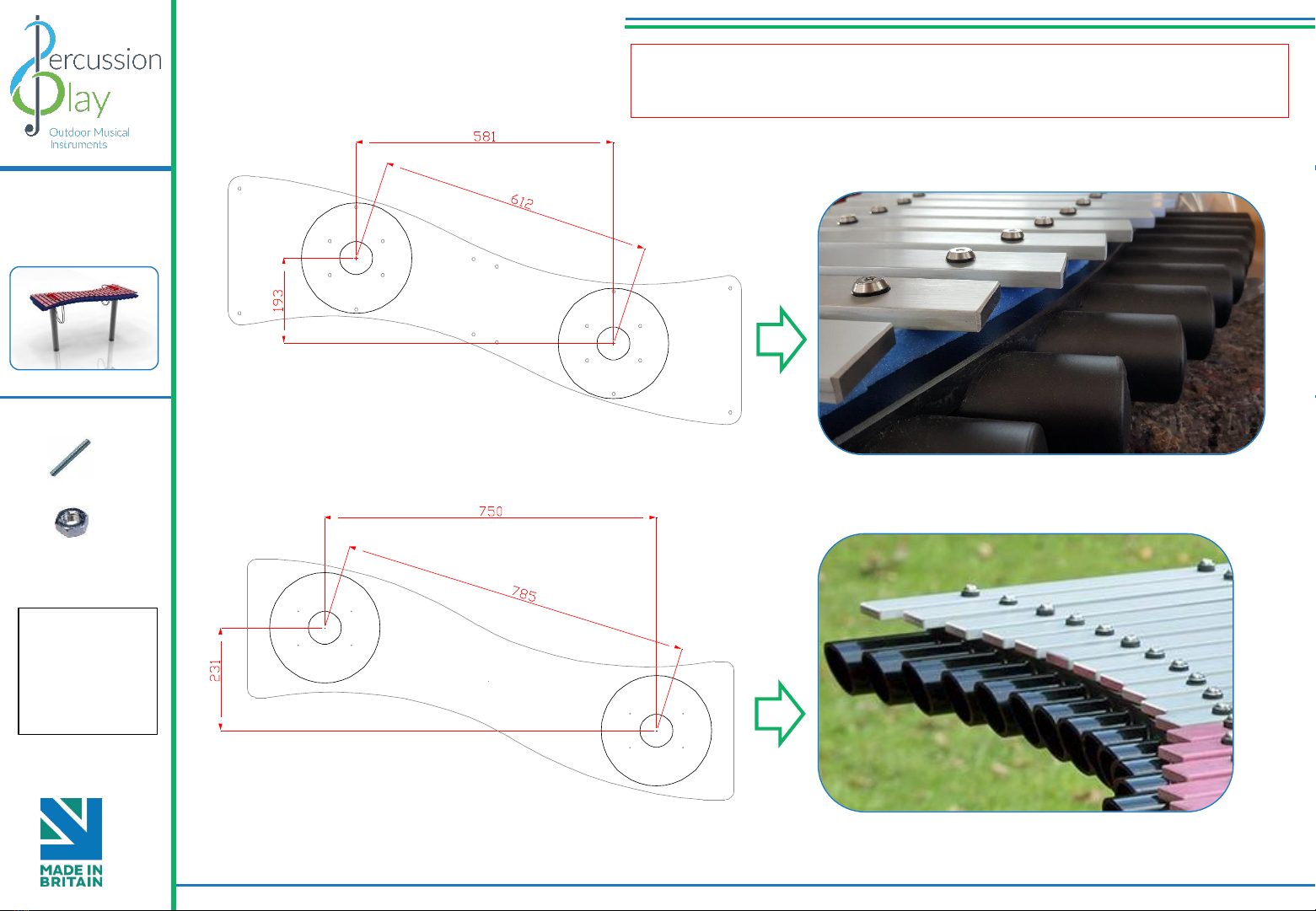

DUO SD Hole Centres

DUO HD Hole Centres

ABS Painted Body

Black HDPE and Aluminium Body

Ground Fixed

Components:

Ground Fix Post Installation

(1.1)

M10x200 Bolt

M10 Nut

Duplicate points 1-5. Duo requires 2

Ground Fix Posts

400mm min depth

Duo

Page 4 of 4

BS EN 1176

Foundations should not present a hazard. These foundations are recommended as a

guide, for more information on foundation details for various surface see Part 7 of BS EN

1176.

Metric

Conversion:

50mm/ 2”

250mm/ 10”

350mm/ 14”

400mm/ 16”

450mm/ 18”

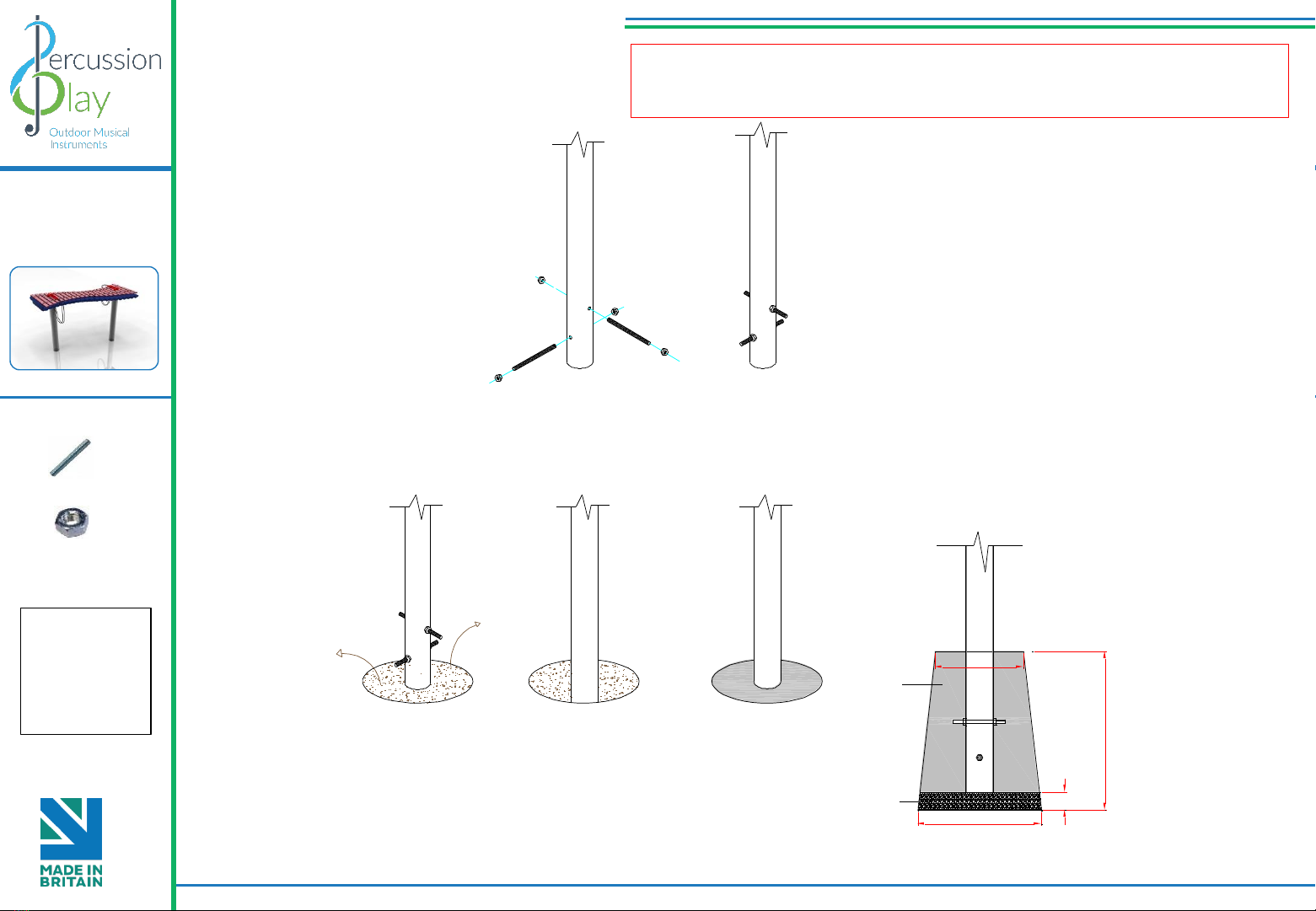

Insert M10x 200 Threaded

bar into pre drilled holes

in Ground Fixing Post

Fix M10x 200 Threaded bar

in place using M10 Nuts

Excavate 2 holes with a

250mm diameter tapering

down to 350mm diameter

and 450mm depth

Compact base of hole with

50mm of aggregate.

Lower ground Fix post

attached to instrument

into hole (check

instrument straight and

level before filling with

concrete)

Fix hole with fast drying

concrete to manufacturers

specifications.

450

350

250

Aggregate

Concrete
