Inclination sensor INX360D-F99-I2E2-V15

Release date: 2011-08-17 14:11 Date of edition: 2011-08-17 201503_eng.xml

Model number

INX360D-F99-I2E2-V15

Features

• Measuring range 0 ... 360°

• Analog output 4 mA ... 20 mA

• Evaluation limits can be taught-in

• 2 programmable switch outputs

• High shock resistance

• e1-Type approval

• Increased noise immunity 100 V/m

EMC Properties

Emitted interference and interference immunity in accordance with motor vehicle directive 2006/28/EG (e1 Type approval)

Interference immunity in accordance with

DIN ISO 11452-2: 100 V/m

Frequency band 20 MHz up to 2 GHz

Mains-borne interference in accordance with ISO 7637-2:

Technical Data

General specifications

Type Inclination sensor, 1-axis

Measurement range 0 ... 360 °

Absolute accuracy ≤± 0.5 °

Response delay ≤20 ms

Resolution ≤0.1 °

Repeat accuracy ≤± 0.1 °

Temperature influence ≤0.027 °/K

Functional safety related parameters

MTTFd300 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Operating display LED, green

TEACH-IN indication 2 LEDs yellow (switching status), flashing

Button 2 push-buttons ( Switch points programming , Evaluation

range programming )

Switching state 2 yellow LEDs: Switching status (each output)

Electrical specifications

Operating voltage UB10 ... 30 V DC

No-load supply current I0≤25 mA

Time delay before availability tv≤200 ms

Switching output

Output type 2 switch outputs PNP, NO , reverse polarity protected ,

short-circuit protected

Operating current IL≤100 mA

Voltage drop ≤3 V

Analog output

Output type 1 current output 4 ... 20 mA

Load resistor 0 ... 200 Ωat UB= 10 ... 18 V

0 ... 500 Ωat UB= 18 ... 30 V

Ambient conditions

Ambient temperature -40 ... 85 °C (-40 ... 185 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection type M12 x 1 connector, 5-pin

Housing material PA

Protection degree IP68 / IP69K

Mass 240 g

Compliance with standards and

directives

Standard conformity

Shock and impact resistance 100 gaccording to DIN EN 60068-2-27

Standards EN 60947-5-2:2007

IEC 60947-5-2:2007

Approvals and certificates

CSA approval cCSAus Listed, General Purpose, Class 2 Power Source

CCC approval Products with a maximum operating voltage of ≤36 V do

not bear a CCC marking because they do not require

approval.

e1 Type approval 2006/28/EG

Pulse 1 2a 2b 3a 3b 4

Severity level III III III III III III

Failure criterion C A C A A C

EN 61000-4-2: CD: 8 kV / AD: 15 kV

Severity level IV IV

EN 61000-4-3: 30 V/m (80...2500 MHz)

Severity level IV

EN 61000-4-4: 2 kV

Severity level III

EN 61000-4-6: 10 V (0.01...80 MHz)

Severity level III

EN 55011: Klasse A

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

Inclination sensor INX360D-F99-I2E2-V15

Release date: 2011-08-17 14:11 Date of edition: 2011-08-17 201503_eng.xml

Sensor Orientation

In the default setting the zero position of the sensor is reached, when the electrical connection faces straight upwards.

- On request, all required mounting positions can be preset at the factory.

For example: X = 0 if the electrical connection points straight downwards.

X Orientation

Mounting of the sensor

Inclination sensors from the -F99 series consist of a sensor module and accompanying cast aluminum housing. Select a flat surface

with minimum dimensions of 70 mm x 50 mm to mount the sensor.

Mount the sensor as follows:

1. Loosen the central screw under the sensor connection.

2. Slide back the clamping element until you are able to remove the sensor module from the housing.

3. Remove the sensor module from the housing

4. Position the housing at the required mounting location and secure using four countersunk screws. Make sure that the heads

of the screws do not protrude.

5. Place the sensor module in the housing.

6. Slide the clamping element flush into the housing. Check that the sensor element is seated correctly.

7. Finally tighten the central screw.

The inclination sensor is now mounted correctly.

LED display

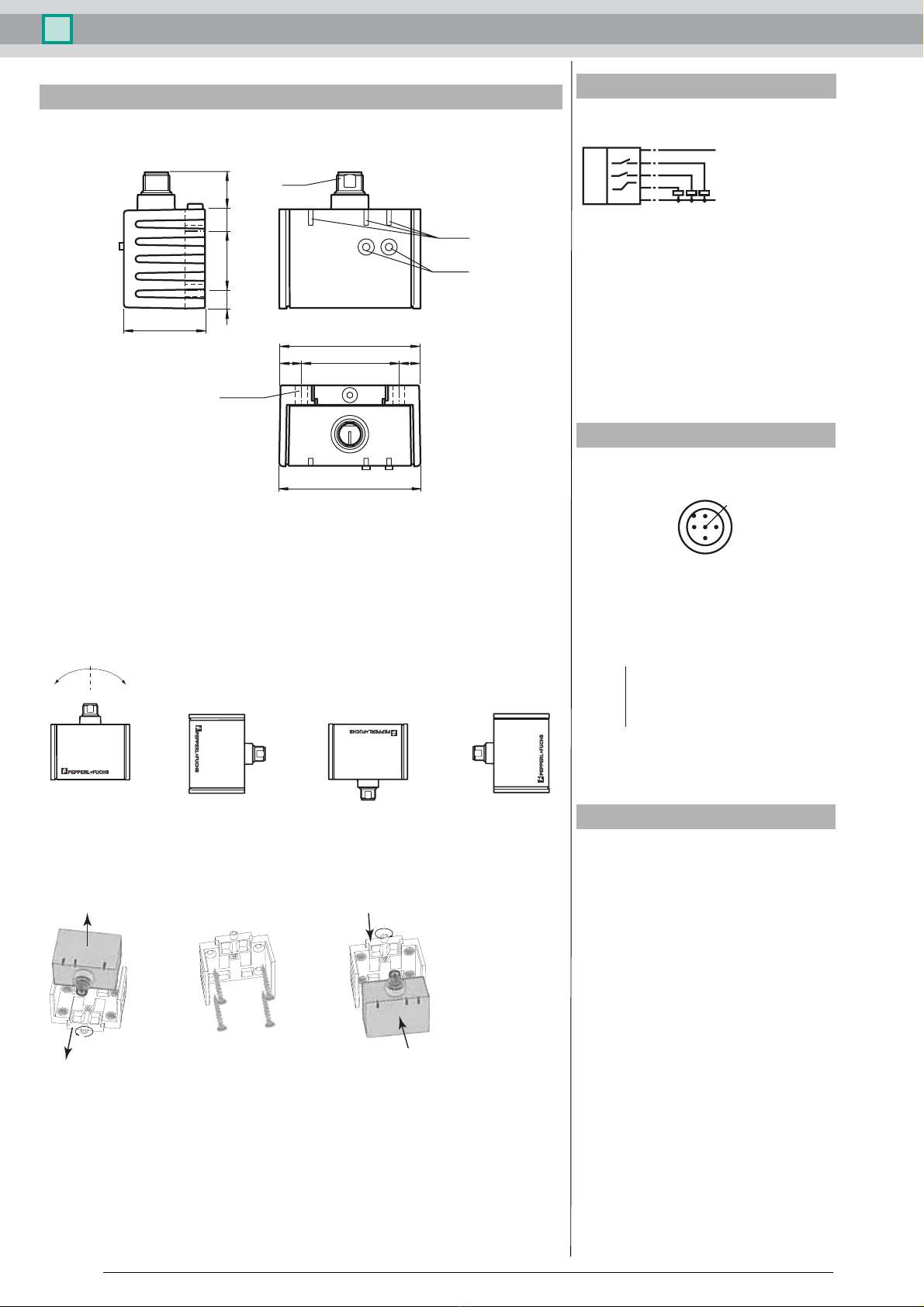

Dimensions

Button

104510

4 x ø 5.5

M12

730 718.5

LEDs

X = 0° X = 90° X = ±180° X = 270° (-90°)

Electrical connection

Pinout

Accessories

V15-G-2M-PUR

Cable socket, M12, 5-pin, PUR cable

V15-W-2M-PUR

Cable socket, M12, 5-pin, PUR cable

Standard symbol/Connection:

Out 2

Out 1

Analogue output

-U

1 BN

2 WH

3 BU

4 BK

5 GY

Wire colors in accordance with EN 60947-5-2

(brown)

(white)

(blue)

(black)

(gray)

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com

Inclination sensor INX360D-F99-I2E2-V15

Release date: 2011-08-17 14:11 Date of edition: 2011-08-17 201503_eng.xml

Axis definition

The definition of the X-axis is shown on the sensor housing by means of an imprinted and labeled double arrow. The figure shows the clockwise direction of

rotation.

Teach-in of switching points (output S1)

1. Press key T1 > 2 s (see LED display)

2. Move sensor to switching position 1

3. Press key T1 briefly. LED "out 1" lights for 1.5 s as confirmation. Switching point 1 has been taught

4. Move sensor to switching position 2

5. Press key T1 briefly. LED "out 1" lights for 1.5 s as confirmation. Switching point 2 has been taught

6. Sensor returns to normal operation (see LED display)

If the switching points are taught in clockwise direction, the switching output between these switching points works as a NO contact. If the switching

points are taught in anticlockwise direction, the switching output between these switching points works as a NC contact.

Teach-in of switching points (output S2)

Similar to the process for "Teach-in of switching points (output S1)“, but with key T2 instead of key T1.

Teach-in of analog limits

1. Activate the teach-in mode for the analog limits by simultaneously pressing keys T1 and T2 until the green LED is extinguished and the two yellow LEDs flash. Then release the keys.

2. Press key T1 > for 2 s (see LED display)

3. Move the sensor into the position of minimum evaluation limit

4. Press key T1 briefly. LED "out 1" lights for 1.5 s as confirmation. The minimum evaluation limit has been taught. In this position the analog output will provide its minimum output value.

5. Move the sensor into the position of maximum evaluation limit

6. Press key T1 briefly. LED "out 1" lights for 1.5 s as confirmation. The maximum evaluation limit has been taught. In this position the analog output will provide its maximum output value.

7. Sensor returns to normal operation (see LED display)

If the sensor inclination exceeds one of the analog limits, the last value of the analog output is retained.

Resetting the sensor to factory settings

1. Press keys T1 and T2 > 10 s (see LED display)

2. The sensor has been reset when the green LED "Power" lights again after approx. 10 s.

Undervoltage detection

If the supply voltage falls below a value of approx. 7 V, all outputs and yellow LEDs are deactivated. The green "power" LED flashes rapidly. If the supply voltage falls below a value of approx. 8 V, the

sensor continues with normal operation.

Displays dependent on the operating state LED green:

Power

LED yellow

out 1

LED yellow

out 2

Teach-in of switching points (output S1):

Teach-in of switching points (output S2):

off

flashes

off

flashes

Activate teach-in mode for analog limits:

Teach-in of analog limits

off

flashes

off

Normal operation on switchingstate switchingstate

Reset to factory settings:

2 s ... 10 s

> 10 s ... end of reset process

Followed by normal operation

off

flashes

off

flashes

off

Undervoltage flashes off off
