WCS-PG310

1 Introduction................................................................................. 4

1.1 Content of this Document ................................................................... 4

1.2 Target Group, Personnel...................................................................... 4

1.3 Symbols Used ...................................................................................... 4

2 Product Description ................................................................... 6

2.1 Use and Application............................................................................. 6

2.2 Dimensions........................................................................................... 6

2.3 Design of the Device............................................................................ 7

3 Installation................................................................................. 10

3.1 Mounting ............................................................................................. 10

3.2 Electrical Connection ........................................................................ 11

3.3 Dismounting ....................................................................................... 14

4 Commissioning......................................................................... 15

4.1 Introduction ........................................................................................ 15

4.2 Connecting the WCS Reader ............................................................ 16

4.3 Connecting the WCS-PG310 to the Network................................... 16

4.4 Integrating WCS-PG310 into the PROFIBUS System...................... 17

4.5 Data Format for Modules ................................................................... 23

5 Appendix ................................................................................... 25

5.1 Cable Routing in the RS-485 Bus ..................................................... 25

5.2 Data Cables and Accessories ........................................................... 28

2018-03

WCS-PG310

Introduction

1 Introduction

1.1 Content of this Document

This document contains information required to use the product in the relevant phases of the

product life cycle. This may include information on the following:

■

Product identification

■

Delivery, transport, and storage

■

Mounting and installation

■

Commissioning and operation

■

Maintenance and repair

■

Troubleshooting

■

Dismounting

■

Disposal

The documentation comprises the following parts:

■

This document

■

Datasheet

In addition, the documentation may comprise the following parts, if applicable:

■

U-type examination certificate

■

U declaration of conformity

■

Attestation of conformity

■

Certificates

■

Control drawings

■

Instruction manual

■

Other documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and

dismounting lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation,

commissioning, operation, maintenance, and dismounting of the product. The personnel must

have read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note!

Visit www.pepperl-fuchs.com to access further documentation for full information about the

product.

WCS-PG310

Introduction

2018-03

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. It is mandatory

that you observe these warning messages for your personal safety and in order to avoid

property damage.

Depending on the risk level, the warning messages are displayed in descending order as

follows:

Informative Symbols

Action

This symbol indicates a paragraph with instructions. You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note!

This symbol brings important information to your attention.

2018-03

WCS-PG310

Product Description

2 Product Description

2.1 Use and Application

The WCS-PG310 acts as an interface between the WCS reader and the PROFIBUS DP input

card of the control panel. The data is transferred between the WCS reader(s) and the WCS-

PG310 via the RS-485 interface, and from the WCS-PG310 to the control panel via the

PROFIBUS DP protocol.

You can connect up to four WCS readers of type LS221 or LS121. If you connect several

readers, they must have different addresses. The WCS-PG310 interface module constantly

queries the position values of the readers and always has the current reader data. The update

cycle for a reader is approximately 1 ms.

2.2 Dimensions

The interface module housing has the following dimensions.

Figure 2.1 Dimensions

The WCS-PG310 interface module has the following configuration:

Baud rate: Max. 12 MBaud (automatic detection)

Diagnostic data: Max. 8 bytes

Sync: Supported

Freeze Supported

ID no.: 0x2079

117

100 23

WCS-PG310

Product Description

2018-03

2.3 Design of the Device

Device components

Figure 2.2 Interface module overview

1Slide switch for RS-485 terminator

2X1: RS-485 interface

3Mounting bracket

4X2: Connection for power supply

5PROFIBUS communication interface

6Slide switch for PROFIBUS DP terminator

7Front panel with rotary coding switches and indicator lights

2018-03

WCS-PG310

Product Description

Front panel

Figure 2.3 Front panel overview

Power:

The "Power" L D is green: The WCS-PG310 interface module is correctly connected to the

power supply.

State:

The "State" L D is green: Data is being exchanged with the WCS readers. The four

" rrorNo/Select ID" L Ds are used to display the number of the currently polled reader.

The "State" L D is red: The interface module has detected an error or a warning. The interface

module uses the " rrorNo/Select ID" L Ds to display the binary coded error number or warning

number, and sends the number to the PROFIBUS master via the external diagnostic byte.

rrorNo/Select ID Reader address

8 4 2 1

00010

00101

01002

10003

Table 2.1 Display via the four " rrorNo/Select ID" L Ds when the "State" L D lights up green

rror (no. 1...5): Switch the interface module off and back on. If the error occurs

again, the module must be replaced.

Warning (no. 6...15): The warning provides information. The interface module displays

the warning for one minute and then resets automatically.

rrorNo/Select ID L D rror number rror description

L D8 L D4 L D2 L D1

0 0 0 0 0 Reserved

0 0 0 1 1 Hardware error

0 0 1 0 2 PROM error

0 0 1 1 3 Internal memory error

0 1 0 0 4 Fieldbus hardware error or incorrect

fieldbus ID

PROFIBUS

Termination

Power/State

Bus

Power

State

Bus

State

Low

High

Bus

WCS-PG310 Modul

WCS-PG310

Product Description

2018-03

Rotary coding switches S4 and S5

The rotary switches S4 and S5 have no function. nsure that the two switches are at position 0

to enable the data exchange mode.

Bus Power:

The "BusPower" L D is green: The L D is connected directly to the electrically isolated supply

voltage for the PROFIBUS side.

Bus:

The "Bus" L D is red: The interface module cannot exchange any data on the PROFIBUS.

Bus State:

ID High and ID Low rotary coding switches

You can set the PROFIBUS address with the two ID High and ID Low rotary switches. The digits

selected via the two rotary switches together form the PROFIBUS address in hexadecimal

format.

xample: To set the address 19 (= 13h), set the ID High rotary switch to position "1" and the ID

Low rotary switch to position "3."

0 1 0 1 5 Script error

0 1 1 0 6 Reserved

0 1 1 1 7 WCS reader communication, RS

send buffer overflow

1 0 0 0 8 WCS reader communication, RS

receive buffer overflow

1 0 0 1 9 WCS reader communication, RS

timeout

1 0 1 0 10 General fieldbus error

1 0 1 1 11 Parity error or frame check error

1 1 0 0 12 Reserved

1 1 0 1 13 Fieldbus configuration error

1 1 1 0 14 Fieldbus data buffer overflow

1 1 1 1 15 Reserved

Table 2.2 Meaning of the error codes (display via the four " rror No/Select ID" L Ds when the "State"

L D lights up red and thus indicates an error or a warning)

“BusState" L D PROFIBUS DP interface state

Lights up green Data exchange on the PROFIBUS

Flashes red/green Interface module is waiting for PROFIBUS parameter data

Lights up red rror on the PROFIBUS

Flashes green Interface module is waiting for configuration data

rrorNo/Select ID L D rror number rror description

L D8 L D4 L D2 L D1

2018-03

WCS-PG310

Installation

3 Installation

3.1 Mounting

Mounting the modules

The module is fastened to a DIN mounting rail with a width of 35 mm using a snap-on fixing

method.

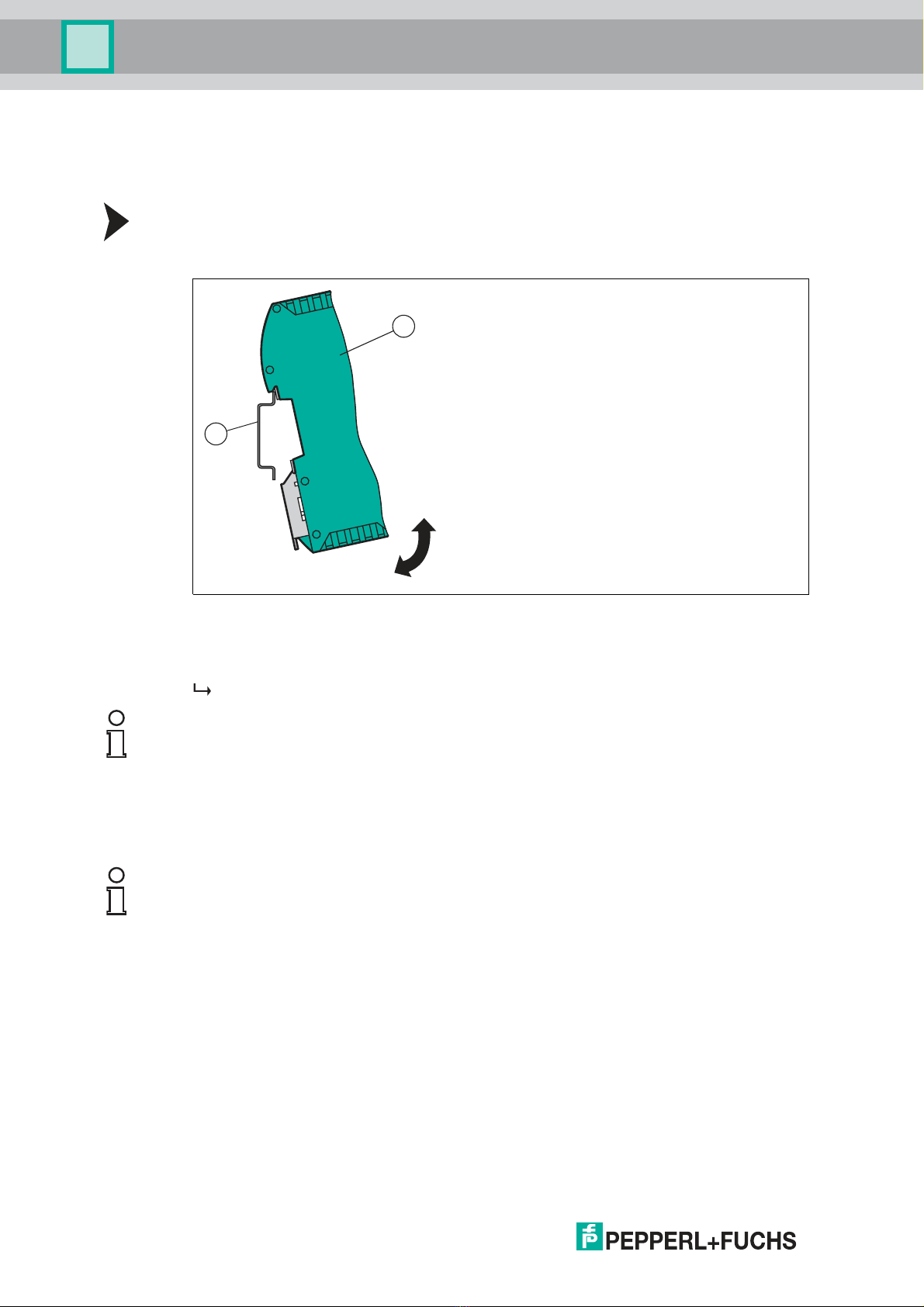

Figure 3.1 Mounting

1. Hook the module (1) into the DIN mounting rail (2) from above and press it down until it snaps

into place.

The module is mounted.

2. You must connect the DIN mounting rail to the switch cabinet's equipotential busbar. The

connection wire must have a cross section of at least 10 mm

Note!

Heat dissipation

You may place other modules to the left and right of the module.

Above and below the modules, there must be at least 5 cm of free space for heat dissipation.

Note!

Vertical installation

You can also install the DIN mounting rail vertically, so that the modules can be rotated by 90°

for mounting.
