ISO9001

K-System

Isolated Barriers

System Manual

With regard to the supply of products, the current issue of the following document is applicable:

The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central

Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most

recent version as well as the supplementary clause: "Expanded reservation of proprietorship"

Worldwide

Pepperl+Fuchs Group

Lilienthalstr. 200

68307 Mannheim

Germany

Phone: +49 621 776 - 0

E-mail: info@de.pepperl-fuchs.com

North American Headquarters

Pepperl+Fuchs Inc.

1600 Enterprise Parkway

Twinsburg, Ohio 44087

USA

Phone: +1 330 425-3555

E-mail: [email protected].com

Asia Headquarters

Pepperl+Fuchs Pte. Ltd.

P+F Building

18 Ayer Rajah Crescent

Singapore 139942

Phone: +65 6779-9091

E-mail: [email protected]

https://www.pepperl-fuchs.com

K-System – Isolated Barriers

Contents

DOCT-0187Y 2023-12

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Content of this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Target Group, Personnel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Symbols Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Housing Styles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Color Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.5 Status Indicators of the Isolators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.6 Operating Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.7 Label Carrier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.8 DIN Mounting Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.9 Power Rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3 Mounting and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.1 Fault Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.2 Fault Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

5.3 Current and Voltage Standard Signals . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6 Dismounting, Maintenance, and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6.1 Dismounting the Isolated Barrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.1 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.2 Model Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

DOCT-0187Y 2023-12

K-System – Isolated Barriers

Contents

K-System – Isolated Barriers

Introduction

DOCT-0187Y 2023-12

1 Introduction

1.1 Content of this Document

This document contains information that you need in order to use your product throughout

the applicable stages of the product life cycle. These can include the following:

•Product identification

•Delivery, transport, and storage

•Mounting and installation

•Commissioning and operation

•Maintenance and repair

•Troubleshooting

•Dismounting

•Disposal

The documentation consists of the following parts:

•Present document

•Instruction manual

•Datasheet

Additionally, the following parts may belong to the documentation, if applicable:

•EU-type examination certificate

•EU declaration of conformity

•Attestation of conformity

•Certificates

•Control drawings

•Functional safety manual

•Additional documents

Note

This document does not substitute the instruction manual.

Note

For full information on the product, refer to the instruction manual and further documentation

on the Internet at www.pepperl-fuchs.com.

Note

For specific device information such as the year of construction, scan the QR code

on the device. As an alternative, enter the serial number in the serial number search

at www.pepperl-fuchs.com.

DOCT-0187Y 2023-12

K-System – Isolated Barriers

Introduction

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance,

and dismounting lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation,

commissioning, operation, maintenance, and dismounting of the product. The personnel

must have read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions.

It is mandatory that you observe these warning messages for your personal safety and in order

to avoid property damage.

Depending on the risk level, the warning messages are displayed in descending order

as follows:

Informative Symbols

Action

This symbol indicates a paragraph with instructions. You are prompted to perform an action

or a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants,

or result in their complete failure.

Note

This symbol brings important information to your attention.

K-System – Isolated Barriers

Product Specifications

DOCT-0187Y 2023-12

2 Product Specifications

2.1 Function

Isolated barriers are isolators used for protection of intrinsically safe circuits in hazardous

areas. In addition to the required current, voltage and power limitation, the isolated barriers

have a galvanic isolation between the field circuit and the controller.

Figure 2.1 Function – isolating, amplifying and transforming signals

The K-System consists of wide range of isolated barriers suitable for mounting on 35 mm

DIN mounting rail. K-System is easy to specify, integrate and expand. Our extensive line

of intrinsic safe isolators for hazardous location applications contains over 150 different

devices.

Figure 2.2 K-System on Power Rail

Control

system

Sensor

Actuator

DOCT-0187Y 2023-12

K-System – Isolated Barriers

Product Specifications

2.2 Housing Styles

Depending on the functionality and application, K-System devices have 3 different housing

widths:

•KC devices with 12.5 mm width

•KF devices with 20 mm width

•KF devices or KH devices with 40 mm width

The 3 housing widths versions have the same system characteristics. All devices

can be mounted on the 35 mm DIN mounting rail or the Power Rail. See chapter 2.9

KC Device Housing

Figure 2.3 KC device housing (12.5 mm)

KF Device Housing

Figure 2.4 KF device housing (20 mm)

Note

See corresponding datasheets for further information.

PWR

OUT/CHK

KCD2-SR-

Ex1.LB

910

KFD2-ER-Ex1.W.LB

13 15

OUT CHK PWR

sens.

K-System – Isolated Barriers

Product Specifications

DOCT-0187Y 2023-12

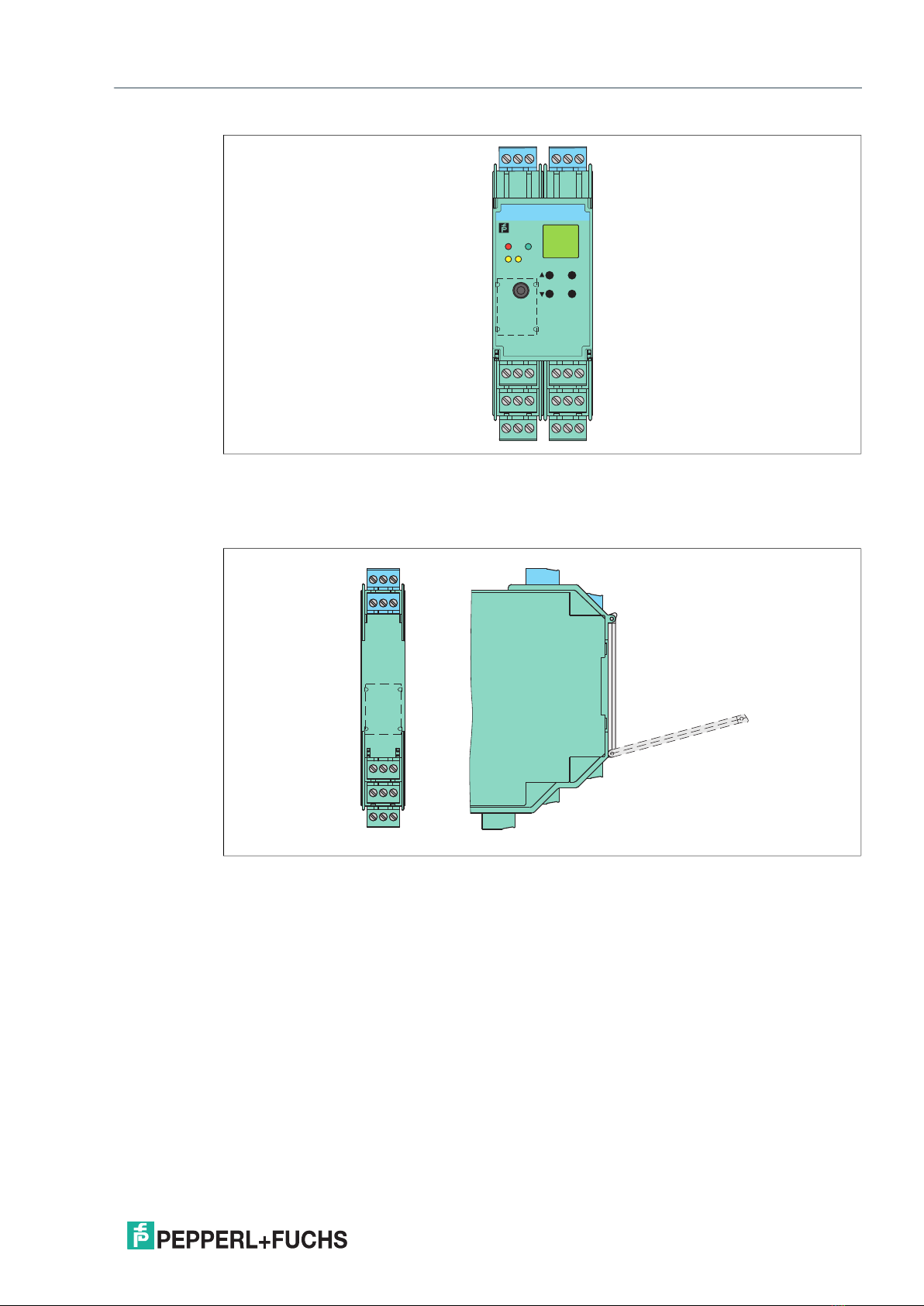

Figure 2.5 KF device housing (40 mm)

Transparent Front Flap

The KC and KF devices have a transparent front flap.

Figure 2.6 Transparent front flap for KC and KF devices, example

This front flap has several functions:

•Protection of the device against electrostatic discharge

•Protection of the operating elements from pollution, see chapter 2.6

•Integrated label carrier for individual labeling, see chapter 2.7

ESC

KFD2-WAC2-

Ex1.D

RS232

PWR

FLT

OUT

19 21

22 24

DOCT-0187Y 2023-12

K-System – Isolated Barriers

Product Specifications

KH Device Housing

Figure 2.7 KH device housing (40 mm)

10 11 12

16 17 18

456

22 23 24

789

13 14 15

123

19 20 21

CHK PWROUT

KHA6-SH-

Ex1
