Penveu 8GB interactive display system Manuel utilisateur
QUICK START GUIDE
Record your serial numbers here and retain
for your records. Serial numbers can be found
under the veu and on the back of the pen.
Please register your product at www.penveu.com/register
to enable warranty support.
QUICK START GUIDE
IN
THE
BOX
the pen
the veu
power adapter (2)the dock
USB cable
VGA cable
CHARGE
BATTERY
Battery indicators located near the tip of the pen
and the top of the veu let you know when you
need to charge your device. Charge the pen by
placing it inside the veu or in its dock.
Fully charge the pen prior to first use.
Full Battery
Low Battery
INSTALL
EASILY
Installation is as easy as one, two, three.
No software required; just follow this simple
diagram and you’re ready to go. Connect with
Apple®or Microsoft®based products.
No calibration required.
Adapters may be used if the connector type is other than VGA
(i.e. HDMI). Adapters not included. See User Guide for specifics.
*
** See User Guide for equipment compatiblity information.
computer veu projector
penveu power adapter
penveu USB
cable
penveu VGA cable*VGA cable*provided with projector or display
MOUSE
MODE
All the functionality of a mouse with a 40 foot
range. Use the buttons as indicated. Push the
mode button to switch to pen mode. After 30
seconds of inactivity, the pen lights dim.
Pen Tip / Left Click
Grip / Left Click
Touch Scroll
Left Click
Right Click
Undo/Back
Capture
Mode
3
2
4
5
6
7
8
2
8
6
4
7
5
3
Camera Lens
9
9
10 Connected to
veu
10
1
1

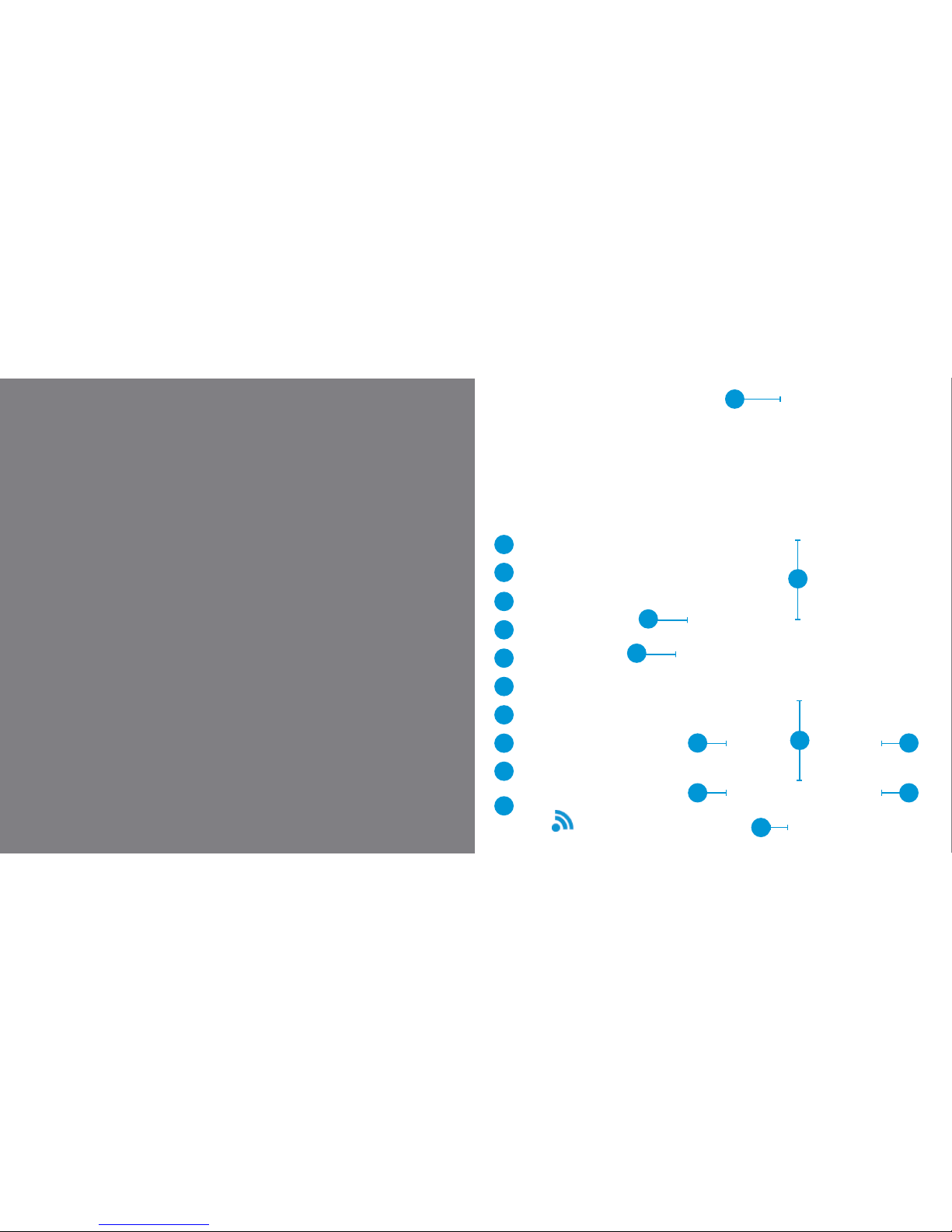

PEN
MODE
Use the pen as a pen, highlighter or
eraser directly on the display or up to
40 feet away. No calibration needed.
Push the mode button to switch to
mouse mode. After 30 seconds of
inactivity, the button LEDs dim.
Pen Tip
Grip
Touch Scroll
Draw
Menu
Undo/Back
Capture
Mode
3
2
4
5
6
7
8
2
8
6
4
7
5
3
Camera Lens
9
9
10 Connected to
veu
10
1
1
USING
PEN
MODE
While in pen mode, the light near the pen tip
illuminates to show which color is selected.
Change colors through the menu or the scroll
tool. Draw by pressing the pen grips, the
pen button , or by pressing the pen tip to
the display. Grip more firmly for a thicker line.
Color Thickness
Grip
Color
Indicator
1
2
PEN
MODE
MENU
TOOLS
Here’s what you can do in pen mode. Just
push the menu button, then scroll through
the menu wheels. Use Left Click to select
and Undo to go back or exit.
Pen
Select color and
line thickness
Highlighter
Highlight text and/or
image; select color
and thickness
Eraser
Erase writing or drawing on
the whiteboard; select eraser
thickness
Clear All
Delete all writing/drawing; a
shortcut for this is to press
Undo button for 3 seconds
Whiteboard
Select color and/or
background pattern
Save
Capture anything shown on
screen as a bitmap image
Load
View previously captured
images as thumbnails; select
an image to continue from
where you left off
Settings
Customize the buttons/
indicators and their functions
as well as on-screen prompts
THE
VEU
After connecting the veu to your
computer and display, it communicates
with the pen. It also acts as a charging
station/carrying case for the pen.
Connected
to Display
Battery
Connected
to Pen
Power
Indicators
Buttons/
Inputs
Power
Reset
Locate Pen
USB
To Computer
To Display
7
1
8
2
9
3
5
6
4
1 2 3 4 5 6
87
9
