Pentax INTERCHANGEABLE LENS Manuel utilisateur

smc PENTAX-FA

INTERCHANGEABLE LENS

OPERATING MANUAL

5.6

2.8

1.4

Thank you for purchasing the smc PENTAX lens.

This operating manual applies to all of the smc

PENTAX FA, FA J and F lenses.

※In this manual, smc PENTAX FA lens is referred

to as FA lens.

※Please also read your camera's operating manual.

※Illustrations shown herein may differ from the

actual appearance.

FAlens-CoverE05.5.1611:11ページ2

CONTENTS

°FOR SAFE USE OF YOUR LENS ………1

°PRECAUTION AND LENS

MAINTENANCE ……………………………2

°smc PENTAX F, FA and FA J LENSES …3

•Mount compatibility

°MOUNTING AND REMOVING OF

LENS ………………………………………5

°FINGER POINT ……………………………6

°APERTURE CONTROL …………………6

°FOCUSING …………………………………7

°HOW TO USE INFRARED INDEX ………9

°LENS HOOD ………………………………10

•Square lens hood

•Round-type lens hood

•Built-in lens hood

°FILTER ……………………………………14

°ZOOM LENS ………………………………16

°POWER ZOOM LENS……………………17

•Power zoom ring

•Aperture

•Infrared index of the zoom lens

°MACRO LENS ……………………………22

•Focus range limiter

•Clamp screw

•Tripod mount

•Magnification

°WIDE-ANGLE LENS

(FA★24mm f/2 AL (IF) ) …………………27

°TELEPHOTO LENS FA★85mm f/1.4 (IF)

FA★200mm f/2.8ED (IF),

FA★300mm f/4.5ED (IF) ………………28

•Note on ∞(infinity) mark

°PRECAUTIONS WHEN THE FLASH IS

USED ………………………………………30

°SOFT CASE FOR LENS…………………31

°SPECIFICATIONS ………………………32

°COMPATIBILITY OF LENSES

WITH THE BUILT-IN FLASH ……………38

FAlens-CoverE05.5.1611:11ページ3

WARNING

•Never look at the sun through the lens

or camera. Serious damage to the reti-

na, or total loss of eyesight may occur.

•Wrapping the strap around your neck is

dangerous. Make sure that small chil-

dren do not get the strap caught their

neck. (A strap is supply only with some

large types of lenses)

CAUTION

•Do not leave the lens in direct sunlight

without lens caps. Sunrays passing

through the lens will be intensified, and

should they focus on flammable materi-

als, fire may occur.

FOR SAFE USE OF YOUR LENS

Although we have carefully designed these lenses for safe operation, please pay special

attention to items marked with the following symbols when using this product.

WARNING This mark indicates precautions that if not followed,

could result in serious injury to the user.

CAUTION This mark indicates precautions that if not followed,

could result in minor or medium injury to the user

or damage to the equipment.

FAlens-BodyE05.5.1611:13ページ1

1. Storage and mildew prevention

•Take the lens out of the protective case or camera bag, and store it in a dry, well-ventilated place.

•Avoid storing the lens in a poorly ventilated location such as a closet, wardrobe, drawer, vehicle,

or where insect repellent or medicine is kept.

•Avoid storing the lens in areas of high temperature and humidity, where there is a risk of mildew

growth.

Store the lens with a desiccant in a dry cabinet, airtight container, or plastic bag. (Leaving a satu-

rated desiccant in the storage container can cause damage to the lens. Be sure to read the

instructions that came with the desiccant before use.)

2. The lens is not waterproof. When using the lens in a rain or mist, be careful not to allow it to get

wet.

3. Never use any organic solvent such as thinner, alcohol, or benzine, etc. to remove dust on the

lens.

4. The lens is a precise optical instrument. Be careful not to let it fall, or subject it to strong shocks

or pressure. Use a cushion or similar pad to protect the lens from the vibrations of motorcycles or

other vehicles, boats, etc.

5. Avoid subjecting the lens to rapid changes in temperature, otherwise condensation can occur on

both the inside and the outside of the lens. Put the lens in a plastic bag or camera bag, and take

it out after the lens has reached ambient temperature.

6. When the lens is not attached to the camera body, attach both the supplied lens cap and lens

mount cap to protect it from dust.

7. Do not leave the camera with the lens cap off attached to a tripod or other rigid camera support.

The inner parts of the camera can be damaged by direct sunlight.

8. Have the lens inspected by a dealer every one or two years to maintain its high performance.

PRECAUTION AND LENS MAINTENANCE

FAlens-BodyE05.5.1611:13ページ2

The Pentax FA lenses are primarily designed

to work with the Pentax autofocus SLR (KAF-

or KAF2-mount camera), making autofocus

shooting possible.

When Pentax FA Zoom lenses with power

zoom function are used on the Pentax KAF2-

mount camera, the camera features a Power

Zoom system.

•An FA zoom lens without the power zoom

contacts are shown in the illustration does

not have the power zoom function.

•Do not damage or dirty the power contacts.

smc PENTAX F, FA and FA J LENSES

5.6

2.8

1.4

Focusing ring Front-ring threads

Distance scale

Aperture ring

Depth-of-field scale

Aperture-A-lock button

AF coupler Lens-information

contacts

Power zoom contacts

KAF-mount KAF2-mount

FAlens-BodyE05.5.1611:13ページ3

•When using FA lens with the K-mount

Pentax camera having no lens information

contacts, be sure to set the lens aperture

ring to any f-stop other then A. If set to the

"A" position, the lens will automatically be

set to the minimum aperture, causing

improper exposure.

CAUTION :

•Be careful not to damage or dirty the lens

information contacts and AF coupler on the

mount surfaces of the camera and lens.

Otherwise, failure or malfunction may

result. If this occurs, wipe them gently with

a clean, dry cloth.

•FA J18-35mm f/4-5.6AL, FA J28-80mm

f/3.5-5.6AL and FA J75-300 mm f/4.5-

5.8AL lenses have no aperture ring to set a

f-stop manually. Aperture settings are con-

trolled automatically as if set to the auto "A"

position, so accessories without an auto

"A" setting cannot be used with these lens-

es.

Camera/Lens Mount Compatibility

Pentax camera/lens mount compatibility chart

is shown below.

KAF2-mount

which is equipped with

°Power contacts

°AF coupler

°Lens information contacts

KAF-mount

which is equipped with

°AF coupler

°Lens information contacts

KA-mount

which is equipped with

°Lens information contacts

K-mount

(base mount) -

-will not autofocus, autozoom.

FAlens-BodyE05.5.1611:13ページ4

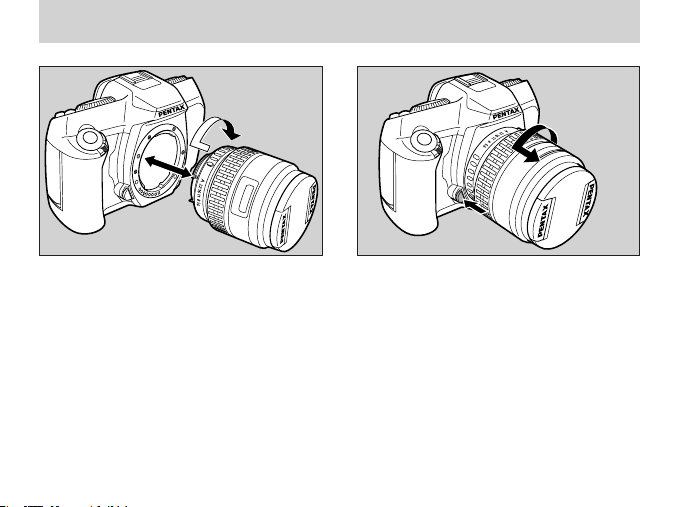

1. To mount the lens on the camera body

Align the red dots on the lens and camera

body, and then turn the lens clockwise until

it clicks into place.

※After mounting the lens, try to turn the lens

counterclockwise to make sure it is locked

in place.

2. To remove the lens

Hold down the lens unlock button on the

camera body and turn the lens counter-

clockwise.

MOUNTING AND REMOVING OF LENS

FAlens-BodyE05.5.1611:13ページ5

The lens can be mounted on the camera by

aligning the finger point with the lens unlock

button.

•Following Limited lenses have finger point.

FA31mm f/1.8AL Limited.

FA43mm f/1.9 Limited.

FA77mm f/1.8 Limited.

Setting the aperture to "A"(Auto)

Turn the aperture ring to align the aperture-A

index with the line while depressing the

Aperture-A-lock button. The aperture ring can

be released from "A" in the same manner

to set your desired f-stop manually.

•FA28-105mm f/4-5.6(IF) and FA28-200

mm f/3.8-5.6AL lenses can set to "A" posi-

tion without depressing the Aperture-A-lock

button.

•When using the camera body with no lens

information contact, set the aperture ring to

desired f-stop other than "A" position.

FINGER POINT

5.6

10 3

16 8

APERTURE CONTROL

FAlens-BodyE05.5.1611:13ページ6

To set the focus mode

Slide the focus mode switch on the camera

body to change the focus mode to AF

(Autofocus) or MF (Manual focus).

•During autofocus, do not touch the focus-

ing ring of your lens or you will interfere

with proper lens movement.

In manual focus mode

You can adjust focus on the subjects by turn-

ing the focusing ring manually and confirming

the focus indicator in the viewfinder.

•FA 28-90mm f/3.5-5.6, FA J 28-80mm

f/3.5-5.6AL and FA J 75-300mm f/4.5-

5.8AL lenses have no distance scale,

adjust focus with aid of the matte field for

non-auto focus camera or using focus indi-

cator in the viewfinder for auto focus cam-

era.

FOCUSING

5.6

15 86

10 32

1.5

FAlens-BodyE05.5.1611:13ページ7

There is a white dot next to the maximum f-

number engraved on the lens's aperture ring

on many Pentax lenses. This white dot indi-

cates an aperture which is darker by one stop

(larger number). The illustration below shows

the white dot next to f/4.5 is f/5.6.

The click stops between two engraved f/stops

are equivalent to intermediate f-stops. Some

lenses do not have an intermediate click f-

stop on the aperture ring due to limited space

between the f-numbers engraved on the

aperture ring.

1.4

1.2

1.7

2.8

2.4

3.4

5.6

4.8

6.7

9.5

13.5

F-STOPS OR F-NUMBERS AND CLICK STOPS

FAlens-BodyE05.5.1611:13ページ8
