Pelonis FS40-16JR Manuel utilisateur

1 1

1:1

项目

库

文件名

1246

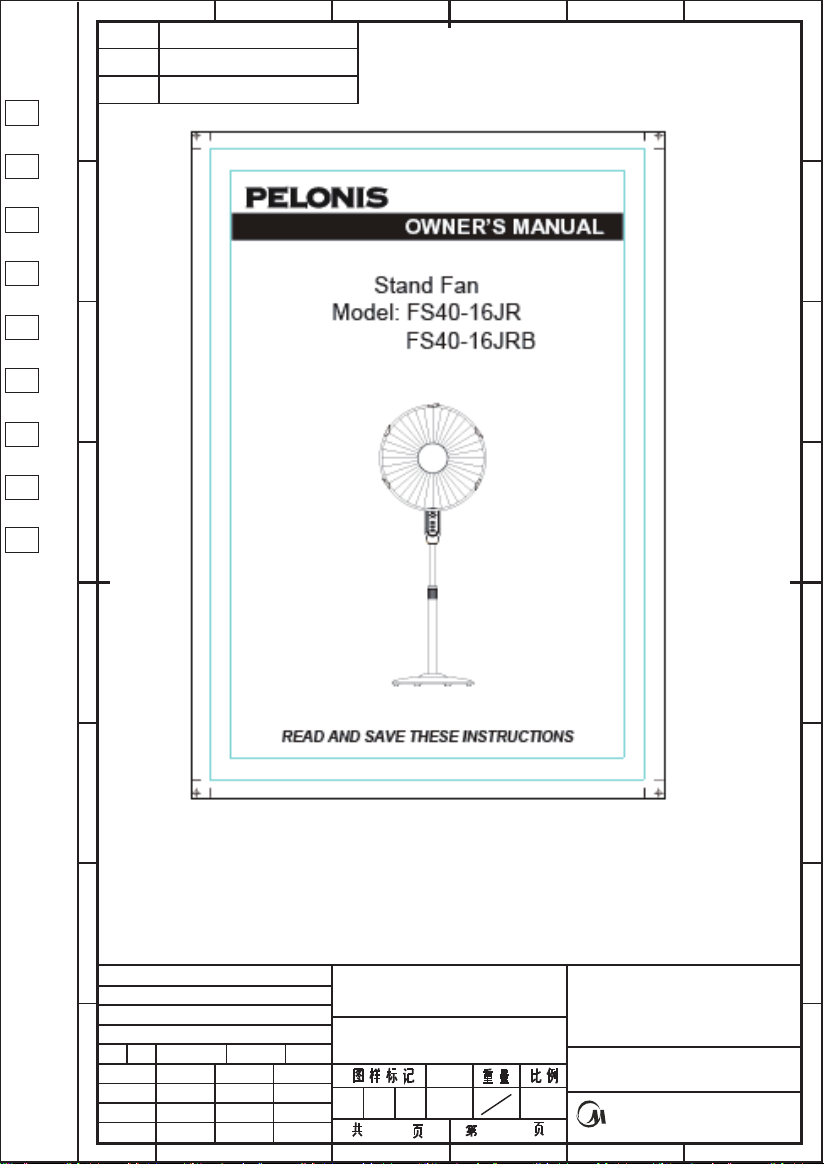

技术要求(版本号: A，2017-01）

广东美的生活电器制造有限公司

会签

材料:国产双胶纸 80克

制图

设计

校对

审核

标准化

审定

日期

标记处数更改文件号签字日期

风扇 16156000006725

Pelonis-

FS40-16JR(FS40-16JR)-0501

说明书

重点

校对项

1.版面尺寸

2.材质标注

3.物料编码

4.颜色标注

5.客户型号

6.产品名称

7.重量标注

8.电压功率

9.装订要求

1.印刷颜色：单色黑；

2.说明书规格为：145*210mm；

3.双面印刷；

4.有ROHS指令要求的物料应符合美的企业标准QML-J11.006《产品中限制使用有害物质的技术标准》，要求符合ROHS要求。

5.此页为技术要求无需印刷。

李艳

古广君-----

-----

2019-5-10

Stand Fan

Model: FS40-16JR

FS40-16JRB

READ AND SAVE THESE INSTRUCTIONS

OWNER’S MANUAL

Read Rules for Safe Operation and Instructions Carefully.

CAUTION

This appliance has a polarized plug (one blade is wider than the

other). To reduce the risk of electric shock, this plug is intended

to fit in a polarized outlet only one way. If plug does not fit fully in

the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician. Do not attempt to defeat this safely feature.

WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do

Not Use This Fan With Any Solid-State Speed Control Device.

WARNING

1. Never insert fingers, pencils, or any other object through the grille

when fan is running.

2. Disconnect fan when moving from one location to another.

3. Disconnect fan when removing grilles for cleaning.

4. Be sure fan is on a stable surface when operating to avoid

overturning.

5. Do not use fan in window. Rain may create electrical hazard.

6. Ensure that the fan is switched off from the supply mains before

removing the grille.

The rules about cord and plug as below:

1. This product employs overload protection (fuse). A blown fuse

indicates an overload or short-circuit situation. If the fuse blows,

unplug the product from the outlet. Replace the fuse as per the

user servicing instructions (follow product marking for proper fuse

rating) and check the products. If the replacement fuse blows, a

short-circuit may be present and the product should be discarded

or returned to an authorized service facility for examination and/or

repair.

2. Do not operate any fan with a damaged cord or plug. Discard fan

or return to an authorized service facility for examination and/or

repair.

3. Do not run cord under carpeting. Do not cover cord with throw

rugs, runners, or similar coverings. Do not route cord under

furniture or appliances. Arrange cord away from traffic area and

where it will be tripped over.

RULES FOR SAFE OPERATION

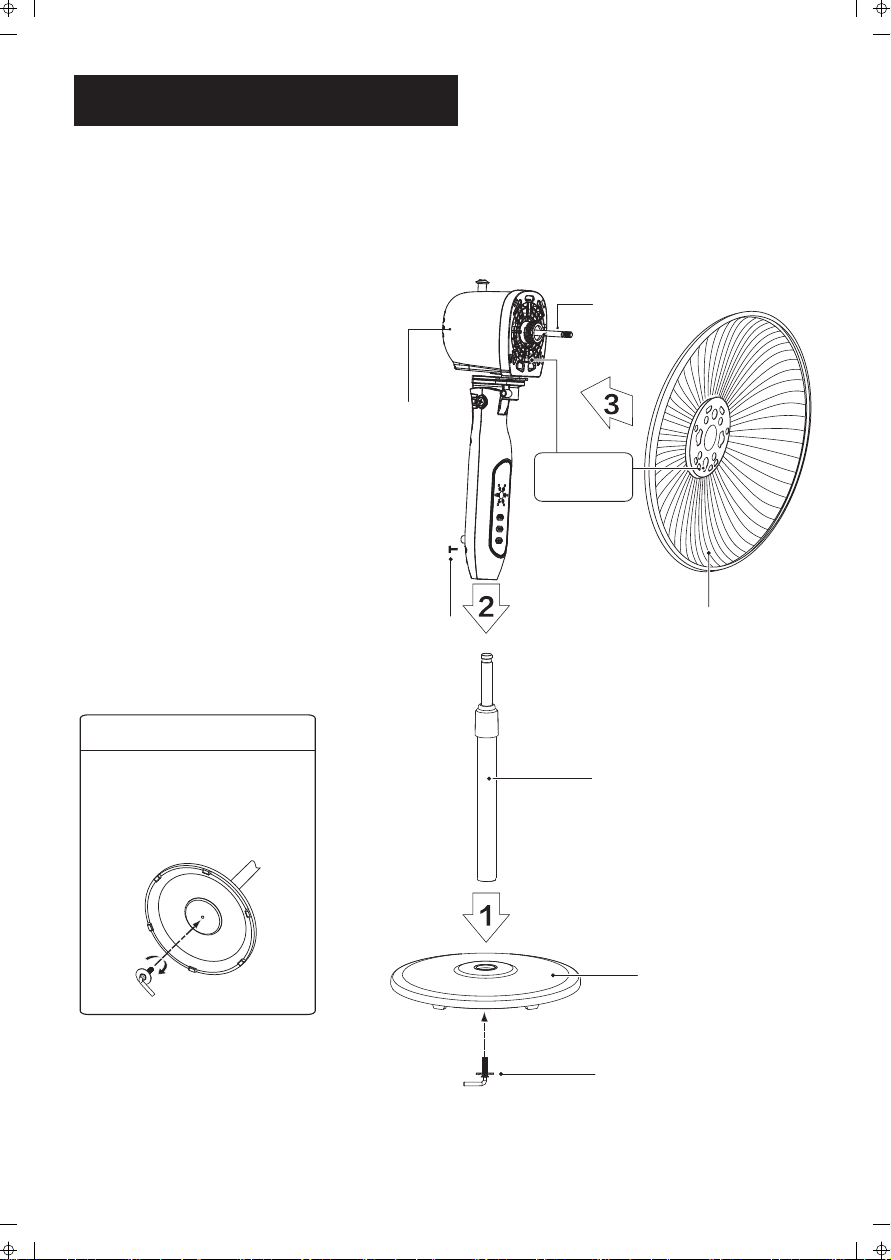

INSTALLATION INSTRUCTIONS

Name of components

①

②

Considerate Hint:

Remove ①②parts from the

component before performing

installation.

Base Installation

Align the column with the

groove on the base and

fix them together using a

right-angle bolt.

Pole

Rear grill

Tighten

knob

Right-angle bolt

Base

Motor

Motor shaft

Install by

aligning

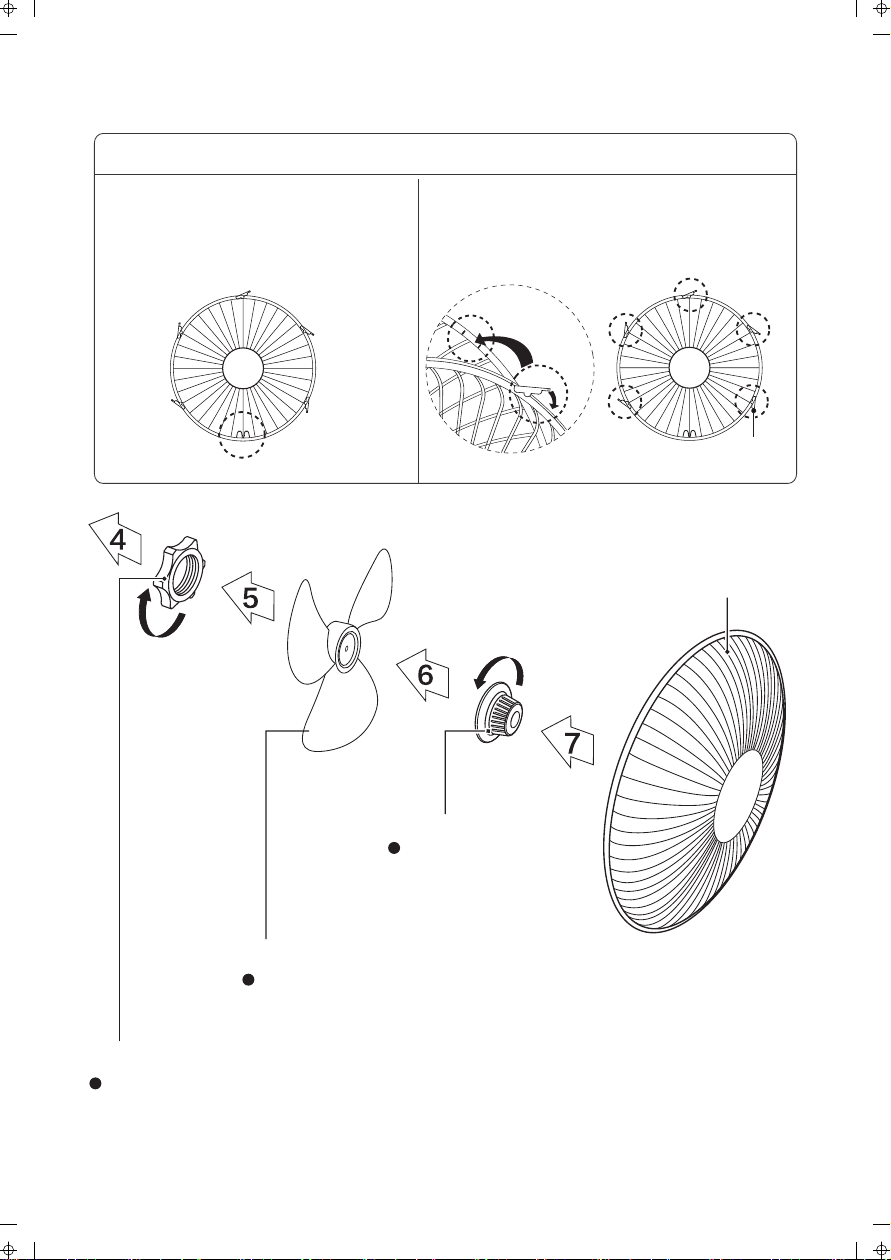

1. Align Screw Holes on the outer ring

of both the Front and Rear Guards,

with the Positioning Clip aligned as

illustrated.

2. Press down all the Buckles to fasten the

Front Guard with the Rear Guard. At the

Screw Holes, tighten the separated screw

and nut.

Front and Rear Guard Installation

Lock nut of grill

Lock nut of blade

Blade

Screw the lock nut of grill clockwise,

and in the meantime, fix the rear grill.

Lock nut of blade

anticlockwise,

and then install the

front fan cover.

Pull the blade to rotate after installing,

so as to ensure that the blade can be

normally rotated.

Front grill

Buckle

Speed display Timer display

Instructions for key of remote controller

Instructions for display of body

INSTRUCTIONS FOR USE

Considerate Hint:

Effective Range of Remote Control: within 5 m distance and

30-degree deflection in front of Product.

Battery

“ON/OFF” key

“TIMER”key

“SPEED” key

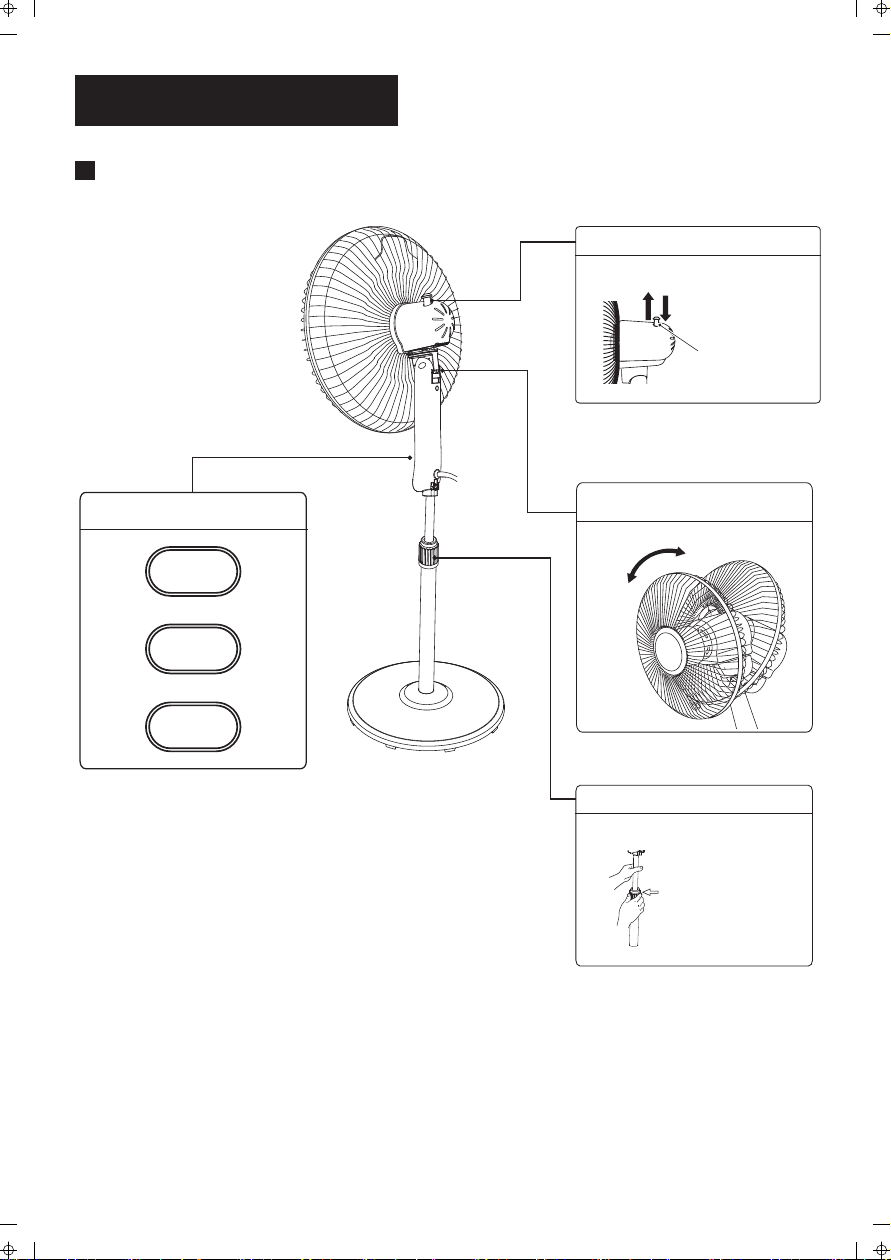

Instructions for operation of body

INSTRUCTIONS FOR USE

Body key

Turn counterclockwise and loosen for

performing height adjustment.

Height Adjustment

Height Adjustment Key

Tilt Adjustment

Manual

Swing Pull-knob

Push-down to swing

Pull-up for static

Horizontal Swing

SPEED

TIMER

ON/OFF

a) Grasp plug and remove from the receptacle or

other outlet device. Do not unplug by pulling

on cord.

b) Open fuse cover. Slide open fuse access

cover on top of attachment plug towards blades.

c) Remove fuse carefully. Insert the tip of your tool

into fuse slot (close with the terminal), then prize

the fuse gradually and slowly, but not overexert. If you feel tight, you can try it at

several times and prize the fuse little by little. When one side of the fuse has

been prized, then you can get the fuse out entirely.

d) Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.

e) Close fuse cover. Slide closed the fuse access cover on top of attachment plug.

f) Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that

should not be removed. Discard product if the attachment plug is damaged.

Notice:

1. When you replace the fuse, please don’t operate suddenly or overexert, or else

the product will be damage or cause accident.

2. When you feel it hard to be operated, please make sure you have got the right

way.

USER SERVICING INSTRUCTIONS

CLEANING

1. Be sure to unplug from the electrical supply source before cleaning.

2. Plastic parts should be cleaned with mild soap and a damp cloth or sponge.

Thoroughly to remove soap film with clean water.

3. Be sure not to make water or other liquid enter inside of motor.

SERVICE & SUPPORT

DATE OF PURCHASE: ______________________________________________

PLACE OF PURCHASE: _____________________________________________

(STAPLE SALES RECEIPT HERE)

NOTE: PROOF OF PURCHASE IS REQUIRED FOR

ALL WARRANTY CLAIMS

Printed in China

In the event of a warranty claim or if service is required for this heater, please contact us at

the following:

Tel: 1-866-646-4332

Email us at: [email protected]

For questions or comments, please write to:

Midea America Corporation

Customer Care Center

11411 NW 107th Street, Suite 12

Miami, FL 33178

For your records, staple your sales receipt to this manual and record the following:
