Pella 6000 Manuel d'instructions

Hardware

Kit(s)

Loose Parts

(In Roll-up)

Loose

Parts

Lay door flat.

Before discarding the carton, make sure ALL parts are

accounted for -- check in carton roll-ups.

Carton

Roll-up

Carton

Roll-up

The carton material is recyclable

Phillips

Screwdriver #2

Pencil Power Drill with

3/32” drill bit

Tape Measure

Tools required

Scissors

Follow the steps in order, from 1 to 35.

Legend

RED objects are the action items for that step.

Steps in BLUE apply to LEFT HINGE conﬁgurations ONLY.

(Hinge side will be determined in a later step.)

Steps in GREEN apply to RIGHT HINGE conﬁgurations ONLY.

(Hinge side will be determined in a later step.)

Insert

MUST READ! Instructions in this box style are IMPORTANT!

NEW

Installation

Procedure.

Follow this manual for

a fast and proper

installation.

Part Number: 33258

Read the legend below in order to easily follow along and install your storm door.

For reference, the storm door assembly is illustrated on page 2.

Owner’s Guide and Installation Manual

PELLA®EXPRESS INSTALL™STORM DOOR MODELS

To order replacement parts, call

1-800-374-4758

or visit us at

www.pella.com

Please have your registration number

ready when you contact us either by

telephone or on the internet.

NOTE TO THE INSTALLER: This Owner's Guide and Installation Manual is the property of the

homeowner. Please leave it with the homeowner upon completion of the installation.

TROUBLE SHOOTING GUIDE

is located on page 12 of this manual

For safety reasons, the assistance of a second person is recommended when handling the door.

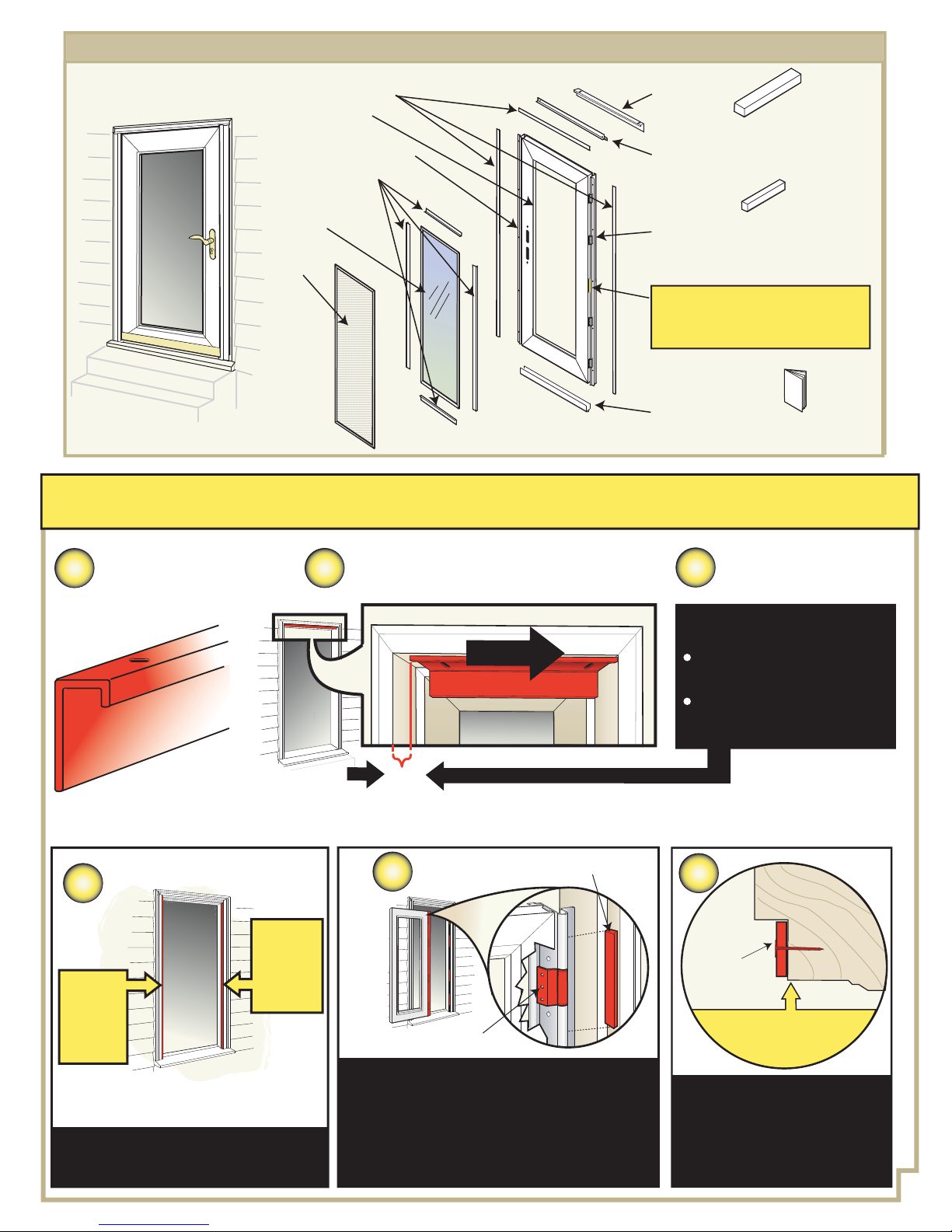

Storm Door Components NOTE: Actual door styles may vary from illustrations, however, the installation steps will be the same.

Screen

Glass

Glass/Screen

Retainer Strips

Screw Cover Strips

Latch Mounting Frame

Hinge

Mounting

Frame

Top

Mounting

Frame

Header

Frame Hardware Kit

Door Closers

Includes mounting

screws and some

handle components

Handle Kit

Includes handle

hardware with

separate instruction

sheet

Installation

Instructions

Bottom

Expander

Door

Registration

Number

This is your door’s

identification number.

Leave this sticker on

your door.

Shim on YOUR hinge side - see Step 6

on Page 3, to determine your hinge

side.

LEFT

HINGE

doors,

shim this

side

Hinge

Shim

Measure gap.

Gap

RIGHT

HINGE

doors,

shim this

side

Shim may be one long piece or small 8” to

12” sections.

NOTE: small sections must fully support the

hinges on the mounting frame.

Use an appropriate shim thickness to

reduce the gap in step C, to 1/4” or less.

Household shim materials may include paint stir

sticks or wooden yardsticks.

Slide Tight

If this gap is ...

LESS than 1/4”,

Go to START on page 3

1/4” or GREATER,

Go to Step d, to shim

Note: if this gap is over 9/16”,

a custom storm door is required.

Nail shims in place.

Note: If you removed an older

storm door, you may wish to

paint and cover any existing

holes before proceeding.

Go to START on page 3.

Shim

Shim must not

extend beyond

entryway face

Before you Begin Follow steps a, b and c to verify your entryway opening requirements.

Locate header

frame. Slide to one side of the entryway.

Right Hinge

Orientation

viewed from outside

Le Hinge

Orientation

viewed from outside

LEFT HINGE

Watch for this color

throughout the manual

RIGHT HINGE

Watch for this color

throughout the manual

Center in Opening

Align

outer

edges

Remove

glass

and

screen

Remember

this is the

INTERIOR SIDE

of the door

Lift

Snap

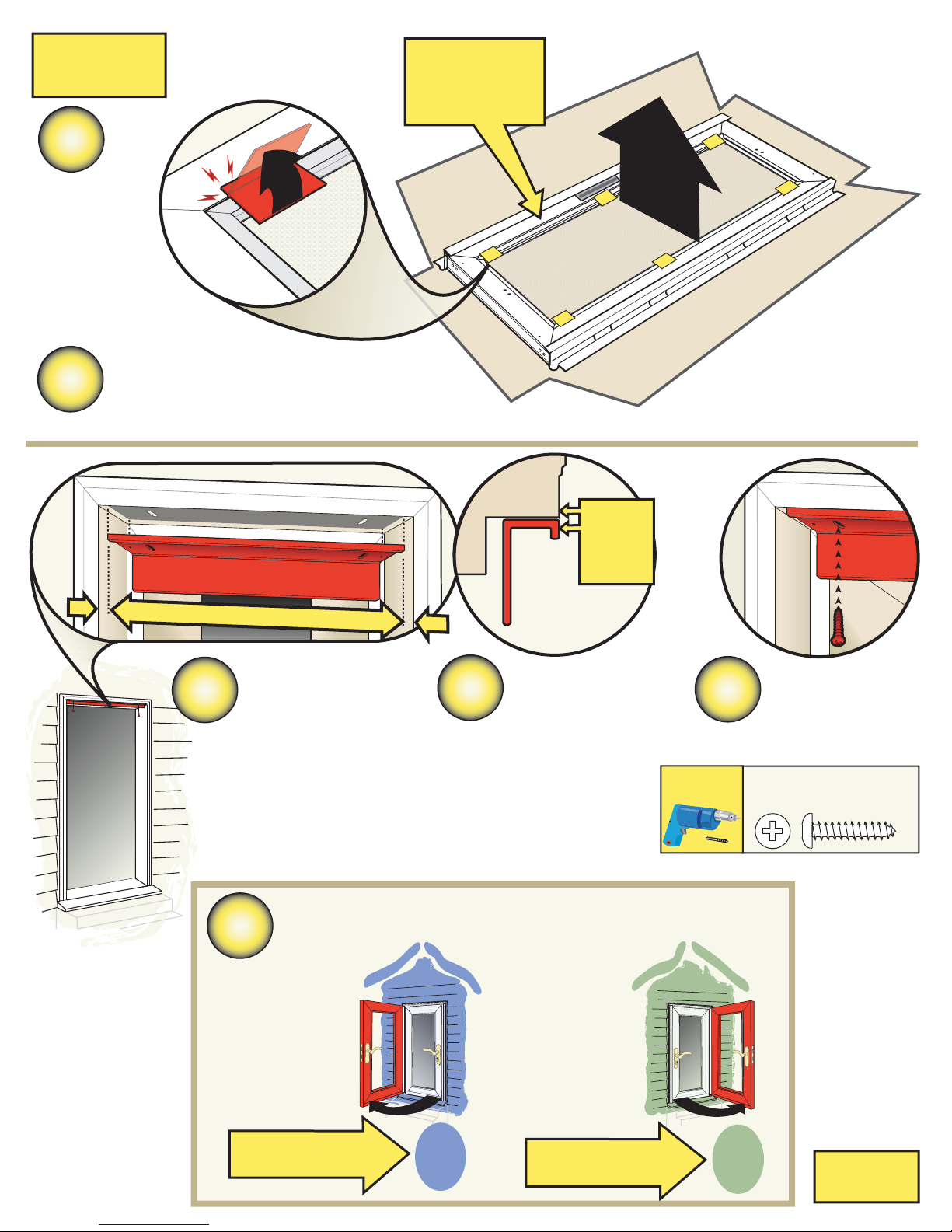

Determine the side you want your door to hinge.

FIRST, center

header frame in

entryway

opening ...

... THEN,

align with face

of brickmold.

Predrill the

two holes.

Secure with

jamb screws.

START

Your Installation

Continued

on page 4

Turn door

over.

Remove

shipping

clips.

Remove glass

and screen.

“Jamb Screw Bag”

unpainted

#8 x 3/4” Pan Head

Qty.2

Drill 3/32”

Pilot Holes

Factory

Drilled

Holes

This is

the TOP

of Your

Door

Inside

Facing

Remove any protective ﬁlm.

Slide boom expander

tight onto boom of door.

Secure with screws

(Bag taped inside expander).

#6 x 1/2” Pan Head

(Extra screw provided)

Qty. 2

Use a HAND

Screwdriver

Continued from Page 3

Position door for

LEFT hinge or

RIGHT hinge.

RIGHT HINGE DOORS

position metal plate

on this side.

Place

installation

support block

on door’s

HINGE side.

Left Hinge

Right Hinge

Left Hinge

Illustration

Inside

Facing

This is

the TOP

of Your

Door

LEFT HINGE DOORS

position metal plate

on this side.

Slide

Right

Hinge

Illustrated

Continued

on page 5

Raise Up, Slide Over,

then Lower

Right

Hinge

Illustrated

Continued from

Page 4

RIGHT HINGE

Doors Only

SLIDE To This Side

LEFT HINGE

Doors Only

SLIDE To This Side

Set door in opening

(resting on boom spacer from step 10).

Hold tight to hinge side.

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Qty. 5

Drill 3/32”

Pilot Holes

Predrill the ﬁve hinge

side hole locations.

Secure with screws.

Open the door.

Predrill the eight holes.

Secure with screws.

“Jamb Screw Bag”

unpainted

#8 x 3/4” Pan Head

Qty.8

Drill 3/32”

Pilot Holes

Continued on Page 6

Left Hinge

Illustration

Remove and discard

installation support

block.

Remove

and

Discard

Left Hinge

Illustration

Right

Hinge

Illustrated

Installation

Support Block

Right

Hinge

Illustrated

Left Hinge

Illustration

Remove and

Discard

Set

Place

Horizontal

Retainer

Strip

Install

Both

Top

and

Bottom

Install horizontal strips

first (top then bottom)

Vertical

Retainer

Strip

Install Both

Left and

Right

Continued on Page 7

Continued

from

Page 5

Predrill the ﬁve hole locations.

Secure with screws.

Cut shipping strap.

Remove “Do not cut” label.

Install glass

panel.

IMPORTANT:

Hold glass in

place while

installing retainer

strips.

Secure with

retaining strips.

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Qty. 5

Drill 3/32”

Pilot Holes

Remove the two

yellow clips.

Re-install the

screws.

Reinstall

Remove

and

Discard

Leave this

plate in

place

Right

Hinge

Illustrated

Continued from page 6

Position top

mounting frame.

Note: if you have

interference with

siding, remove the

break-oﬀ tab with a

pliers, then caulk along

the back surface, for

protection from rain.

Go to the separate

hardware instruction

sheet in the handle kit

Install

your

handle

set.

Hardware

Instruction

Sheet

Handle Kit

Close door.

Rest mounting frame

on door.

Predrill the two

hole locations.

Secure with screws.

Left Hinge

Illustration

Factory

Installed

Spacer

Rest

Door

Remove the two spacers.

Break-off Tab

(Remove if necessary)

Factory

Installed

Spacer

Remove and Discard

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Qty.2

Drill 3/32”

Pilot Holes

Top

Closer

Location

(Right Hinge)

Bottom

Closer

Location

(Right Hinge)

Approx.

1-1/2”

Approx.

1-1/2”

Right

Hinge

Illustrated

Left Hinge

Illustration

Top

Closer

Location

Bottom

Closer

Location

Align Arrow

with Notch on

Mounting Frame

Rest Against

Back of

Mounting

Frame

MOUNTING FRAME

Right Hinge

Illustrated

Align

Arrow

with

Notch on

Mounting

Frame

Rest Against Back of

Mounting Frame

Interior

Side

of the

Door

RIGHT HINGE Install Closers

on This Side.

LEFT HINGE Install Closers

on This Side.

Continued

from

Hardware

Instruction

Continued on Page 9

Hole Plugs

Break off of closer base

Qty.2

Predrill holes (3/32” bit).

Secure with screws.

Align closer base arrow with

small notch on mounting frame

(install both top and boom).

Break oﬀ alignment tabs.

Determine which

side to install the

closers

[Right versus Le].

Remove the two hole plugs

from the closer bases.

Insert into the factory

drilled holes near the top

corners of the door.

“Closer Screw Bag”

Unpainted #10 x 1” Pan Head

Qty. 4 each

Drill 3/32”

Pilot Holes

Adjustment

Screw

Remove

and

Discard

Right Hinge

Illustration

Discard

Insert

Remove

Leave Clip

in Place

Factory

Drilled

Holes

Bottom Closer: Rotate so

Touch ‘n Hold™ Button

Points Up

Touch ‘n Hold™

Button

TOP

Closer

BOTTOM

Closer

To Use:

Open the door,

then tap the button.

To Close:

Nudge the door

open slightly.

Touch ‘n Hold™

Button

Discard clips

(top and boom).

Bottom

Closer

with Touch ‘n Hold™

Button

Top

Closer

Slide top and boom closers onto

their bases.

Rotate boom closer as shown.

Adjust closer speed

with adjustment screw.

Continued

from

Page 8

Continued on Page 10

Locate

the top

and

boom

closers.

Left Hinge

Illustration

Top

Closer

Bottom

Closer

Close door.

Secure door bracket

with screws.

Pin door bracket onto closer

assembly.

“Closer Screw Bag”

color matched to door

#10 x 5/8” Pan Head

Qty. 2 each

Right

Hinge

Illustrated

Angled Edge

Points Away

From Door

Insert Angled

Edge

Sweep

Sill

Loosen to Adjust,

then Retighten

Set

Place

Horizontal

Retainer

Strip

Install

Both

Top

and

Bottom

Horizontal Strips

Go In First

Vertical

Retainer

Strip

Install Both

Left and

Right

Continued

from page 9

Hint: With the angled edge in place, run your finger down the length of the inner edge to snap in place.

Install screw cover strips

(1 Horizontal, 2 Vertical).

Close door.

Adjust boom

expander to lightly

contact the sill.

Glass or Screen Operation

To Install:

Hold the glass or

screen in place and

insert the top then

boom horizontal

strips ﬁrst, then the

verticals.

To Remove:

Remove the vertical

strips ﬁrst, then the

horizontals, by pulling

the corners away from

the door frame.

IMPORTANT: Hold

the glass in place

before removing the

top retaining strip.

Finished

with the installation. See page 11 for care and maintenance.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pella Porte

Pella

Pella 803V0102 Manuel utilisateur

Pella

Pella 818K0100 Manuel utilisateur

Pella

Pella 35123 Manuel d'instructions

Pella

Pella 81AK0101 Manuel utilisateur

Pella

Pella 80JJ0103 Manuel utilisateur

Pella

Pella 818L0100 Manuel utilisateur

Pella

Pella 808SQ102 Manuel utilisateur

Pella

Pella 801W0103 Manuel utilisateur

Pella

Pella 81CM0100 Manuel utilisateur

Pella

Pella architect series Manuel utilisateur

Pella

Pella 80KM0103 Manuel utilisateur

Pella

Pella 801V0101 Manuel utilisateur

Pella

Pella V981553 Manuel utilisateur

Pella

Pella 818T0101 Manuel utilisateur

Pella

Pella 81DU0100 Manuel utilisateur

Pella

Pella V983492 Manuel utilisateur

Manuels Porte populaires d'autres marques

ENFORCER

ENFORCER Enforcer SK-990A Manuel utilisateur

Electri-Chef

Electri-Chef TR18 Manuel du propriétaire

BEA

BEA PBR45x Manuel utilisateur

GE 19298 Manuel utilisateur

Sterling Plumbing

Sterling Plumbing Frameless Bypass Shower Door SP5465-45 Manuel utilisateur

GE 19214 Manuel utilisateur

Ives

Ives 55 Manuel utilisateur

Algoma Hardwoods

Algoma Hardwoods STC 39 Manuel utilisateur

Ives

Ives Surface Bolt 43 Manuel utilisateur

Therma-Tru

Therma-Tru Double-door Manuel utilisateur

Erreka

Erreka PREMIS 200 Manuel utilisateur

Ives

Ives Surface Bolt 144 Manuel utilisateur

Lennox Hearth Products

Lennox Hearth Products MPB-35 Manuel utilisateur

Ives

Ives Offset Top Pivot 7245F Manuel utilisateur

KitchenAid

KitchenAid KBAU181V Manuel

Ives

Ives 670 Manuel utilisateur

Ives

Ives Mortise Bolt S48 Manuel utilisateur

American Standard

American Standard Acrylux 6000Y1.BE5 Manuel utilisateur
