Indoor Dome Camera
User Manual
Before attempting to connect or operate this product, please read these instructions
carefully and save this manual for future use.
ZEIM-4000511G 447 A.1
1
Important Safety Information
FCC Compliance Statement
The equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case users will be required to correct the interference at their
own expense.
FCC Caution:
To ensure continued compliance, use only shielded interface cables when connecting
to computer or peripheral devices. Any changes or modications not expressly
approved by the party responsible for compliance could void the user’s authority to
operation this equipment.
Warning and Operating Notest
Installation and serving the camera should be performed only by qualied and
experienced technicians to conform to all local codes and to maintain your warranty.
WARNING! TheuseofCSAcertied/ULListedClass2poweradapters
are required to ensure compliance.
WARNING! Toreducetheriskofreorelectricshock,donotexposethe
product to rain or moisture.
Operating Notes
PowerSupply:This dome camera can operate on AC 24V or DC 12V.
Operating Conditions
• Avoid viewing very bright objects (example, light xtures) for extended periods.
• Avoid operating or storing the unit in the following locations:
- Extremely humid, dusty, hot, cold environments (where the operating
temperature is outside the recommended range of 14°F to 122°F [-10°F to
+50°F].
- Close to sources of powerful radio or TV transmitters
- Close to uorescent lamps or objects reecting light
- Under unstable light sources (may cause ickering)
2
TABLE OF CONTENTS
1. Introduction.................................................................................. 3
1.1 Before You Begin----------------------------------------------------------------- 3
1.2 Unpack Everything--------------------------------------------------------------- 3
1.3 Dimensions----------------------------------------------------------------------- 3
1.4 Names of Camera Parts --------------------------------------------------------- 4
1.5 Routine Maintenance ------------------------------------------------------------ 4
2. Installation ................................................................................... 5
2.1 Disassembling the Camera ------------------------------------------------------ 5
2.2 Connecting the wiring ----------------------------------------------------------- 6
2.3 Mounting the Camera------------------------------------------------------------ 6
2.4 Optional Camera Settings ------------------------------------------------------- 7
2.5 Adjusting the Camera Position -------------------------------------------------- 8
2.6 Adjusting the Lens --------------------------------------------------------------- 8
2.7 Completing the Installation ----------------------------------------------------- 9
3. OSD Settings ...............................................................................10
3.1 Lens ----------------------------------------------------------------------------- 10
3.2 SHUTTER/AGC ------------------------------------------------------------------ 10
3.3 WHITE BAL ---------------------------------------------------------------------- 11
3.4 BACKLIGHT---------------------------------------------------------------------- 11
3.5 PICT ADJUST -------------------------------------------------------------------- 11
3.6 ATR* ----------------------------------------------------------------------------- 12
3.7 MOTION DET -------------------------------------------------------------------- 12
3.8 PRIVACY ------------------------------------------------------------------------ 12
3.9 DAY/NIGHT---------------------------------------------------------------------- 12
3.10 NR ------------------------------------------------------------------------------ 13
3.11 CAMERA ID -------------------------------------------------------------------- 13
3.12 SYNC --------------------------------------------------------------------------- 13
3.13 LANGUAGE --------------------------------------------------------------------- 13
3.14 CAMERA RESET---------------------------------------------------------------- 13
3.15 SAVE ALL----------------------------------------------------------------------- 13
3
INTRODUCTION
1. Introduction
The dome camera is ideal for indoor installation in commercial and residential
environment. With 3-axis mount support, it provides exible installation on a ceiling
or wall even at an angle.
1.1 Before You Begin
Please read this manual carefully before you install the dome camera. Keep this
guide for future reference.
1.2 Unpack Everything
Check that the items received match those listed on the order form and packing slip.
The dome camera packing box includes:
• One fully assembled camera
• Two screw anchors and TP4x15mm tapping screws
• One 2nd video monitor output cable
• One mounting template
• One user manual
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
1.3 Dimensions
112mm
84mm
97mm
4
1.4 Names of Camera Parts
a
b
6
Figure 1-1 Camera parts
1. Conduit hole used for surface run power/video connector
2. Bottom case
3. Camera housing
4. Dome cover
5. Focus lever
6. Zoom lever
a. AC 24V / DC 12V power input connector (red +, black -)
b. Video output connector
Note:See Figure 2-3 for camera board controls.
1.5 Routine Maintenance
• The dome cover is an optical part. Use a soft, dry cloth to remove any ngerprints
or dust.
• Clean the camera housing with a soft, dry cloth. For more stubborn stains, use a
cloth dampened with a small quantity of neutral detergent, then wipe dry.
Caution: Do not use volatile solvents such as alcohol, benzene or thinners to avoid
damaging the surface nish.
INTRODUCTION
5
INSTALLATION
2. Installation

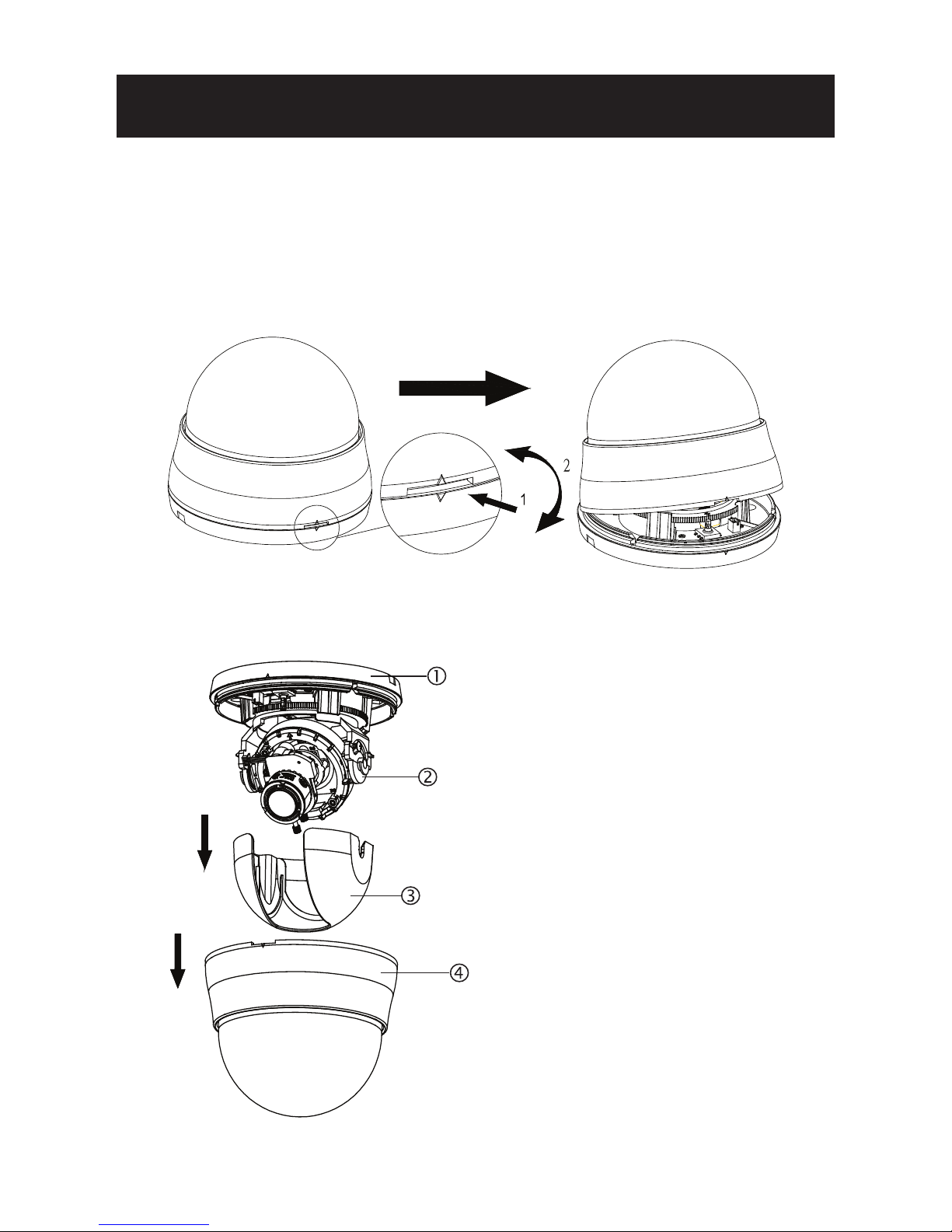

2.1 Disassembling the Camera
Before you mount and adjust the camera, follow these steps to disassemble the
camera.
1. Insert a coin or at tool to the side hole and twist to remove the dome cover.
2. Remove the inner liner (#3) by gently pulling it free from the tilt adjustment
bracket (#2).
3. Set the dome cover (#4) and liner (#3) aside.
1. Bottom case
2. Tilt adjustment bracket
3. Inner liner
4. Dome cover
Figure 2-1 Disassemble the camera
6
INSTALLATION
2.2 Connecting the wiring
Refer to Figure 1-1 to connect the video connect output connector (#b) and 24
VAC/12 VDC power connector (#a).
Caution:For DC power supply use, make sure the polarity is correct to avoid
malfunction and / or camera damage.
2.3 Mounting the Camera
1. Attach the mounting template to the wall or ceiling.
2. Drill two holes, then insert the screw anchors (#1) into the holes.
3. Secure the bottom case to the wall or ceiling with the TP4 x 15 mm tapping
screws supplied (#2).
Note:Depending on the material of your mounting surface, you may require different
screws and anchors than those supplied.
1. Screw anchors (x2), supplied
2. TP4 x 15 tapping screws (x2),
supplied
Figure 2-2 Camera installation
7
INSTALLATION
2.4 Optional Camera Settings
Refer to Figure 2-3 to locate the OSD joystick control on the camera board. Use the
joystick to access the OSD menu and congure the camera settings as required.
To use the OSD joystick control:
• Press the OSD joystick control straight down to enter the Main menu or a selected
item.
• Move the OSD joystick control UP, DOWN, LEFT and RIGHT to navigate through
menus and options.
For further information on OSD settings, refere to the “3. OSD Settings” section.
1. Monitor out
2. OSD Joystick Control
3. Camera mounting holes
Figure 2-3 Camera adjustment controls
8
2.5 Adjusting the Camera Position
The dome camera has three axes for positioning the camera. While monitoring the
picture on the monitor, adjust the camera position as follows:
Horizontal Adjustment Rotate 3D assembly in the base. Do not turn assembly
more than 360° as this may cause the internal cables to twist and disconnect or
break.
Vertical Adjustment After loosening the screw on the bracket, position the camera
as desired, then tighten the screw back to the bracket.
Horizontal Rotation For wall mount and tilted ceilings, rotate the lens base
(maximum 360°) until you are satised with the eld of view.
1. Rotate 3D assembly in base for
horizontal adjustment
2. Tilt adjustment bracket and screw
for vertical adjustment
3. Axis ring for horizontal rotation
for wall mount and tilted ceilings
4. Focus lever
5. Zoom lever
Figure 2-4 Camera adjustment
2.6 Adjusting the Lens
1. Loosen the focus lever (#4) counter-clockwise a little, then adjust the focus for
optimum picture sharpness.
2. Loosen the zoom lever (#5) counter-clockwise a little, then rotate the zoom lever
and determine the image view.
3. Re-tighten the zoom lever and focus lever after adjustment.
Note:It is important that you lock the zoom and focus levers after making
adjustments. This will avoid the positions moving (for example, from temperature
changes or vibrations).
INSTALLATION
