Pecron E1500 PRO Manuel utilisateur
Please read the user manual thoroughly before using
尺寸：160*140mm
材质：105G 双铜，文档颜色PANTONE 2013U 骑马钉16P
USER MANUAL
E1500
PRO
FUNCTION INTRODUCTION
① ② DC 12V~18V Charging Port
③
DC 12V/USB/ Wireless Switch
⑤ ⑥ AC 100V~120V Output
⑧
LCD Display
AC 100V~120V Switch
⑨
⑦Wireless Charger
DC 32V~95V Charging Port
⑩DC12V XT60 Output
DC12V(5525)Output
⑫
DC12V Auxiliary Output
⑪USB-A/USB-C Ports
⑬
④Fuse
AC 100V~120V Input
E1500
PRO
①
②
③
④
⑤
⑥
⑧
⑨
⑩
⑪
⑬
⑦
⑫
SPECIFICATIONS
OUTPUT SPECS
INPUT SPECS
Lithium-ion(NCM)
1000CycleLife＞80%
Dimension
L14.8*W9.4*H10.6 in
L377*W238*H270
mm
Capacity Battery Type
DC Charging(32V~95V)
Max 800W
5521
DC Charging(12V~18V)
Max 100W
Net Weight
Around 33.1lb
Around 15Kg
E1500
PRO
1450Wh
(51.8V28Ah)
Protections
Over-Voltage,
Overheat,
Overload,
Short-Circuit,
Self-Recovery
Temperature
0℃~45℃/32°F~113°F
(Charging)
-20℃~45℃/-4°F~113°F
(Discharging)
AC Out*3
Pure sine wave
100V~120V
Rated 2000W
USB-A*4
5V-2A*3
(5V,9V,12V,
Max 18W)*1
(5V,9V,12V,
Max 18W)*1
(5V,9V,12V,20V,
Max 100W)*1
USB-C*2
DC 12V-10A
Cigar Port
Max 15W
Wireless Charger
DC 12V-30A
XT60 Output
GX16MF
UPS SPECS
AC100V~120V
Max 15A
AC100V~120V
Charging Time
AC: 1H to 80%
PV/DC: 2H to100%
1.5H to100%
DC 12V-5A
DC 5525 Output
AC Input
HOW TO USE THE E1500 PRO
press and hold to turn on / off DC / USB / Wireless Charger
press and hold to turn on / off AC (
Please turn off the AC
function if there is no AC load on the unit)
DC
AC
DC
AC
Over load
℃
LCD SMART DISPLAY
AC Overload Alarm Icon
E1500 PRO can power most devices with power
consumption less than 2000 watts.
If your device is more than 2000W, The AC overload
alarm will flash, The power supply will stop working.
Temperature Alarm Icon
E1500 PRO can power your devices at temperatures
ranging from -20~45℃.
If your working temperature is more than 45℃, the
temperature alarm will flash,the unit may stop working.
Time Indicator
DC Out
Temperature Alarm
Battery Soc(%)
Voltage(V)
AC Overload Alarm
Charge Indicator
Discharge Indicator
Net Input/Output Wattage
AC Out
AC Input Wattage(W)/Voltage(V)
PF Value/Remaining Charging/
Discharging Time(Hrs)
E1500
PRO

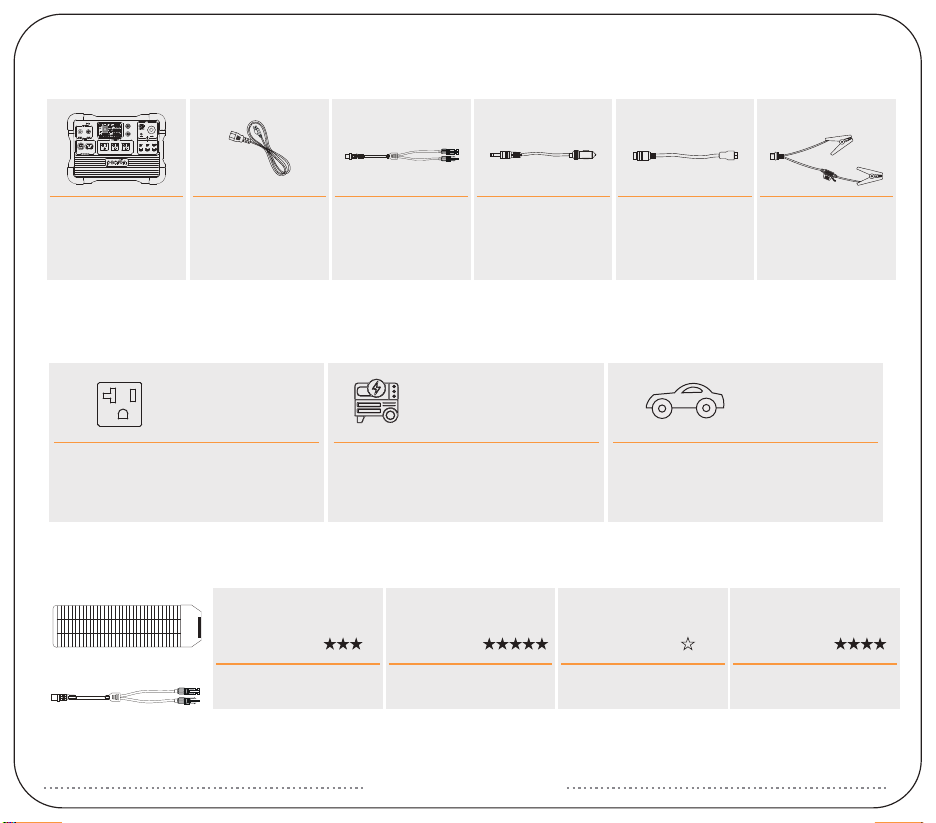

PACKING LIST
RECHARGE TIME
Around 1.5Hours
Electric Generator
Around 18Hours
Car Charger
Around 1.5Hours
Wall Charger
800W(×4)
2~2.5 Hours
Recommended
MC4 Solar
Charging Cable
pecron 200W
SOLAR CHARGE TIME
The solar charging time depends on weather conditions.
E1500 PRO has a built-in MPPT charge controller that supports
32~95V, 15A PV charging up to 800W.
200W(×1)
9~10 Hours
Recommended
400W(×2)
4~5 Hours
Recommended
600W(×3)
3~3.5 Hours
Recommended
Anderson Solar
Charging Cable*1
Pecron
E1500 PRO
*1
AC Charing Cable*1
MC4 Solar
Charging
Cable
(LSMC4-5GX16)*1
Car Charging
Cable
*1
12V Alligator Clips*1
E1500
PRO
UPS Function
The E1500 PRO supports UPS function. It can provide the loads(such as computers, data centers, telecommunication equipment)
near-instantaneous(within 8~20ms) protection from unexpected power interruptions of the main power supply.
Note: Not applicable to specific applications that need transfer time under 8ms, such as servers and workstations.
This UPS function only support protection for loads under 1600W, we recommend that you only connect one device
at a time to avoid overload and thus result in protection failure.
Pecron is not responsible for any devices damege or loss of data resulting from failing to follow the instructions.
E1500
PRO
USING SOLAR PANELS TO CHARGE THE E1500 PRO
1. DC5521 Charging Port: PV/DC 12V~18V, 100W maximum; VOC(open circuit voltage) of solar panel must be than 25V;
2. GX16MF-5 Charging Port: PV(operating voltage) range 32V~95V, 800W maximum; VOC(open circuit voltage) of solar
panel/array must be than 95V, otherwise, it will damage the unit! Do not wire more than two 36V(AKA 24V) solar
panels in series, or more than four 18V(AKA 12V) solar panels in series.
(18V/36V stands for Vmp, the operating voltage, of the solar panel)
3. If you have any questions, Please feel free to contact us：[email protected]
DC5521 Charging Port:
PV12V~18V-100W Maximum Input
GX16MF-5 Charging Port:
PV32~95V-800W Maximum Input
E1500
PRO
Using the pecron 100W /18V*1（100W）to charge the E1500 PRO
pecron 100W
18V
pecron 100W*1
USING SOLAR PANELS TO CHARGE THE E1500 PRO
36V 36V
MC4 Solar
Charging Cable*1 pecron 200W*1
Using the pecron 200W /36V*1（200W）to charge the E1500 PRO
※ 18V is the operating voltage of the solar panels
※ 36V is the operating voltage of the solar panels
36V
36V
72V
Using the pecron 200W /36V*2（400W）to charge the E1500 PRO
MC4 Solar
Charging Cable*1 pecron 200W*2
※ 36V is the operating voltage of the solar panels
USING SOLAR PANELS TO CHARGE THE E1500 PRO
DO NOT wire three solar panels in series！
※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V
will damage the machine.
36V
36V
36V
108V
36V
36V
36V
36V
Using the pecron 200W /36V*3（600W）to charge the E1500 PRO
MC4 Solar
Charging Cable*1
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
pecron 200W*3
（NOTE：This parallel charging cable sold separately）
※ 36V is the operating voltage of the solar panels
USING SOLAR PANELS TO CHARGE THE E1500 PRO
36V
36V
36V
36V
36V
Using the pecron 200W /36V*4（800W）to charge the E1500 PRO
MC4 Solar
Charging Cable*1
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
pecron 200W*4
（NOTE：This parallel charging cable sold separately）
※ 36V is the operating voltage of the solar panels
