Pebble Audio RCA2AMP Manuel utilisateur
RCA2AMP
RCA2AMP
GETTING STARTED GUIDE
STARTGUIDE
ALOITUSOPAS
HANDBUCH ERSTE SCHRITTE
www.pebbleaudio.com
Wireless Amplifier
Thank you
for choosing this product
from Pebble Audio.
CONTENTS
2
GETTING STARTED
with Wireless Amplifier RCA2AMP
English 2
Finnish 12
Swedish 22
German 32
Wireless Amplifier RCA2AMP
Wireless Amplifier RCA2AMP ENGLISH 3
RCA Transmitter AMP Receiver
Getting Started Guide
RCA Cable
USB Power Supply
USB Cable
AMP
24V Power Supply
& Power Cord
RCA2AMP
RCA2AMP
GETTING STARTED GUIDE
STARTGUIDE
ALOITUSOPAS
HANDBUCH ERSTE SCHRITTE
www.pebbleaudio.com
Wireless Amplifier
4
LEFT RIGHT
How to Connect the RCA Transmitter
AV Amplifier Rear Panel Interfaces
Audio Inputs +5V USB
Power
Input
RCA cabel can
be connected
e.g. to the
REAR L and R
Outputs.
USB Cable
Micro-USB
Power only
Power Supply
with USB Type A
connector for output.
Wireless Amplifier RCA2AMP
ENGLISH 5

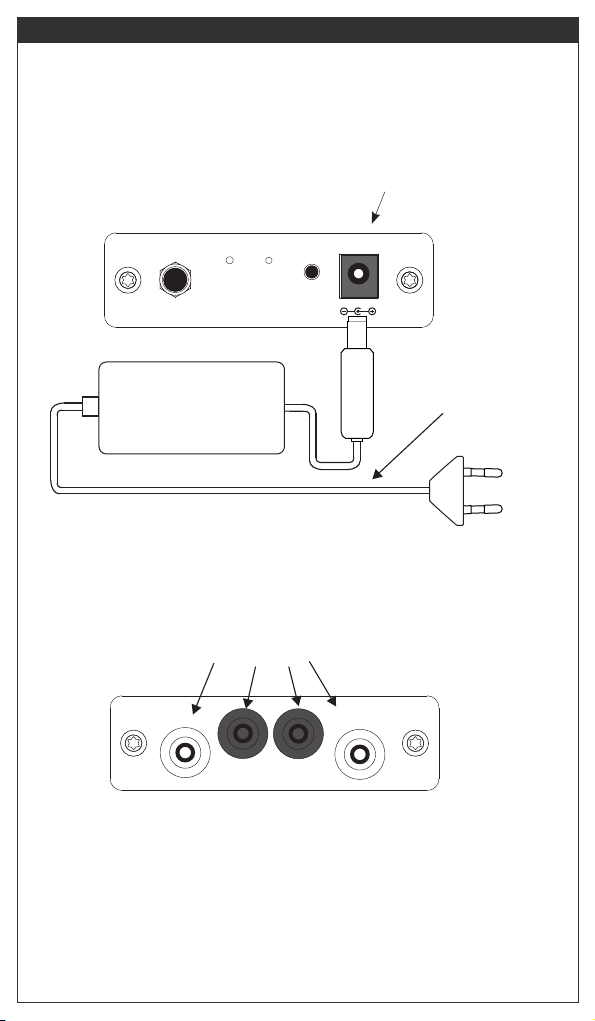

How to Connect the AMP Receiver
Left and Right Loudspeaker Banana Connectors
+24V
Power
Input
Wireless Amplifier RCA2AMP
24V DC
ON - OFF
AMP Front Panel Interfaces
24V Power Supply Power Cord
AMP Rear Panel Interfaces
-
+
-
+
LEFT RIGHT
6
Orange LED indicates the status of
both RCA Transmitter and AMP Receiver
as follows:
During normal operation both transmitter and receiver show
continuous orange light.
In case the RCA Transmitter is active but it cannot find
the AMP Receiver, RCA Transmitter’s indicator blinks.
Interpretation of the LED signal for RCA Transmitter:
No power supply connected
In active mode transmitting audio
No connection i.e. no receiver detected
2.5 s 2.5 s 2.5 s 2.5 s
Interpretation of the LED signal for AMP Receiver:
Power is off or no power supply is connected
In active mode receiving audio
No connection i.e no transmitter detected
LED indicator
3 s 3 s 3 s 3 s
In case the AMP Receiver is active but it cannot find
the RCA Transmitter, RCA Receiver’s indicator blinks once in 3 seconds.
Wireless Amplifier RCA2AMP
24V DC
ON - OFF
LED indicator
ENGLISH 7
Mounting instructions to guarantee excellent
antenna performance:
RCA Transmitter has an integrated magnet that can be used
to attach the device to a ferromagnetic surface e.g. the case
of an AV Amplifier.
Please note that metallic surfaces prevent radio transmission and
therefore the antenna should not reside in between two metallic
bodies. However, both transmitter and receiver can be placed on
top of an amplifier or to the side of it so that the antenna is visible.
Best transmitting on receiving conditions can be achieved when
transmitter and receiver antennas are physically oriented into the
same direction and typically upwards.
AV Amplifier AV Amplifier AV Amplifier
Wireless Amplifier RCA2AMP
24V DC
ON - OFF
LED indicator
How to switch AMP Receiver’s power off
ON - OFF Button
AMP Receiver can be powered off and on by pushing the ON - OFF
Button until the LED Indicator blinks three times. If you push this botton
continuously, AMP Receiver will change the power status from power
and on
off to power on and back blinking the indicator each time.
Receiver goes from power off to power on
Receiver goes from power on to power off
Button is pushed
8
Please do not touch the antennas during operation because
human body prevents radio transmission effectively.
If you plan to play audio wirelessly in a crowded room, please
mount both transmitter and receiver above people close to the
roof of the room to enable free transmission.
RCA2AMP audio transmission has a constant delay of 20ms. This
delay moves the speakers effectively about 6.9 meters further
away from the AV Amplifier. You can notice this when carrying out
loudspeaker adjustments with your AV amplifier.
Wireless Amplifier RCA2AMP
It is further recommended that transmitter and receiver are
separated at least 1.5 meters from each other and other radio
apparatus including other products from Pebble Audio.
RCA Transmitter
AV Amplifier
>1,5 m
AMP Receiver
Please don’t place the AMP Receiver on the floor since that
location is not optimal from antenna performance point of view.
ENGLISH 9
Troubleshooting
Symptom Possible Cause Action
Transmitter or Receiver Power supply Check power
does not switch on problem. supply
i.e. LED light is off. connections.
Audio transmission Antennas are Find a better
is interrupted in bad positions. location for both
occasionally. transmitter and
receiver using
trial and error
method.
Your smartphone Find a better location
or other device further away for
with WLAN is too your mobile phone or
close. other device with
WLAN.
Interference from Relocate you device
other 2.4GHz with Bluetooth.
devices like
Bluetooth devices
or microwave oven.
Relocate
microwave oven
or don’t use it
while listening to
music.
Both Transmitter and Transmitter and Receiver Check that both units i.e.
have not been paired.
Receiver LEDs are blinking.
transmitter and receiver
are from the same
product.
Wireless Amplifier RCA2AMP
AMP Receiver’s LED indicator
light is continuously switched on
and off with a couple of seconds
Amplifiers outputs have
a short circuit Check loudspeaker outputs
and cabel connections
interval.
10
Safety information
WARNING! ELECTRIC SHOCK HAZARD: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER.
This product shall only be used at typical room temperature in dry
interiors.
For your safety, operate the apparatus only from the low level
audio line output jack of the audio device. Listen at a reasonable
volume and take frequent listening breaks.
Refer all servicing and repair to qualified service personnel.
Clean your product using only a dry cloth and no water or liquid.
The product label can be found on the bottom of the product.
Pebble Audio Oy declares that this radio-frequency peripheral is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
This product shall be handed over to the appropriate collection
point for the recycling of electrical and electronic equipment. For
more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service
or the shop where you purchased the product.
Some Pebble Audio’s transmitters and receivers have an integrated
magnet and they should be kept away (min 5cm) from magnetic
cards, hard drives, pacemakers, hearing aids, mechanical watches
i.e. devices and objects that could be damaged by strong magnetic
fields.
Wireless Amplifier RCA2AMP
