Peavey PV 12M Manuel utilisateur

Frequency range (-10 dB, half

space):

58 Hz to 21 kHz

Frequency response (±3 dB,

half space):

79 Hz to 17 kHz

Sensitivity (1W/1M):

98 dB

Power rating (program):

500 Watts

Power capacity (peak):

1000 Watts

Maximum SPL:

127 dB

Transducer complement:

Sheffield® Pro 1500+™ 15"

premium woofer and 14XT™

1.4" titanium diaphragm

dynamic compression driver on

a 90˚ x 40˚ coverage constant

directivity horn

Driver protection:

Sound Guard™ IV for the

compression driver provides

long- and medium-term

overload and overdrive

protection

Nominal coverage pattern:

90˚ x 40˚

Electro-acoustic crossover

frequency:

2.8 kHz

Nominal impedance:

8 Ohms

Input connections:

Two 1/4" phone jacks in parallel

Enclosure materials and

finish:

Trapezoidal, black carpet-

covered enclosure with dado

joined 1/2" MDF (Medium

Density Fiberboard) and a full-

length, black powder-coated

steel grille

Dimensions (H x W x D):

25" x 17.75" x 12.563"

63.5 cm x 45.085 cm x

31.910 cm

Weight:

39 lbs. (17.7 kg)

Mounting or suspension:

1-3/8" pole-mount cup for

stand mounting

Features:

• Two-way sound reinforcement

monitor enclosure

• 30˚ and 45˚ dual-angle

monitoring

• Peavey-exclusive Sheffield Pro

1500+ woofer with 2.5" voice

coil

• 1.4" 14XT™ titanium diaphragm

compression driver

• Sound Guard IV tweeter

protection

• 500 Watt program/1000 Watt

peak power handling

• Heavy duty crossover network

for driver protection and EQ

• Lightweight trapezoidal

enclosure

• 90˚ x 40˚ coverage constant

directivity horn for better off-

axis tonality

• High quality, heavy duty carpet

covering

• Steel handle

• Rugged dado and rabbet

construction for lightweight-

yet-strong joints

• T-Nut speaker mounting

• Heavy duty, full-length steel

grille

• Pole mount included

SPECIFICATIONS PV® 15M

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100

110

dB SPL (re 20 Pa)

Amplitude Response (1W 1m On-Axis)

Figure 1

SPECIFICATIONS PV® 15M

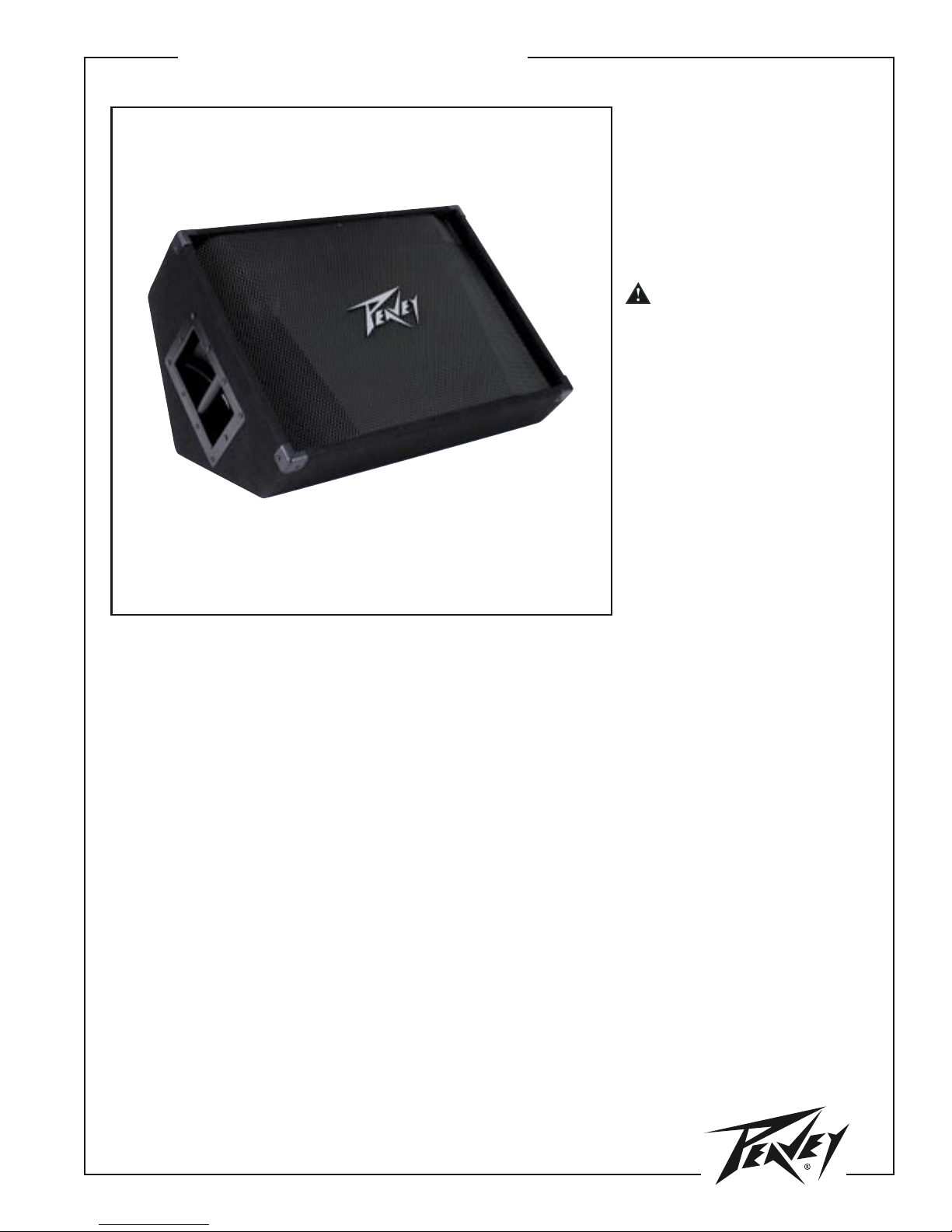

Description

The PV 15M is a two-way floor

monitor utilizing a Pro 1500+

woofer and a 14XT titanium

diaphragm dynamic compression

driver mounted on a 90˚ x 40˚

coverage constant-directivity

horn. This lightweight-yet-rugged,

carpet-covered monitor enclosure

with stand-mount cup facilitates

portable use as a stage monitor

or other sound reinforcement

applications. The dual-angle

enclosure provides a choice of 30˚

and 45˚ monitoring angles for full

monitoring utility. A full-length,

black powder-coated steel grille

provides driver protection and a

professional appearance.

The PV 15M speaker system is

rated at 500 Watts program power

handling, and the full crossover

network includes high voltage film

capacitors and Sound Guard™

IV tweeter protection for clear,

punchy sound and excellent long-

term reliability. Two 1/4" phone

jack input connectors make hook-

up and daisy-chaining to other

monitors a breeze.

3 + 2 YEAR LIMITED WARRANTY

NOTE: For details, refer to the

warranty statement. Copies of

this statement may be obtained

by contacting Peavey Electronics

Corporation, P.O. Box 2898,

Meridian, Mississippi 39301-

2898.

EX000035
