Loudspeaker System

Lark 10 Lark 18S

www.peavey.com.cn

User Guide

ENGLISH

Lark 10

FEATURES

• 1 10" × neodymium magnet woofer, front loaded, bass reflex

• 800W continuous, 3200W peak power handling

• 100° H 15° V coverage pattern (per one cabinet)×

• Easy aiming angle adjustment rigging system

• Angle adjustable in 1 degree increments from 0 to 10 degrees

• Inputs are two Neutrik Speakon 4-pin jacks in parallel

• 25 15mm birch plywood constructionmm+

• 2.5-way Passive Line Array System

SPECIFICATIONS

Peavey Lark 10 is a compact full-range loudspeaker module, designed as part of an array loudspeaker system, consisting of a

10" woofer, a 10" mid-woofer and a 3" tweeter loaded with a waveguide horn. Designed to provide modular coverage of small to medium

venues Lark 10and intended for use with the companion Lark 18S sub, the offers extreme versatility and high performance.

The adjustable rigging system provides for a classic straight line array configuration, or a number of different angling

options, providing easy aiming of the system. Angles between the array modules is adjustable from 0˚ (straight), to 10˚ in 1˚

increments. Total maximum angle between two cabinets is 10˚.

Quick release pins are supplied with the rigging hardware to couple the modules together and set the angles Lark 10

between them for quick and easy field adjustments or re-configurations of a line array.

• 1 3 neodymium magnet compression driver, waveguide horn× "

•

• Product model: Lark 10

• System type: 2.5 way full range

• Powered: No

• Acoustic design: Front Loaded, bass reflex

• Crossover type: Passive

• HF section: 3"×1, Titanium, neodymium

• MLF section: 10"×1, Carbon fiber, neodymium

• LF section: 10"×1, Carbon fiber, neodymium

• Frequency response: 60Hz~19KHz (-3dB)

• Frequency range: 50Hz~20KHz (-10dB)

• Coverage: 100°×15° (H×V)

• Max SPL: 133dB (continuous), 139dB (peak)

• Power Handling: 800W (continuous), 3200W (peak)

• Nominal impedance: 8Ω

• Matching amplifier: Lark2400 (Input sensitivity 1.0V, limiter threshold -1dBu)

• Signal input: Speakon NL4×2, 1+1-

• Installation: D10 lock pin×5

• Finish: Black, matte texture

• Cabinet material: 25mm+15mm birch plywood

• Certification: CE

• Product Dimensions: height 301, width 822, depth 473 (mm)

• Package Dimensions: height 880, width 515, depth 375 (mm)

• Net weight: 30.1kg (66.4lbs)

Product type: Loudspeaker system

• 1 10" × neodymium magnet mid-woofer, front loaded, bass reflex

SPECIFICATIONS

FEATURES

• 800W continuous, 3200W peak power handling

• Inputs are two Neutrik Speakon 4-pin jacks in parallel

• 18mm birch plywood construction

• 1x18" neodymium magnet woofer

• Front loaded, bass reflex, compact design

• Ergonomic handles are designed on both sides

Lark 18S

Lark 18S has ample power reserve, even at high sound pressure level output still has a very high definition.

The Lark 18S cabinet is designed with a highly flexible rigging system. Multiple Lark 18S can be stacked or hung in

combination, and it can also be directly stacked or hung in combination with Lark 10. Lark 18S can provide low-frequency

Peavey Lark 18S is a powerful subwoofer system. The compact box is loaded with a high-power 18" NdFeB magnet woofer.

•

• Product model: Lark 18S

• System type: Subwoofer

• Powered: No

• Acoustic design: Front Loaded, bass reflex

• Crossover type: Active

• LF section: 18"×1, paper cone, neodymium

• Frequency response: 35Hz~300Hz (-3dB)

• Frequency range: 25Hz~350Hz (-10dB)

• Coverage: Omni

• Max SPL: 128dB (continuous), 134dB (peak)

• Power Handling: 800W (continuous), 3200W (peak)

• Nominal impedance: 8Ω

• Matching amplifier: Lark2400 (Input sensitivity 1.0V, limiter threshold +1dBu)

• Signal input: Speakon NL4×2, 1+1-

• Installation: D10 lock pin×6, M20

• Finish: Black, matte texture

• Cabinet material: 18mm birch plywood

• Certification: CE

• Product Dimensions: height 504, width 822, depth 660 (mm)

• Package Dimensions: height 560, width 900, depth 730 (mm)

• Net weight: 51.1kg (112.7lbs)

Product type: Loudspeaker system

extension and enhancement for any full-range speaker system. When Lark 10 is paired with Lark 18S, it can form a

powerful full-range speaker system, which is competent for the main system of small and medium-sized indoor and

outdoor venues, or the subsystem of large indoor and outdoor venues.

Rigging Instructions

NOTE: Before you fly the array, be sure to inspect the rigging and flying hardware to insure that it is mechanically

sound and has not been damaged, there should be no significant distortion of the shape of the coupling brackets,

cabinet brackets, Halo or fly bar, and the hardware should be checked for tightness.

This PEAVEY loudspeaker should be suspended overhead only in accordance with the procedures and

limitations specified in the User’s Manual and possible manual update notices. This system should be

suspended with certified rigging hardware by an authorized rigging professional and in compliance with local,

provincial or national suspension ordinances. ALWAYS USE PROPER GRADE HARDWARE.

CAUTION: Before attempting to suspend this speaker, consult with a certified structural engineer. Speaker

can fall from improper suspension, resulting in serious injury and property damage. Use only the correct

mating hardware. All associated rigging is the responsibility of others. Maximum enclosure angle 30 degrees.

Failure to follow proper rigging specifications listed in the manual may result in injury or death.

Whenever possible, in addition to the nominal primary mounting method, use a suitable safety chain or wire rope

attached to one of the other groups of fly points, and firmly attached to a suitable structural member as indicated

by a certified structural engineer. CAUTION: ALWAYS USE SAFETY CHAIN OR WIRE ROPE.

IF ANY OF THE RIGGING, OR THE HALO OR FLY BAR HAS BEEN DAMAGED OR DISTORTED,

DO NOT USE, AND DO NOT FLY THE ARRAY UNTIL THEY CAN BE REPLACED OR REPAIRED!

DO NOT USE THE PIVOT BAR OR ANGLE SLIDER BRACKET AS HANDLES TO TRANSPORT THE CABINETS!

DO NOT TRANSPORT THE CABINETS IN ARRAY CONFIGURATION COUPLED TOGETHER,

EXCEPT WITH THE RECOMMENDED TRANSPORT CART AND IN THE STIPULATED MANNER

FOR THAT CART. TRANSPORT IN SUCH AN UNAPPROVED MANNER VOIDS THE WARRANTY, AND

THE SYSTEM WOULD BE CONSIDERED UNSAFE TO BE FLOWN AFTER SUCH AN UNAPPROVED

TRANSPORT EVENT.

Use only the correct mating hardware. All associated rigging is the responsibility of others.

Correct use and seating of the Quick Release Push Lock Pins Used with all LARK rigging hardware.

When using the Quick Release Positive Lock Pins, when the Quick Release Push Lock Pins are inserted, they

should be fully seated, so that the black shoulder near the end of the pin has been placed flush with the side of

the bracket, or as far in as the pin hole cavity will allow it to be inserted.

You will have to fully depress the center push-button to do this.

You should not be able to pull these pins out unless the center push-button is fully depressed.

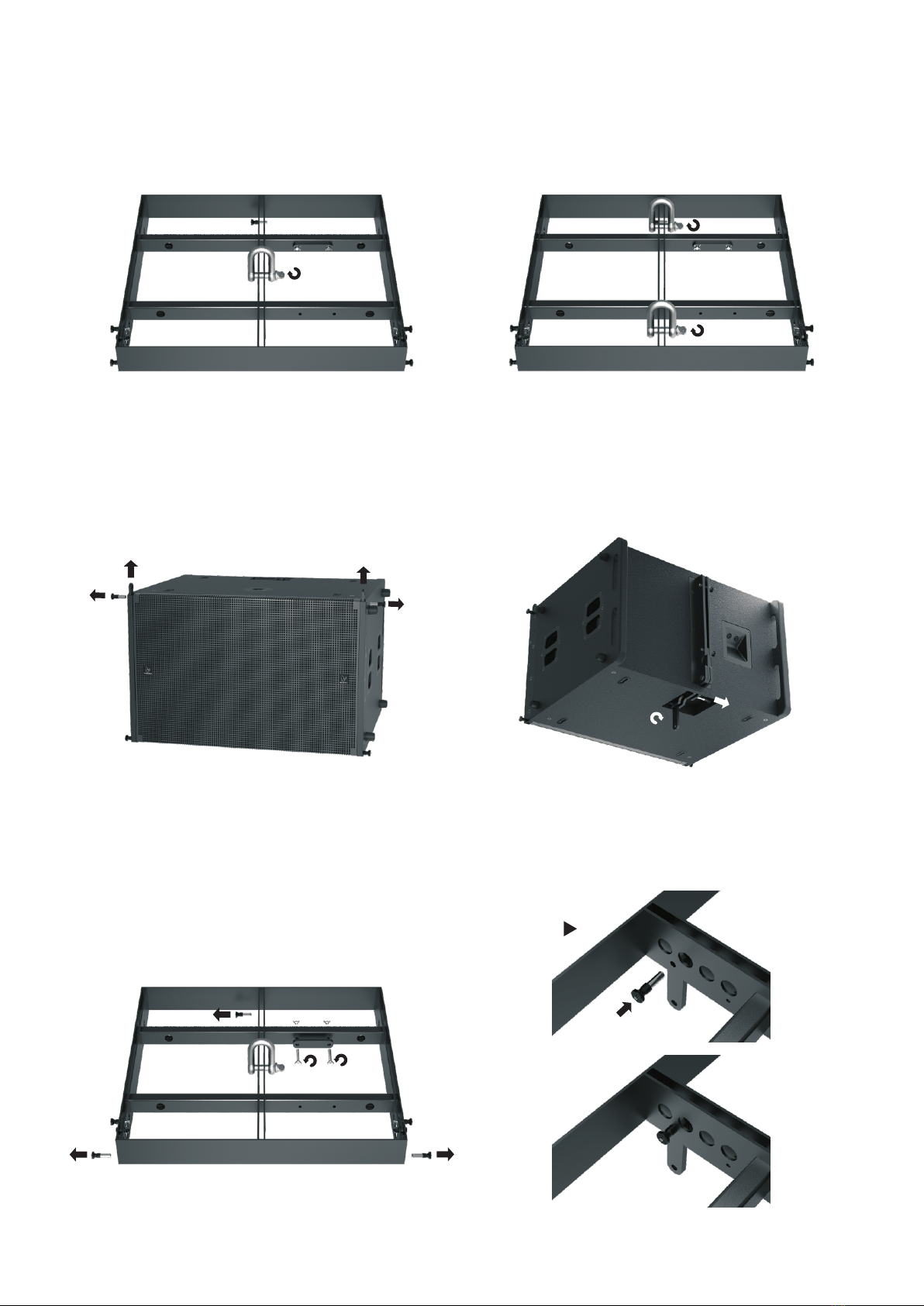

INSTALLATION DIAGRAM OF LARK LINEAR ARRAY SPEAKER SYSTEM

Installation method of the shackle (Two ways to fix the shackle according to practical application).

1. Array frame

2. Pull out the pins on both sides of the subwoofer and press the front link out.

3. Installation of array frame and subwoofer

Figure 1: one-point flying Figure 2: two-point flying

Pull out the rear pins to take out the rear link so that it is vertical.

Take out the front pin of the array frame, take out the independent rear connecting rod,

and install it to the corresponding position.

Install

rear link

Array frame connected to subwoofer.

4. Pull out the pins on both sides of the full frequency audio and press the front link to eject it.

Front

Connection

Point

Pull out the rear pins to take out the rear link so that it is vertical.

5. Connect two or more speakers.

Rear Connection PointFront Connection Point

Rear

Connection

Point

Connect all the other speakers following

the same procedure

Full frequency speaker

rear suspension angle

6. Connect the subwoofer to the full-range speakers.

Rear link

Hanging Hole

Recovery

0°

2°

4°

6°

8°

10° / Recovery

1°

3°

5°

7°

9°

Front Connection Point

Installation is complete

Rear Connection Point

Schematic diagram of rear suspension

connection between subwoofer and

full-range loudspeaker

INFORMATION ON THE FLYING HARDWARE FOR THE

LARK Halo (Available Separately)

CAUTION ! Before attempting to suspend any LARK Rigging Hardware with or without speakers

hung from it, consult a certified structural engineer. The Halo/Fly Bar and/or speaker array can fall from

improper suspension, resulting in serious injury and property damage. Use only the correct mating hardware.

All associated rigging is the responsibility of others.

This PEAVEY loudspeaker should be suspended overhead only in accordance with the procedures and limitations

specified in the User’s Manual and possible manual update notices. This system should be suspended with

certified rigging hardware by an authorized rigging professional and in compliance with local, provincial or

national suspension ordinances.

Whenever possible, in addition to the nominal primary mounting method, use a suitable safety chain or wire rope

attached to one of the other groups of fly points, and firmly attached to a suitable structural member as indicated

by a certified structural engineer. CAUTION: ALWAYS USE SAFETY CHAIN OR WIRE ROPE.

Connects the Lark Sub speakers and to the overhead rigging.18S Lark 10

4x8mm quick locking pins are provided on the halo to suspend the Lark 18S Sub speakers.

SPECIFICATIONS

Halo Only Dimensions H x W x D:

3.54" x 32.28" x 27.56" (90mm x 820mm x 700mm)

Weight: 50.7lbs. / 23kg

Material: The whole halo is made of 3mm iron plate welded, the shape is in the shape of a field, and the middle of

halo is hollow.

Finish: Entire Halo is flat black powder coated paint finish.

Working Load Limit: 300 kg / 661 lbs. for Ultimate Strength Design Factor of 10:1

(This meets PLASA North America criteria and typically exceeds local USA safety requirements.)

Working Load Limit: 250kg / 551 lbs. for Ultimate Strength Design Factor of 12:1

(This is in compliance with the European Union mandated Safety Factor)

Maximum Number of Lark cabinets: 518S

(Note: Sub cabinets do NOT articulate or angle, they must be hung at a zero degree angle.)Lark 18S

Can fly up to 5 , or 10 . Lark 18S Lark 10

770

700

820

CAUTIONS

WARNING !

IMPORTANT INFORMATION FOR STRUCTURAL ENGINEER AND RIGGING PERSONNEL.

Before you fly the array, be sure to inspect the rigging and flying hardware to insure that it is mechanically sound

and has not been damaged. There should be no significant distortion of the shape of the Halo coupling ears,

cabinet straps, Angle Slider bracket or Rail, Pivot Bar or a fly bar, and the hardware should be checked for tightness.

CAUTIONS:

IF ANY OF THE BRACKETS, RAILS, CABINET STRAPS, PIVOT BAR OR THE FLY BAR HAS BEEN DAMAGED OR

DISTORTED, DO NOT USE, AND DO NOT FLY THE ARRAY UNTIL THEY CAN BE REPLACED OR REPAIRED!

DO NOT USE THE PIVOT BARS AS HANDLES TO TRANSPORT THE CABINETS!

Maximum Combined Number of Lark 10 and cabinets:Lark 18S

MIX OF Lark 18S VERSUS Lark 10

Lark 18S Lark 10

NOTES:

The ultimate strength for the loudspeaker system rigging hardware was determined utilizing calibrated and Lark 10

certified pull tests.

More complete information on the Peavey Rigging System and the Halo can be found in the unit’s Owner’s Lark 10

manual, or by contacting Peavey

Design and specifications subject to change without notice.
