A

Intended

to

alert

the

user

to

the

presence

of

uninsulated

"dangerous

voltage"

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

A

Intended

to

alert

the

user

of

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompanying

the

product.

CAUTION:

Risk

of

electrical

shock

DO

NOT

OPEN!

CAUTION:

To

reduce

the

risk

of

electric

shock,

do

not

remove

cover.

No

user

serviceable

parts

inside.

Refer

servicing

to

qualified

service

personnel.

WARNING:

To

prevent

electrical

shock

or

fire

hazard,

do

not

expose

this

appliance

to

rain

or

moisture.

Before

using

this

appliance,

read

the

operating

guide

for

further

warnings.

Peavey

Electronics

is

proud

to

announce

the

introduction

of

a

new

line

of

exciting

Professional

Power

Amplifi¬

ers.

The

new

VX

™

series

is

the

result

of

years

of

research

&

development

into

a

smaller,

lighter,

compact

and

more

powerful

amplifier.

These

units

operate

much

more

efficiently

than

contemporary

power

amp

designs

thereby

requiring

less

current

from

the

mains

power

plug

and

consequently

produce

far

less

heating.

This

new

technology

allows

the

VX-1.5K

to

reliably

produce

more

than

1500

W

RMS

into

4

ohms

(Bridge

Mode)

in

a

two

rack

space

unit,

at

extremely

low

distortion

levels.

These

new

designs

use

a

new

class

of

operation

called

CLASS

BG.

This

class

uses

two

levels

of

power

supply

“rails,’'

but

switches

between

the

rails

faster

and

at

lower

distortion

levels

than

does

a

typical

Class

G

design.

This

unit

then

combines

higher

efficiency

and

lower

distortion,

and

together

with

our

all

new

Non-saturating

Series

Single

Emitter

Resistor

topology

(NSSER),

provides

awesome

performance

levels

with

full

power

20

kHz

distortion

below

0.04%,

and

with

slew

rates

greater

than

40

V/uSec.

This

technology

is

called

DYNAMIC

LOGIC

and

is

covered

by

a

U.S.

Patent

(Pending).

The

following

is

the

new

VX-1.5K

specs:

550

W

RMS

into

4

ohms;

750

W

RMS

into

2

ohms

(per

channel)

1100

W

RMS

into

8

ohms;

1500

W

RMS

into

4

ohms

(bridge

mode)

Slew-

Rate:

40

V/microsecond.

stereo

mode,

each

channel

Frequency

Response:

20

Hz

-

20

kHz,

+-0.2

dB.

at

rated

power

Total

Harmonic

Distortion:

Less

than

0.04%,

at

rated

power

Hum

and

Noise:

100

dB

below

rated

power,

unweighted

The

unit

is

attractively

packaged

in

a

rugged,

rack-mountable

configuration

requiring

only

two

rack

spaces.

Naturally

it

has

Peavey's

patented

DDT

™

Compression

Circuitry,

and

has

a

very

flexible

back

panel.

The

design

uses

dual

two

speed

fan

cooling

to

provide

all

the

cooling

necessary

for

the

two

ohm

load

conditions.

FEATURES

•

19"

rack-mountable

design

requiring

two

rack

spaces

•

Automatic

two-speed

dual

fan

cooling

system

•

Separate

power

transformers/circuit

breakers

for

each

channel

•

Independent

channel

thermal/fault

protection

•

DDT

activation

LED

and

power

LED

each

channel

•

Calibrated/detented

input

attenuator

controls

each

channel

•

Two

recessed

balanced

input

transformer

sockets

for

PL-2’s

•

Single

XLR

and

dual

phone

plug

inputs

each

channel

•

XLR

input

can

be

transformer

balanced

•

Dual

phone

plug

and

5

way

binding

post

outputs

each

channel

•

Rear

panel

DDT

defeat,

mode

select

and

ground

lift

switches

CWNNtl

A

'

WPUTSFNSirulTV

'1

p/*’

♦

KNVHO

CO

o

c

v

—J

—

_Jgy

INPUT

SENSITIVITY

'

DYNAMIC

LOGIC

r

*

a

1

fit

O

P

O

W

L

R

A

M

P

L

1

1'

(

L

n

wot

IfiU

SA

■

•

BESE!

A

O

POWER

1

RESET

B

OQI

WWtfl

■

■

■

V

V

1

1

1

___

CHANNEL

3

W

r

♦

N

©

©

©

©

©

©

®

©

©

FRONT

PANEL

INPUT

SENSITIVITY

(1)

The

maximum

input

gain

(minimum

sensitivity

rating)

is

achieved

at

the

full

clockwise

setting,

and

this

setting

yields

the

maximum

mixer/system

headroom.

A

setting

of

less

than

full

clockwise

will

yield

lower

system

noise

at

the

expense

of

mixer/system

headroom.

Calibration

indicates

sensitivity

in

dBV

necessary

to

attain

the

full

available

rated

output

power.

POWER

LED

(2)

Illuminates

when

AC

power

is

being

supplied

to

the

amp,

and

the

associated

channel

is

operational.

If

either

channel

were

to

experience

fault

conditions

or

to

exceed

the

safe

operating

temperature

limits,

then

that

channel

will

shut

down,

and

the

associated

power

LED

will

cease

to

illuminate,

indicating

such

conditions

exist.

Also,

whenever

the

BRIDGE

mode

is

selected,

the

power

LED

of

channel

B

is

defeated

(OFF),

just

as

if

there

were

a

fault

condition

on

channel

B.

This

provides

a

positive

indication

that

the

VX-1.5K

is

configured

for

bridge

mode.

DDT

ACTIVE

LED

(3)

Illuminates

when

DDT

Compression

is

taking

place

in

that

channel.

With

the

ENABLE/DEFEAT

switch

in

the

DEFEAT

position,

this

LED

indicates

when

clipping

distortion

is

occurring

in

that

channel.

CIRCUIT

BREAKERS

(4)

The

VX-1.5K

uses

circuit

breakers

in

place

of

main

fuses.

These

breakers

arc

provided

to

limit

the

current

to

the

associated

power

transformer

for

each

channel,

and

thereby

offer

protection

from

overheating

and

possible

destruction

due

to

fault

conditions

in

the

amplifier.

The.

breaker

trip

current

value

has

been

carefully

chosen

to

allow

continuous

power

output

performance,

yet

still

provide

adequate

protection

for

the

power

transformer.

Normally

these

breakers

should

not

trip

unless

there

is

a

fault

in

the

amp

circuitry

that

draws

excessive

mains

current.

However,

abnormal

conditions

such

as

a

short

circuit

on

either

or

both

channels

or

continuous

operation

at

overload

or

clipping,

especially

into

2

ohm

load

will

cause

the

breaker

to

trip.

If

this

occurs

simply

reset

the

breaker

and

correct

the

cause

of

the

overload.

When

tripped,

the

button

on

the

breaker

will

be

outward

nearly

1/2",

and

can

be

reset

by

pushing

inward.

A

normal

reset

button

length

is

about

1/4".

If

this

‘‘thermal"

type

breaker

does

trip,

then

simply

pushing

the

button

back

in

will

reset

it

after

waiting

a

brief

period

of

time

to

allow

it

to

cool

down.

If

the

breaker

trips

instantly

each

time

you

attempt

to

reset

it.

then

the

unit

should

be

taken

to

a

qualified

service

center

for

repair.

POWER

SWITCH

(5)

Depress

to

T

position

to

turn

on.

.;ft’.2

0it*e«;vuvs

ef'EAXEO

JACKS

-.'R'LUIEO

OANU61S

/

a

PCAVtV

El

EC.

cccr

MlttlUAh

ns

#

©

©

#

1

;,>

V/'C

CO

ill

lVKiflUIS

m

©

©

•

in

built

uriccn

uc

Mi&n

no

isiaora

BACK

PANEL

HIGH

Z

INPUT

JACKS

(6)

Two

parallel

(bridged)

input

jacks

are

provided

for

each

channel.

This

allows

for

one

to

be

used

as

a

conven¬

tional

input,

and

at

the

same

time

the

other

to

be

used

as

a

“line

out”

(Y-cord)

to

connect

to

another

input

jack

on

this

amplifier

or

other

amps/equipment.

These

1/4"

jacks

are

not

“chassis

grounded”

and

when

used

will

provide

a

QUASI-BALANCED

input

capability

due

to

a

unique

“ground

loop”

elimination

circuitry

associated

with

the

inputs.

This

feature

will

normally

allow

"hum

free”

operation

when

relatively

short

1/4"

cable

patches

are

made

between

the

various

jacks

on

this

amp

and

other

jacks

on

various

other

equipment

that

share

the

same

rack

with

this

amplifier.

This

QUASI-BALANCED

capability

is

automatic

and

it

can

not

be

removed

from

the

system’s

circuitry.

LOW

Z

INPUT

(7)

A

conventional

three-pin,

female

XLR

input

jack

is

provided

and

may

be

used

as

the

channel

input.

When

the

(PL-2)

line

balancing

transformer

is

not

used

this

XLR

input

becomes

QUASI-BALANCED

with

pin

#3

as

the

positive

input

(connecting

to

the

tip

of

the

1/4"

input

jacks

above),

pin

#2

as

the

negative

input

(connecting

to

the

floating

sleeve

of

the

1/4"

input

jacks

above),

and

pin

#1

going

to

the

internal

power

amplifier

ground.

When

the

(PL-2)

line

balancing

transformer

is

used,

this

XLR

input

becomes

fully

TRANSFORMER-BALANCED

(Pin

#3

positive,

pin

#2

negative,

pin

#1

ground).

(See

the

PL-2

SELECTOR

SWITCH

section

for

details

on

related

settings.)

PL-2

SELECTOR

SWITCH

(8)

This

switch

is

used

in

conjunction

with

the

PL-2

transformer

to

allow

the

LOW

Z

INPUT

to

function

with

or

without

a

PL-2

module

being

inserted

in

the

receptacle.

The

“OUT”

position

of

this

switch

selects

the

QUASI-BALANCED

mode

of

operation

for

the

LOW

Z

INPUT

(XLR

jack),

and

routes

the

input

signal

directly

to

the

HI

Z

INPUT

JACKS.

In

this

position

the

HI

Z

INPUT

JACKS

may

be

used

as

outputs

after

the

LOW

Z

INPUT

to

allow

patching

this

signal

to

another

input

on

this

amp.

Normally,

in

this

switch

position,

a

(PL-2)

transformer

is

not

present

(“OUT”)

in

the

transformer

receptacle;

however,

if

one

were

“IN”

the

receptacle,

the

LOW

Z

INPUT

would

still

be

QUASI-BALANCED.

It

becomes

fully

TRANSFORMER

BALANCED

only

when

the

IN

switch

position

is

selected.

Notice

this

is

a

very

effective

means

to

“test”

for

the

necessity

of

a

line-balancing

transformer.

The

“IN”

position

of

the

switch

routes

the

signals

from

the

XLR

jack

through

the

(PL-2)

line-balancing

transformer,

thereby

selecting

the

TRANSFORMER

BALANCED

mode

of

operation

for

the

LOW

Z

INPUT.

In

this

position

the

HI

Z

INPUT

JACKS

may

be

used

as

outputs

after

the

line

balancing

transformer

to

patch

the

signal

to

another

input

jack

on

this

amplifier

or

other

amps/equipment.

If

die

“IN”

position

is

selected

without

a

(PL-2)

line-balancing

transformer

“IN"

the

receptacle,

the

LOW

Z

INPUT

will

be

rendered

inoperable.

TRANSFORMER

RECEPTACLE

(9)

This

receptacle

only

receives

the

optional

(PL-2)

line-balancing

transformer.

When

conditions

exist

that

demand

the

usage

of

a

TRANSFORMER-BALANCED

XLR

INPUT

for

ei

I

her

or

both

channels,

then

the

(PL-2)

trans¬

former

must

be

put

here,

and

the

selector

switch

must

be

in

the

“IN"

position.

DDT

SWITCH

(10)

This

switch

is

used

to

either

ENABLE

or

DEFEAT

the

DDT

compressor.

DDT

function

will

be

covered

in

more

detail

later

in

this

manual.

MODE

SWITCH

(11)

This

switch

is

used

to

select

either

STEREO

or

BRIDGE

mode

operation.

When

BRIDGE

mode

is

selected,

the

channel

B

LED

power

indicator

will

go

out

indicating

bridge

mode

has

been

selected.

Accidental

selection

of

this

mode

could

damage

loudspeakers.

The

BRIDGE

mode

will

be

covered

in

more

detail

later

in

this

manual.

SPEAKER

OUTPUTS

(12)

Two

1/4"

jacks

and

5

way

binding

post

speaker

output

terminals

are

provided.

All

these

outputs

are

in

parallel,

hence

the

speaker

connection

cables

can

be

terminated

with

1/4"

phone

plugs,

banana

plugs,

or

stripped

wires

for

use

in

the

binding

post

terminals.

For

sustained

high

power

applications,

the

use

of

the

binding

post

terminals

are

recommended;

however,

care

must

be

exercised

to

assure

correct

speaker

phasing.

Regardless

of

what

connec¬

tions

are

used,

the

typical

parallel

speaker

load

should

always

be

limited

to

2

ohms

per

channel

or

4

ohms

BRIDGE

mode

for

any

application.

Operation

at

loads

of

4

ohms

per

channel

or

8

ohms

BRIDGE

mode

is

more

desirable

for

sustained

operation

applications

due

to

the

fact

that

the

amplifier

will

run

much

cooler

at

this

load.

Operation

above

4

ohms

per

channel

and

even

open

circuit

conditions

can

always

be

considered

safe;

however,

any

sustained

operation

at

loads

below

2

ohms

could

result

in

temporary

channel

shut

down

due

to

the

thermal

limits

and/or

the

amp

fault

circuits.

MAINS

POWER

SOURCE

(120V

products

only)

(13)

The

VX-1.5K

is

filled

with

a

single

heavy

duty

#14

AWG

three

conductor

line

cord

and

a

conventional

AC

plug

with

a

large

ground

pin.

It

should

be

connected

to

an

independent

mains

circuit

capable

of

supporting

at

least

15

AMPS

continuously

or

greater.

This

is

particularly

critical

for

sustained

high

power

operation.

If

the

socket

used

does

not

have

a

ground

pin,

a

suitable

ground

lift

adaptor

should

be

used

and

the

third

wire

grounded

properly.

Never

break

off

the

ground

pin

on

the

VX-1.5K

power

amplifier.

The

use

of

extension

cords

should

be

avoided,

but

if

necessary,

always

use

a

three-wire

type

with

at

least

a

#14

AWG

wire

size.

The

use

of

lighter

wire

will

severely

limit

the

power

capability

of

this

amplifier.

Always

use

a

qualified

electrician

to

install

any

necessary

electrical

equipment.

To

prevent

the

risk

of

shock

or

fire

hazard,

always

be

sure

that

the

amp

is

properly

grounded.

GROUND

LIFT

SWITCH

(14)

This

switch

is

used

to

disconnect

the

VX-1.5K's

“signal

ground”

(both

input

and

output)

from

the

“chassis

ground."

Chassis

ground

is

the

chassis

itself,

which

is

electrically

grounded

through

the

rack

mounting

screws

to

the

external

rack

system

and

through

the

mains

line

cord

via

the

large

ground

pin

to

the

mains

ground.

It

is

often

advantageous

to

“lift"

the

signal

ground

from

chassis

ground

to

eliminate

a

“ground

loop"

which

has

caused

unwanted

ground

current

in

the

signal

cables

between

the

external

preamp

and

this

power

amplifier.

Such

conditions

can

create

excessive

hum

levels

in

the

power

amplifier

output

and

render

the

system

useless

in

low

level

applications.

In

this

case

"lifting"

the

ground

should

solve

this

hum

problem.

Ground

lift

is

selected

when

the

switch

is

in

the

right

or

“LIFT"

position.

If

lifting

the

ground

does

not

eliminate

a

particular

hum

problem,

then

we

recommend

you

defeat

the

ground

lift

feature.

Please

note

that

using

this

ground

lift

feature

still

leaves

the

chassis

itself

grounded

electrically

through

the

mains

line

cord.

Having

the

chassis

grounded

avoids

any

possibility

of

an

electrical

shock

or

a

fire

hazard.

This

ground

lift

feature

should

never

be

confused

with

the

practice

of

"floating"

the

large

ground

pin

at

the

AC

mains

receptacle

to

eliminate

a

ground

loop.

Floating

the

ground

pin

on

any

electrical

equipment

is

just

asking

for

trouble!!!

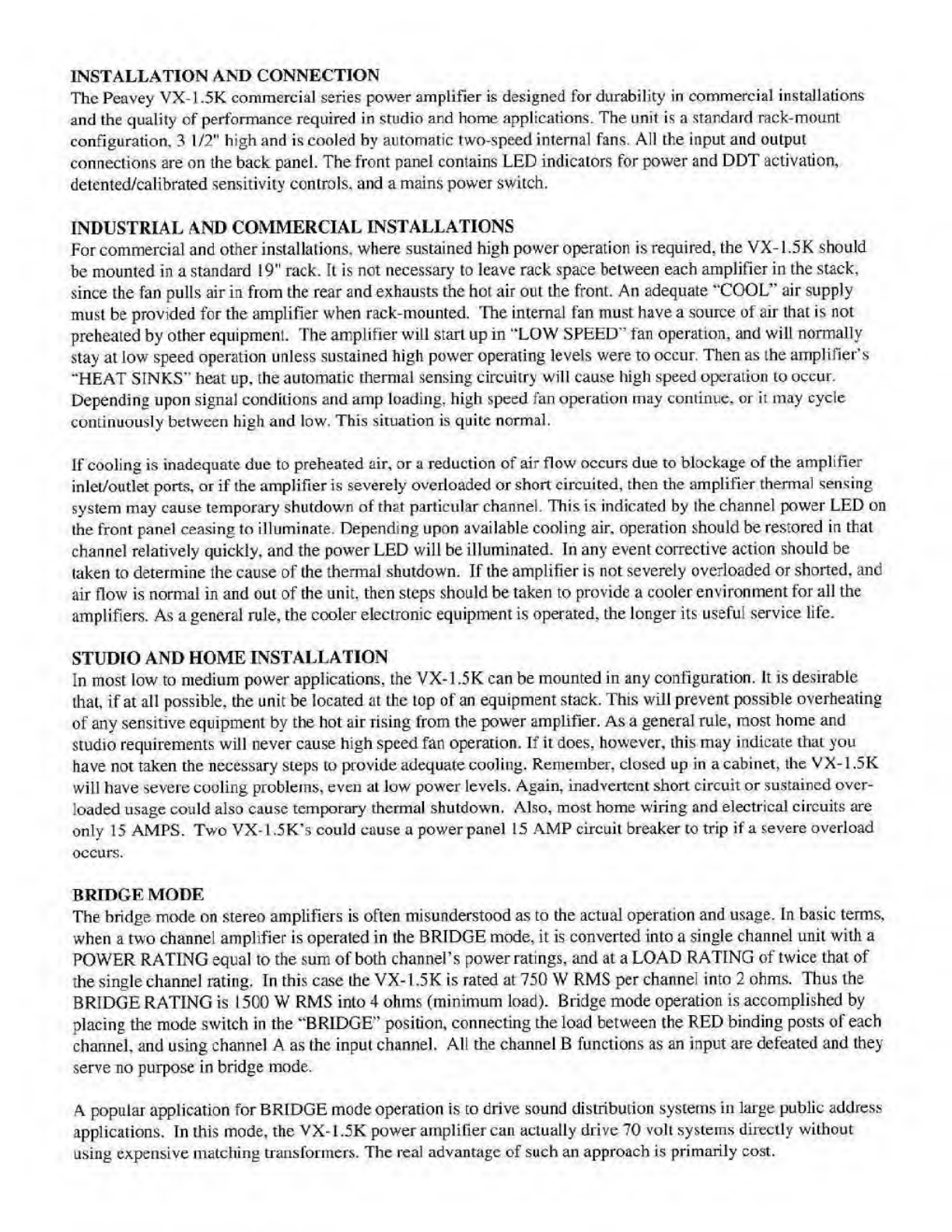

INSTALLATION

AND

CONNECTION

The

Peavey

VX-1.5K

commercial

series

power

amplifier

is

designed

for

durability

in

commercial

installations

and

the

quality

of

performance

required

in

studio

and

home

applications.

The

unit

is

a

standard

rack-mount

configuration.

3

1/2"

high

and

is

cooled

hv

automatic

two-speed

internal

fans.

All

the

input

and

output

connections

are

on

the

back,

panel.

The

front

panel

contains

LED

indicators

for

power

and

DDT

activation,

detented/calibrated

sensitivity

controls,

and

a

mains

power

switch.

INDUSTRIAL

AND

COMMERCIAL

INSTALLATIONS

For

commercial

and

other

installations,

where

sustained

high

power

operation

is

required,

the

VX-1.5K

should

be

mounted

in

a

standard

19"

rack.

It

is

not

necessary

to

leave

rack

space

between

each

amplifier

in

the

stack,

since

the

fan

pulls

air

in

from

the

rear

and

exhausts

the

hot

air

out

the

front.

An

adequate

‘'COOL"

air

supply

must

be

provided

for

the

amplifier

when

rack-mounted.

The

internal

fan

must

have

a

source

of

air

that

is

not

preheated

by

other

equipment.

The

amplifier

will

start

up

in

‘LOW

SPEED"

fan

operation,

and

will

normally

stay

at

low

speed

operation

unless

sustained

high

power

operating

levels

were

to

occur.

Then

as

the

amplifier's

"HEAT

SINKS"

heat

up.

the

automatic

thermal

sensing

circuitry

will

cause

high

speed

operation

to

occur.

Depending

upon

signal

conditions

and

amp

loading,

high

speed

fan

operation

may

continue,

or

it

may

cycle

continuously

between

high

and

low.

This

situation

is

quite

normal.

If

cooling

is

inadequate

due

to

preheated

air,

or

a

reduction

of

air

flow

occurs

due

to

blockage

of

the

amplifier

inlel/outlet

ports,

or

if

the

amplifier

is

severely

overloaded

or

short

circuited,

then

the

amplifier

thermal

sensing

system

may

cause

temporary

shutdown

of

that

particular

channel.

This
