If you want PD-MV1007A to detect small zone, you can just adjust the sense sliding controller SENS to the
range that you need (You may need to adjust some times untill you think it is suitable).If you want that the light
can be turned on when the circumstance luminance is under some value, you can just adjust the sliding
controller LUX (The working luminance sliding controller) to select the luminance value (You may need to
adjust some times untill you think it is suitable).
S1 S2 S3 S4 S5 Time setting
00000 15min
10000 10min
010005min
001003min
000101min
000016sec
S6 S7 Detection range
1110m
108m
0
0 0
15m
2m
Time setting
Detection range setting (sensitivity)
The light can be set to stay ON for any period of time between approx. 6sec and a maximum of 15min. Any
movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time
for adjusting the detection zone and for performing the walk test.Pull switch to the ON position as "1", pull
switch to the OFF position as "0”, switch location and detection range of the corresponding table is as follows:

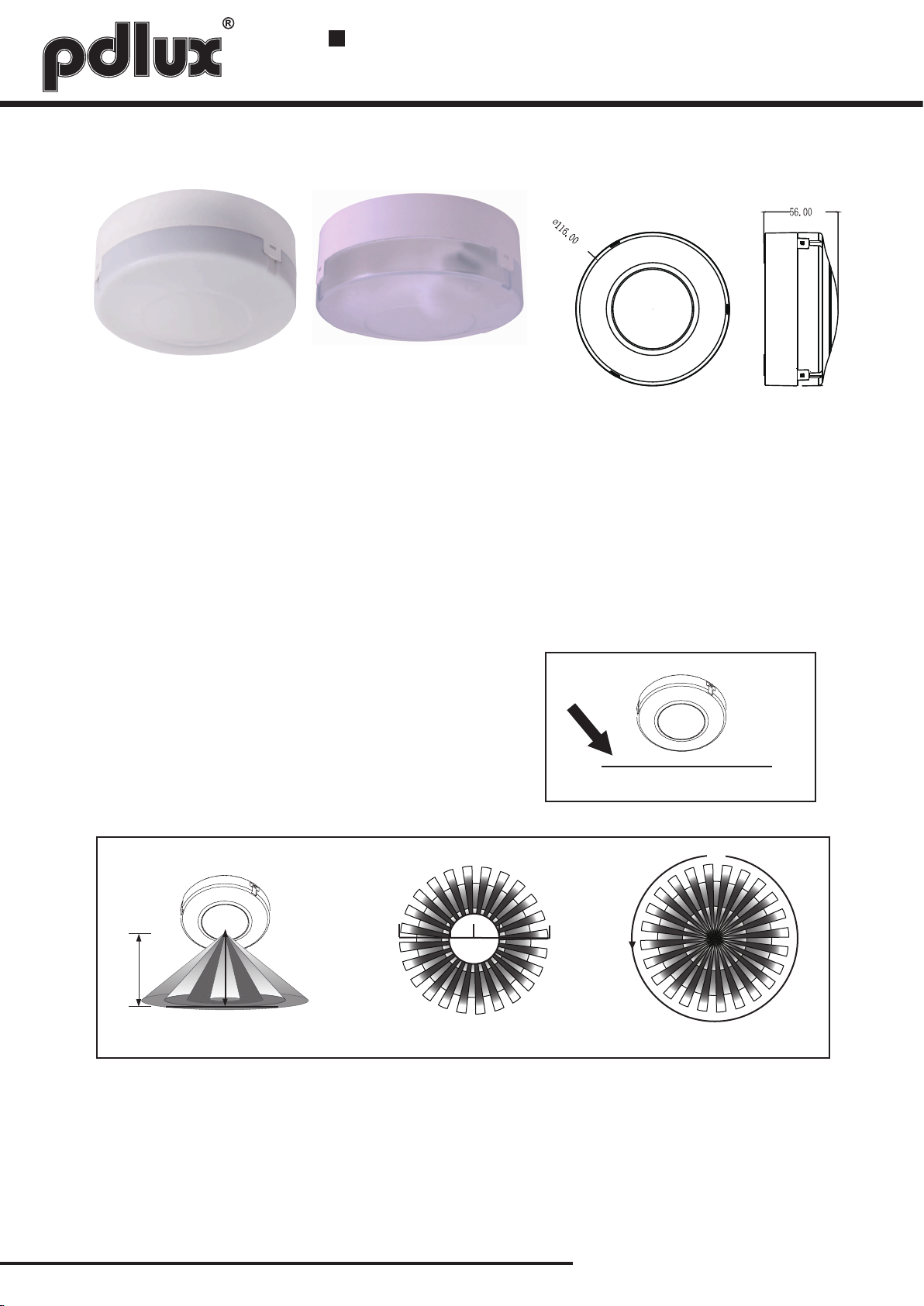

Detection range is the term used to describe the radii of the more or less circular detection zone produced on
the ground after mounting the sensor light at a height of 2.5m, pull switch to the ON position as "1", pull switch
to the OFF position as "0”, switch location and detection range of the corresponding table is as follows:
TIME:S1,S2,S3,S4,S5
SENS:S6,S7
ATTENTION:When use this product, please adjust the sensitivity to an appropriate position
you need, please do not adjust the sensitivity to maximum, to avoid the product does not
work normally caused by wrong motion.Because the sensitivity is too high easily detect the
wrong motion by wind blowing leaves & curtains, small animals, and the wrong motion by
interference of power grid & electrical equipment. All those lead the product does not work
normally !
When the product does not work normally, please try to lower the sensitivity appropriately,
and then test it.
1
0
1
0
Microwave Sensor
PD-MV1007A instruction
www.pdlux.com Tel: 86-574-83008608
It is mainly for the adjustment of the delay time from the moment the signal detected and light
auto-on till the light auto-off. You can define the delay time to your practical need. But you’d
better lower the delay time for the sake of energy saving, since the microwave sensor has the
function of continuous sensing, that is, any movement detected before the delay time
elapses will re-start the timer and the light will keep on only if there is human in the detection
range.
