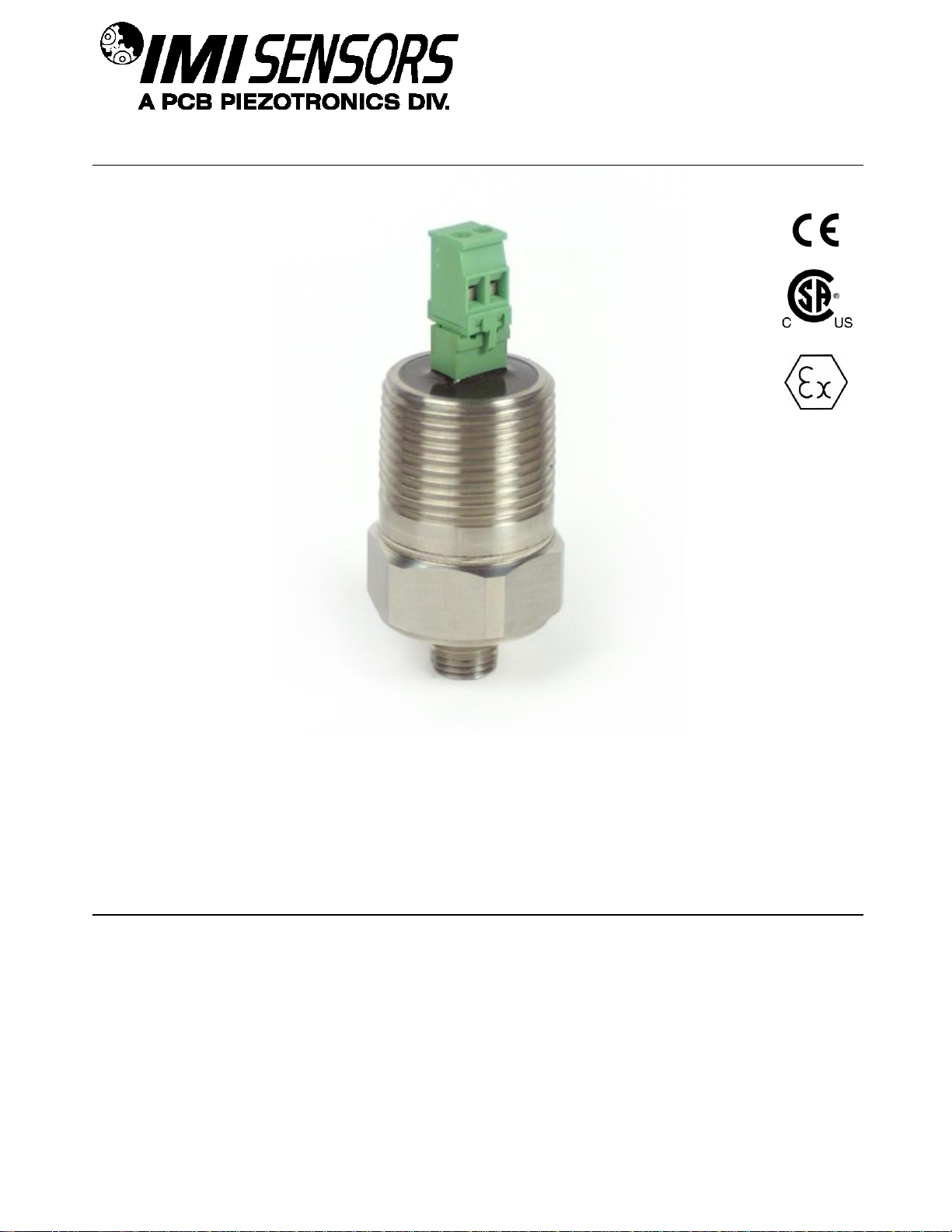

PCB Piezotronics IMI SENSORS 641B71 Manuel utilisateur

Model 641B71

4-20 mA Output Velocity Sensor

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to ensure that liquids are not permitted

to migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will ensure that your

returned materials are handled in the

most expedient manner. Before

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

Service, Repair, and Return

Policies and Instructions

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: D

ECN: 46162

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Model 640/641/645/646 B7 Series Industrial 4-20mA Sensor

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

MANUAL NUMBER: 28077

MANUAL REVISION: B

ECN NUMBER: 42851

PAGE 2

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Table of Contents

Introduction...................................................................................................................... Page 3

General Features

Dimension Drawing......................................................................................................... Page 4

Operation and Wiring ...................................................................................................... Page 5

Standard Wiring

Taking Measurements

RV Option

TO Option

EP Option

ESD Sensitivity............................................................................................................... Page 10

Warranty/Servicing

Warranty, Service & Return Procedure .......................................................................... Page 11

Customer Service........................................................................................................... Page 12

PAGE 3

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Introduction

The Model 640/641/645/646 B7 Series Industrial 4-20mA Sensors combine the capabilities of a piezoelectric

vibration sensor and a 4-20mA vibration transmitter. The sensor outputs a 4-20mA signal that is proportional to

the overall velocity or acceleration of the machinery. Ideal for monitoring the vibration of process equipment such

as fans, motors and pumps, the output of the sensor is used for process control or predictive maintenance. There

are many options in this series. Please refer to specific specification sheets for further details.

General Features

Imbedded Piezoelectric Accelerometer for improved accuracy and frequency response.

Vibration range can be in Acceleration or Velocity.

Allows for continuous vibration monitoring of critical applications.

Reduces sophisticated vibration analysis requirements.

RV (Raw Vibration) option for conducting frequency analysis and machinery diagnostics.

TO (Temperature Output) option via an independent 4-20mA loop.

EP option includes an Explosion Proof capped elbow.

Readily interfaces to existing process control and predictive maintenance equipment.

Rugged stainless steel construction for applications in harsh environments.

Flexible design allows for various custom requirements.

PAGE 4

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

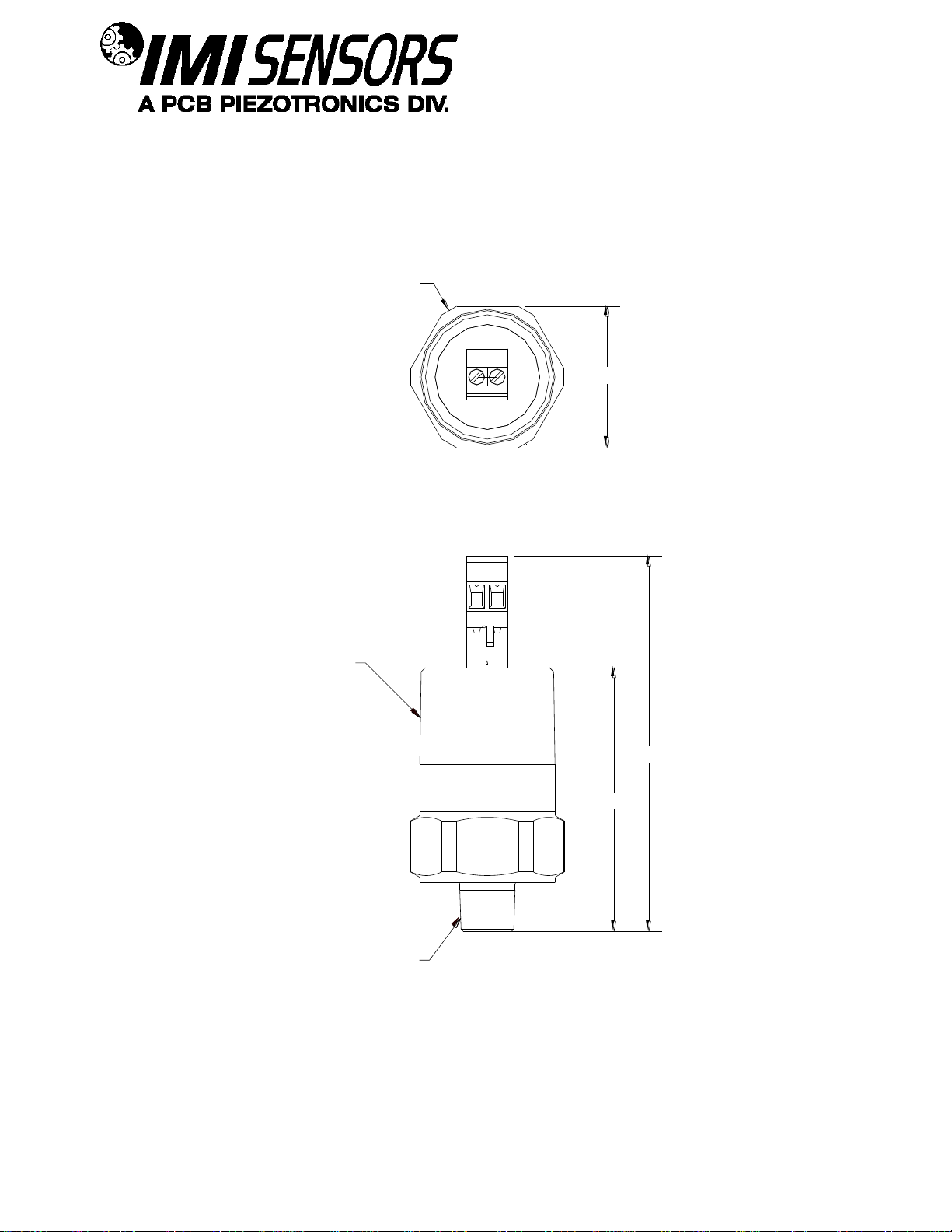

Dimension Drawing

Inch (mm)

1" NPT

2.57

1/4" NPT

MOUNTING THREAD

3.65

Ø1.500

1.375

PAGE 5

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Operation and Wiring

Standard Wiring

The Model 640/641/645/646 B7 Series uses plug-in type screw terminal connectors for all input and output

connections and operate from a standard 2-wire, 4-20mA loop. Attach the positive (+) input from the power supply

to Pin 2 and the negative (-) input from the power supply to Pin 3.

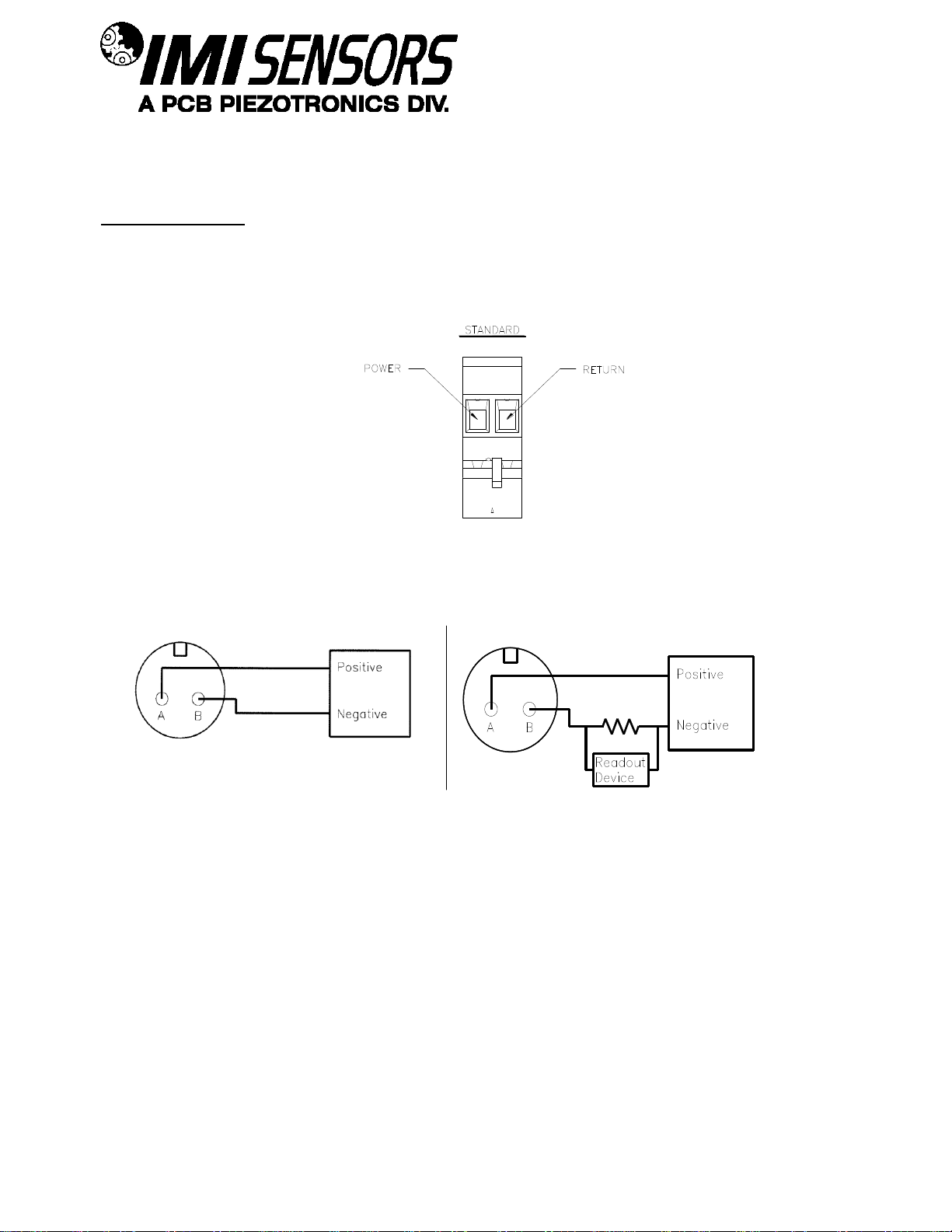

Figure 1 –wiring: standard connection

Figure 2 –wiring: loop powered Figure 3 –wiring: loop powered/DC source

If using a standard DC power supply, install either an ammeter and/or load resistor in line with the return

connection Pin 3.

The resistor will generate a DC voltage that is proportional to current by:

V = IR

If R = 500



and I = 6mA, then V = 3Vdc

Note:

Table des matières

Autres manuels PCB Piezotronics Accessoires

PCB Piezotronics

PCB Piezotronics 209C12 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 640 B7 Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 200C50 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics WHT356B11/NC Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 640B09 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP E106B Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 356B10/NC Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 261A03 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 352B30 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics CS64XB9Y Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX640B61 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 4115K-11A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 066A02 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M101A06 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 137B22A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 137B22B Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M221B03 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 353B34 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 106B52 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 642A12 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M101A04 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX641B00 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics N200C20 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 102A02 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
