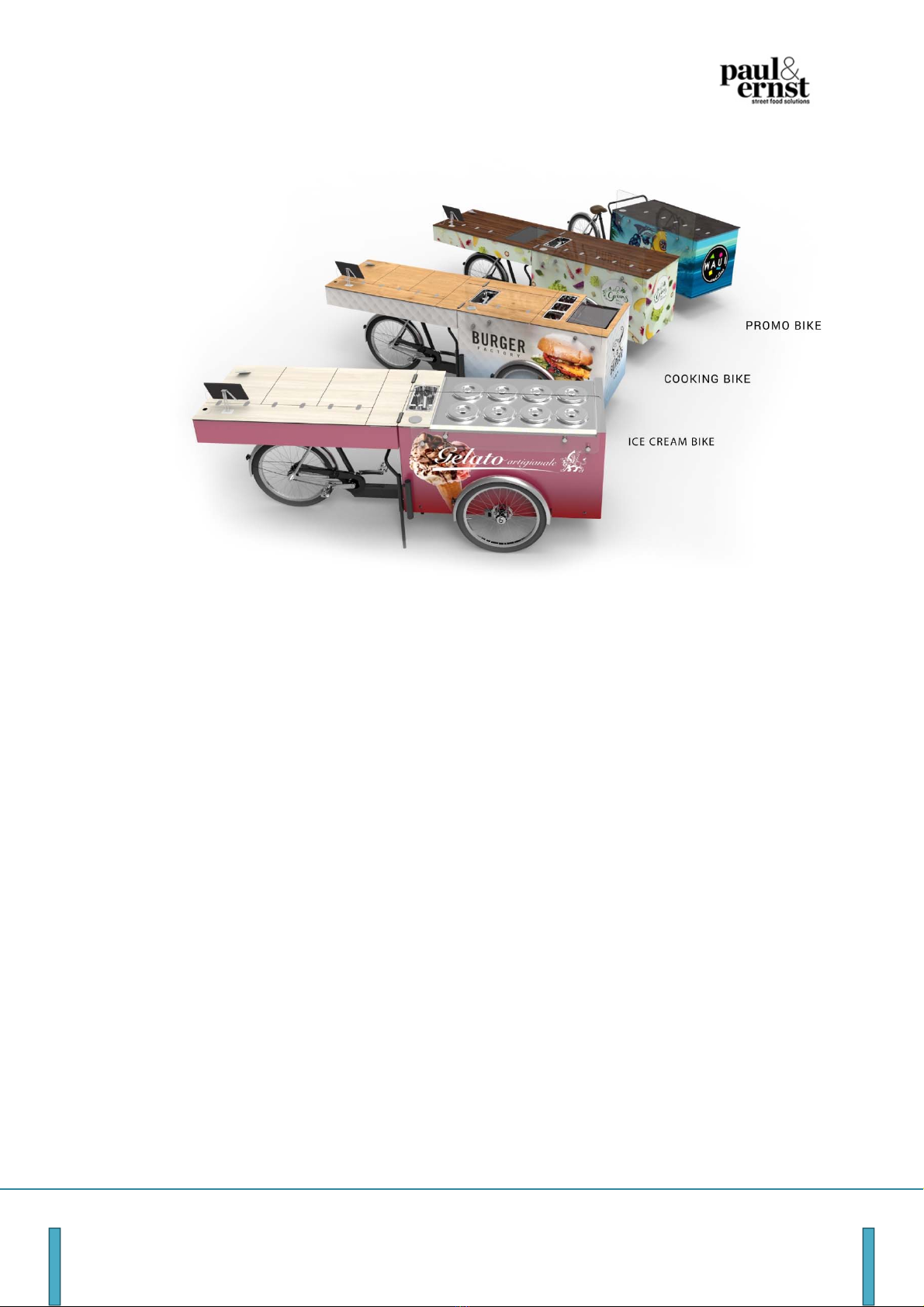

Paul&Ernst Promo Bike Manuel utilisateur

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page1



page2–10 USERGUIDE

page10  MAINTENANCE

page10‐13  STORAGE

page13‐14  SERVICE

page15  LIMITEDWARRANTY

page15  GENERALWARNING



Thankyouforchoosingapaul&ernstcookingbike.Wehopethatyouwillenjoythemanybenefitsa

paul&ernstbikehastooffer.Wetrustthattheproductyouhavejustpurchasedisunrivaledintermsof

qualityandfunctionality.Weadvisethatyoutakethetimetoreadthroughthisentiremanualto

familiarizeyourselfwiththeproduct,itssafetyfeatures,andinstructionsforsafeuse.Also,pleasebe

awarethatpaul&ernstbikesaretricyclesandthusrequiredifferentanduniqueridingandhandling

techniquesincontrasttotwo‐wheeledbicycles.Afterreadingthismanualinitsentirety,youmaytryout

yournewbike.Please,however,familiarizeyourselfwiththeridingtechniquesandproceduresinasafe

andcontrolledenvironment–awayfromtrafficandotherobstacles.



usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page2

USERGUIDE



GASTRONOMYUNIT

Theunitismadeofrobustandlastingmaterialswhichcaneasilybecleanedandmaintained:

‐ Cookinginsert:madeofstainlesssteel

Cleanwithheavydutydetergentandtheroughsideofthesponge.

‐ Countersurface:compactpanelforexterioruse

Cleanwithheavydutydetergent;usetheroughsideofthespongecarefully.

‐ Storagevolume:madeofaluminumhoney‐combpanelswithcleanablerollercoatedsurface.

Cleanwithregulardetergent,avoidtheroughsideofthesponge–youmightscratchthesurface.

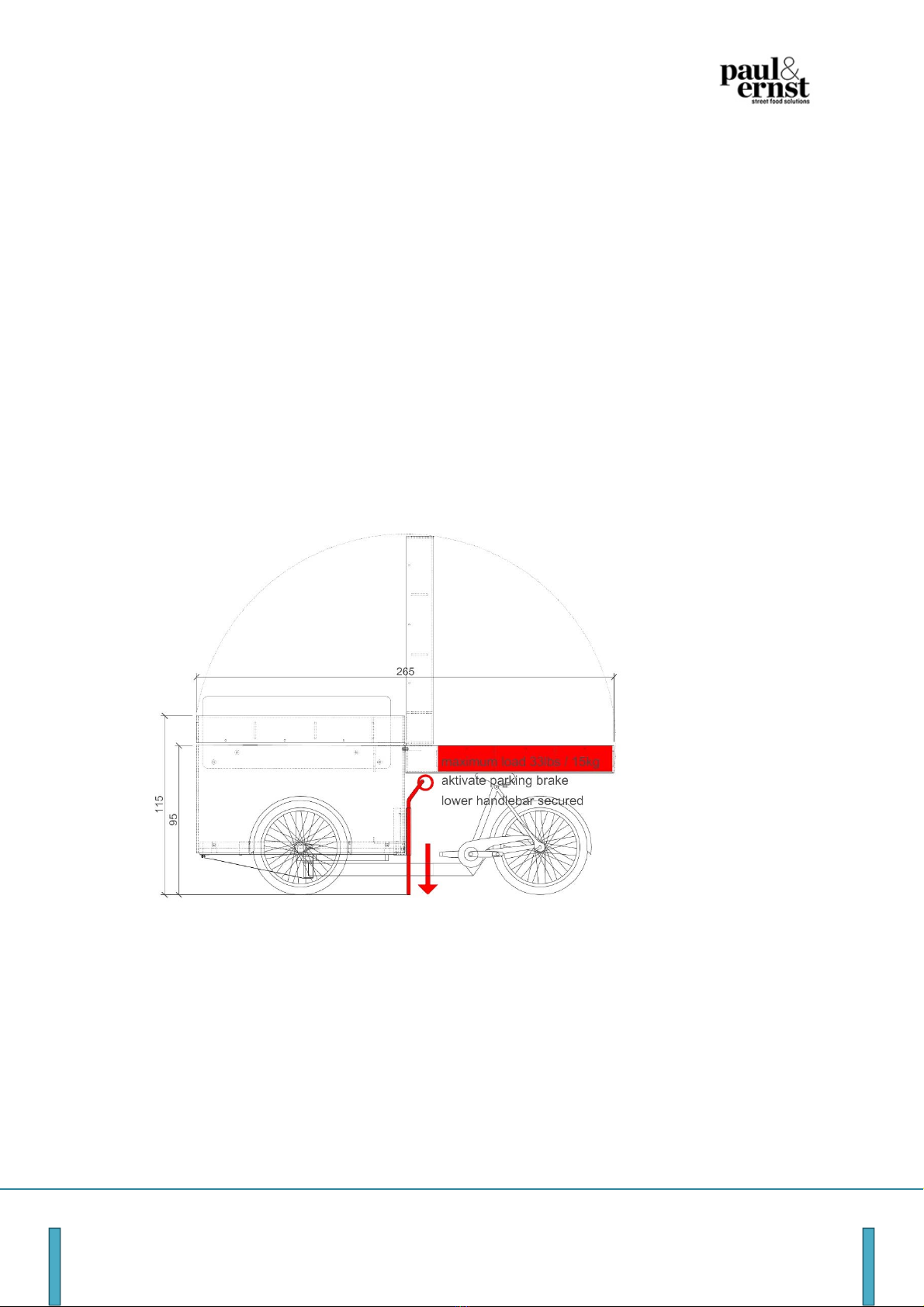

Ifthebiglidisflippedopen,thecountertopis265cmlong.Thebiglidisheavyduetoitssizeandtowhat

isstoredwithin.Itthereforeneedstobeopenedandclosedcarefullyincompliancewiththefollowing

steps:



‐ Activatetheparkingbrakebeforeopeningthebiglid.Ifthebikestartsmovingduringtheprocess

ofopeningthebiglidthismightleadtoanuncontrolledmovementwhichcanresultindamageor

injury.

‐ Ifthebiglidistooheavyforyouitmightbenecessarytogetassistancefromasecondpersonto

openandcloseit.Acontrolledmovementhastobeensuredinordertoavoiddamageand

injuries.

‐ Thebiglidcontainsstoragespaceforlightobjects.

Maximumload(forbiglidstoragespace):33lbs.(15kg)

‐ Beforeopeningthebiglid–lowerthebikeseattoitslowestpositionandlowerthehandlebarto

thefloorsurface.

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page3

WARNING:ifthehandlebarispositionedtoohighwhenopeningthebiglid,thismightleadto

damageofthebikecompartmentsmountedonthehandlebarandtothegastronomyunit.



‐ Beforeclappingthebiglidshut–makesurethatallstoragecompartmentsareproperlyclosed.

Anuncontrolledopeningofthestoragecompartmentswhenthebiglidinanuprightpositioncan

causepropertydamageorinjury.

‐ Makesuretherearenoobjectsontheworkingsurfacewhenclappingthebiglidshut.The

objectscouldbecrushedanddamagedandcausedamagetotheworkingsurface.

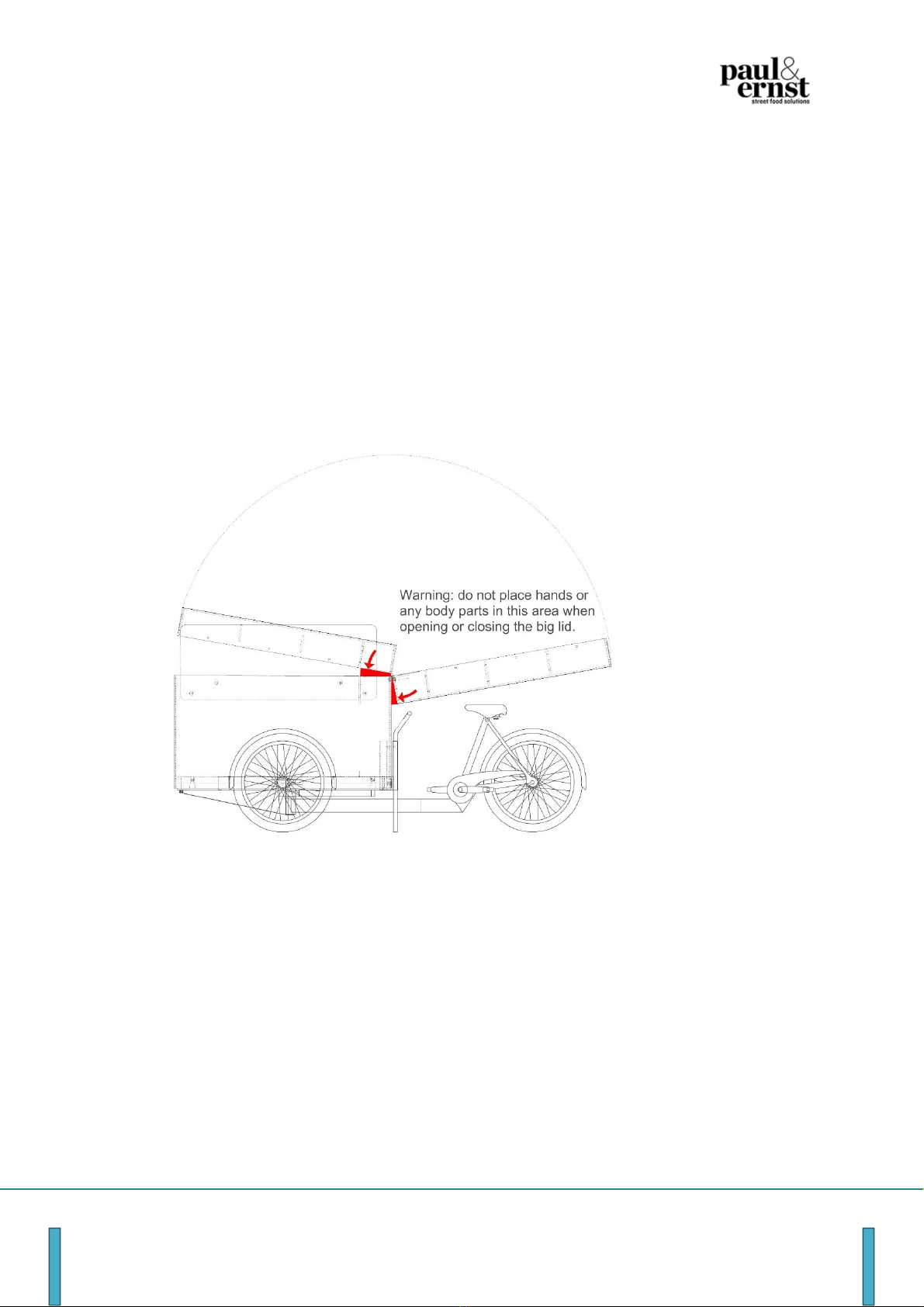

‐ WARNING:Bewareofthehingewhenclappingthebiglidshut.Donotplaceanybodypartinthis

areawhenopeningorclosingthebiglidasthiscouldleadtosevereinjuries.Takecareofyourself

andothers,especiallychildren.



Refrigerator/Freezerunit

Therefrigerator/freezerisoperatedwith24VDC.Itcanrunonregularhouseholdpower(230VAC)orthe

battery(36VDC)usinginstalledelectricityconverters.Theelectronicsystemautomaticallychoosesthe

powersource.

Operatingtherefrigerator/freezer

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page4

 



‐ Activatethemainswitchlabeled“refrigerator/freezer”toconnectittothepowersource(battery

orlandlineincasethebikeisattachedtoanelectricaloutlet)

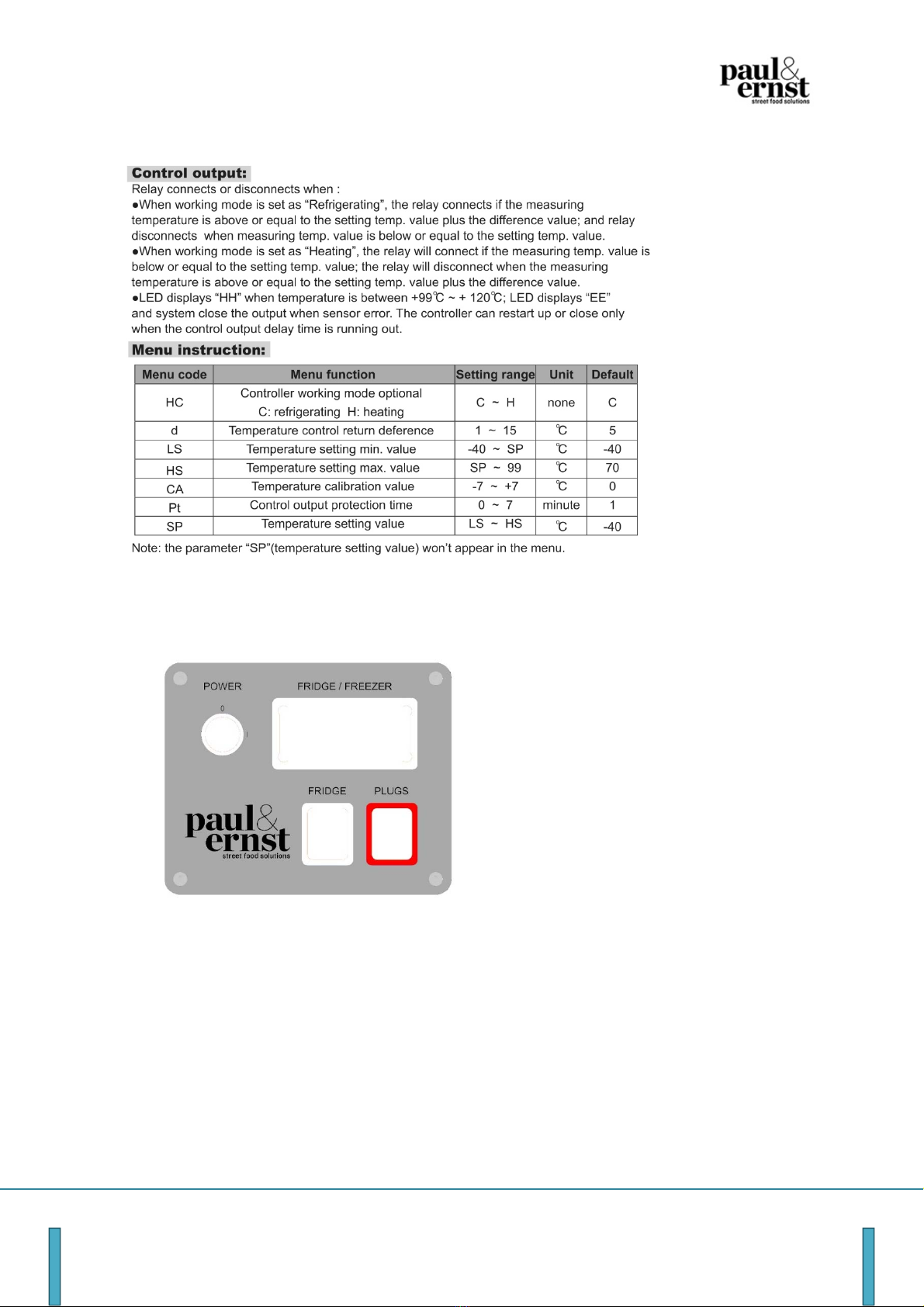

‐ Setthetemperatureofyourrefrigerator/freezerunitbyusingtheSTC‐100Adisplay:



usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page5



usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page6



Operatingthecookingdevice:

 



‐ Attachthecookingdevicetotheelectricaloutletattached(mounted)totherearsurfaceofthe

cookinginsert.

‐ Activatethemainswitchlabeledwith“plugs”toconnecttheelectricaloutlettothepower

source.The220VACplugsareonlyactivewhenthebikeisattachedtoapowerplugwiththe

maincableconnectedtothedisplaybelowthehandlebar.



Powersource&batterycharger

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page7



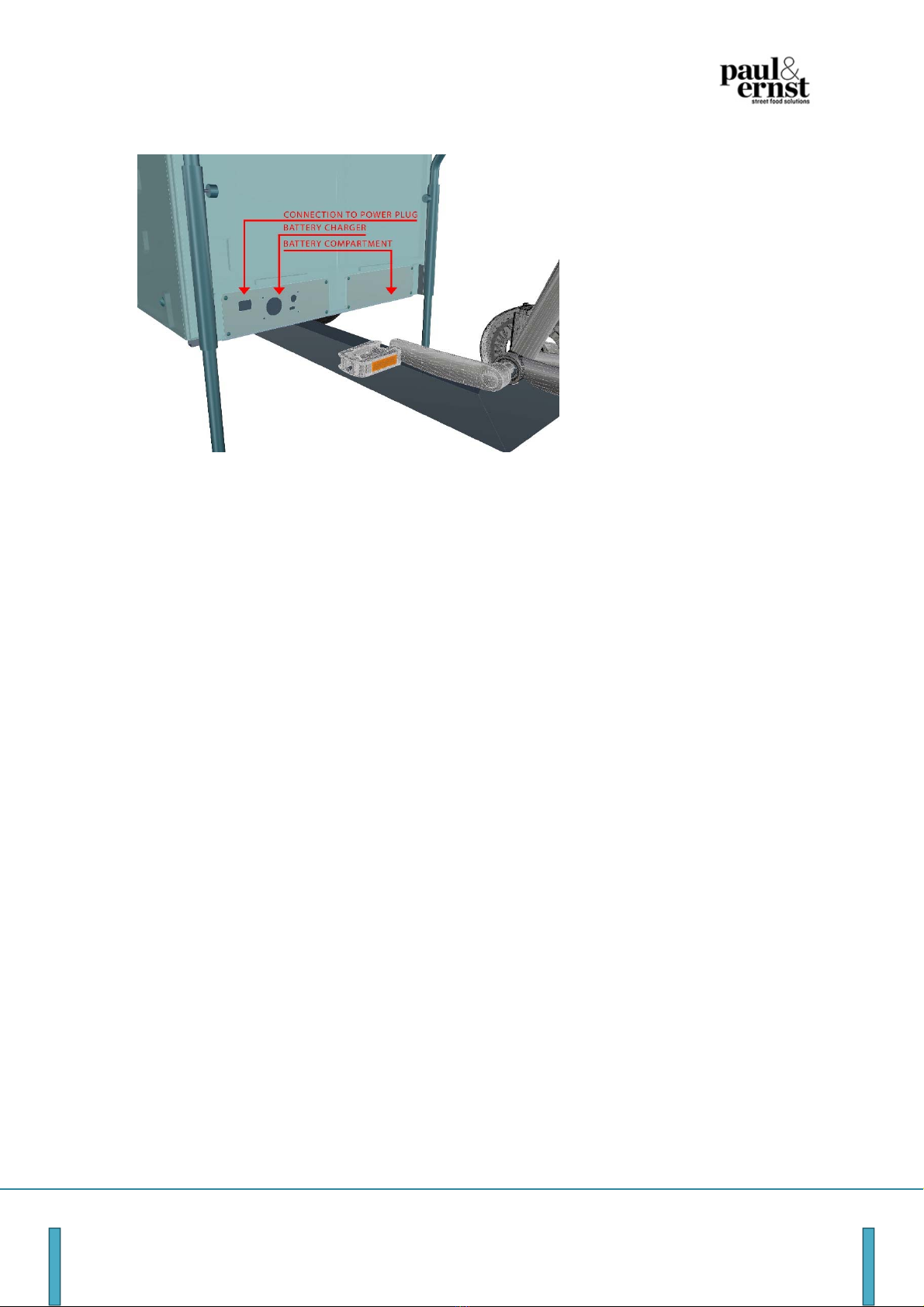

‐ Thebikeisequippedwithstateoftheartbatterytechnology.Itispermanentlyinstalledatthe

bottomrightcompartmentunderthehandlebarandconnectedtothechargerwhichisinstalled

inthebottomleftcompartment.

‐ Thebatterychargesautomaticallywhenthebikeisconnectedtoapowerplug.

‐ TherightLEDlightindicatesthechargingstatus:

1. redLED =charging

2. greenLED =fullycharged

‐ Chargerandbatterymanagementsystemsaredesignedtoautomaticallystopchargingwhenthe

batteryisfullycharged

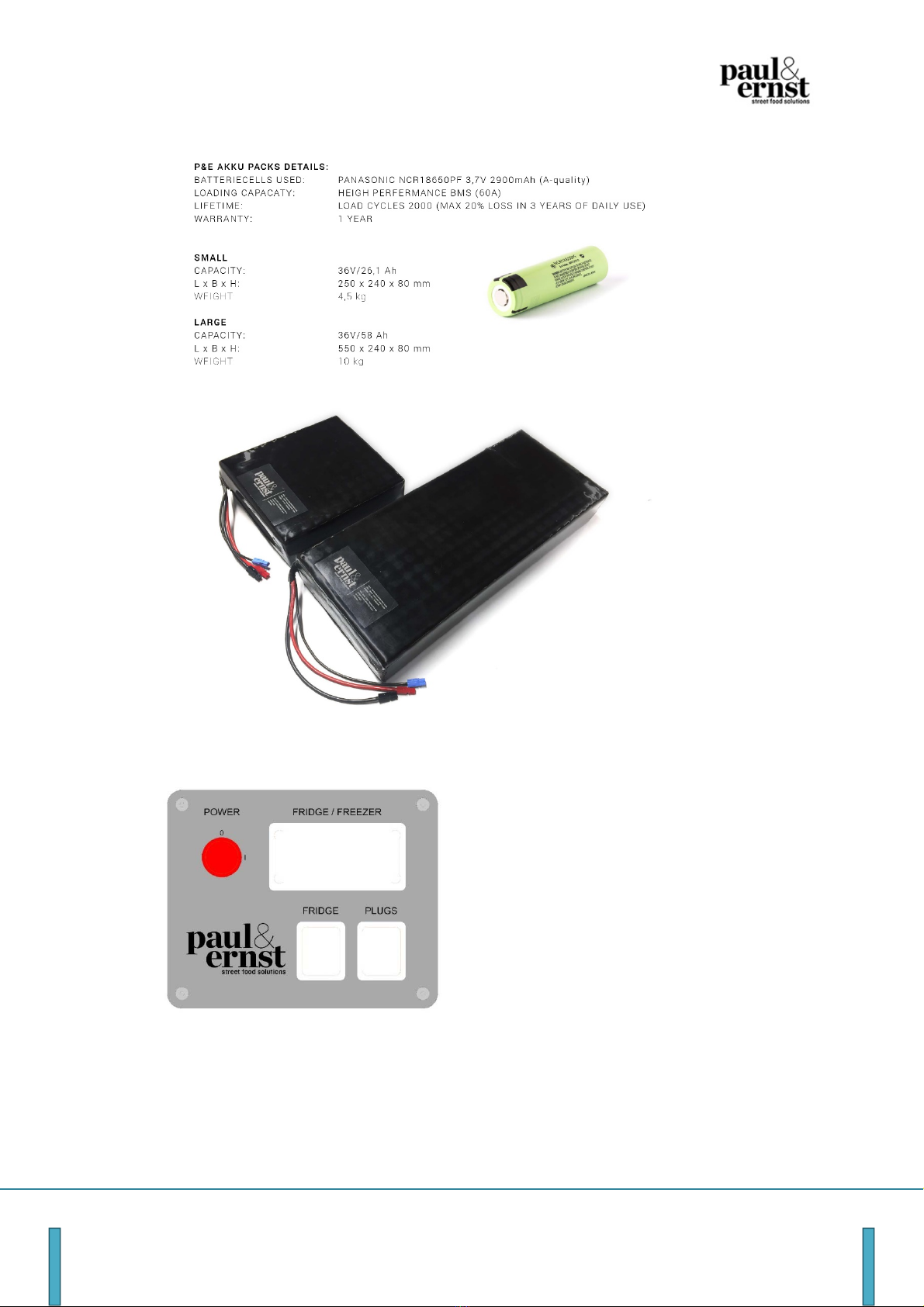

‐ Thebatterymanagementsystemisequippedwithabatteryprotectiondevice.Underregular

conditionsthebatterycannotbedamagedduetodeepdischargingoroverheating.

‐ Storagetomaintainthemaximumlife‐cycleofyourbattery:

1. ideal:40%‐70%chargingvoltage

2. good:fullycharged

3. bad:discharged

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page8



E‐bike(starting,stoppingandriding)

 

1. TostarttheE‐Bikeyouneedtoturnthekeyonthemaindisplaylocatedonthesideofthe

gastronomyunittoconnectthebatterytotheE‐Bikecontroller(installedatthebottom

compartmentofthegastronomyunit).

2. Pressthestartbuttononthebikedisplayinstalledonthehandlebar.

3. Usethe+/‐buttonsonthedisplaytoadjustthepowerofthemotor.

4. Turntherotationcontrollerontherightsideofthehandlebartostartthesupportofthemotor.

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page9

WARNING:StarttheE‐Bikeundersafeconditionsafteracheckupandafterhavingadjustedthe

seatandhandlebartosuityoursize.



BIKE



Productspecifications

•TheE‐Bikeisequippedwitha500Wmotorandapedalassistsystem

•CargoLoad:220lbs.(100kg)‐Donotoverloadthevehicle

•Topspeed:10mph(16km/h)

•Topspeedwhengoingaroundcornersoronunevenground:5mph(8km/h)

•Maximumadultriderweight:220lbs.(100kg)

•Maximumtirepressure:65psi



•Besuretoreadtheentiremanualbeforetakingyourpaul&ernstbikeoutforaride.

•Discontinueuseifanypartbecomesdamagedorbrokenandcontactthenearestbikerepairworkshop

orcontactusdirectly.

•Donotridethebikeonroadswithahighvolumeofautomobiletraffic.

•Balanceyourcargoload.Whenloadingyourtransportvolumeorrefrigerator/freezerunit,putthemain

loadnearthecentertooptimizestability.Avoidheavyloadsonlyatthefrontofthebikeunit.

•Beforeeachride,checktomakesurethatnothingwillinterferewiththebraking,pedaling,orsteering

ofthevehicle.

•Pickacontrolledenvironment,awayfromcars,othercyclists,obstacles,orotherhazardstofamiliarize

yourselfwiththevehicle.

•Familiarizeyourselfwiththebrakingaction.Testthebrakesatslowspeeds.

WARNING:Heavyloadsextendthebrakingdistance.Leaveenoughspacebetweenyourselfandother

bikersorroaduserstoensurebrakingactionunderanyconditionevenwithaheavytransportunit.

•Usetheparkingbrakewheneverthevehicleisinastationaryposition–especiallywhensettingupand

openingthegastronomyunit.Failuretoactivatetheparkingbrakecanresultinvehicledamageorserious

injury.

•Ifyouencounteranymechanicaloroperatingissuesduringyourinitialtestrideorthereafter,you

shouldcontactthenearestbikerepairworkshoporusdirectly.



Handlingthroughturnsandaroundcorners

•Yourpaul&ernstbikehasawideturningradius,anditsoperationdifferssubstantiallyfromthatofa

bicycle.

•Remainuprightwillmakingturns,leaningslightlyintotheturn.

•Donotmakesharpturnsorturnsathighspeeds.Sharpturnsorturnsatfasterthan5mph(8km/h)may

resultinthevehicleoverturningandseriousinjury.



Starting,stopping,andriding

•Becarefulwhencrossingstreetsandpaths.Yourpaul&ernstbikeislongerthanastandardbicycleand

thefront‐endmayinadvertentlystickoutintooncomingtraffic.

•Thevehicleisheavierthanastandardbicycleandrequiresmoretimeanddistancetostartandtostop.

•Alwaystestthebrakespriortouse.

usermanual–cookingbike



paul&ernstGmbH

FN470437w

HandelsgerichtWien page10

•Alwaysbalancetheloadinthetransport/refrigerator/freezingunit.Thiswilloptimizeriding

performanceandminimizethepotentialfordangerousridingsituations.

•Ridewithextracareonunevensurfaces,especiallywhenridingupordownhills.



MAINTENANCE

Yourpaul&ernstbikeisdesignedandbuilttolast.Withregularmaintenanceandcareyoucangreatly

extendthelifeexpectancyofyourpaul&ernstbikeandmaximizetheperformancecapabilities.Any

mechanicalrepairsandadjustmentsshouldbeperformedbyaprofessionalbicyclemechanic.



WearandTear

Ifyouexposeyourpaul&ernstbiketovariouskindsofweatherorrideitfrequently,componentsand

partsmayreachtheirwearlimitbeforeitswarrantyexpires.Intheeventthatcomponentsstarttoshow

signsofwear,visitabikerepairworkshoporcontactusdirectlyforadvicebeforecontinuinguse.



Thefollowingcomponentsaresubjecttofunction‐relatedwear:

•Tires

•Rims,hubs,axles,andspokes

•Steeringcomponentsandbearings

•Brakediscs,cables,andhandlevers



Bikeandgastronomyunitsaresubjecttowearandtearduetothefollowing:

•Cargoload

•Intensityofuse

•Ridinghabits

•Storageconditions

•Weatherconditionsandclimatefactorsincluding

•UVexposure

•Humidity

•Dirt

•Temperature

•Moisture

•Saltwater

•Roadsalt



Visuallyinspectyoupaul&ernstbikebeforeeveryride.Thisincludescheckingthecomponentsandthe

conditionofthegastronomyunit.Additionally,yourvehicleshouldhaveregularmaintenancecheckups.



STORAGE

Maintainingandcleaningyourpaul&ernstbikewhichisanoutdoorvehiclewithmovingpartsand

components:

Tooptimizeperformanceandproductlongevity,regularcleaningandmaintenancearemandatory.After

everyuse,wipedowntheentirevehiclewithacleanrag‐donotusecleaningsolvents.Cleanonlywith

mildsoapandwater.
