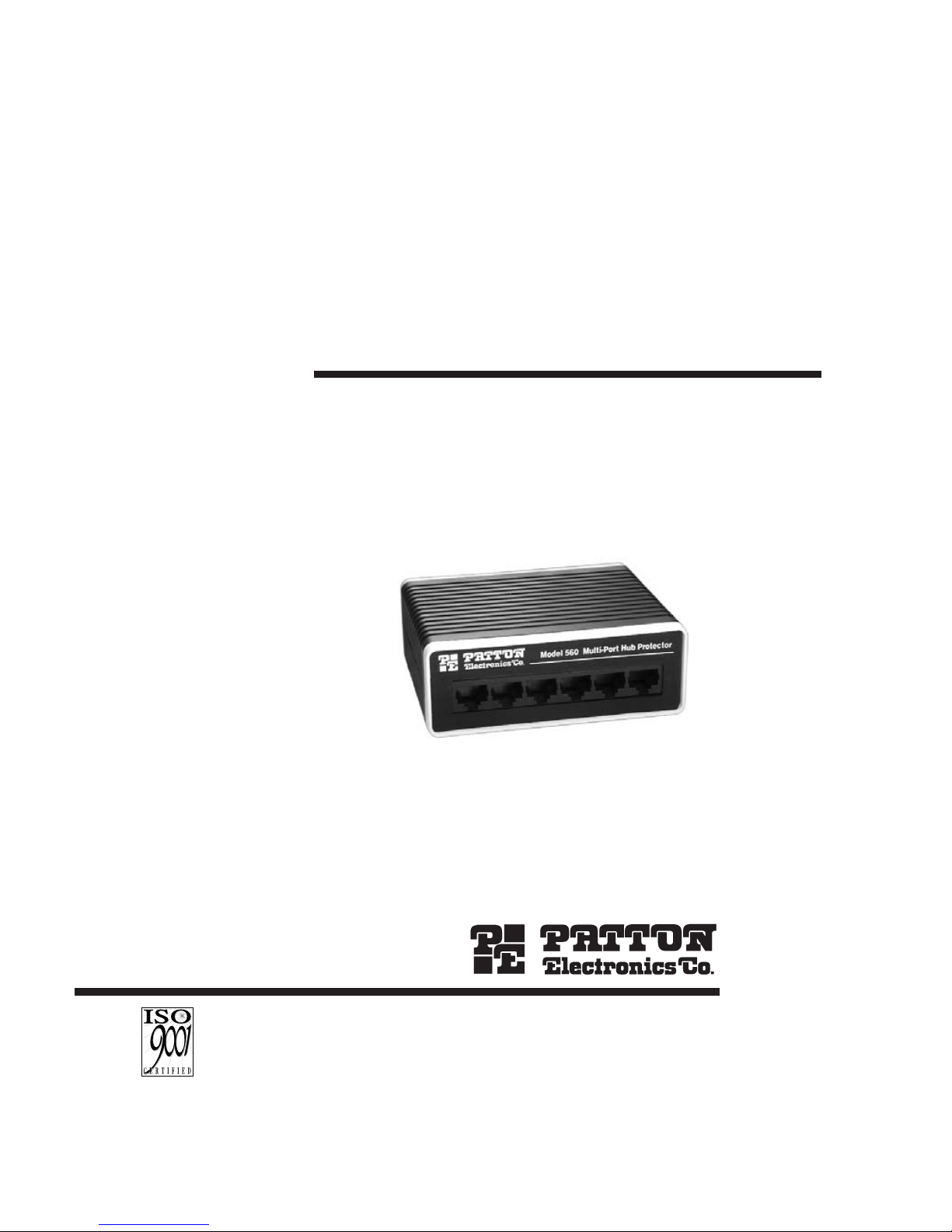

Patton electronics 56X Series Manuel utilisateur

USER

MANUAL

MODEL 56X Series

564, 566, 568, 562

Hub Surge Protectors

SALES OFFICE

(301) 975-1000

TECHNICAL SUPPORT

(301) 975-1007

http://www/patton.com

Part# 07M560A

Doc# 074270U,

Rev. B

Revised 01/21/08

CERTIFIED

An ISO-9001

Certified Company

1.0 WARRANTY INFORMATION

Patton Electronics warrants all Model 56X Series components to

be free from defects, and will—at our option—repair or replace the

product should it fail within one year from the first date of shipment.

This warranty is limited to defects in workmanship or materials, and

does not cover customer damage, abuse or unauthorized modification.

If this product fails or does not perform as warranted, your sole

recourse shall be repair or replacement as described above. Under no

condition shall Patton Electronics be liable for any damages incurred

by the use of this product. These damages include, but are not limited

to, the following: lost profits, lost savings and incidental or

consequential damages arising from the use of or inability to use this

product. Patton Electronics specifically disclaims all other warranties,

expressed or implied, and the installation or use of this product shall be

deemed an acceptance of these terms by the user.

1.1 SERVICE

All warranty and nonwarranty repairs must be returned freight

prepaid and insured to Patton Electronics. All returns must have a

Return Materials Authorization number on the outside of the shipping

container. This number may be obtained from Patton Electronics

Technical Service at (301) 975-1007; http://www.patton.com;

[email protected].

Notice: Packages received without an RMA number will not be

accepted.

Patton Electronics' technical staff is also available to answer any

questions that might arise concerning the installation or use of your

Model 56X. Technical Service hours: 8AM to 5PM EST, Monday

through Friday.

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates

that it is in compliance with the Electromagnetic Compatibility (EMC)

directive and the Low Voltage Directive (LVD) of the Union European

(EU). A Certificate of Compliance is available by contacting Technical

Support.

3.0 INSTALLATION

Take these 4 steps to install your Patton Model 56X.

Note: Make sure you follow the installation instructions exactly.

If the suppressor is improperly installed, the current-limiting

feature could be rendered inoperable.

1. Disconnect the twisted pair network cables from your hub.

2. Connect your network cables to an input port on your Model

56X. Since the Model 56X provides bidirectional protection,

the front or rear ports can be used as the input from your

network.

3. Using the RJ-45 cables provided, connect each of the output

ports to an input port of your hub. Note that the 56X features

a straight through design. Data entering the hub protector at

an RJ-45 input will leave the protector at the RJ-45 output that

is located directly behind it.

4. Connect the braided metal strap on the Model 56X to a nearby

chassis ground. In industrial applications, the ground strap

can be removed from the terminal post to allow alternative

ground connections to be added. If you are not sure of the

proper grounding for your Model 56X, please contact Patton

Electronics Technical Service at: (301) 975-1007;

http://www.patton.com; or [email protected].

Note: We highly recommend that you use a surge protection device

at both ends of your 10Base-T ports. For the best products to meet

your needs, contact Patton Electronics Sales at:

(301) 975-1007;

[email protected]; or, http://www.patton.com.

Figure 1. How to Connect the Model 56X

Hub

Model

56X

Model

532

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.

This product has been thoroughly inspected and tested and is

warranted for One Year parts and labor. If you have any questions

about this product, please call Patton Electronics Technical Support at:

(301) 975-1007; [email protected]; or, http://www.patton.com.

2.1 FEATURES

• Guards 4, 6, 8 or 12 10Base-T ports simultaneously

• Four models are available: 4, 6, 8, or 12 10Base-T protectors per

enclosure

• Surge handling capability of up to 1.5KW

• Conforms to the IEEE 802.3 Ethernet Standard

• Surge energy is diverted to ground through a braided metal strap

• Compact design perfect for hub protection

• Made in the U.S.A.

2.2 DESCRIPTION

The Patton Model 56X Series is built to answer the question of how

to provide transient protection for multiple Ethernet 802.3 10Base-T

ports spaced closely together on a hub. It is a very compact box that

houses 4, 6, 8, or 12 surge protectors in a high-density array. Matching

input and output ports on the front and rear panels allow the Model 56X

Series to conveniently connect in-line with each port on your 10Base-T

hub.

All versions of the Model 56X support data rates of up to 10Mbps.

Harmful data line transients on the hub ports are diverted directly to

chassis ground through the use of a solid state hybrid circuit. The

Model 56X is able to handle repeated surges up to 1.5KW without a

degradation in performance. Most importantly, the Model 56X protects

transparently and will not slow your network down.

Warning—Should your equipment or building be subject to a direct

lightening strike, this product will not provide complete protection.

3.0 INSTALLATION

Take these 4 steps to install your Patton Model 56X.

Note: Make sure you follow the installation instructions exactly.

If the suppressor is improperly installed, the current-limiting

feature could be rendered inoperable.

1. Disconnect the twisted pair network cables from your hub.

2. Connect your network cables to an input port on your Model

56X. Since the Model 56X provides bidirectional protection,

the front or rear ports can be used as the input from your

network.

3. Using the RJ-45 cables provided, connect each of the output

ports to an input port of your hub. Note that the 56X features

a straight through design. Data entering the hub protector at

an RJ-45 input will leave the protector at the RJ-45 output that

is located directly behind it.

4. Connect the braided metal strap on the Model 56X to a nearby

chassis ground. In industrial applications, the ground strap

can be removed from the terminal post to allow alternative

ground connections to be added. If you are not sure of the

proper grounding for your Model 56X, please contact Patton

Electronics Technical Service at: (301) 975-1007;

http://www.patton.com; or [email protected].

Note: We highly recommend that you use a surge protection device

at both ends of your 10Base-T ports. For the best products to meet

your needs, contact Patton Electronics Sales at:

(301) 975-1007;

[email protected]; or, http://www.patton.com.

Figure 1. How to Connect the Model 56X

Hub

Model

56X

Model

532

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.

This product has been thoroughly inspected and tested and is

warranted for One Year parts and labor. If you have any questions

about this product, please call Patton Electronics Technical Support at:

(301) 975-1007; [email protected]; or, http://www.patton.com.

2.1 FEATURES

• Guards 4, 6, 8 or 12 10Base-T ports simultaneously

• Four models are available: 4, 6, 8, or 12 10Base-T protectors per

enclosure

• Surge handling capability of up to 1.5KW

• Conforms to the IEEE 802.3 Ethernet Standard

• Surge energy is diverted to ground through a braided metal strap

• Compact design perfect for hub protection

• Made in the U.S.A.

2.2 DESCRIPTION

The Patton Model 56X Series is built to answer the question of how

to provide transient protection for multiple Ethernet 802.3 10Base-T

ports spaced closely together on a hub. It is a very compact box that

houses 4, 6, 8, or 12 surge protectors in a high-density array. Matching

input and output ports on the front and rear panels allow the Model 56X

Series to conveniently connect in-line with each port on your 10Base-T

hub.

All versions of the Model 56X support data rates of up to 10Mbps.

Harmful data line transients on the hub ports are diverted directly to

chassis ground through the use of a solid state hybrid circuit. The

Model 56X is able to handle repeated surges up to 1.5KW without a

degradation in performance. Most importantly, the Model 56X protects

transparently and will not slow your network down.

Warning—Should your equipment or building be subject to a direct

lightening strike, this product will not provide complete protection.
