Patriot Lighting DN8214 Manuel utilisateur

Questions, problems, missing parts?

Before returning to your retailer, call our customer service at 1-800-887-6326

Monday – Friday 9:00 a.m. – 5:00 p.m. CST

Sku Number: 356-3834

OUTDOOR POST LIGHT

Model Number:DN8214

PACKAGE CONTENTS

Page 1 of 3

Wire Connector

AA BB

HARDWARE CONTENTS Note: Hardware not shown actual size.

Fitter Screw

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or

switching off circuit breaker).

●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact

any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury

or death from electric shock.

CAUTION

●All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).

Contact your municipal building department to learn about your local codes, permits and/or inspections.

●Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician

before installation.

●Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use

a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,

do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper

grounding methods as required by the local electrical code in your area.

Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with

package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,

install or operate the product. Contact customer service for replacement parts.

Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,

Safety Glasses, Ladder, Wire Stripper.

Page 2 of 3

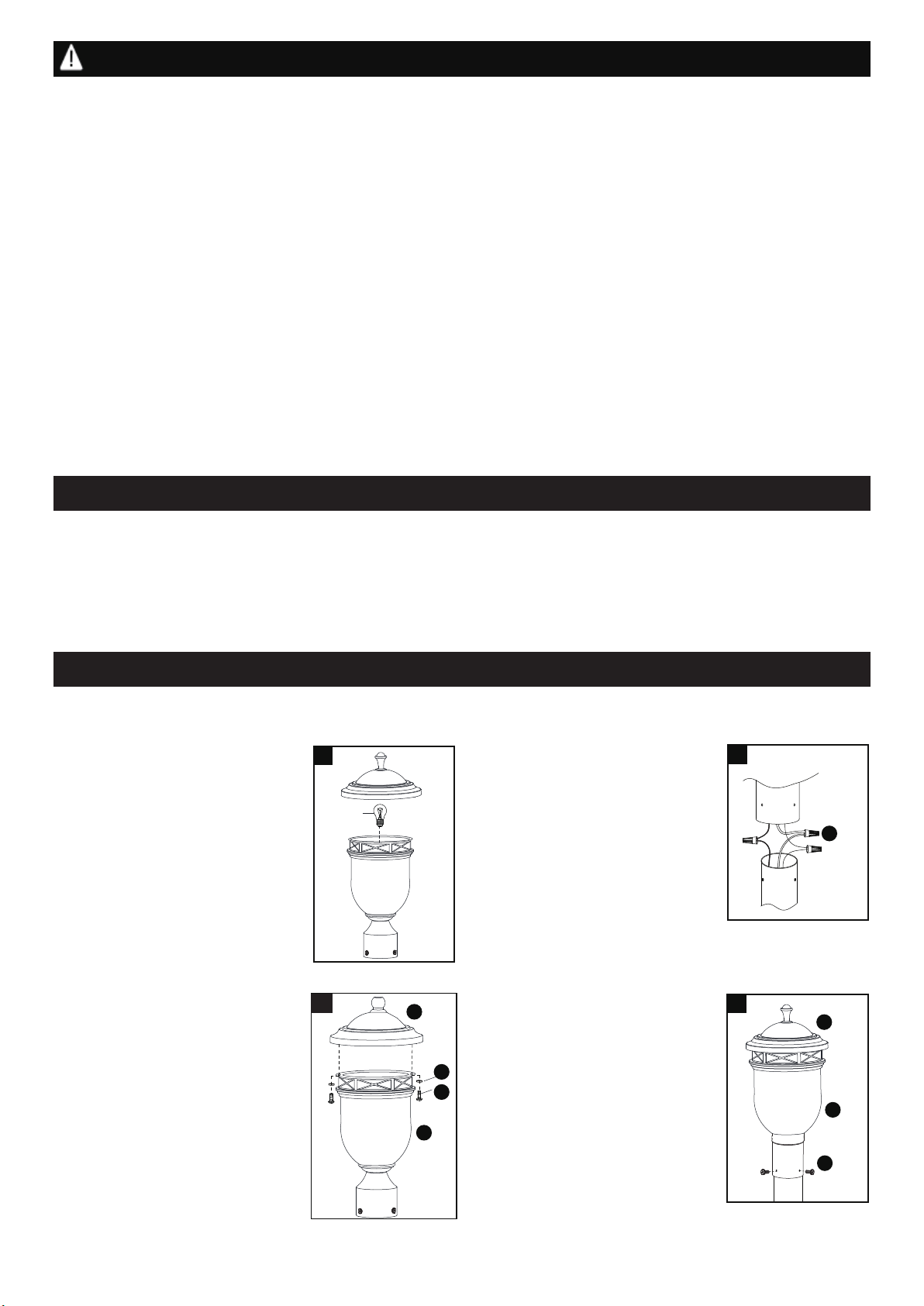

ASSEMBLY INSTRUCTIONS

PREPARATION

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit

box.

1. Install a bulb (not included).

See relamping label at socket

area or packaging for maximum

allowed wattage.

Bulb Type A

Max.60W

(not included)

2. Remove the rubber pads (CC)

and set screws (DD) from the

cover (A), then attach the cover

(A) to the fixture (B) , and secure

it with rubber pads (CC) and

set screws (DD).

3. Pull out the wires and grounding

wire from the post. Make wire

connections using the wire

connector (BB).

---The black wire from the fixture (B)

to the black wire from the post.

---The white wire from the fixture (B)

to the white wire from the post.

---The grounding wire from the fixture

(B) to the grounding wire from the

post.

Post

4. Place the fixture (B) on the post,

and then secure it with the fitter

screws(AA).

CAUTION: With silicone

caulking compound, caulk

completely around where the

fitter meet with post surface

to prevent water from seeping

into the post.

●Toclean, turn off and wipe with a damp, non-abrasive cloth.

1) Thelight does not come on at all:

a) Make sure the wall switch and circuit breaker are on.

b) Make sure the wiring is correct.

2) Fuse blows or circuit trips when lightis turned on.

a) Check for crossed wires, ensure wiring is correct.

If unable to fix any of the above issues, please consult a certified electrician.

Questions, problems, missing parts?

Before returning to your retailer, call our customer service at 1-800-887-6326

Monday – Friday 9:00 a.m. – 5:00 p.m. CST

CARE AND MAINTENANCE

TROUBLESHOOTING

FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails

due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this

lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT

LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT

LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser

with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does

not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to

persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary

from state to state.

Page 3 of 3

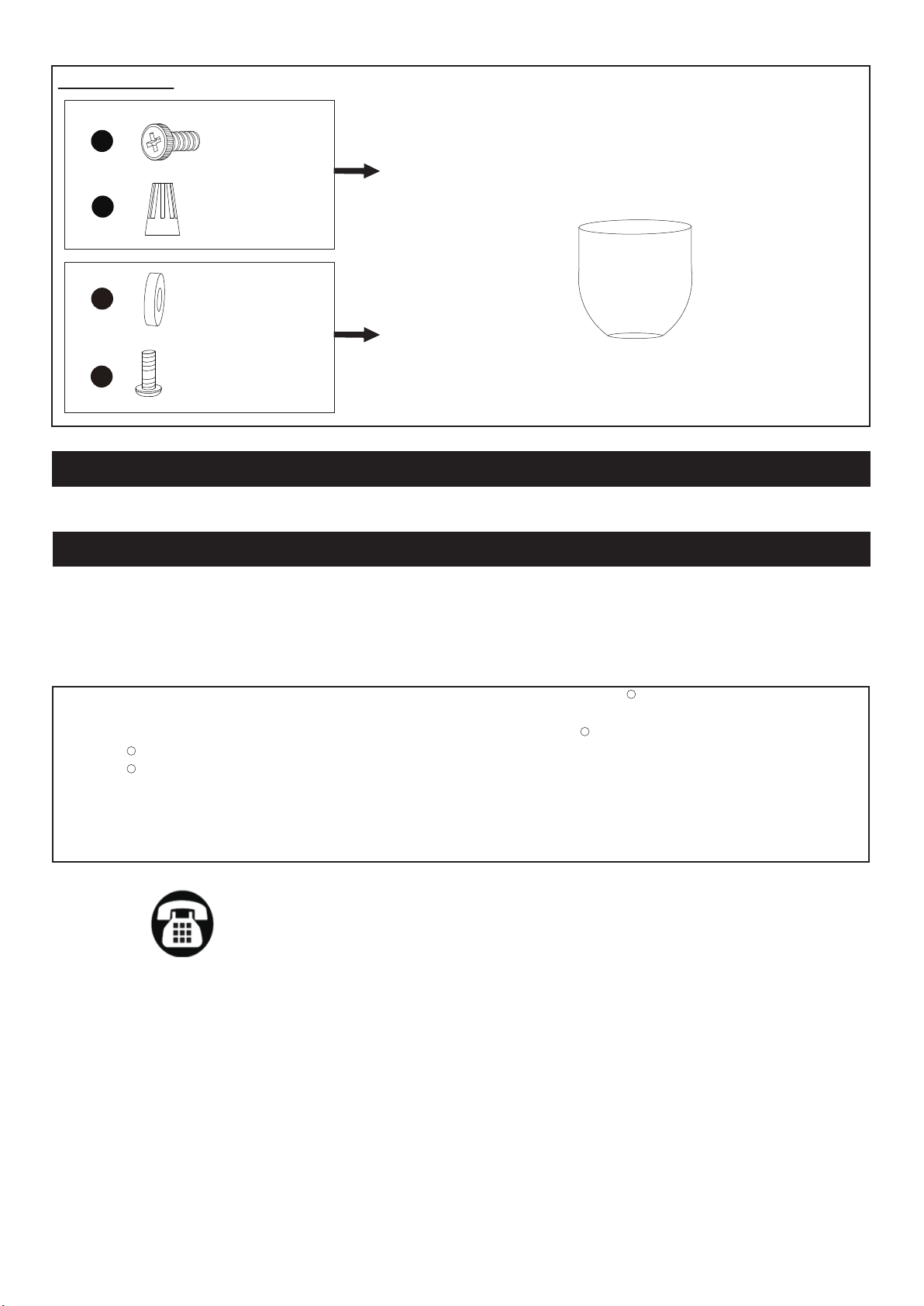

Glass Shade

9999CS

Spare Parts List:

The following parts are available for re-order if damaged or missing. Call us toll-free at 1-800-887-6326

Assembly Kit

5922MM (1 SET)

Assembly Kit

5918MM (1 SET)

Wire Connector

Fitter Screw

Rubber Pad

Set Screw
