SKU Number 355-3300
LED PROP MB
If a problem can not be remedied or you are experiencing difficultlyin installation,
please contact 1-888-722-5089
ore-mail: [email protected]
Model Number SO13
WARNING: To reduce the risk of electrical shock or fire , do not use this fan with any solid-state fan speed control
device. It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the outlet box.
14b
14b
14a
14a
Two Ceiling Installation Methods
Wooden Ceiling Mounting Bracket
13
14a
1. Slide-on Mounting Bracket (Inside Canopy)
2. 5"Ball / Downrod Assembly
10"Downrod
3. Canopy
4. Canopy Cover
5. Coupling Cover
6. Fan-motor Assembly
7. 3x Blades
8. 3x Gaskets
9. 6x Blade Screws & 6x Washers
10. Light Panel
11. LED Light Kit
12. Lamp Cover
13. Remote Control Transmitter And Receiver
14a. 4x Wood Screws
14b. 2x Machine Screws & 2x Washers
15. 3x Plastic Wire Nuts
16. 1x clips & 2x balancing weights
14b
15
16
Accessory Drawing

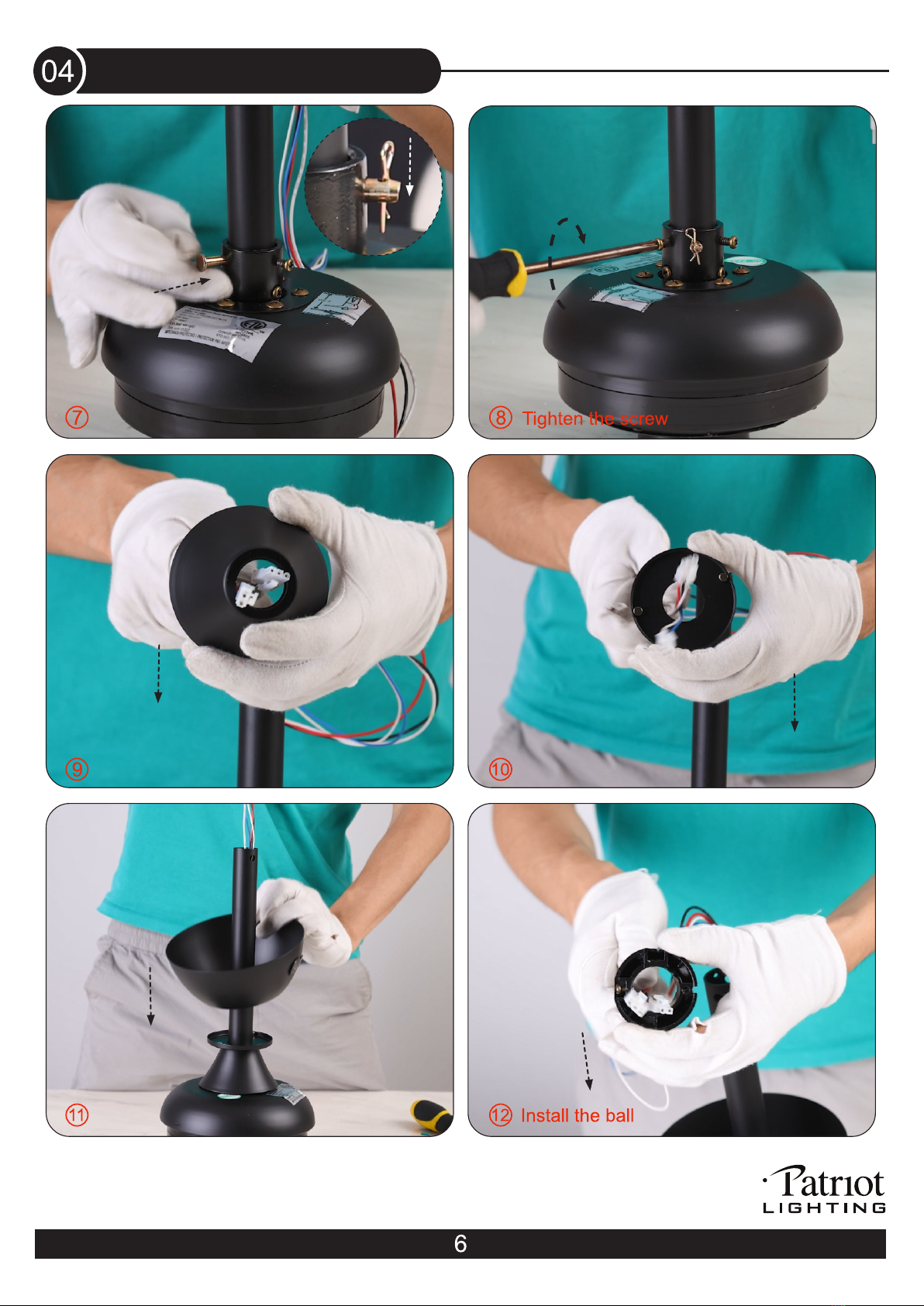

Installation of Downrod
Remove the bolt and the R type pin
Installation of Downrod
Install the bolt and the R type pin
Install the coupling cover Install the canopy cover
Install the canopy
Installation of Downrod
Install the ground wire with the screws
Installation of the Downrod
Connect the wires for both light & fan
between the motor and the receiver.
Install the screw halfway
Installation of the Downrod
Connect the wire of the receiver and
the house
06 Installation of the Fan
Put the gasket on the hole of the blade Put the gasket on the hole of the blade
