USB Controlled Multi-color Signal Beacon User Manual

USB Controlled Multi-color Signal Beacon

TYPE：

NE-□N-USB

General Instruction Manual

［WEB version］

Notice to customer

Thank you very much for your purchase of the PATLITE product.

To ensure correct use of the product, read this manual carefully before use, And, keep this

manual safely for future reference.

Be sure to read this manual again before you perform maintenance, inspection or repair. If you

have any questions, contact our technical/repair service helpdesk shown in the back of this

manual.

To installers or Contractors

Read this manual thoroughly before using this product to ensure correct use.

If you have any questions, contact our technical helpdesk shown in the back of this manual.

Be sure to return this manual to the customer.

GA0007806_02

USB Controlled Multi-color Signal Beacon User Manual

■ Contents



Notice to customer .................................................................................................................................1



To installers or Contractors ...................................................................................................................1

Getting started .......................................................................................................................................4

1.1

Safety signs......................................................................................................................................4

1.2

Safety precautions ...........................................................................................................................5

Model Number Configuration ...............................................................................................................8

2.1

About model labeling.......................................................................................................................8

Package contents....................................................................................................................................9

3.1

About package contents ..................................................................................................................9

(1)

N -SN-USB..................................................................................................................................9

(2)

N -WN-USB ................................................................................................................................9

Names and dimensions of parts ..........................................................................................................10

4.1

Names and dimensions of parts....................................................................................................10

(1)

N -SN-USB................................................................................................................................10

(2)

N -WN-USB .............................................................................................................................. 11

Operation Overview .............................................................................................................................12

5.1

What is a USB Controlled Multi-color Signal Beacon? ...............................................................12

5.2

Device Configuration.....................................................................................................................12

(1)

Glossary of Key Terms ...............................................................................................................12

(2)

Device Configuration .................................................................................................................12

5.3

Function List..................................................................................................................................13

(1)

Function Overview.....................................................................................................................13

(2)

Function details .........................................................................................................................14

5.4

Control method ..............................................................................................................................16

Device setup and installation..............................................................................................................17

6.1

Mounting directions ......................................................................................................................17

(1)

N -SN-USB（direct mount / magnetic mount）.....................................................................18

(2)

N -SN-USB（screw mounting）..............................................................................................18

(3)

N -WN-USB ..............................................................................................................................19

6.2

Mounting Surface Dimensions......................................................................................................20

6.3

Wireing Method .............................................................................................................................21

How to Control the USB Controlled Multi-color Signal Beacon........................................................22

7.1

Purpose and Precautions ..............................................................................................................22

(1)

Purpose .......................................................................................................................................22

(2)

Precautions.................................................................................................................................22

7.2

Before Design.................................................................................................................................23

7.3

Control Using Software Library (DLL) ........................................................................................24

(1)

Overview.....................................................................................................................................24

USB Controlled Multi-color Signal Beacon User Manual

(2)

Development nvironment........................................................................................................24

(3)

API List.......................................................................................................................................25

(4)

API Details .................................................................................................................................26

(5)

Parameters .................................................................................................................................33

(6)

rror ...........................................................................................................................................36

7.4

Controlling According to Protocol Specifications .........................................................................37

(1)

Overview.....................................................................................................................................37

(2)

USB Communication Settings...................................................................................................37

(3)

USB Communication Protocol...................................................................................................38

Replacement and Optional Parts ........................................................................................................42

Specifications........................................................................................................................................43

◇ About Trademarks and Registered Trademarks

Windows®, Microsoft®, Visual Studio®, and Visual C#® are registered trademarks or trademarks of

Microsoft Corporation in the United States, Japan, and other countries.

Company names and product names mentioned in this manual are trademarks or registered

trademarks of their respective owners.

USB Controlled Multi-color Signal Beacon User Manual

1Getting started

1.1 Safety signs

Be sure to follow the instructions below that are provided to prevent injury to you and others or property

damage.

◇ The following signs are used to classify and explain the degrees of possible harm and damage that may

occur if the product is used incorrectly by the neglect of given signs and instructions.

Warning

Indicates a “hazardous situation which, if not avoided, could result in death or serious

injury.”

Caution

Indicates a “hazardous situation which, if not avoided, could result in minor or

moderate injury or property damage.”

◇ The safety instructions are classified with the following pictograms.

This pictogram is used for “don’ts” that you must not do.

This pictogram is used for “do’s” that you must do.

This pictogram is used for general cautions that is not specific.

USB Controlled Multi-color Signal Beacon User Manual

1.2 Safety precautions

Warning

◇ To prevent electric shock, short circuit or damage, follow the instructions below.

◇ Be sure to turn off the USB power feed before you perform cabling, assembly or

removal. Failure to follow this instruction may cause a short resulting in a burn on

the internal circuit or electric shock injury.

◇ Use the product in the appropriate condition.

◇ Be sure to ask a specialist to install the product if construction is required. Failure to

follow this instruction may result in electric shock, fire, falling, etc.

◇ Do not use or get near the product if you have an implanted medical electronic

device such as a cardiac pacemaker. Failure to follow this instruction may affect the

device by the magnetic force of the product.

◇ To prevent lethal or serious property effects caused by the breakdown or

malfunction of the product, secure sufficient safety by the combined use of other

devices.

Caution

◇ Do not allow the alarm to sound unreasonably close to you. Failure to follow this

instruction may damage your hearing.

◇ Do not operate this product without the O-ring. Failure to comply will result in lower

waterproofing performance, possibly causing failure.

◇ Do not use the product near a flame or in a hot and humid or a corrosive or

flammable atmosphere. Failure to follow this instruction may cause a breakdown or

malfunction.

◇ When you attach/detach the glove, do not touch the internal connector terminal.

Failure to follow this instruction may cause a breakdown.

◇ After the product has been mounted on a device, do not grab it to climb up on top of

the device. Failure to follow this instruction may cause damage to the product and

result in toppling or fall accidents.

◇ Do not use this product near equipment that generates strong electrical or magnetic

fields (such as magnetic cards, medical equipment, electric devices, speakers).

Failure to follow this instruction could result in product damage and product

malfunctions such as data loss.

◇ When using a tripod with this product, do not try to move or transport the product

with the tripod attached. Failure to follow this instruction could result in equipment

damage if the product falls over.

◇ In order to maintain protection against dust and waterproofing performance for this

product, be sure to use the glove in the condition that it was originally attached.

◇ When you remove packing or wrapping materials from the device on which the

product is mounted, take care not to get the materials snagged on the product.

Failure to follow this instruction may cause damage to the product.

USB Controlled Multi-color Signal Beacon User Manual

◇ Ensure that the product is securely installed, making sure that the product does not

lost balance or fall over from the weight of the USB cable. Also, install so that there

are no risks of people tripping over the USB cable. Failure to follow these

instructions may result in injury or product damage.

◇ Install the product on a stable, flat surface free from vibration or impact. Note that

the sufficient force to hold the product may not be obtained depending on the

conditions of the mounting surface (material, environment, steel plate thickness,

coating thickness, etc,).

◇ Before installing the product, clean any dust, stains, oil or iron leavings off the

mounting surface and the product’s bottom. Failure to follow this instruction may

scratch the mounting surface or lose the force to hold the product.

◇ When removing the product from a tripod, be sure to unscrew from the screws of the

tripod, instead of trying to unscrew the product off directly from the tripod. Failure to

follow this instruction may result in injury or product damage.

USB Controlled Multi-color Signal Beacon User Manual

Note

◇ Where the product is used for the primary purpose of safety maintenance, be sure to perform

daily maintenance.

◇ Before handing the product, remove static buildup from your body to prevent damage by

electrostatic discharge (To remove static charges, touch other grounded metallic area with

your bare hands).

◇ For the handling of the parts of the product, follow the instructions below.

Do not disassemble the parts that are not designed as removable.

Do not add any modification to the product.

For repair parts, be sure to use only those specified in this manual.

PATLITE cannot be held responsible for any damages caused from misuse of this product in a way

that violates the warnings and instructions noted on this manual. Do not use this product in a way that

is not outlined in this manual. Additionally, PATLITE also cannot be held responsible for any damages

caused from careless or improper use and maintenance of this product.

FCC notation requirements

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of FCC Rules and RSS-Gen of IC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

USB Controlled Multi-color Signal Beacon User Manual

2Model Number Configuration

2.1 About model labeling

W：Two-hole screw mounting

－

□

S：Direct, magnetic or inch-screw mounting

Installation

－

USB Controlled Multi-color Signal Beacon User Manual

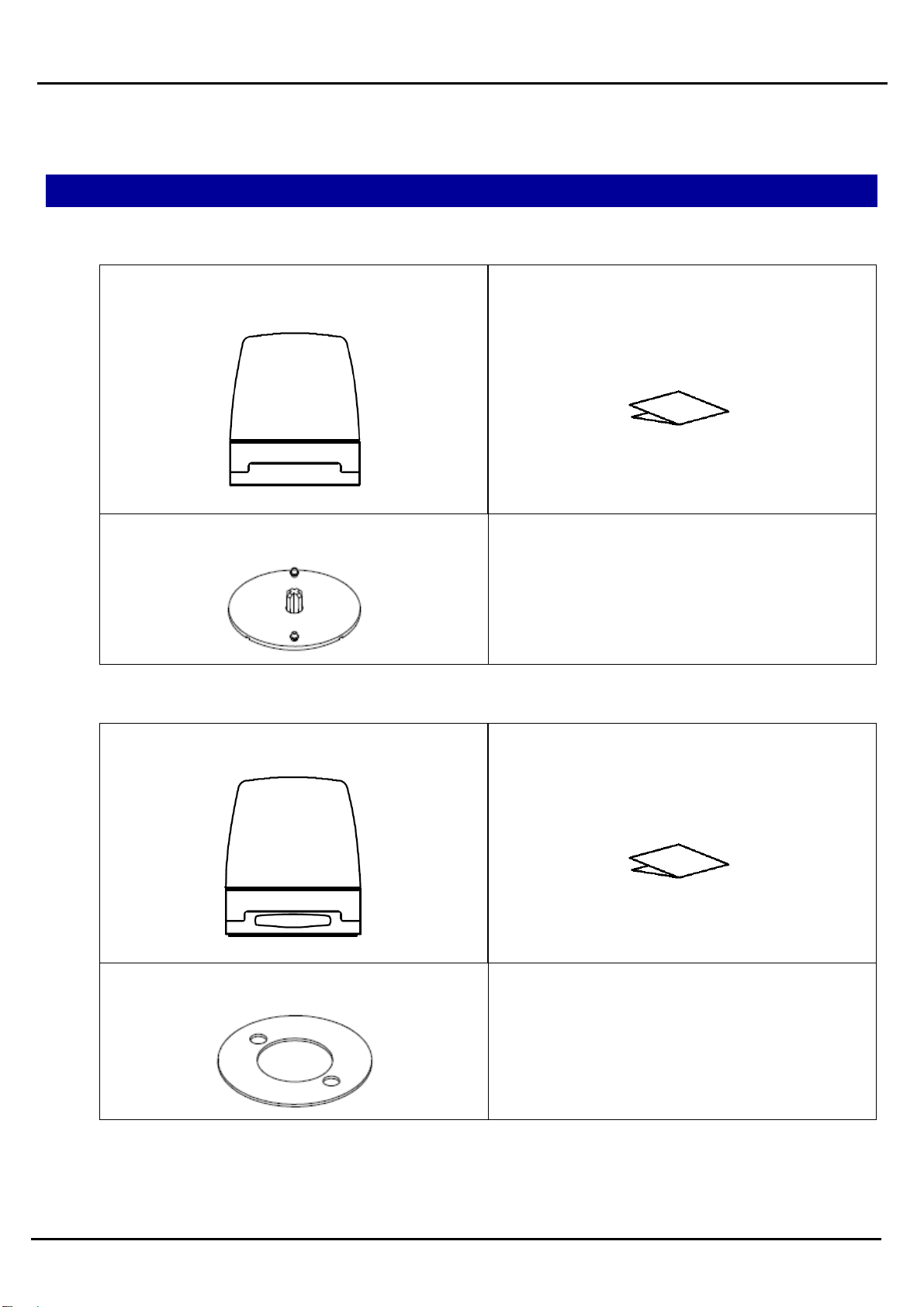

3Package contents

3.1 About package contents

(1) NE-SN-USB

NE-SN-USB unit : １Instruction Manual : 1

Slip-proof sheet : 1

(2) NE-WN-USB

NE-WN-USB unit : 1 Instruction Manual : 1

Waterproof sheet : 1

*USB cable not included, please prepare your own.

USB Controlled Multi-color Signal Beacon User Manual

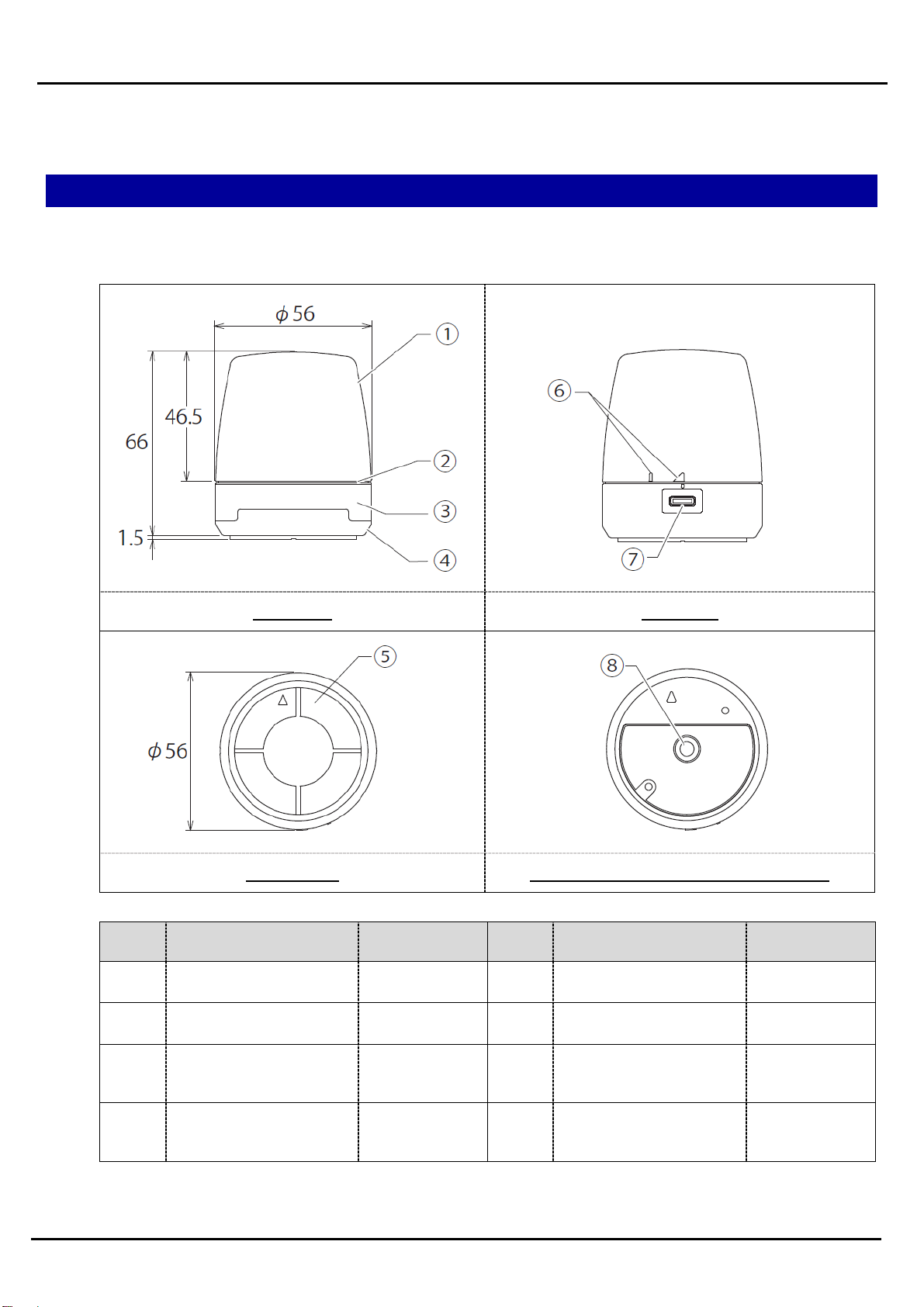

4Names and dimensions of parts

4.1 Names and dimensions of parts

(1) NE-SN-USB

Front view Back view

Bottom view Bottom view (Slip-proof sheet removed)

No. Name Material No. Name Material

①Glove PC ⑤Slip-proof sheet silicon

②O-ring silicon ⑥Positioning indicator －

③Product label －⑦USB 2.0 Connector

(Type-C) －

④Outer housing PC ⑧Tripod screw hole

(1/4-20UNC) －

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Patlite Système de sécurité

Patlite

Patlite LU7-XE-R Manuel utilisateur

Patlite

Patlite NE-SN-USB Manuel utilisateur

Patlite

Patlite NE-USB Series Manuel utilisateur

Patlite

Patlite Signal Phone Manuel utilisateur

Patlite

Patlite BK-24 Manuel utilisateur

Patlite

Patlite BD-24A-J Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
