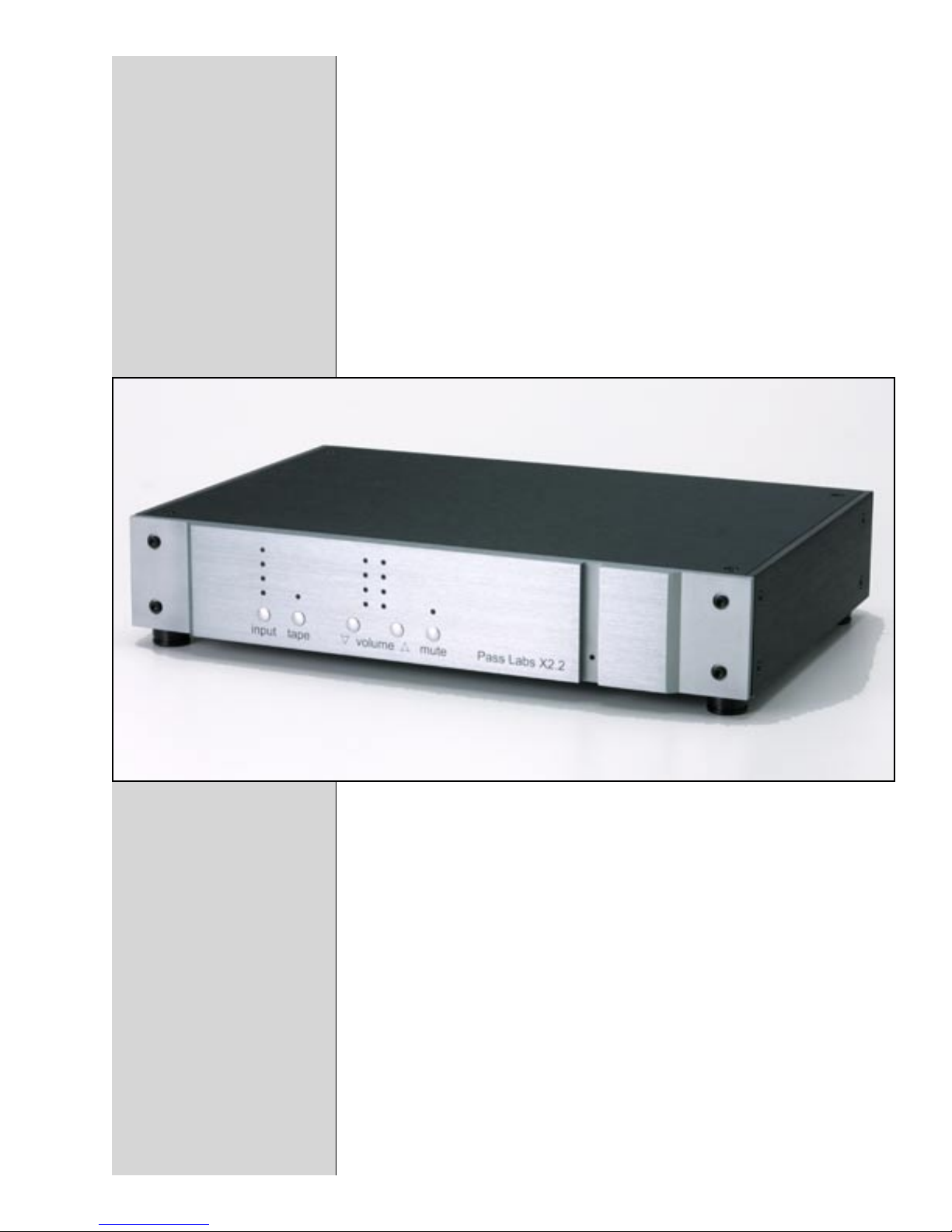

The X2.2 is an ultra high quality non-remote linestage audio

preamplifier with internal power supply. It combines a completely

new circuit topology with traditional construction representing thirty

five years of preamplifier design.

This preamplifier flows from a commitment to create the best

sounding product: a simple circuit with the most natural sonic

characteristics. Derived from US Patent # 5,376,899, the X2.2

integrates power MOSFET and JFET devices in a simple Class A

topology in order to deliver the finest sound possible.

The Super-Symmetric gain circuitry is unique in providing superior

flexibility and performance with both balanced and unbalanced

inputs and outputs, converting one to the other as desired without

extra circuitry and without performance degradation.

The X2.2 minimizes the number of components in the signal path,

and yet retains exemplary objective performance specifications. It

pushes the edge of the art in exploring how much subjective quality

is obtainable with a new but very elementary gain stage.

The X2.2 employs a patented new type of volume control that offers

significantly better performance than seen before in an electronic

control. It provides over 60 dB of range, large voltage swing and

very good measured performance. The distortion and noise is at

1/10 and the dynamic range 100 times the previous state of the art

in active attenuation. Most importantly it is subjectively outstanding;

better than any potentiometer we have evaluated.

The X2.2 may be factory upgraded to the X2.5 which will convey

several operational functions and remote control which are absent

from the X2.2. The upgrade will also change the front panel display

to the more informative vacuum fluorescent alpha-numeric display.

Very few people are involved in the production of this product. I

supervise all phases of the construction, and I test each preamplifier

myself. If you have questions, comments, or problems, please feel

free to contact me directly.

Thank you for purchasing this preamplifier. It is my sincere hope

that you will enjoy its sound as much as I do.

Wayne Colburn

Vice President, Design

Introduction

X2.2 Owner’s Manual

The preamplifier has four sets of input connections, both single-

ended and balanced output connections, and a separate tape loop.

The preamplifier’s voltage and current rating are indicated by affixed

tag on the bottom of the preamplifier. It will indicate either 240

volts, 220 volts, 120 volts, or 100 volts. A 0.5 amp 3AG slow blow

fuse is provided with 100-120 volt units, and a 0.25 amp slow blow

fuse is provided with 220-240 volt units. The frequency rating of the

power supply is 50 to 60 Hz in all cases. The preamplifier typically

draws less than 30 watts during operation. Please verify that the

indicated voltage requirement of this preamplifier is consistent with

the voltage at your location.

We have provided a standard IEC AC power cord that fits into the

IEC line receptacle at the rear of the preamplifier chassis. The

preamplifier is equipped for operation with an earth ground provided

by the user’s AC outlet. Do not defeat this ground. The circuit

ground of the preamplifier is connected to earth and power ground

through a power thermistor, which gives a ground connection for

safety but helps avoid ground loops.

There are a total of four inputs and a separate tape loop. Two of

the four inputs can be used single-ended or balanced. The other two

inputs are single-ended only. The tape loop has both single-ended

and balanced inputs and outputs. Balanced inputs and outputs are

via XLR connectors. Single-ended inputs and outputs are via RCA

connectors. On the XLR connectors, pin 1 is grounded, pin 2 is the

positive signal, and pin 3 is the negative signal. Left channel RCA

connectors are marked with “L” from below. Right channel RCA

connectors are marked with “R” from below. Balanced XLR inputs

and outputs are marked with “L” for left and “R” for right channel.

If your signal source is unbalanced, input will occur through the

RCA input connector, which is in parallel with the XLR connections

1 and 2. When single-ended inputs are used on input 1 and input

2, a shorting plug is provided between pins 1 and 3 of the XLR

connection, shorting the negative input to ground, and providing

optimal performance.

The unbalanced input impedance of the preamplifier is 33 kOhms.

In balanced mode, the input impedance is higher, with a differential

impedance of at least 66k Ohms.

Next to the inputs on the rear panel, the preamplifier offers tape

inputs through both XLR and RCA connectors. This output is a

direct connection to inputs 1, 2, 3, and 4 when they are selected from

Setup

X2.2 Owner’s Manual

the front panel. Input 5 (TAPE IN) is deliberately not available

through the tape output connection. The tape input is designated

for use with a tape recorder if you have one, and we have arranged

that it will not place its output on the tape out, which will prevent

you from accidentally creating a feedback connection with your tape

machine.

The main outputs are located at the left-hand side (viewed from the

rear) of the rear panel, two male XLR connectors, and two RCA

connectors, “R” (right) and “L” (left). The RCA connectors’ ground

is in parallel with pin 1 of the XLR outputs and the RCA hot is fed

from an independent summing junction that maximizes the X circuit

benefits. The RCA, single-ended outputs are buffered from the balanced

outputs. You may use both the single ended and balanced outputs at the

same time. On the XLR, pin 1 is ground, pin 2 is positive, and pin 3 is

negative.

The rear 5-way binding post can be used to turn on any X series

power amplifier.

In application the X2.2’s front panel controls and simple LED

displays are quite straight forward, and intuitive. We encourage you

to become familiar with their operation prior to establishing any

input connections with this unit. Experience indicates that engaging

in a few minutes of exploration and playtime will add much to your

ultimate enjoyment of this exceptional Pass Labs product.

The front panel of the X2.2 has all its control functions moderated

by five momentary pushbuttons. From left to right these buttons are

labeled input, tape, volume (down), volume (up) and mute.

The input button has four associated blue LED’s located directly

above the input switch. When the uppermost blue LED is lit it

indicates that you have selected input number 1. With an additional

push of the input selector button the second uppermost LED will

be on, indicating you have selected input number 2. So it goes, the

same pattern follows with input 3 and 4. An additional push of

the input selection button when you are on input 4 will cycle the

preamplifier back to input 1.

The second button from the left controls the tape loop, a blue LED

directly above this switch indicating the status of this particular

function. When the tape loop is active, this LED will be lit.

Immediately to the right of the tape loop control are the two volume

Description of Operation

X2.2 Owner’s Manual

control buttons, indicated by up arrows (^) and down (v) arrows.

Above the volume controls are two vertical arrays of 4 LEDs each.

This indicator is likely different from what you are accustomed to.

We think you will appreciate how easy it is to read from a distance.

The left most LED array is decade and the right most array is range.

Associated with the volume control is one additional light and a

function control button labeled as “MUTE”. In the very lowest

volume setting there will be no output and the “Mute” indicator

light will be lit. Immediately to the left of the lit “MUTE” indicator

the lowermost LED in the range column will also be lit. None of

the decade LED’s will be lit, at this time. As you step the volume

upward using the up (^) button additional LED’s in the range column

will light and the mute LED will extinguish. When you reach the top

of the range, the first decade LED will become illuminated, and the

range LED will drop back to its lowest indicated setting. And so it

goes; think of this as a counting system in base 5.

Activating “MUTE” while at any volume level does not lose the

chosen volume setting. When deactivating mute the X2.2 will be

returned to the last stored volume level.

Should you wish to upgrade the 2.2’s status to a full function remote

control preamplifier, this may be acomplished at the factory. With

additional circuitry and new front panel the X2.2 may be turned

into an X2.5 This upgrade adds an informative vacuum fluorescent

display, balance control, display brightness, mono, unity function,

gain setting and remote control capability.

A rear mounted pair of five-way binding posts are intended to

control the on/off function of our own X series power amplifiers

from the X2.2 front panel. This function is activated through

software by simultaneously pushing the extreme left control button

(INPUT) and the extreme right (MUTE) control button. When

the preamp mode “Amp” is selected it allows the user to switch

a nominal 12 volts DC at maximum draw of 50 milliamps to the

rear panel red and black five-way binding posts. In some instances

this voltage may have the ability to control products from other

manufacturers, but we by no means have comprehensive listing of

their compatible features. If you have questions about compatibility

your service technician and dealer are an excellent source of

information. For connection to other Pass Labs products please

consult the owner’s manual for specific instructions.

The electronic volume control allows approximately 60 dB range. In

this manner tracking of the volume of the two balanced channels is

possible with accuracy unavailable on any ordinary volume control,

X2.2 Owner’s Manual

assuring precise level steps and high common-mode rejection in

balanced circuits. Wayne Colburn’s exceptional volume control, in

conjunction with the unique LED display, gives the user the ability

to replicate volume levels with absolute accuracy in steps of roughly

3dB.

1) Circuit simplicity and a minimum number of components is a key

element. The fewer parts in series with the signal path, the better.

Adding more parts and gain stages may improve measured specs,

but will seldom improve the perceived sonic quality or reliability of a

product.

2) The characteristic of gain devices and their specific use is

important. Individual variations in performance between like devices

are important, as are differences in topological usage. All signal

bearing devices contribute to the degradation, but there are some

different characteristics that are worthy of attention. For example,

smooth low order nonlinearities are additive in quality, bringing false

warmth and coloration, while abrupt high order nonlinearities add

harshness and false brightness.

3) Maximum intrinsic linearity is desired. This is the performance

of the gain stages before feedback is applied. Experience suggests

that feedback is a subtractive process; it removes information from

the signal. In many older designs, poor intrinsic linearity has been

corrected by large application of feedback, resulting in loss of

warmth, space, and detail. The trick is to get good performance

without this excessive reliance on feedback.

The art of high end audio design lies in the approach of combining

these elements to get high reliability and simplicity, high quality

measured performance, and high quality subjective performance. It

takes imagination and hard work to get as much of these as possible

at once without trading them off against each other.

We recommend the use of the balanced output mode where possible.

It will retain the character of the input mode, but offers less

distortion, less noise, more gain, and more voltage swing, without

compromising the sound.

With balanced operation, the common-mode rejection of the

preamp reflects the intrinsic common-mode rejection of the

topology, the matching of the gain devices, and the matching of

the attenuator channels. In this case we have been able to keep

Product Philosophy

Other Design Comments

X2.2 Owner’s Manual

the total mismatch to about .1%, for a common-mode rejection of

approximately -60 dB.

The input system of the preamplifier will exhibit full common-mode

noise rejection with passive balanced sources, where the negative

input is connected to ground at the source through the appropriate

source impedance. This allows adaptation of unbalanced sources to

balanced operation with passive cable connections in a manner that

achieves the noise rejection of active balanced sources.

The use of a micro-controller allows all of the preamplifier functions

to be repeatable and accurately controlled. The micro-processor

only controls the functions of the preamplifier. At no time does

any of the input or output signal come into contact with the digital

control signals. The digital circuits are powered by a power supply

that is completely separate from the analog supply. Should it ever be

necessary to update the software that controls the functioning of the

preamp only the socketed micro-processor need be changed.

The power supply for the X2.2 consists of a toroidal power

transformer delivering an unregulated +/- 45 volts which is actively

regulated before feeding passive filtering and powering the constant

current sources which bias the gain stages. Each channel has its own

regulation. The power supply noise reaching the circuit is on the

order of one microvolt, and the little of that which gets through the

circuit is rejected at the output in a balanced system. The relays and

control systems are regulated independently, and all digital circuitry is

isolated from the power supply.

Muting relays, which delay connection during turn-on and shut off

the output when insufficient power supply is available to maintain

regulation, guard the output of the preamplifier. The preamplifier

is designed to run constantly, and will exhibit optimum measured

performance within about 10 hours of turn-on.

The X2.2 consists of a single chassis.

X2.2 Owner’s Manual

Gain, Balanced: selectable 4 / 14dB

Gain, single-ended: selectable 4 / 14 dB

Freq. Response: -3 dB @ 2 Hz, -3 dB at @ 100K Hz

Distortion @ 1KHZ: < .1 % THD, typically .003% @ 2 volts

Maximum Output: 10 volts rms. bal out, 7 volts rms. unbal

Output Impedance: 200 ohms unbal, 750 ohms balanced

Input Impedance: 33K Ohm unbal, 66K Ohm balanced

CMRR: typ. -55 dB, 1KHz

Crosstalk: typ. -85 dB, 1KHz

Output Noise floor: < -125 dBV, 20Hz to 20KHz

External amp turn on: 12 volts DC 50 mA continuous

Power Consumption: 35 watts

Dimensions: 17” W x 11.5 “D x 3.5”H

Shipping Weight: 28 Lbs in packing

Pass Laboratories Inc.

P.O. Box 219,

24449 Foresthill Rd.,

Foresthill, CA 95631

Tel: 530.367.3690, Fax: 530.369.2193, www.passlabs.com

X2.2 Specifications

“Pass”, “pass”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”,

“Aleph”, and “Zen” and are all registered trademarks of Pass

Laboratories, Inc., and all rights thereto are protected by law.

X2.2 Owner’s Manual

Please check with the factory-authorized distributor in the country you are

purchasing this product for specific warranty information.

All Pass Laboratories products purchased from an authorized Pass Labora-

tories dealer in North America are covered by a transferable, limited 3-year

warranty. This warrantee includes all parts and labor charges incurred at the

repair facility in addition to return shipping to the domestic customer, exclu-

sive of subsequent damages. Damage due to physical abuse is specifically

not covered under this warranty.

For this warranty to apply the customer is responsible for returning the

product unmodified to the factory within the warranty period. The customer

assumes all responsibility for shipping and insurance to the factory or a fac-

tory specified repair facility. The conditions and stipulations of this Pass

Laboratories warranty only applies to units sold new in North America.

Non-North America customers should consult with their original Pass Labs

dealer or distributor for warrantee repair instruction prior to contacting the

factory or shipping product for repair.

Non-North American product must be returned to the country of origin for

warrantee service. Foreign distributors are only required to offer warranty

service on Pass Laboratories product that they have imported.

Please note: Conditions of warranty service and customer rights for product

purchased outside the United States may vary depending upon the distribu-

tor and local laws. Please check with your local distributor for specific rights

and details.

Any modifications to Pass Laboratories products that have not received

written factory approval nullify all claims and void the warrantee. Should a

modified product be returned to the factory for repair the owner will be re-

quired to pay all necessary charges for the repair in addition to those charges

required to return the product to it’s original configuration.

In the case of safety issues, no product shall be returned to the customer

without those safety issues being corrected to the most recent accepted

standards.

Removal or alteration of original Pass Labs serial numbers voids the factory

warranty. Product with altered or missing serial numbers will be suspected

as counterfeit product.

Pass Laboratories will not repair or in any way indemnify any counterfeit or

cloned product.

Pass Laboratories does not offer products in voltages intended for inter-

national markets either to authorized Pass Labs dealers or to third parties

located in the United States or Canada.

Warranty Information

X2.2 Owner’s Manual

For your protection please

read the following:

Water and moisture: Electrical devices should not be used near

water ( as per example, near a bathtub, washbasin, kitchen sink,

laundry tub, wet basement or swimming pool ). Care should be

taken such that objects do not have the opportunity to fall, and that

liquid is never spilled onto or into the device enclosure through

openings.

Power Sources: An electrical device must be connected to a mains

power source in strict accordance with the supplied product owner’s

manual. Please verify that the AC mains voltage specified in the

product manual matches those requirements indicated on the unit

and the AC voltage provided to your location by the power company.

Grounding: Adequate precautions should be taken so that the

grounding provisions built into an electrical product are never

defeated.

Power Cords: Pass Laboratories provides a power supply cord that

meets all legislated requirements for the market in which the product

was originally sold. If you choose to substitute an after-market

product we urge you to choose one that is fully safety rated by the

necessary local authority.

Power Cord Protection: Power supply cords should be routed so

that they are not likely to be walked on, abraded, or pinched by items

placed on or against them, paying particular attention to cords where

they enter plugs or exit from a device. Never under any circumstance

insert a cut or damaged power cord into a mains power socket.

Power and Signal: Cables should never be connected /

disconnected with equipment powered up. Failure to heed this

warning may damage or destroy equipment.

Ventilation: Power-amplifiers run hot, but you should be able to

place your hands on them without discomfort. You must allow for

this heat in installation, by providing for free air circulation around

the product. Electronics should not be subjected to sources of

excessive radiant heat. Excessive heat can shorten the life of the

product and may cause the electronics to self-protect and shut down.

Servicing: To reduce the risk of fire, electrical shock or other

injuries, the user should not attempt to service the device beyond

that which is described in the operating instructions. All other

servicing must be referred to qualified service personnel.

Table des matières

Autres manuels Pass Laboratories Amplificateur

Pass Laboratories

Pass Laboratories Aleph 0 Manuel utilisateur

Pass Laboratories

Pass Laboratories Volksamp Aleph 30 Manuel utilisateur

Pass Laboratories

Pass Laboratories Pass X250 Manuel utilisateur

Pass Laboratories

Pass Laboratories Xs Preamp Manuel utilisateur

Pass Laboratories

Pass Laboratories Aleph 2 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-20 Manuel utilisateur

Pass Laboratories

Pass Laboratories INT-25 Manuel utilisateur

Pass Laboratories

Pass Laboratories X250.5 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-10 Manuel utilisateur

Pass Laboratories

Pass Laboratories X1000 Manuel utilisateur

Pass Laboratories

Pass Laboratories pre-amplifier Manuel utilisateur

Pass Laboratories

Pass Laboratories Aleph L Manuel utilisateur

Pass Laboratories

Pass Laboratories XA60 Manuel utilisateur

Pass Laboratories

Pass Laboratories XA25 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-30 Manuel utilisateur

Pass Laboratories

Pass Laboratories Pass X5 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-10 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-25 Manuel utilisateur

Pass Laboratories

Pass Laboratories INT-150 Manuel utilisateur

Pass Laboratories

Pass Laboratories Aleph 1 Manuel utilisateur

Pass Laboratories

Pass Laboratories X2.5 Manuel utilisateur

Pass Laboratories

Pass Laboratories X600.5 Manuel utilisateur

Pass Laboratories

Pass Laboratories XP-12 Manuel utilisateur

Pass Laboratories

Pass Laboratories Aleph P Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
