INSTRUCTION MANUAL 10M x 15M
10m x 15m PART LIST
STANDARD PARTS
These parts are included in the Standard 10m x 15m Bonga Stretchtent
OPTIONAL PARTS
These parts are available on demand. (NOT INCLUDED IN STANDARD TENT)
SET OF ALUMINIUM POLES
DESCRIPTION SIZE MATERIAL QUANTITY
CANVAS 10m x 15m fabric 1
SIDE CLAMPS + GRIP 10cm x 11 cm x 10cm reinforced polymere 20+4
CORNER CLAMPS + GRIP 10cm x 11 cm x 10cm reinforced polymere 4
POLECAPS 9cm x 5cm reinforced polymere 16
WOOD ADAPTORS 4cm x 4,5cm reinforced polymere 16
PEGS for lawn and clay 50 cm galvanised steel 28
STRAPS lenght: 4 meter nylon, galvanised steel 28
BAG PVC PVC 2
DESCRIPTION SIZE material QUANTITY
POLE 110CM 110cm x 40mm diameter aluminium extrusion 60
POLE 50CM 50cm x 40mm diameter aluminium extrusion 14
CONNECTOR 20cm x 40mm aluminium extrusion 46
POLE FEET 60mmx 40mm reinforced polymere 30
TENT PARTS: DETAILS
SIDE CLAMP
The Bonga Stretchtent uses side clamps to hold the tent.
You can put them on the reinforced zones every meter in the
sideseams of the tent
Material: reinforced polymere
Size: 11cm x10cm x 10cm
Weight: 300gr
Galvanized steel nut, bolt and ring
The side clamps have a grip on the bottom side: you can slide a pole of 40mm diameter on the grip
If you remove the grip and put back the M8 nut, you can use this conguration to simply slide it on a
wooden pole
STRAPS
The straps connect the clamps with the pegs
Material: nylon and galvanized steel
Size: 4m x 30mm
Weight: 190gr
CORNER CLAMP
The Bonga Stretchtent uses 4 corner clamps to hold
the tent.
Material: reinforced polymere
Size: 11cm x10cm x 10cm
Weight: 300gr
Galvanized steel nut, bolt and ring
The corner clamps have a grip on the bottom side: you can slide a pole of 40mm diameter on the grip
If you remove the grip and put back the M8 nut, you can use this conguration to simply slide it on a
wooden pole
POLECAPS/ MUSHROOM
This cap is used to put at the end of the CENTER POLES,
to protect the canvas.
Material: reinforced polymere
Size: 90mm x 50mm
Weight: 110gr
You can slide
aluminium
standard poles
of 40mm and
60mm into the
pole cap
If you use wooden
poles, you can use
the wood adaptors
delivered with your
tent to x a pole cap
on a wooden pole
WOOD ADAPTOR
You only need this adaptor if you want to use wooden
CENTER POLES.
It is used to x a pole cap on a wooden pole.
Material: reinforced polymere
Size: 40mm x 45mm
Weight: 100gr
LAWN AND CLAY PEGS
We deliver standard pegs for lawn and clay of 50cm
Material: galvanised steel
Size: 50cm x 70mm x 20mm
Weight: 450gr
With the
OPTIONAL PARTS These parts are available on demand. (NOT INCLUDED IN STANDARD TENT)

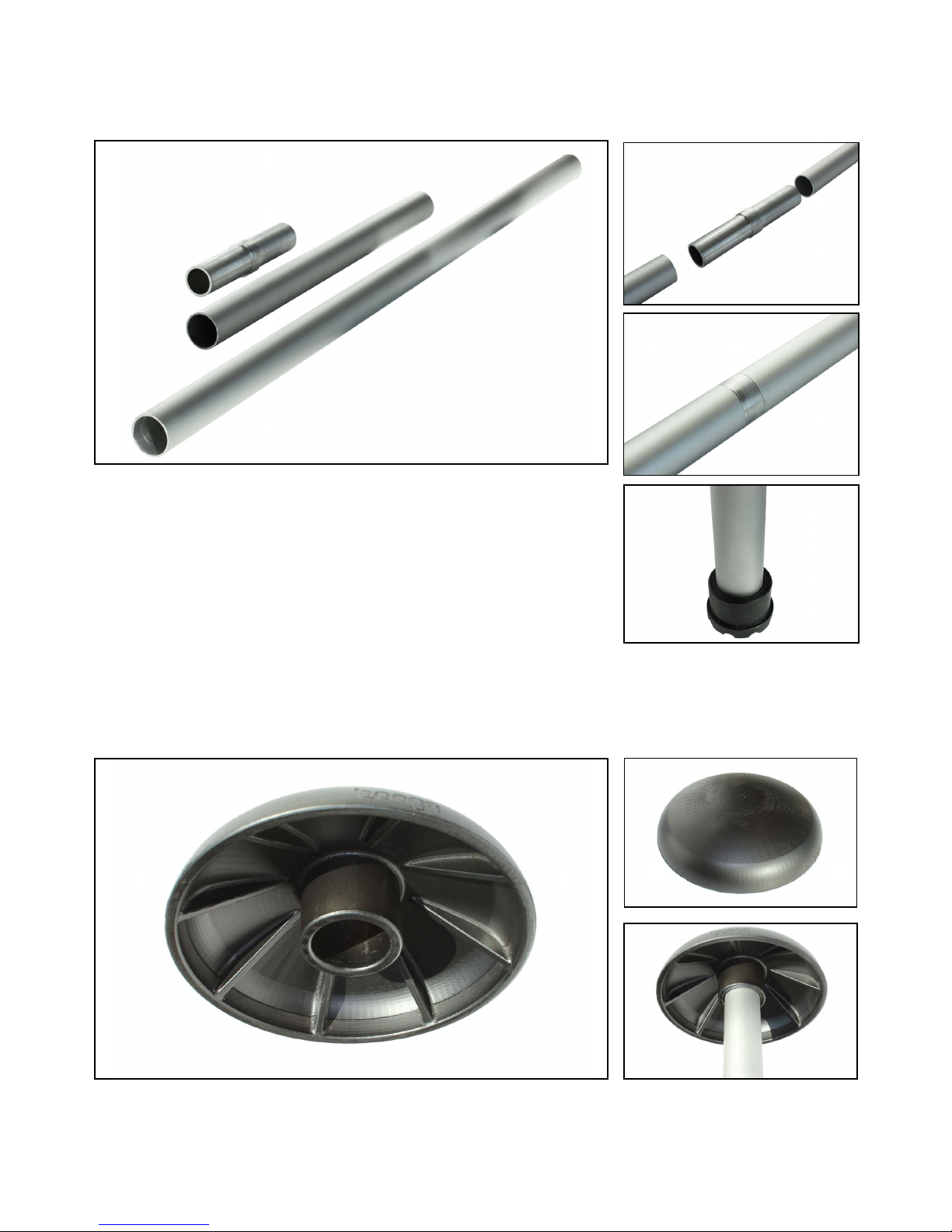

SET OF ALUMINIUM POLES
- diameter 40 mm
- includes: poles of 110 cm
poles of 50 cm
adaptors to connect poles in between
polefeet
- modular and compact
- in a heavy PVC bag
- pole feet (can be used for poles 40 diameter and 60 diameter)
XL POLE CAP
- extra wide polecap
- used for large tents
- sizes: diameter: 19 cm height: 5 cm
- ts for poles of 40mm diameter and 60mm diameter or with woodadaptor on wooden poles
REINFORCED ZONES ON 10m x 15M
Warning: Only put the side xings on the reinforced zones! See setup instructions.
OVERALL INSTRUCTIONS
ALways put a clamp at least every 2 meter on a reinforced zone
Never use straps with ratchets, use the straps delivered with the tenT
WASHING INSTRUCTIONS
Use a jetwasher. Never go closer then 20cm!
Use a soft brown/black soap with a soft sponge to remove stains
Never use aceton / thinner or anu kind of solvent
SETUP OPTION 10m x 15m: 4 sides open
This is a recommended setup option to start with
H= Height of the pole
D= Distance from pole to peg
Warning: Only use when less then 85 kmph
SETUP OPTION 10m x 15m: 3 sideS CLOSED
This is a recommended setup option to start with
H= Height of the pole
D= Distance from pole to peg
Warning: Only use when less then 85 kmph
Put the closed side in the direction of the wind
