Household Ice Machine

User’s Manual

Be sure the unit is standing upright for 24 hours prior to plug-in

Model # IM70

Made in China

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page

IC MACHIN SAF TY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAF GUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 5

T CHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

COMPON NT LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IC MACHIN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 14

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8

lectrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Function of Casters & Leveling Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Reversing the Door Swing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

On-board Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OP RATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 20

Final Checklist before Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Operating Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15

How the Machine Makes Ice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

How the Machine Uses the Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Working Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 18

Button Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Normal Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparing the Ice Machine for Long Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CL ANING AND MAINT NANC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 - 24

xterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Interior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Condenser Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Water Distribution Tube Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Ice-Making System Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 – 24

MAJOR FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

RROR COD S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TROUBL SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 - 27

PARTS BR AKDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

We reserve the right to make changes in specifications and design without prior notice.

ICE MACHINE SAFETY

Your safety and the safety of others is very important.

In this manual and on your appliance we have provided many important safety messages.

Always read and obey all safety messages.

SAVE THESE INSTRUCTIONS

This is the Safety Alert Symbol. This symbol alerts you to potential

hazards that can injure or kill you and others. All safety messages will

follow the Safety Alert Symbol and either the words "DANGER",

"WARNING" or "CAUTION".

DANGER means that failure to heed this safety

statement may result in severe personal injury or

death.

WARNING means that failure to heed this safety

statement may result in extensive product dam-

age, serious personal injury or death.

CAUTION means that failure to heed this safety

statement may result in minor or moderate per-

sonal injury, or property or equipment damage.

All safety messages alert you to the potential hazard, tell you how to reduce the chance of

injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock or injury

when using your ice machine, follow these basic precautions:

• Plug into grounded 3-prong outlet.

• Do not remove grounding prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before cleaning.

• Disconnect power before servicing.

• Replace all panels before operating.

• Use 2 or more people to move & install

ice machine

IMPORTANT SAFEGUARDS

● Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use

an adapter, and do not use an extension cord.

● It is recommended that a separate circuit, serving only your ice machine, be provided.

Use receptacles that cannot be turned off by a switch or pull chain.

● Do not connect or disconnect the electric plug when your hands are wet.

● Never unplug the ice machine by pulling on the power cord. Always grip the plug

firmly and pull straight out from the outlet.

● Never clean ice machine parts with flammable fluids. Do not store or use gasoline or

other flammable vapors and liquids in the vicinity of this or any other appliance. The

fumes can create a fire hazard or explosion.

● Before proceeding with cleaning and maintenance operations, make sure the power

line of the unit is disconnected and the water line is shut off. ( XC PTION: When

cleaning the machine’s ice making and water systems - See pages 21-24)

● Before operating, put all panels back into place.

● Never allow children to operate, play with or crawl inside the ice machine.

● Do not touch the evaporator by hand when the machine is operating.

● Unplug the ice machine or disconnect power before cleaning or servicing. Failure to

do so can result in electrical shock or death.

● Do not attempt to repair or replace any part of your ice machine unless it is specifi-

cally recommended in this manual. All other servicing should be referred to a qualified

technician.

Before the ice machine is used, it must be properly positioned and in-

stalled as described in this manual. Read the manual carefully. We

strongly recommend that you have a professional install your new ma-

chine. The warranty may be affected or voided by an incorrect installa-

tion. To reduce the risk of fire, electrical shock or injury when using the

ice machine, follow basic precautions, including the following:

● Use two or more people to move and install ice machine. Failure to do so can result

in back or other injury.

● Never install or operate the unit in an enclosed area, such as a closed cabinet. To en-

sure proper ventilation for your ice machine, the front of the unit must be completely

un obstructed. Choose a well-ventilated area with temperatures above 45ºF (7ºC) and

below 110º F (43ºC).

● The ice machine should not be located next to ovens, grills or other sources of high

heat.

● The ice machine must be installed with all electrical and water connections in accor-

dance with state and local codes. A standard electrical supply (115VAC, 60Hz, 15A),

properly grounded in accordance with the National lectrical Code and local code and

ordinances is required.

● Do not kink or pinch the power supply cord between the ice machine and cabinet.

● The fuse (or circuit breaker) size should be 15 amperes.

● It is important for the ice machine to be leveled in order to work properly. You may

need to make several adjustments to level.

● All installations must be in accordance with local plumbing code requirements.

● Make certain that the hoses are not pinched or kinked or damaged during installation.

● Check for leaks after connection.

● Although the unit has been tested at the factory, due to long-term transit and storage,

the first batch of cubes must be discarded.

● Remove the packing materials and clean the ice machine before using.

● Turn on the water supply tap before switching on the ice machine. Never turn the water

supply tap off when the ice machine is working.

● xcept to take ice from the unit, keep the door closed in order to reduce ice melting

and to promote proper ice formation.

● If the ice machine will not be used for a long time, before the next use, it must be thor-

oughly cleaned. Follow carefully the instructions provided for cleaning and use of sani-

tizing solution. Do not leave any solution inside the ice machine after cleaning.

● DO NOT touch the condenser fins. The condenser fins are sharp and can be easily

damaged.

● DO NOT use solvent-based cleaning agents or abrasives on the interior. These clean-

ers may transmit taste to the ice cubes, or damage or discolor the interior.

● Ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based

cleaner products. Use rubber gloves to protect hand. Carefully read the material safety

instructions on the container of the ice machine cleaner.

● Do not use this apparatus for other than its intended purpose.

ELECTRICAL CONNECTION

Do not, under any circumstances, cut or remove the third (ground) prong from the power

cord. For personal safety, this appliance must be properly grounded. The power cord of

this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-

prong grounding wall outlet to minimize the possibility of electric shock hazard from the

appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure

the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is

your responsibility and obligation to have it replaced with a properly grounded 3-prong

wall outlet. The ice machine should always be plugged into its own individual electrical

outlet which has a voltage rating that matches the rating label on the appliance. This pro-

vides the best performance and also prevents overloading house wiring circuits which

could cause a fire hazard from overheated wires. Never unplug your ice machine by

pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion damage along its length or

at either end. When moving the ice machine, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended

that you do not use an extension cord with this ice machine.

TECHNICAL INFORMATION

Model: IM70

Electrical power: 115VAC ~ 60Hz

Power consumption: 13.2kWh/100 lbs of ice

Ice-making/Ice-harvest rated current: 3.0A/3.6A

Refrigerant: R134a, 3.17 oz.

High/Low Side Pressure: 350psig/130psig

Width × Depth × Height: 14.6″×24″×33.2″

Unit weight: 88 lbs

Ice-making capacity: 70 lbs/day*

Max. ice storage: 27 lbs

Ice shape: Cube

Ice cube dimensions: ¾″ × ¾″ × 1″

The technical data and performance index listed above should be used for reference

only. They are subject to change.

* The actual quantity of ice produced per day can vary with room and water conditions.

SAVE THESE INSTRUCTIONS

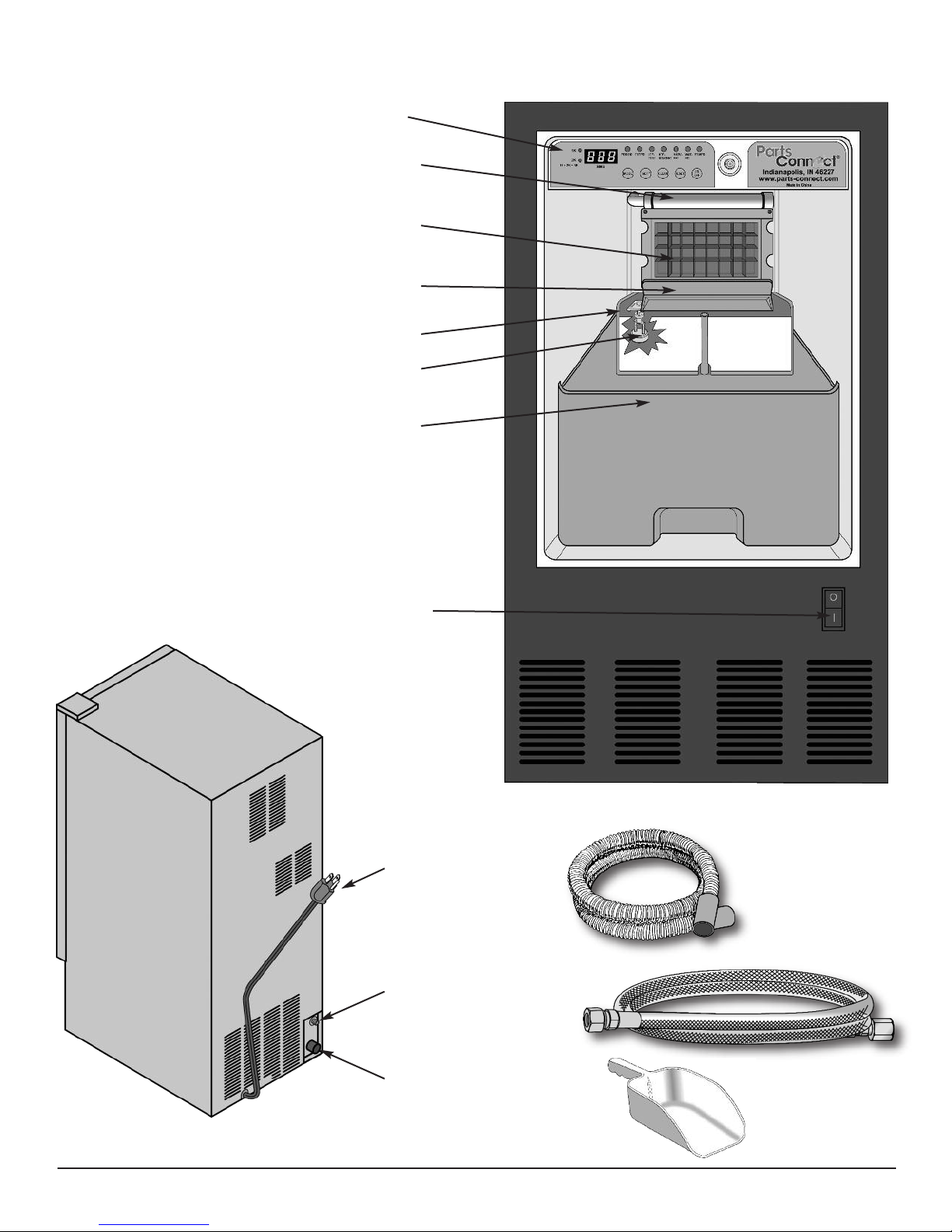

COMPONENT LOCATIONS

FRONTVIEW

REARVIEW

Power Cord 6’ Drain Hose

Control Panel

Water Distribution Tube

Water Inlet

Drain Outlet

Evaporator (Ice Mold)

Ice Full Swivel

Water Trough

Float Switch

Ice Storage Bin

ON/OFF Switch

6’ Fill Hose

Ice Scoop

ICE MACHINE INSTALLATION

Excessive Weight Hazard

Use two or more people to move and install ice machine.

Failure to do so can result in back or other injury.

Remove packaging materials

IMPORTANT: D n t rem ve any permanent instructi n labels r the data label n y ur ice machine.

Remove tape and glue from your ice machine before using.

● To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue

can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with

your fingers. Wipe with warm water and dry.

● Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape

or glue. These products can damage the surface of your ice machine.

Cleaning before use

After removing all packaging materials, clean the inside of your ice machine before use. See "Interior

Cleaning" in the Cleaning and Maintenance secti n.

Installat on Clearances

View from TOP View from SIDE

Normal operating ambient temperature should be between 45º F (7º C) to 110º F

(43º C). Normal operating water temperature should be between 41º F (5º C)

and 90º F (32º C). Operation of the ice machine for extended periods outside of

these normal temperature ranges may affect production capacity.

● This ice machine should be installed by qualified personnel.

● To ensure proper ventilation for your ice machine, the front of the unit must be completely unob-

structed.

● When installing the ice machine under a counter, follow the recommended spacing dimensions

shown on the previous page. Allow 4" (102mm) or more clearance at rear, 1" (25.4mm) at the

top and sides for proper air circulation. The installation should allow the ice machine to be

pulled forward for servicing if necessary.

● Choose a well-ventilated area with temperatures above 45º F (7º C) and below 110º F (43º C).

● The unit should not be located next to ovens, grills or other sources of high heat.

● Installation of the ice machine requires a cold water supply inlet of 1/4” (6.35mm) soft copper

tubing with a shut-off valve.

● The ice machine requires a continuous water supply with a minimum pressure of 15 psig and a

static pressure not to exceed 80 psig. The temperature of the water feeding into the ice machine

should be between 41º F (5º C) and 90º F (32º C) for proper operation.

● Some water is very hard; softened water may result in white, mushy cubes that stick together. De-

ionized water is not recommended.

● The ice machine must be installed with all electrical and water connections in accordance with all

state and local codes.

● The unit should be located on a firm and level surface. It is important for the ice machine to be lev-

eled in order to work properly.

● A standard electrical supply (115V AC only, 60Hz, 15A), properly grounded in accordance with the

National lectrical Code and local codes and ordinances, is required.

● IMPORTANT: Do not kink or pinch the power supply cord between the ice machine and wall or cab-

inet.

Normal operating ambient temperature should be between 45º F (7º C) to 110º F (43º C). Normal oper-

ating water temperature should be between 41º F (5º C) and 90º F (32º C). Operation of the ice machine

for extended periods outside of these normal temperature ranges may affect production capacity

Electr cal Requ rements

Electrical Shock Hazard

Plug into a grounded 3- prong outlet.

Never remove the ground prong from the plug.

Never use an 3-prong adapter.

Never use an extension cord.

Failure to follow these instructions can result in fire, electrical

shock or death.

Before you move your ice machine into its final location, be sure you have the proper electrical con-

nection:

A standard electrical supply (115V AC only, 60Hz, 15A), properly grounded in accordance with the

National lectrical Code and local codes and ordinances, is required. The ice machine should always

be plugged into its own individual electrical outlet.

It is recommended that a separate circuit, serving only your ice machine, be provided. Use receptacles

that cannot be turned off by a switch or pull chain.

The fuse (or circuit breaker) size should be 15 amperes.

Recommended grounding method

For your personal safety, this appliance must be grounded. It is equipped with a power supply cord

having a 3-prong grounding plug. To minimize a possible shock hazard, the cord must be plugged

into a mating 3-pronged and grounding-type wall receptacle, grounded in accordance with the National

lectrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the

personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed

by a qualified electrician.

Autres manuels pour IM70

Table des matières

Autres manuels Parts Connect Machine à glaçons

Parts Connect

Parts Connect IM70 Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
