Pointer Installation Instructions Page 1 of 8

Required Tools & Accessories

Flathead Screwdriver

Phillips Screwdriver

Loctite or 3M Red 271 Thread locker

Mounting Options

Antenna Mounting Location Directions

When selecting the location of an antenna, consider the following

factors:

1. Antenna Directionality –the direction of the signal is limited

by the directionality of the antenna.

Directional antennas focus the coverage on a single direction,

usually a 30-to-90-degree cone. This limits connectivity to a

particular area but allows for more powerful coverage and a

longer signal receiving range than omni-directional

antennas. Directional antennas must be pointed towards the

signal source.

When selecting the location of a directional antenna, ensure that the antenna can be mounted in

such a way that it faces the desired signal source, typically the nearest cell tower.

2. Signal Path Loss –signal strength is greatly affected by the materials that the signal passes

through. Severe signal loss can be caused by concrete and brick walls. Metals can absorb and/or

reflect the signal, affecting the signal path. For best antenna performance, select an antenna

location with minimal obstructions between the antenna and the signal source(s).

3. Reflection & Diffraction –the signal will bounce off certain materials and bend around obstacles.

For best antenna performance, the antenna should be

installed in a location where the signal path is not interfered

with by materials like Low E glass, Metal, Tinted glass, etc.,

that reflect RF Energy.

4. Interference –electrical devices and appliances interfere with

the antenna’s signal.

Electrical devices and appliances, such as refrigerators,

microwaves, AC units, and cameras, can cause

electromagnetic interference with the antenna signal.

Select a location that is as far as possible from electrical

devices and appliances and minimizes the amount of such

devices between the antenna and the signal source(s). For

Pointer

Installation Instructions

Pointer Installation Instructions Page 2 of 8

best antenna performance, install antennas as far away as possible from each other and other

devices. In general, separate antennas by at least 24 inches (61 cm).

5. Cable Loss –signal strength is lost as RF waves travel through cables.

The longer the cable, the more electrical energy is lost as heat and the higher the signal loss.

Therefore, it is best to select a location for the antenna that allows the cables to be as short as

possible and still reach the router.

The size of the cable also affects cable loss; coaxial cables with higher center conductor diameters

have less cable loss compared to thinner coaxial cables.

It is critical to avoid bending coaxial cables sharply to avoid shearing of the Aluminum foil shield,

which can result in a significant or complete loss of antenna functionality.

Coaxial cables should not be bent sharply; they have a minimum bend radius which varies

depending on the size of cable.

Hardware Accessories

Accessory

Part Number

Pole Mount Kit

PTA0532

Wall Mount Kit

PTA0459

Lightning Arrestor –SMA(F) to SMA(F)

PTA0476

Lightning Arrestor –N(F) to N(M)

PTA0736

SMA Wrench, Key Chain

PTA0194

Service: Cable Sleeving (Priced Per Ft)

Cable Sleeving

*Lightning Arrestors are recommended for outdoor installations

Pointer Installation Instructions Page 3 of 8

Pole Mount

1. Select the mounting location.

A. To avoid de-tuning or interference issues, install the antenna as far away as possible from

other devices (minimum 24 inches), including lights, AC units, routers, and other antennas.

B. A clear line of sight to the nearest cell tower is recommended for best performance for

directional antennas.

C. The diameter of the pole must be between 2.5 inches - 3.5 inches and the pole must be

vertical.

2. Install the two pole mount brackets onto the back of the antenna using the four ¾” screws provided

in the kit. Use the Loctite or red thread locker on the screw threads prior to screwing into the back of

the antenna.

3. Guide the provided hose clamps through the slots in the pole mount brackets and around the pole,

as shown below. Tighten the hose clamps around the pole.

4. Connect the cables from the cable kit to the antenna cables. Make sure to match the cables

according to the labels on the antenna cables and the cable kit.

5. Secure the antenna cables to the pole roughly 6 inches below the antenna to provide strain relief.

Vinyl electrical tape or cable-ties can be used. If using cable-ties outside, make sure to use UV

resistant cable-ties.

A. Ensure that the cables do not bend sharply. Do not bend the cables with a radius of 1.5” or

less.

B. Route the antenna cables adjacent to existing wiring as much as possible.

Pointer Installation Instructions Page 4 of 8

Wall Mount: Hanging

1. Select the mounting location.

A. To avoid de-tuning or interference issues, install the antenna as far away as possible from

other devices (minimum 24 inches), including lights, AC units, routers, and other antennas.

B. Mount the antenna so that it is centered on a wall stud.

C. Ensure that there is no metal in the wall behind the antenna.

2. Drill two 0.25” diameter holes into the wall.

A. Mark the locations of the holes as shown below.

B. Use a 1/4” diameter drill bit to drill holes at the marked locations.

3. Install the provided wall anchors and screws into the wall.

A. Insert the wall anchors into the holes. Ensure that the anchors are fully inserted.

B. Insert the screws into the wall anchors and

tighten until the screw head is ¼” away from the

wall.

4. Hang the antenna on the screws.

5. Secure the antenna cables to the wall roughly 6 inches

below the antenna to provide strain relief. Vinyl

electrical tape or cable-ties can be used. If using cable-ties outside, make sure to use UV resistant

cable-ties.

A. Ensure that the antenna cables run vertically at least 8” under the antenna.

B. Ensure that the cables do not bend sharply. Do not bend the cables with a radius of 1.5” or

less.

C. Route the antenna cables adjacent to existing wiring as

much as possible.

Pointer Installation Instructions Page 5 of 8

Panel Mount

1. Select the mounting location.

A. To avoid de-tuning or interference issues, install the antenna as far away as possible from

other devices (minimum 24 inches), including lights, AC units, routers, and other antennas.

B. Mount the antenna so that it is centered on a wall stud.

C. A clear line of sight to the nearest cell tower is recommended for best performance for

directional antennas.

D. Ensure that there is no metal in the wall behind the antenna.

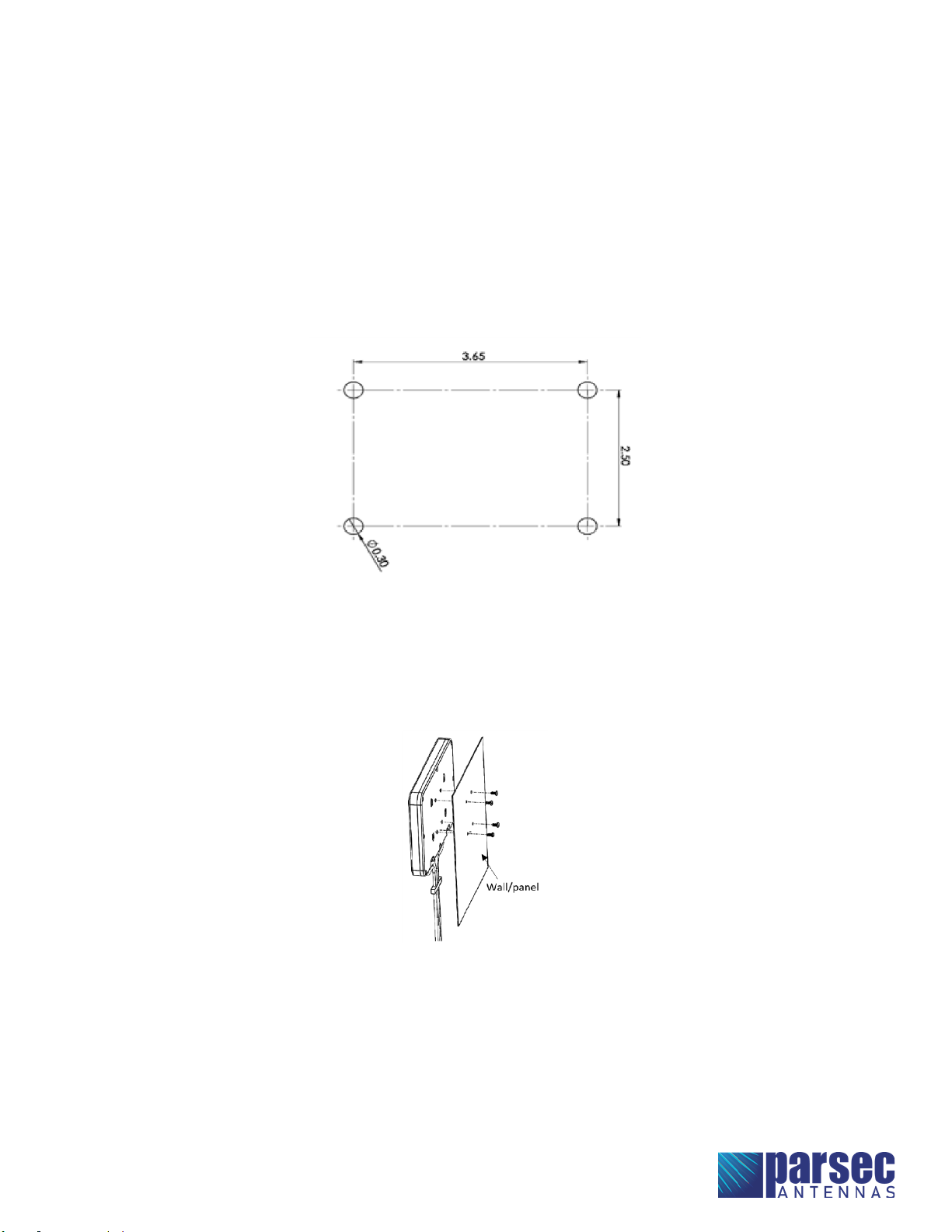

2. Drill 0.3” diameter holes into the wall.

A. Mark the locations of the holes as shown below.

B. Use a 0.3” diameter drill bit to drill holes at the marked locations.

3. Mount the antenna to the wall/panel

A. Align the mounting holes on the antenna to the wall/panel mounting holes.

B. Fasten the antenna to the wall using the Qty. 4 ¼-20 screws provided in the kit.

C. If the wall/panel thickness is 0.35” or greater, please use the appropriate length screws.

4. Secure the antenna cables to the wall roughly 6 inches below the antenna to provide strain relief.

Vinyl electrical tape or cable-ties can be used. If using cable-ties outside, make sure to use UV

resistant cable-ties.

A. Ensure that the antenna cables run vertically at least 8” under the antenna.

B. Ensure that the cables do not bend sharply. Do not bend the cables with a radius of 1.5” or

less.

C. Route the antenna cables adjacent to existing wiring as much as possible.

Pointer Installation Instructions Page 6 of 8

Strap Mount

1. Select the mounting location.

A. To avoid de-tuning or interference issues, install the antenna as far away as possible from

other devices (minimum 24 inches), including lights, AC units, routers, and other antennas.

B. A clear line of sight to the nearest cell tower is recommended for best performance for

directional antennas.

C. Mount the antenna so that it is centered on a wall stud.

2. Mount the straps on the antenna using the screws provided in the kit.

3. After mounting the straps on the antenna, hold the antenna on the wall and mark the mounting

hole positions.

4. Mount the antenna on the wall or any flat surface using the four wall plugs and screws

5. Secure the antenna cables to the wall roughly 6 inches below the antenna to provide strain relief.

Vinyl electrical tape or cable-ties can be used. If using cable-ties outside, make sure to use UV

resistant cable-ties.

A. Ensure that the antenna cables run vertically at least 8” under the antenna.

B. Ensure that the cables do not bend sharply. Do not bend the cables with a radius of 1.5” or

less.

C. Route the antenna cables adjacent to existing wiring as much as possible

Pointer Installation Instructions Page 7 of 8

Routing the Cable

1. Properly route the cables, making sure there are no sharp bends. Clamp the cables to the wall at

about 6 inches away from the antenna if the cables are being hung straight from the wall.

2. Make sure the antenna is mounted in the correct direction and tighten the mounting hardware.

Waterproof the RF connectors using electrical tape, or a heat shrink tube.

Cable Connection Instructions

Step 1:

Use canned air and/or isopropyl alcohol to clean all the connectors to ensure that there is no dust in the

terminals.

Step 2.

Connect the antenna cables to the designated terminals on the router, as shown in the tables and images

below

S. No

Cable from Antenna

Connector on Router

CELL 1

MAIN0

CELL 2

AUX0

CELL 3

MAIN1

CELL 4

AUX1

GPS

Commission and Testing

6.0 inches

Clamp the cables

For best MIMO performance, use the following in pairs:

CELL 1 & CELL 2

CELL 3 & CELL 4

Pointer Installation Instructions Page 8 of 8

Check each coaxial cable connector and confirm that it cannot be easily loosened. Visually inspect the

coaxial cables to ensure that they are not sharply bent and are sufficiently secured and supported

between the antenna and the router.

Use a cellular device’s built-in diagnostics to confirm the RSSI is higher than -75dB. Confirm the cellular

connection supports communications at required data rates.

Connect the cellular/LTE cables to the router and stow any unused coaxial cables to avoid damage.

CAUTION

To comply with FOC RF Exposure requirements in section 1.1310 of the FCC Rules,

antennas used with this device must be installed to provide a separation distance of at

least 20 cm from all persons to satisfy RF exposure compliance.

DO NOT

•Operate the transmitter when someone is within 24 inches of the antenna

•Install the antenna or mast assembly on a windy day

•Install the mast close to power lines as it can cause serious injuries or death

WARNING

Watch out for overhead power lines. Check the distance to power lines before beginning

installation.

WARNING

This document gives the detailed instructions to install an antenna to the best of our

knowledge. This document is for general information only. It cannot be used as a

warranty. Parsec Technologies Inc. will not accept any liability for any damage caused

by an antenna due to unknown variables.

Parsec Technologies

972-804-4600

[email protected]

Last Revised: 08.07.2023

Table des matières

Autres manuels Parsec Antennas Antenne

Parsec Antennas

Parsec Antennas Chinook Manuel utilisateur

Parsec Antennas

Parsec Antennas AUSTRALIAN SHEPHERD Manuel utilisateur

Parsec Antennas

Parsec Antennas Husky Series Manuel utilisateur

Parsec Antennas

Parsec Antennas BERNESE MOUNTAIN DOG G2 Manuel utilisateur

Parsec Antennas

Parsec Antennas AKITA LITE Manuel utilisateur

Parsec Antennas

Parsec Antennas BLOODHOUND R19D Manuel utilisateur

Parsec Antennas

Parsec Antennas K9 Manuel utilisateur

Parsec Antennas

Parsec Antennas Falcon Series Manuel utilisateur

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur
